Looking for Audi Q6 e-tron fuse box diagrams ? This article covers the luxury crossover SUV Audi Q6 e-tron , available from 2025 , and includes fuse box diagrams for Audi Q6 e-tron 2025, 2026 and 2027 , along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse (fuse layout).

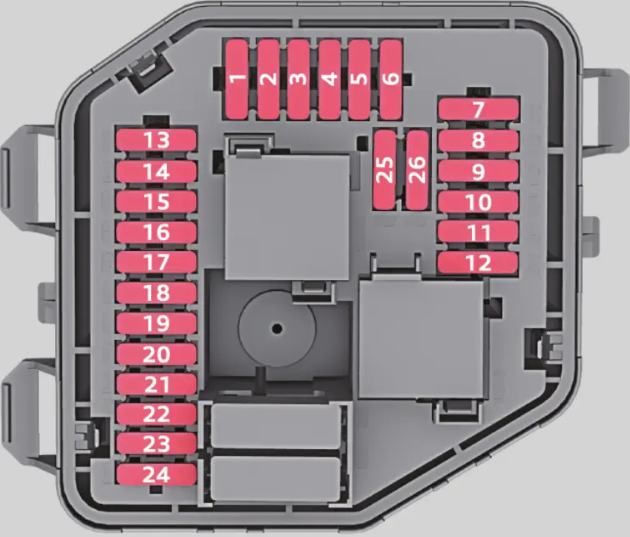

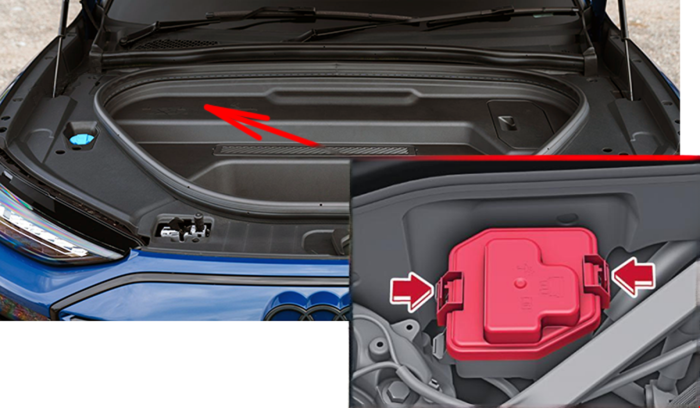

Assignment of the fuses in the front compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 1 USB connection 2 Rearview mirror USB connection 3 Low-voltage power distribution control module, high-voltage system, electric drive power and control electronics 4 Driver’s side/front passenger’s side seat electronics, rearview mirror, diagnostic connection, vehicle electrical system control module 7 Thermal management, climate control system 8 Thermal management, coolant pumps 10 Thermal management, coolant pumps 13 Climate control system compressor 15 Distance regulation control module 18 Transmission fluid pump 21 Radiator fan 22 Laser distance control module 23 Distance regulation control module 24 Laser distance control module 25 Electric drive power and control electronics
This content requires JavaScript and a valid membership to view.

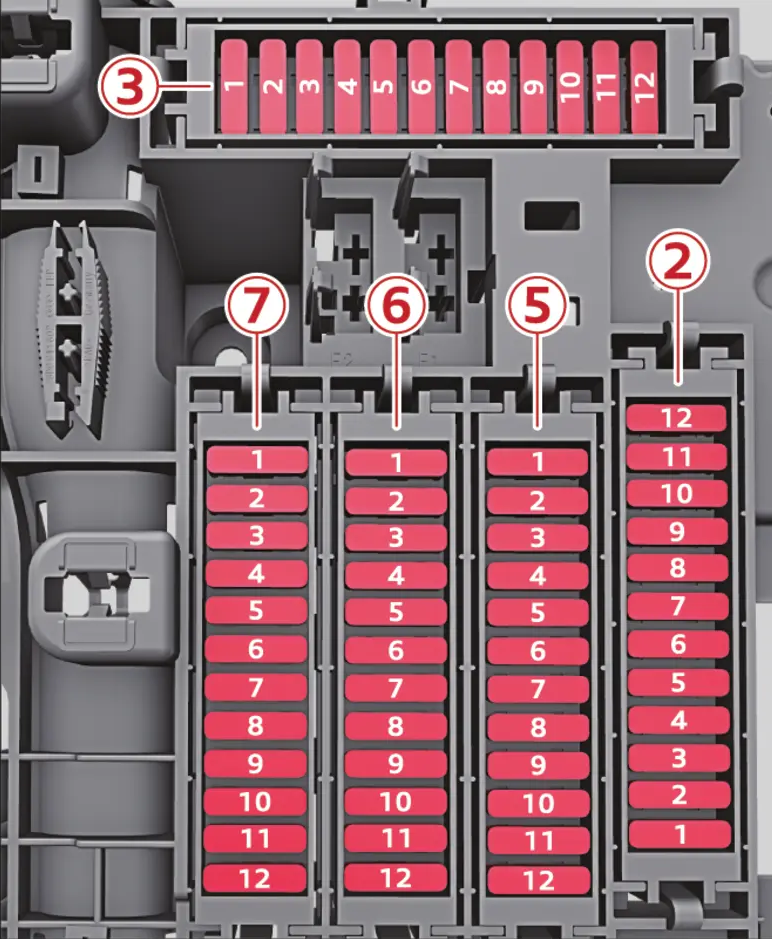

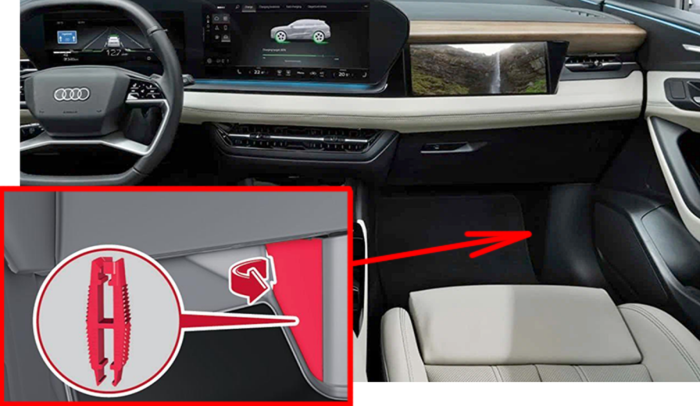

Assignment of the fuses in the front passenger’s footwell Fuse carrier 2 (black)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 2 Diagnostic connection 3 Windshield wipers 4 Databus communication 5 Transmission selector, driver assistance systems control panel 6 Right headlight 8 Drive system and suspension control module 10 2025: Roof electronics control module2026-2027: Roof electronics control module, dash cam11 Left rear door control module 12 Left front door control module
This content requires JavaScript and a valid membership to view.
Assignment of the fuses in the front passenger’s footwell Fuse carrier 3 (white)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 1 Vehicle electrical system control module 2 2025: N/A2026-2027: Panoramic display3 Radar sensors at the front corners of the vehicle 4 Right rear door control module 5 Airbag control module 6 Left headlight 7 Distance regulation control module 9 Emergency call and communication control module 10 Driver assistance systems control module 11 Sensors, driver alert warning, and distraction warning control module 12 Right front door control module
This content requires JavaScript and a valid membership to view.
Assignment of the fuses in the front passenger’s footwell Fuse carrier 5 (blue)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 1 Vehicle electrical system control module 2 Parking lock 3 Panoramic glass roof 4 Exterior sound generator 5 Interior lighting, park assist 6 Left front safety belt tensioner 7 Phone compartment with wireless charging function 8 Headlight washer system, camera and sensors cleaning, front seat heating 10 Rear seat heating control panel 11 2025: Phone compartment with wireless charging function2026-2027: N/A12 USB connection
This content requires JavaScript and a valid membership to view.
Assignment of the fuses in the front passenger’s footwell Fuse carrier 6 (beige)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 1 Switch panel 3 Instrument panel 4 MMI control knob 5 Right front safety belt tensioner 6 Garage door opener 7 Air quality sensor 8 Rear climate control system control panel 9 Left front seat electronics 10 Access/start control module, occupant detection control module 11 2025: Panoramic display2026-2027: N/A12 Right front seat electronics
This content requires JavaScript and a valid membership to view.
Assignment of the fuses in the front passenger’s footwell Fuse carrier 7 (green)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 1 Infotainment system 2 Light/rain sensor 3 Interior lighting 4 Driver’s door control panel, convenience access and start authorization control module 5 Anti-theft alarm system 6 Climate control system, thermal management 9 Horn, anti-theft alarm, vehicle electrical system control module 10 Driver assistance systems front camera (camera behind the windshield) 11 Electronic Toll Collection System (ETC) 12 Vehicle electrical system control module
This content requires JavaScript and a valid membership to view.

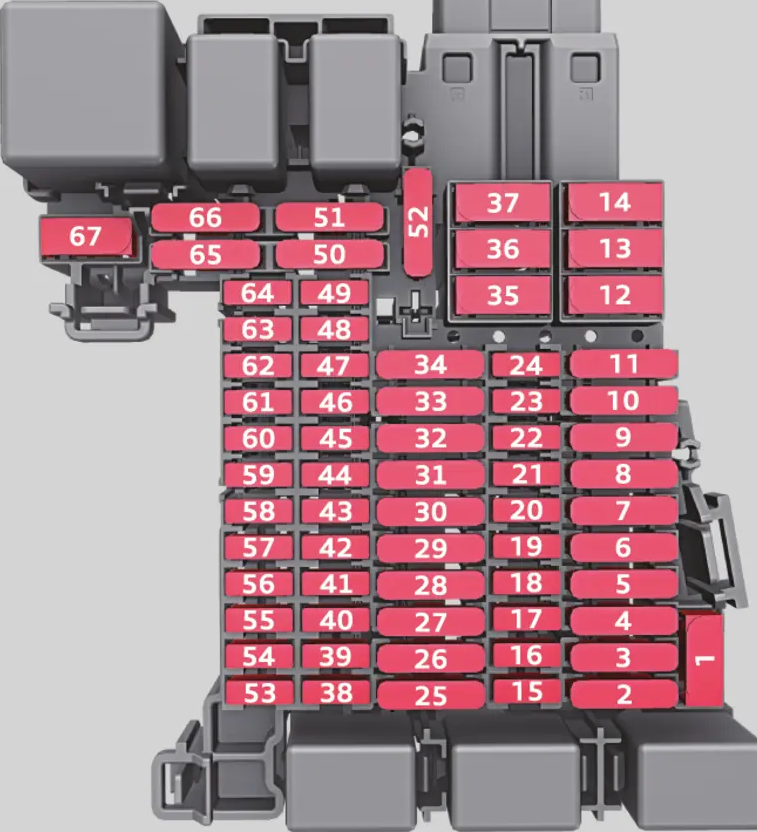

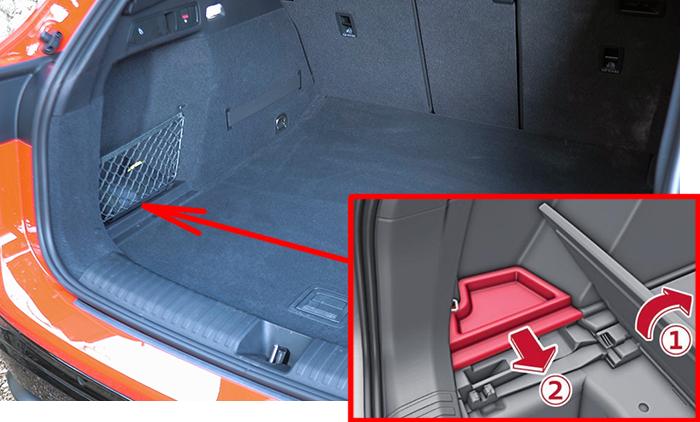

Assignment of the fuses in the trunk
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 1 Luggage compartment lid, rear window defogger control module 2 Convenience system control module 4 Left trailer hitch light 5 Convenience system control module 8 High-voltage battery emergency cut-off point 10 Right trailer hitch light 16 High-voltage battery 17 Radar sensors at the rear corners of the vehicle 25 Driver assistance systems control module 26 Convenience system control module 27 Trailer hitch socket 29 Passenger’s side rear safety belt tensioner 31 12 volt socket, convenience system control module 32 Driver’s side rear safety belt tensioner 36 Air suspension 37 Sound system 39 Charging port door 40 Tire pressure monitoring system 41 Trailer hitch release, trailer hitch socket 42 Rear lid opening control module 43 Charging port door 44 Rearview camera, peripheral camera control module 46 Charging port door 52 Transmission fluid pump 62 Air suspension 63 Data exchange and telematics control module
