Looking for Buick Encore GX fuse box diagrams ? This article covers the facelifted Buick Encore GX (Model Code: 9BUB) , available from 2024 , and includes fuse box diagrams for Buick Encore GX 2024, 2025 and 2026 , along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse and relay (fuse layout).

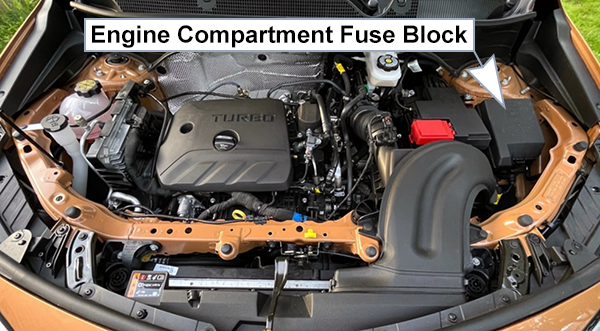

To remove the fuse block cover, squeeze the clip and lift it up.

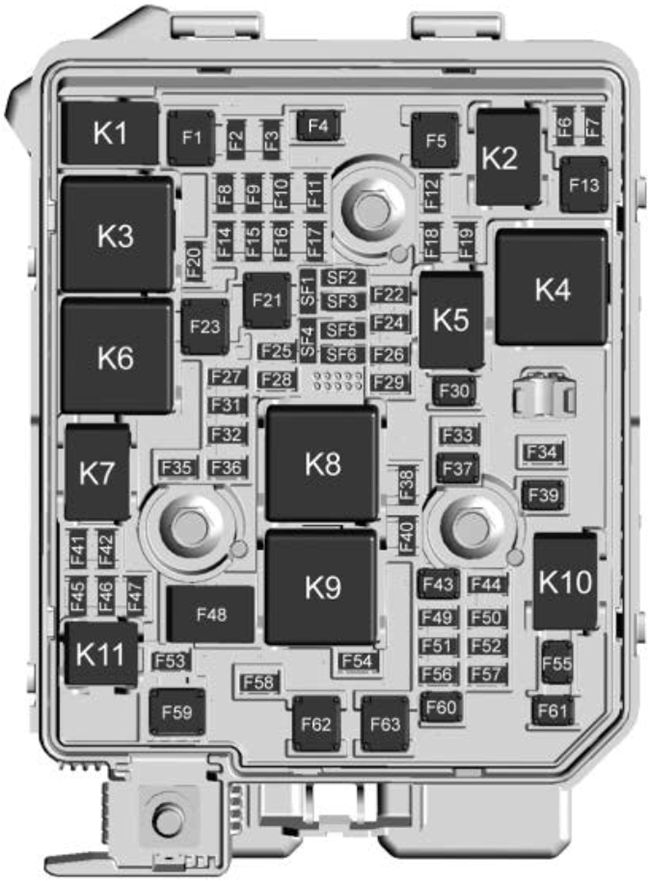

Assignment of the fuses in the engine compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Type Description F1 J-Case N/A F2 Micro Instrument cluster F3 Micro N/A F4 M-Case Front wipers F5 J-Case N/A F6 Micro Mirror heater F7 Micro (L/GATE RELSE) Power back door F8 Micro N/A F9 Micro VENT SEAT F10 Micro N/A F11 Micro N/A F12 Micro N/A F13 J-Case Rear window defogger F14 Micro ISRVM REAR VIEW CAMERA F15 Micro N/A F16 Micro (HDLP LVL) Headlights F17 Micro N/A F18 Micro FTZM F19 Micro N/A F20 Micro N/A F21 J-Case E-BOOST PWR1 F22 Micro (TRLR ST/TRN LT – TRLR) Trailer lights F23 J-Case (STRTR PINION) Starter system F24 Micro (ESCL) Steering lock F25 Micro ECM TCM RUN/CRNK F26 Micro (FRT/REAR WSW PUMP) Windshield washer F27 Micro IGN COIL – GAS F28 Micro AERO SH F29 Micro AHL AFL MDL F30 M-Case (STRTR SOL) Starter system F31 Micro ECM PT2 F32 Micro Engine control system 2 F33 Micro Regulated Voltage Control Sensor F34 Micro Front fog lights F35 Micro Engine control system 1 F36 Micro ECM PT1 F37 M-Case AUX OIL PUMP F38 Micro Trailer lights F39 M-Case N/A F40 Micro N/A F41 Micro Rear wiper F42 Micro Horn F43 M-Case (PWR WNDW RT) Power windows F44 Micro (REAR WPR PRK) Rear wiper F45 Micro A/C magnetic clutch F46 Micro N/A F47 Micro ECM BATT – GAS F48 ET N/A F49 Micro (HDLP HI LH) Left-hand headlight high beam F50 Micro N/A F51 Micro (HDLP HI RH) Right-hand headlight high beam F52 Micro TRLR ST/TRN RT – TRLR F53 Micro AUX WATER PUMP F54 Micro (PEPS) Passive entry / passive start (start button) F55 M-Case (PWR WNDW LT) Power windows F56 Micro (TCM BATT) Transmission control unit F57 Micro N/A F58 Micro CNSTR VENT SOL – GAS F59 J-Case N/A F60 M-Case N/A F61 M-Case N/A F62 J-Case N/A F63 J-Case N/A SF1-SF6 Micro Spare Fuses
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the engine compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Type Description K1 HC Micro Relay N/A K2 HC Micro Relay N/A K3 Mini Relay RUN/CRNK K4 Mini Relay Rear window defogger K5 HC Micro Relay (STRTR SOL) Starter system K6 Mini Relay (STRTR PINION) Starter system K7 HC Micro Relay (A/C) Air conditioning K8 Mini Relay PT RLY K9 Mini Relay N/A K10 HC Micro Relay N/A K11 Ultra Micro Relay N/A
This content requires JavaScript and a valid membership to view.

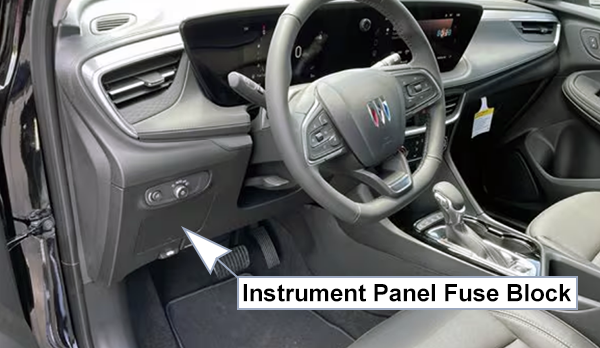

The instrument panel fuse block is on the underside of the driver side instrument panel. To access the fuses, open the fuse cover by pulling out. To reinstall the cover, insert the top tab first, then push the cover back into its original location.

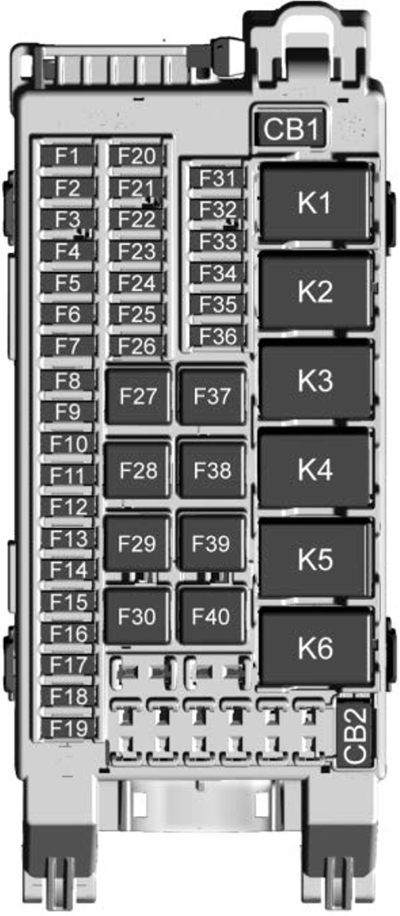

Assignment of the fuses in the passenger compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description F1 (LUMBAR) Power seats F2 Sunroof F3 VBAT_3 F4 VBAT_7 F5 VBAT_6 F6 (AUTO HVAC) Air conditioning system F7 CGM F8 Heated steering wheel F9 DISPLAY F10 Radio and audio system F11 ONSTAR (ERA) F12 PARK ASSIST F13 (MAN. HVAC) Air conditioning system F14 WL CHARGER F15 VBAT_2 F16 VBAT_1 F17 (SWC BKLT) Steering wheel controls backlighting F18 N/A F19 N/A F20 CLOCK SPRING F21 Occupant detection system (airbag) F22 (DLC) Anti-theft system F23 SDM F24 (IGN SW/ESCL) Ignition switch F25 (PWR L-GATE MDL) Power back door F26 SEC FUSE-2 F27 (PWR SEAT CO-DR) Power seats F28 VBAT_8 F29 DC-DC AT F30 (PWR L-GATE MDL) Power back door F31 Mirror heater F32 FRT HS PWR-1 F33 VBAT_4 F34 FRT HS PWR-2 F35 (AMPLIFIER) Audio system F36 ONSTAR (TCP) F37 (PWR SEAT DR) Power seats F38 DC to DC transformer 400 watts F39 SEC FUSE-1 F40 AC blower motor
This content requires JavaScript and a valid membership to view.
Assignment of the circuit breakers in the passenger compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description CB1 N/A CB2 (APO) Auxiliary power outlet
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the passenger compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description K1 i-RAP_ACC K2 RUN K3 LOGISTICS K4 N/A K5 N/A K6 N/A
This content requires JavaScript and a valid membership to view.

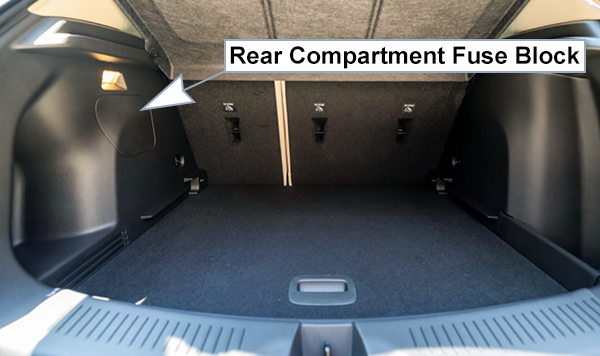

The rear compartment fuse block is behind a cover on the driver side of the rear compartment. To access the fuses, remove the cover.

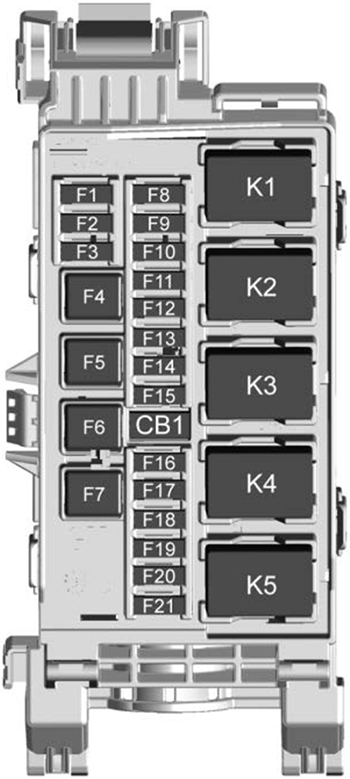

Assignment of the fuses in the luggage compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description F1 N/A F2 RDCM ELEC F3 N/A F4 N/A F5 DC/AC INVERTER F6 N/A F7 RDCM F8 RR SEAT HEAT PWR1 F9 N/A F10 RR SEAT HEAT PWR2 F11 N/A F12 N/A F13 N/A F14 N/A F15 N/A F16 N/A F17 N/A F18 N/A F19 N/A F20 N/A F21 N/A
This content requires JavaScript and a valid membership to view.
Assignment of the circuit breakers in the luggage compartment
Assignment of the relays in the luggage compartment
No. Description K1 N/A K2 N/A K3 N/A K4 N/A K5 N/A
