Buick Rendezvous (2002-2007) Fuse Box Diagrams and Locations

Looking for Buick Rendezvous fuse box diagrams? This article covers the mid-size crossover SUV Buick Rendezvous, produced from 2002 to 2007, and includes fuse box diagrams for Buick Rendezvous 2002, 2003, 2004, 2005, 2006 and 2007, along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse and relay (fuse layout).

What’s Included

Passenger Compartment

Fuse Box Location

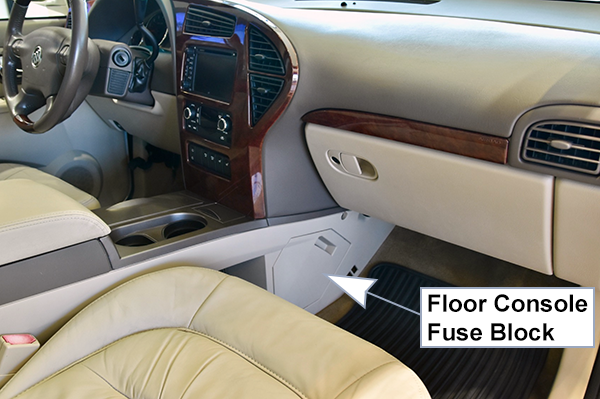

The floor console fuse block is located to the left of the glove box near the floor. The fuses marked spare are available if a replacement fuse is needed. Pull the door open to access the fuse block.

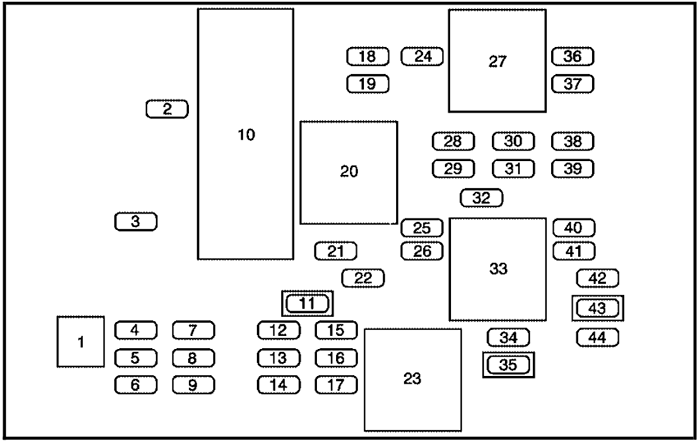

Fuse Box Diagram

Fuses

Assignment of the fuses in the Passenger compartment

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
1	2002-2003: Fuse Puller 2004-2007: Empty
2	Steering Wheel Radio Controls
3	Power Door Locks
4	Empty
5	Empty
6	Empty
7	Empty
8	Empty
9	Empty
10	Turn Signal and Hazard Lamp Flashers
11	Power Seats
12	Electronic Level Control (ELC) Compressor
13	Liftgate and Endgate
14	Rear Auxiliary Power Outlet
15	Electronic Level Control (ELC) Compressor Relay and Height Sensor
16	Heated Mirrors
17	Power Mirrors
18	Ignition 1 Module
19	2002-2003: Turn Signal Switch and NSBU Switch 2003-2007: Turn Signal Switch
21	Rear Defogger
22	Airbag Module
24	2002-2003: Canister Vent Soloid and TCC Switch 2004-2007: TCC Switch
25	HVAC Blower Motor
26	HVAC Mode and Temperature Motors and Head-Up Display
28	Accessory Power
29	Windshield Wipers and Washer
30	Instrument Panel Cluster, Body Control Module (BCM), PASS-Key® III
31	Park Lock Ignition Key Solenoid
32	Rear Window Wiper/Washer
34	Power Sunroof
35	Power Windows
36	Map Lamps, Courtesy Lamps and Instrument Panel Lights
37	Radio
38	UQ3 Radio Amplifier
39	Head-Up Display
40	Hazard Flashers
41	Instrument Panel Cluster, Climate Control, Security LED and Remote Keyless Entry Mode
42	PASS-Key® III
44	Body Control Module (BCM)
46	Automatic Occupant Sensing Module

Relays

Assignment of the fuses in the Passenger compartment

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
20	Rear Defogger Relay
23	Ignition Relay
27	Accessory Relay
33	Retained Accessory Power Relay
43	Accessory Diode
45	2005-2007: Back-Up Lamps

Engine Compartment

Fuse Box Location

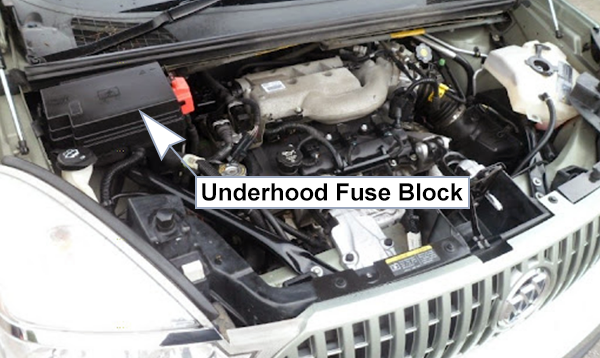

This fuse block is located in the engine compartment, on top of the windshield washer fluid reservoir. To remove the cover, press the two tabs in and lift up the cover. The back-up lamp relay (A) is located behind and to the left of the underhood fuse block.

Fuse Box Diagram

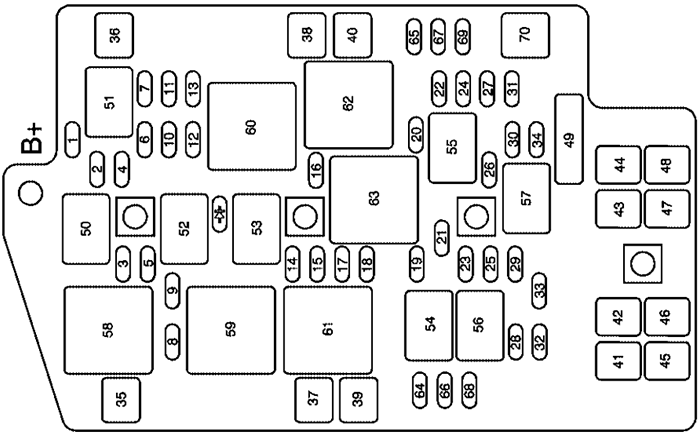

3.4L V6 Engine

Fuses

Assignment of the fuses in the engine compartment (3.4L V6 Engine)

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
1	Fuel Pump
2	Air Conditioning Compressor Clutch
3	Horn
4	Engine Controls-Emissions and Sensors
5	Power Control Module (PCM)-Battery Power
6	Anti-Lock Brakes (ABS) Control Module
7	Transaxle Solenoids
8	Spare
9	ABS Solenoids Valves
10	Oxygen Sensors-Emissions Control
11	Fuel Injectors (Even)
12	Spare
13	Engine Controls
14	Daytime Running Lamps (DRL)
15	Passenger’s Low-Beam Headlamp
16	Spare
17	Driver’s Low-Beam Headlamp
18	Driver’s High-Beam Headlamp
19	Ignition Switch Battery Power
20	Parking Lamps-Front and Rear
21	Air Pump-Emissions Controls
22	Spare
23	Passenger’s High-Beam Headlamp
24	Vent Solenoids
25	Spare
26	Front Fog Lamps
27	Ignition Relay, Neutral Start Switch, Powertrain Control Module (PCM)
28	Body Control Module-Battery Power
29	L Band, Remote Digital Radio Receiver
30	All-Wheel Drive (AWD) Module
31	Cruise Control
32	Front Power Outlets/Lights, OnStar®
33	Automatic Transaxle Shift Lock Control System
34	Spare
35	Starter Solenoid Battery Fuse
36	ABS Motor
37	Spare
38	Spare
39	Engine Cooling Fan 2
40	Engine Cooling Fan 1
41	Main Battery Fuse for Retained Accessory Power Relay and Accessory Relay
42	Main Battery Fuse for Heated Seats, Air
43	Spare
44	Spare
45	Main Battery Fuse for Power Outlets, Level Control, Power Seats and Mirrors and Body Computer
46	Spare
47	Main Battery Fuse for Climate Control Blower and Ignition 3 Relay
48	Main Battery Fuse for Ignition Switch, Radio, Heads-Up Display, Remote Keyless Entry (RKE), Instrument Cluster, Air Conditioning and Body Computer
49	Spare (Circuit Breaker)
64-69	Spare fuses
70	Fuse Puller
Diode	Diode for Air Conditioning Compressor Clutch

Relays

Assignment of the fuses in the engine compartment (3.4L V6 Engine)

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
50	Horn
51	Fuel Pump
52	Air Conditioning Clutch
53	Daytime Running Lamps (DRL)
54	Low-Beam Headlamps
55	Parking Lamps
56	High-Beam Headlamps
57	Fog Lamps
58	Starter Relay
59	Cooling Fan
60	Ignition 1 Relay
61	Cooling Fan
62	Cooling Fan
63	Air pump

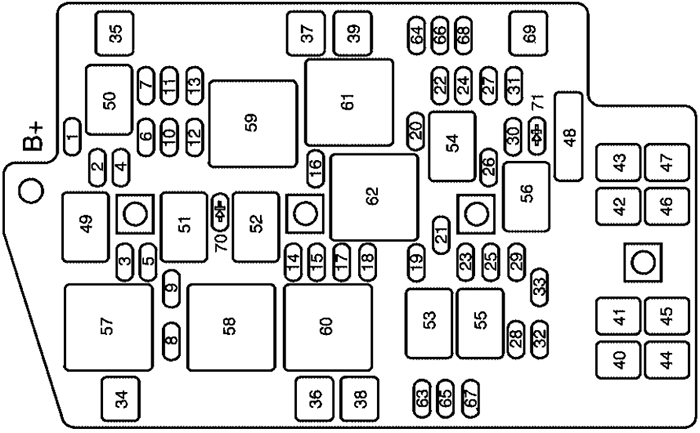

3.6L V6 Engine

Fuses

Assignment of the fuses in the engine compartment (3.6L V6 Engine)

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
1	Fuel Pump
2	Air Conditioning Compressor Clutch
3	Horn
4	Anti-lock Brake System (ABS)
5	Engine Control Module (ECM)
6	Powertrain Relay
7	Powertrain Sensors
8	Transmission Control Module (TCM)
9	Anti-lock Brake System (ABS) Solenoids Valves
10	Oxygen Sensor/MAF Sensor
11	Fuel Injectors (Even)
13	Fuel Injectors (Odd)
14	Daytime Running Lamps (DRL)
15	Passenger’s Low-Beam Headlamp
16	Transmission
17	Driver’s Low-Beam Headlamp
18	Driver’s High-Beam Headlamp
19	Ignition Switch Battery Power
20	Parking Lamps
21	Engine Control Module (ECM)
23	Passenger’s High-Beam Headlamp
24	Vent Solenoids
25	DVD
26	Front Fog Lamps
27	Ignition Relay
28	Body Control Module (BCM)
29	S Band
30	All-Wheel Drive (AWD) Module
31	Cruise Control
32	Front Power Outlets/Lights, OnStar®
33	Automatic Transaxle Shift Lock Control System
34	Starter Solenoid Battery Fuse
35	Anti-lock Brake System (ABS) Motor
38	Engine Cooling Fan 2
39	Engine Cooling Fan 1
40	Main Battery Fuse for Retained Accessory Power Relay and Accessory Relay
41	Main Battery Fuse for Heated Seats, Air Conditioning, Defogger
44	Main Battery Fuse for Power Outlets, Level Control, Power Seats, Mirrors, and Body Computer
46	Main Battery Fuse for Climate Control Blower and Ignition 3 Relay
47	Main Battery Fuse for Ignition Switch, Radio, Heads-Up Display (HUD), Remote Keyless Entry (RKE), Instrument Cluster, Air Conditioning, and Body Computer
70	Diode for Air Conditioning Compressor Clutch
71	Diode for Ignition

Relays

Assignment of the relays in the engine compartment (3.6L V6 Engine)

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
49	Horn
50	Fuel Pump
51	Air Conditioning Clutch
52	Daytime Running Lamps (DRL)
53	Low-Beam Headlamps
54	Parking Lamps
55	High-Beam Headlamps
56	Fog Lamps
57	Starter Relay
58	Cooling Fan S/P
59	Powertrain
60	Cooling Fan 2
61	Cooling Fan 1
62	Ignition

FAQ

Where are the cigar lighter (power outlet) fuses in the Buick Rendezvous?

Passenger compartment fuse box: Fuse №14 – Rear auxiliary power outlet
Engine compartment fuse box: Fuse №32 – Front power outlets / lights
