Buick Skylark | 1992-1998

Looking for Buick Skylark fuse box diagrams? This article covers the sixth-generation Buick Skylark, produced from 1992 to 1998, and includes fuse box diagrams for Buick Skylark 1992, 1993, 1994, 1995, 1996, 1997 and 1998, along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse and relay (fuse layout).

NEED A REPLACEMENT?
Looking for the right fuse or relay?
Search common fuse types, fuse kits and relay options for your vehicle.
Find Fuses & Relays

Passenger Compartment

Fuse Box Location

1992-1995

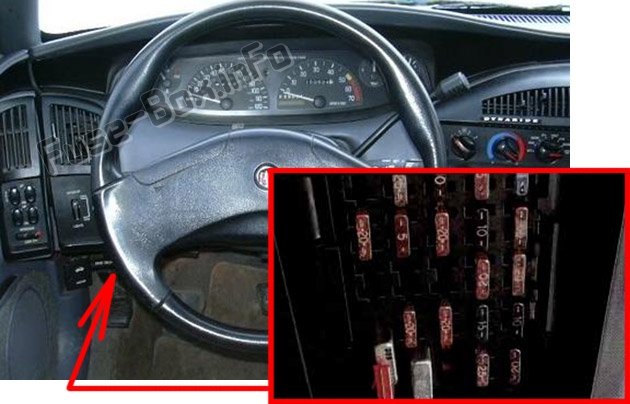

The fuse panel is under the dashboard to the left of the steering column, near the parking brake release lever (pull the cover down to access the fuses).

The location of the fuses in the passenger compartment: Buick Skylark (1992, 1993, 1994, 1995)

1996-1998

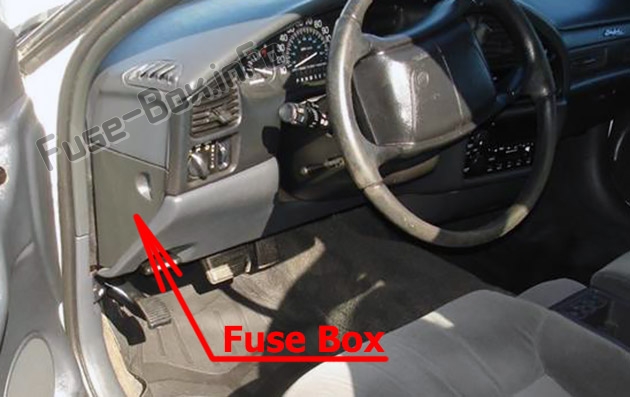

It is located on the left side of the instrument panel (to access, open the fuse panel door).

The location of the fuses in the passenger compartment: Buick Skylark (1996, 1997, 1998)

Fuse Box Diagram

1992-1995

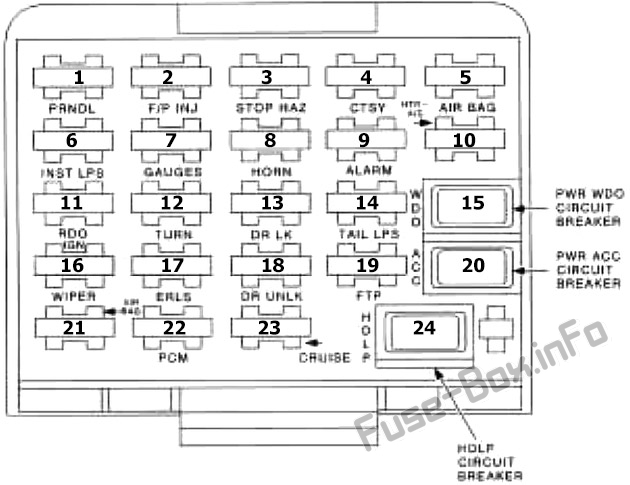

Instrument panel fuse box diagram: Buick Skylark (1992, 1993, 1994, 1995)

Assignment of the fuses in the instrument panel (1992-1995)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Short-CodeDescription
1PRNDL1992-1993: Backup Lamps, Electronic PRNDL Display;
1994-1995: Electronic PRNDL Display
2F/P INJFuel Pump, Injectors
3STOP HAZStop/Hazard Lamps
4CTSY1992-1993: Trunk Lamp,-Door Lock Switches, Power Mirror;
1994-1995: Door Lock Switches, Power Mirrors, Cigar Lighter
5RKE or AIR BAG1992-1993: Remote Keyless Entry (Automatic Transmission Only);
1994-1995: Supplemental Inflatable Restraint, Crank Input
6INST LPSInstrument Panel, Interior lamps Dimming
7GAUGES1992-1993: Gauges, Rear Defog Relay, Antilock Brake Telltale, Brake Transmission Shift Interlock;
1994-1995: Gauges, Rear Defog, Warning Lights
8HORNHorn
9ALARM1992-1993: Multi-Function Alarm Module;
1994-1995: Interior Lamps, Chime, Auto Door Locks, Remote Keyless Entry
10HTR-A/CHeater, Air Conditioning, Antilock Brakes, Daytime Running Lamps (Canada), Computer
Controlled Ride (1992-1993)
11RDO IGN or RDO1992-1994: Radio Power, Cruise Control;
1995: Radio Power
12TURNTurn Signals
13DR LKAuto Door Lock
14TAIL LPSTail Lamps, Marker Lamps, License Lamps
15WDOPower Windows, Sunroof (Circuit Breaker)
16WIPERWindshield Wipers/Washers
17ERLS1992-1993: Engine controls;
1994-1995: Engine Controls, Back-Up Lamps
18DR UNLK1994-1995: Auto Door Unlock (Remove to Disable)
19FTPFlash-to-Pass (U.S. Only)
20ACC1992-1993: Rear Window Defogger, Power Door Locks, Power Seats, Power Antenna (Circuit Breaker);
1994-1995: Rear Window Defogger, Power Seats, Power Sunroof (Circuit Breaker)
21AIR BAG1994-1995: Supplemental Inflatable Restraint
22IGN ECM or PCM1992-1994: ECM, Ignition System;
1995: Powertrain Control Module, Ignition System
23CRUISE1995: Cruise Control
24HDLPHeadlamps (Circuit Breaker)

1996-1998

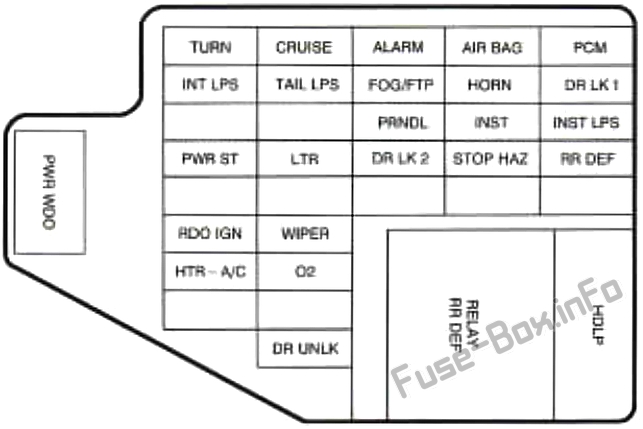

Instrument panel fuse box diagram: Buick Skylark (1996, 1997, 1998)

Assignment of the fuses in the instrument panel (1996-1998)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

Short-CodeDescription
PWR WDOPower Window (Circuit Breaker)
TURNTum Signal Lamps
INT LPSAlarm Module (Illuminated Entry, Warning Chimes, Overhead Lamps, Map/Reading Lamps, Glove Box Lamp, Trunk Lamp, Radio, Power Mirrors), Anti-Lock Brakes, Remote Keyless Entry (1996)
PWR STPower Seat
RDO IGNRadio
HTR-A/CHeater/Air Conditioning Blower, Daytime Running Lamps and Automatic Light Control (If equipped)
CRUISECruise Control
TAIL LPSParking Lamps, Taillamps, Sidemarker Lamps, License Lamps, Instrument Panel Lights, Underhood Lamp, Headlamp Warning Alarm
LTRCigarette Lighter, Auxiliary Power Outlet
WIPERWindshield Wipers/Washers
O2Heated Oxygen Sensors
DR UNLKAutomatic Door Unlock
ALARMAutomatic Transaxle, Automatic Door Unlock, Alarm Module (Illuminated Entry, Warning Chimes), Traction Telltale, Rear Window Defogger, Remote Keyless Entry
FOG/FTPFlash to Pass
PRNDLInstrument Cluster, Powertrain Computer, Park-Lock Solenoid, Electronic PRNDL
DR LK2Door Locks
AIR BAGAir Bag-Power
HORNHorn, Service Tool Power
INSTInstrument Cluster
STOP HAZStoplamps, Hazard Lamps, Anti-Lock Brakes
PCMPowertrain Control Module
DR LK 11996: Door Locks;
1997-1998: Door Locks, Remote Keyless Entry
INST LPSInstrument Panel Lights
RR DEFRear Window Defogger
HDLPHeadlamps, Daytime Running Lamps (If equipped) (Circuit Breaker)

Engine Compartment

Fuse Box Location

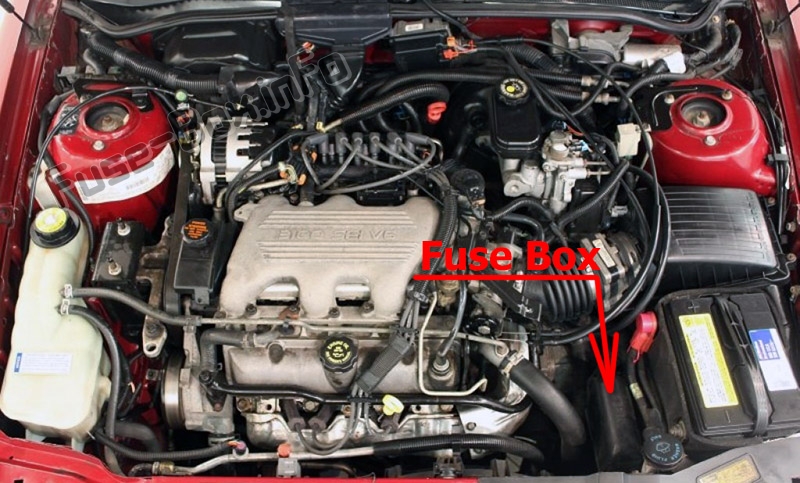

It is located on the driver’s side of the engine compartment, near the battery.

The location of the fuses in the engine compartment: Buick Skylark (1996, 1997, 1998)

Fuse Box Diagram

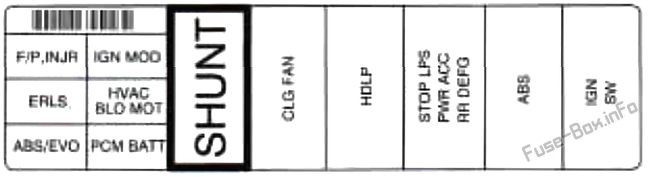

Under-hood fuse box diagram: Buick Skylark (1996, 1997, 1998)

Assignment of the fuses in the engine compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

Short-CodeDescription
F/P INJFuel Pump, Fuel Injectors
ERLSBack-Up Lamps, Canister Purge Valve, EGR, Automatic Transaxle, Brake-Transaxle Shift Interlock, Anti-Lock Brakes, Air Conditioning Compressor, Park Lock Solenoid
ABS/EVOAnti-Lock Brake Solenoids
IGN MODIgnition System
HVAC BLO MOTHeater/Air Conditioner – High Blower, Generator – Voltage Sense
PCM BATTPowertrain Computer
CLG FANEngine Cooling Fan
HDLPLighting Circuits
STOP LPS PWR ACC RR DEFGPower Accessories, Stoplamp Circuits, Rear Window Defogger
ABSAnti-Lock Brakes
IGN SWIgnition Switched Circuits
