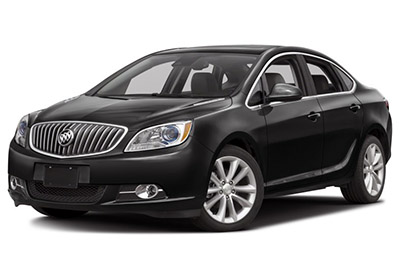

Looking for Buick Verano fuse box diagrams ? This article covers the first-generation Buick Verano , produced from 2012 to 2017 , and includes fuse box diagrams for Buick Verano 2012, 2013, 2014, 2015, 2016 and 2017 , along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse and relay (fuse layout).

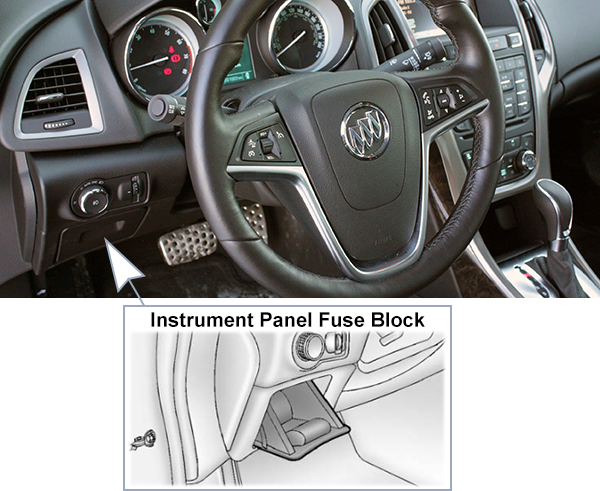

The fuse box is located in the instrument panel, behind the storage compartment to the left of the steering wheel.

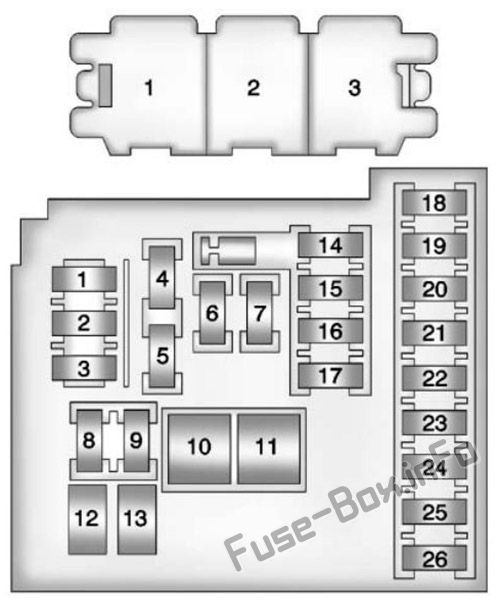

Assignment of the fuses in the instrument panel
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amps Description 1 2A 2012-2013: Body Control Module2014-2017: Steering wheel controls2 20A Body control module 3 20A Body control module 4 20A Infotainment system 5 10A Information display / Parking assist 6 20A 2012-2013: Ignition / Electronic Key System2014-2017: Cigar lighter7 20A Power outlet 8 30A Body control module 9 30A Body control module 10 30A Body control module 11 40A Interior fan 12 25A Driver power seat 13 — Not Used 14 7.5A Diagnostic connector 15 10A Airbag 16 10A Central locking system / Tailgate 17 10A Air Conditioning System 18 30A Infotainment system 19 30A Body control module 20 5A Passenger power seat 21 5.5A Instrument cluster 22 2A / 5A Ignition / Electronic key system 23 20A Body control module 24 20A Body control module 25 — Not Used 26 — Not Used
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the instrument panel
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 1 Trunk open 2 Door security 3 Power outlet
This content requires JavaScript and a valid membership to view.
To open the fuse block cover, press the clips at the front and back and rotate the cover up to the side.

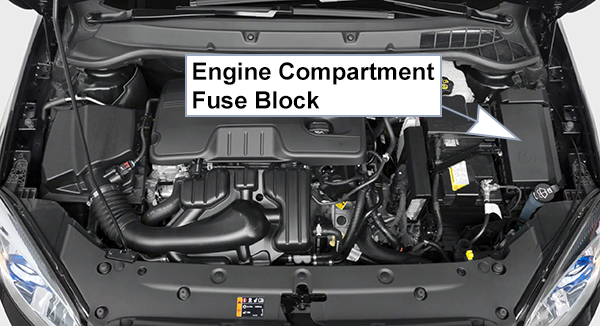

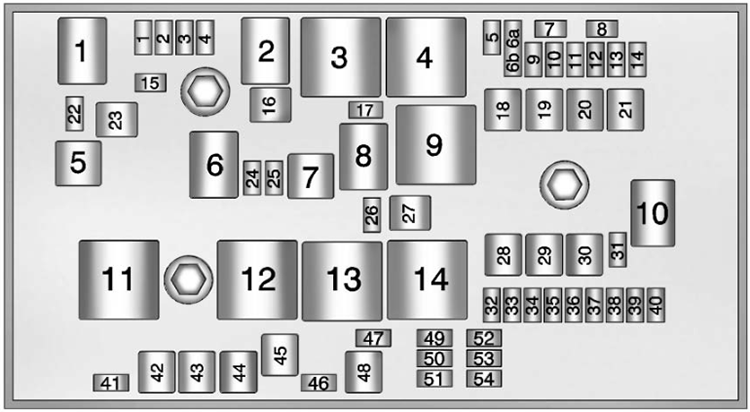

Assignment of the fuses in the Engine compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amps Description 1 20A Engine control module 2 2012-2013: 10A2014-2017: 7.5AO2 sensor/ Purge solenoid 3 15A Ignition coils/ Injectors 4 15A Spare 5 — Not used 6a — Not used 6b 7.5A Mirror defogger 7 5A Powertrain cooling 8 7.5A Mass airflow sensor/Pre – O2 sensor 9 — Not used 10 5A Battery potential signal 11 7.5A Spare 12 — Not used 13 25A Antilock Brake System Valves 14 — Not used 15 10A Engine control module 16 30A Starter control 17 10A Transmission control module 18 30A Rear window defogger 19 30A Front power window 20 30A Rear power window 21 40A Rear electrical center 22 — Not used 23 — Not used 24 15A Right high-beam headlamp 25 15A Left high-beam headlamp 26 15A Front fog lamps 27 50A Spare 28 — Not used 29 30A Electric parking brake 30 60A ABS pump 31 — Not used 32 5A Airbag 33 — Not used 34 7.5A Spare 35 7.5A 2012-2015: Air Conditioning Compressor Clutch2016-2017: Door switch supply/Left power window36 10A A/C clutch 37 10A Canister vent 38 — Not used 39 20A Fuel system control module 40 10A Front windshield washer 41 — Not used 42 40A Engine cooling fan (RPO LEA) 43 30A Front wipers 44 — Not used 45 30A Engine cooling fan (RPO LEA) 46 — Not used 47 15A Horn 48 60A Engine cooling fan 49 20A Fuel pump 50 5A 2012-2015: Not used2016-2017: Rear vision camera51 2012-2013: 5A2014-2017: 7.5AInterior rearview mirror 52 — Not used 53 2012-2013: 10A2014-2017: 7.5AIgnition Engine Control Module/ Transmission Control Module 54 7.5A Instrument Cluster/Fuel System Control Module/ Heater, Ventilation, and Air Conditioning Run/Crank
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the Engine compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 1 Not used 2 Starter 3 Engine control powertrain 4 Rear window defogger 5 Not used 6 2012-2013: Empty2014-2017: High-beam headlamps7 Spare 8 Not used 9 Spare 10 EGR/Coolant pump/ AIR solenoid valve 11 Engine cooling fan (RPO LEA) 12 Engine cooling fan (RPO LEA) 13 Engine cooling fan (RPO LEA) 14 Run/Crank
This content requires JavaScript and a valid membership to view.

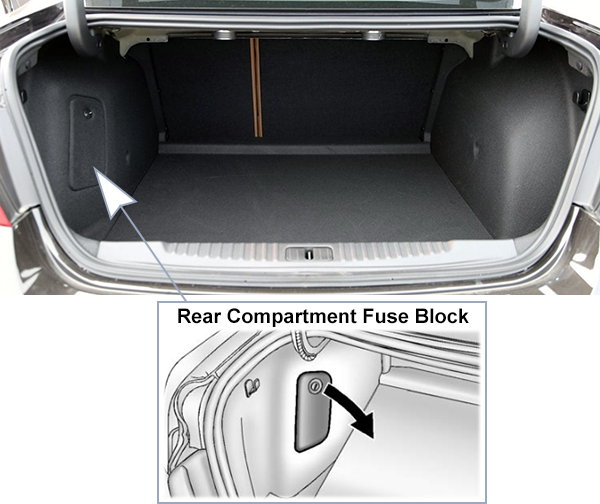

It is located in the left side of the luggage compartment, behind the cover.

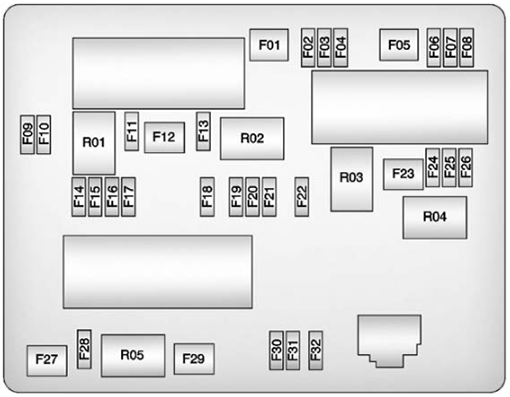

Assignment of the fuses in the rear compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Type Amps Description F02 Mini — Empty F03 Mini 5A Rear parking assist F04 Mini — Empty F05 Mini — Empty F06 Mini — Empty F07 Mini 10A Spare F08 Mini — Empty F09 Mini — Empty F10 Mini — Empty F11 Mini — Empty F12 Mini — Empty F13 Mini — Empty F14 Mini — Empty F15 Mini — Empty F16 Mini 5A Rear vision camera F17 Mini — Empty F18 Mini — Empty F19 Mini 7.5A Heated steering wheel F20 Mini 25A Sunroof F21 Mini 25A Heated seats F22 Mini — Empty F24 Mini — Empty F25 Mini 5A Side blind zone alert F26 Mini 30A Spare F27 Mini 30A Passive entry/ Passive start F28 Mini — Empty F30 Mini — Empty F31 Mini 30A Amplifier F32 Mini — Empty F01 J-Case — Empty F05 J-Case — Empty F12 J-Case — Empty F23 J-Case — Empty F27 J-Case 30A Passive Entry F29 J-Case — Empty
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the rear compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description R01 2012-2013: Empty2014-2017: Run/CrankR02 2012-2015: Run2016-2017: EmptyR03 Empty R04 Empty R05 Empty
This content requires JavaScript and a valid membership to view.
