Find Cadillac Eldorado fuse box diagrams for 1997–2002 models with relay assignments, fuse locations, panel layouts, and electrical system details. This article covers the facelifted twelfth-generation Cadillac Eldorado, available from 1997, and includes fuse box diagrams for Cadillac Eldorado 1997, 1998, 1999, 2000, 2001 and 2002, along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse and relay (fuse layout).
NEED A REPLACEMENT?
Looking for the right fuse or relay?
Search common fuse types, fuse kits and relay options for your vehicle.

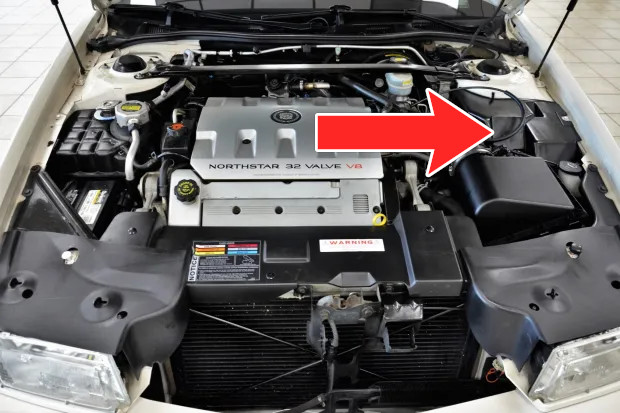

The fuse boxes are located on the driver’s side of the engine compartment, beneath the shroud cover. Raise the cover to access the block. To reach the MaxiFuse/Relay Center, remove the shroud cover.

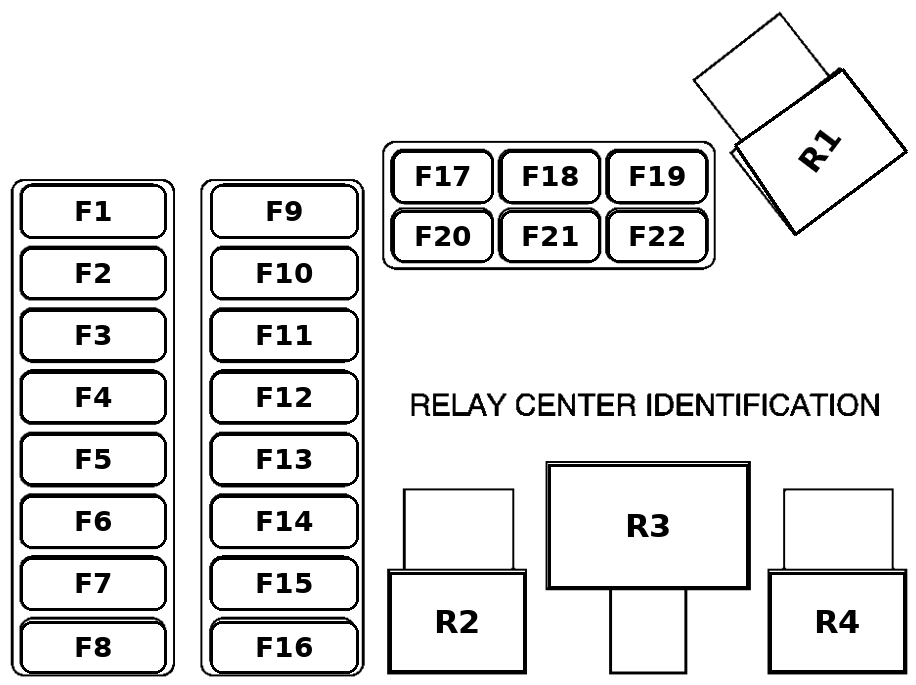

Fuse Box Diagram (MaxiFuse/Relays)
Fuses

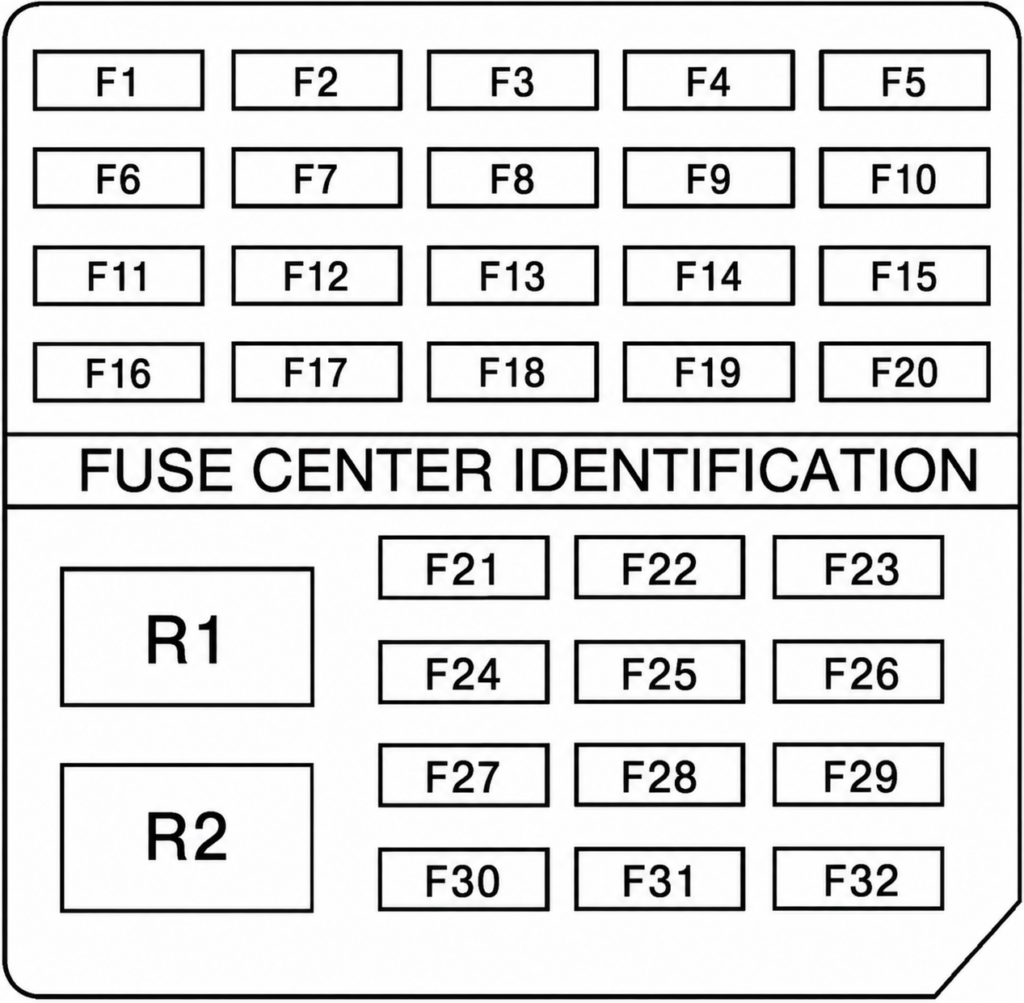

Assignment of the fuses in the engine compartment MaxiFuse/Relay center
Fuse Data
Full access is available to registered users — log in or register.
Road Sensing Suspension (RSS) Fuse (ETC Only), Convenience Fuse, BATT Fuse, Antenna Fuse, Passenger and Driver Seat Belt Comfort Solenoids, Trunk and Fuel Door Release Solenoids and Relays, Door Lock/Unlock Relays, Damper Relay (ETC Only), Parking Lamp Relay, Right and Left Park Fuse
F2
BODY 2
Defog Relay, Pull-Down Fuse, Right and Left Heated Seat Fuses, Electronic Level Control (ELC) Relay, Heated Mirror Fuse, Heated Backlite Fuse, ELC Circuit Breaker
F3
BODY 3
Controlled Power Relay, Controlled Power Back-Up Relay, Cluster Fuse, Passenger Zone Module (PZM) Fuse, Radio Fuse, RAP Relay, Trunk and Fuel Door Release Relay, High-Beam Relay, Comfort Fuse, AMP Fuse (Optional), Right and Left Bose Relay (Optional)
Headlamps Fuse/Relay, High/Low Beam Control Relay, Fog Lamp Fuse, DRL Fuse, Hazard Fuse, Mirror Fuse, Inadvertent Power Relay, Right and Left High-Beam Fuse, Right and Left Low-Beam Fuse, Stoplamp Fuse, Fog Lamp Relay, DRL Relay
1997-1998: Delayed Accessory Bus (DAB) Relay 2000-2002: Retained Accessory Power (RAP) Relay
F8
SEATS
Horn Relay, Driver and Passenger Lumbar In/Out Relays, Driver and Passenger Lumbar Up/Down Relays
F9
—
–
F10
AIR
–
F11
BATT 3
Steering Column Ignition Switch
F12
BATT 2
Steering Column Ignition Switch
F13
IGN 1
Front and Rear Ignition-1 Relay, Oxygen Sensor 1 and 2 Fuse, Fuel Fuse, Cruise Fuse, DRL Relay, Front and Rear Fog Lamp Relay, Control Power Back-up Relay, Ignition-1 Fuse, Fuel Pump Relay
F14
BATT 1
Starter Relay and Solenoid, Park/Reverse Fuse, Park Relay, Powertrain Control Module (PCM) Fuse, A/C Compressor Fuse and Relay, Fan Relays, Reverse Relay
F15
BRAKES
Anti-Lock Brake System (ABS) Brake Modulator
F16
COOL FANS
Cooling Fan Relays 1 and 3
F17
DRL
Daytime Running Lamps (DRL)
F18
HORN
Horn
F19
ACCESSORY
Accessories
F20
HI/LO BEAM
High and Low-Beam Headlamps
F21
FOG LPS
Fog Lamps
F22
HEAD LPS
Headlamps
Relays
Assignment of the relays in the engine compartment MaxiFuse/Relay center
Fuse Data
Full access is available to registered users — log in or register.

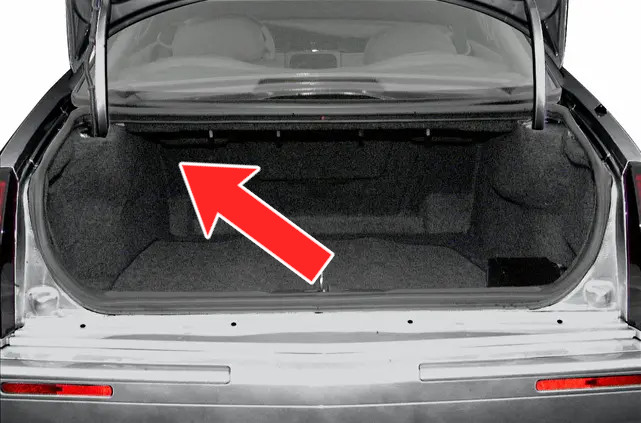

The fuse block is positioned on the front wall of the trunk, on the driver’s side. Remove the four trunk trim fasteners and pull the trim back from the block to access it.
Fuse Box Diagram
Fuses

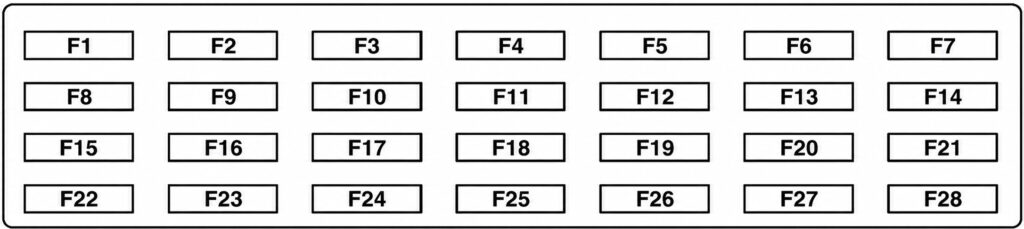

Assignment of the fuses in the Rear Compartment Fuse Block
Fuse Data
Full access is available to registered users — log in or register.
Cluster, Cruise in Stalk, Passenger Zone Module (PZM), Torque Converter Clutch (TCC) Switch
F2
SIR
Sensing and Diagnostic Module (SDM)
F3
ELC
Electronic Level Control (ELC) Relay, ELC Height Sensor
F4
TURN
Electronic Flasher, Turn/Hazard Switch
F5
CONSOLE
Rear Zone Blower, Right and Left Heated Seat Switches (Optional)
F6
SPARE
Spare Fuse
F7
SPARE
Spare Fuse
F8
RSS
Road Sensing Suspension (RSS) Module (ETC Only)
F9
IGN 0-BODY
PRNDL, PZM, Cluster, Air Control Module (ACM), Upper Zone Motor, Lower Zone Motor (Optional), HVAC Solenoids, Climate Control Panel, Rear Defog Relay, ELC Relay
F10
COMFORT
CD Player, Remote Keyless Entry (RKE), Controlled Power Relay, Air Control Module (ACM), PZM
F11
AMP
(Optional) Right and Left Bose Relay, Right and Left Front Speakers (On Door), Right and Left Rear Speakers
F12
PZM
Passenger Zone Module (PZM)
F13
RADIO/PHONE
Radio Receiver, Radio Interface Module (RIM) (Optional), Phone, RAP Relay, Trunk Release Relay, Fuel Door Release Relay, High/Low-Beam Relay
Trunk Release Relay, Trunk Release Solenoid, Fuel Door Release Relay, Fuel Filler Door Release Solenoid, Door Lock Relay, Left and Right Door Motors, PZM, Door Unlock Relay
F25
BATT
Driver and Passenger Seat Lumbar Switch (Optional), Driver and Passenger Seat Belt Comfort Solenoid, Memory Seat Module (Optional)
F26
RSS
Road Sensing Suspension (RSS) Module (ETC Only)
F27
RT PARK
Headlamp Switch, Right Front Parking Lamp, Right Front and Rear Sidemarker Lamps, Right Turn/Stop/Tail Lamps
F28
LT PARK
Left Front and Rear Sidemarker Lamps, Left Front Parking Lamp, Left Turn/Stop/Tail Lamps, Right and Left License Lamps, Underhood Lamp
FAQ
Where are the cigar lighter (power outlet) fuses in the Cadillac Eldorado?
They are located in the engine compartment fuse box: “CIG LTR1” – Front and rear cigarette lighters (full console models) “CIG LTR2” – Right and left rear cigarette lighters
