Explore Cadillac SRX fuse box diagrams for 2010–2016 models with relay locations, fuse assignments, panel layouts, and electrical system information. This article covers the second-generation Cadillac SRX , available from 2010 , and includes fuse box diagrams for Cadillac SRX 2010, 2011, 2012, 2013, 2014, 2015 and 2016 , along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse and relay (fuse layout).

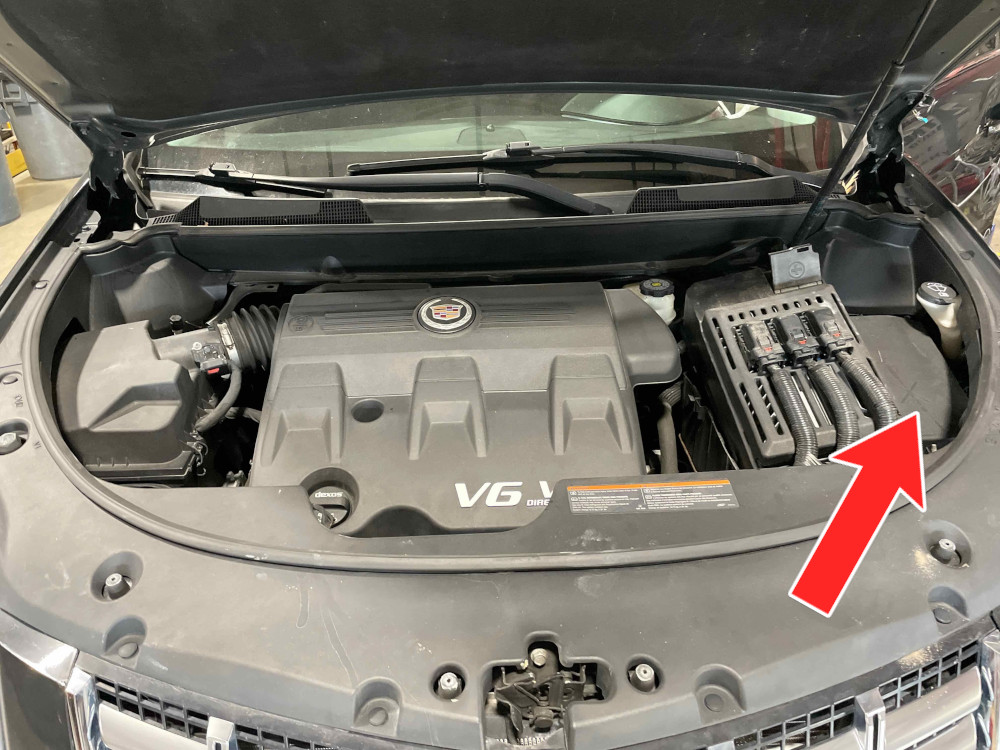

Fuse box is located in the engine compartment on the driver side.

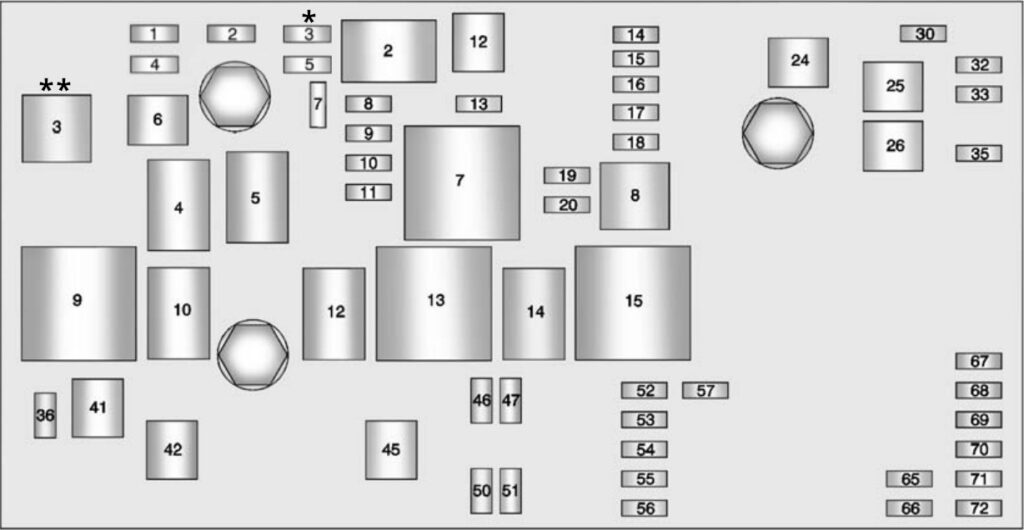

* – 2010-2011** – 2012-2016Assignment of the fuses in the engine compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Type Description 1 Mini Engine Control Module Battery 2 Mini Transmission Control Module Battery 3 Mini 2010-2011: Mass Air Flow Sensor4 Mini Not Used 5 Mini Engine Control Module Run Crank 6 J-Case Wiper 7 Mini Post–Catalytic Converter O2 Sensor 8 Mini Pre–Catalytic Converter O2 Sensor 9 Mini Engine Control Module Powertrain 10 Mini Fuel Injectors–Even 11 Mini Fuel Injectors–Odd 12 J-Case Vacuum Pump 13 Mini Washer 16 Mini Instrument Panel Cluster / Malfunction Indicator Lamp / Ignition 17 Mini Air Quality Sensor 18 Mini Headlamp Washer 19 Mini Transmission Control Module Run Crank 20 Mini Rear Electrical Center Run Crank 23 Mini 2010-2011: Heater Motor24 J-Case Antilock Brake System Pump 25 J-Case Rear Electrical Center 1 26 J-Case Rear Electrical Center 2 27 J-Case Not Used 30 Mini Switch Back Light 32 Mini Battery Sense (Regulated Voltage Control) 33 Mini Adaptive Forward Lighting / Adaptive Headlamp Leveling Module 34 Mini Body Control Module 7 35 Mini Electronic Brake Control Module 36 Mini Air Conditioning Compressor Clutch 41 J-Case Cooling Fan 2 42 J-Case Starter 43 J-Case Not Used 44 J-Case Not Used 45 J-Case Cooling Fan 1 46 Mini Low Beam Headlamp‐Right 47 Mini Low Beam Headlamp‐Left 50 Mini Front Fog Lamps 51 Mini Horn 52 Mini Fuel System Control Module 53 Mini Headlamp Level 54 Mini Sensing Diagnostic Module Ignition 55 Mini High Beam Headlamp–Right 56 Mini High Beam Headlamp–Left 57 Mini Ignition Steering Column Lock 59 J-Case 2010-2011: Secondary AIR Pump65 Mini Trailer Right Stop Lamp 66 Mini Trailer Left Stop Lamp 67-72 Mini Spare fuses
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the engine compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Type Description 2 Micro relay Vacuum Pump 3 U-Micro relay 2012-2016: Air Conditioning Compressor Clutch4 Micro relay Wiper Control 5 Micro relay Wiper Speed 7 Mini relay Powertrain 8 U-Micro relay Headlamp Washer 9 Mini relay Cooling Fan 2 10 Micro relay Starter 12 Micro relay Cool Fan 3 13 Mini relay Cooling Fan 1 14 Micro relay Low Beam / HID 15 Mini relay Run/Crank 16 Mini relay 2010-2011: Secondary AIR Pump
This content requires JavaScript and a valid membership to view.

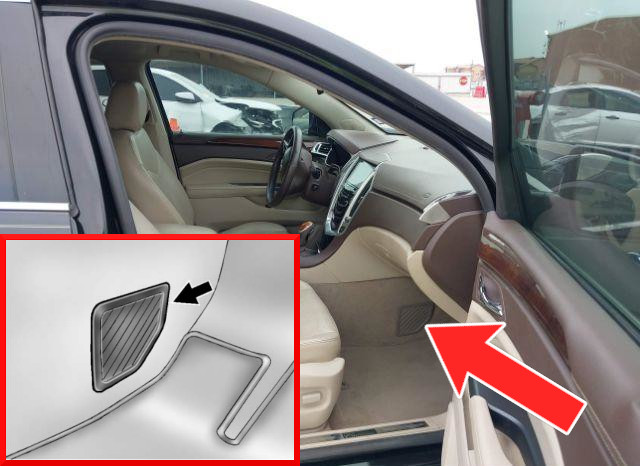

It is situated beneath the instrument panel on the passenger side, behind the cover on the center console.
2010-2011
2012-2016

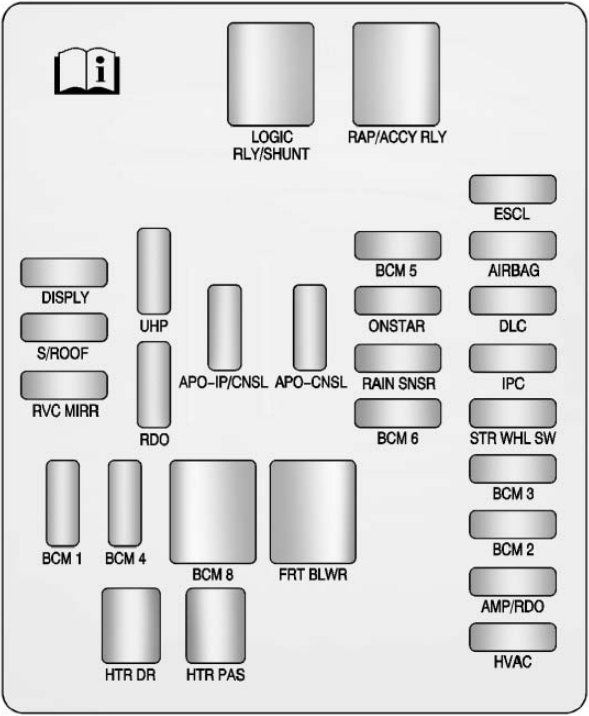

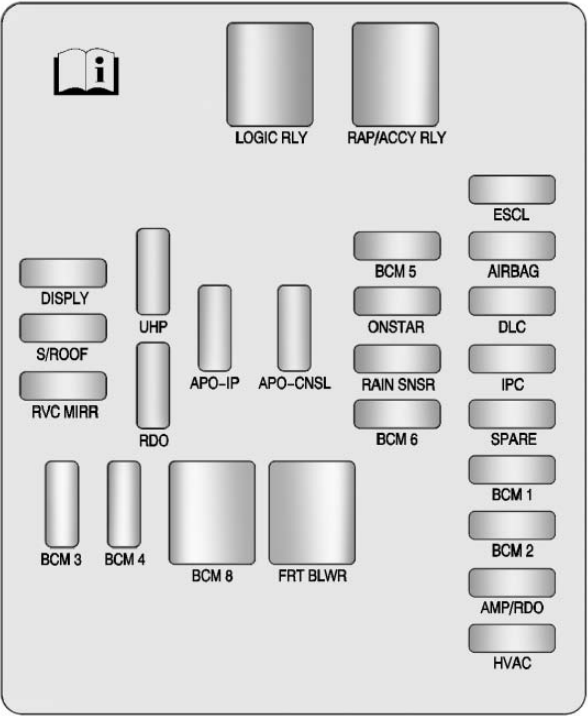

Assignment of the fuses in the passenger compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Type Description DISPLY Mini Display S/ROOF Mini Sun Roof RVC MIRR Mini Rear Vision Camera Mirror UHP Mini Universal Handsfree Phone RDO Mini Radio APO ‐ IP Mini Auxiliary Power Outlet ‐ Instrument Panel APO ‐ CNSL Mini Auxiliary Power Outlet ‐ Floor Console BCM 3 Mini Body Control Module 3 BCM 4 Mini Body Control Module 4 BCM 5 Mini Body Control Module 5 ONSTAR Mini OnStar® System (If Equipped) RAIN SNSR Mini Rain Sensor BCM 6 Mini Body Control Module 6 ESCL Mini Electronic Steering Column Lock AIRBAG Mini Sensing and Diagnostic Module DLC Mini Data Link Connection IPC Mini Instrument Panel Cluster STR WHL SW Mini Steering Wheel Switch BCM 1 Mini Body Control Module 1 BCM 2 Mini Body Control Module 2 AMP/RDO Mini Amplifier/Radio HVAC Mini Heating Ventilation & Air Conditioning BCM 8 J-Case Body Control Module 8 FRT BLWR J-Case Front Blower
This content requires JavaScript and a valid membership to view.
Assignment of the circuit breakers in the passenger compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Type Description HTR DR Circuit breaker Heated Driver Seat HTR PAS Circuit breaker Heated Passenger Seat
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the passenger compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Name Type Description LOGIC RLY Relay Logistics Relay RAP/ACCY RLY Relay Retained Accessory Power/Accessory Relay
This content requires JavaScript and a valid membership to view.

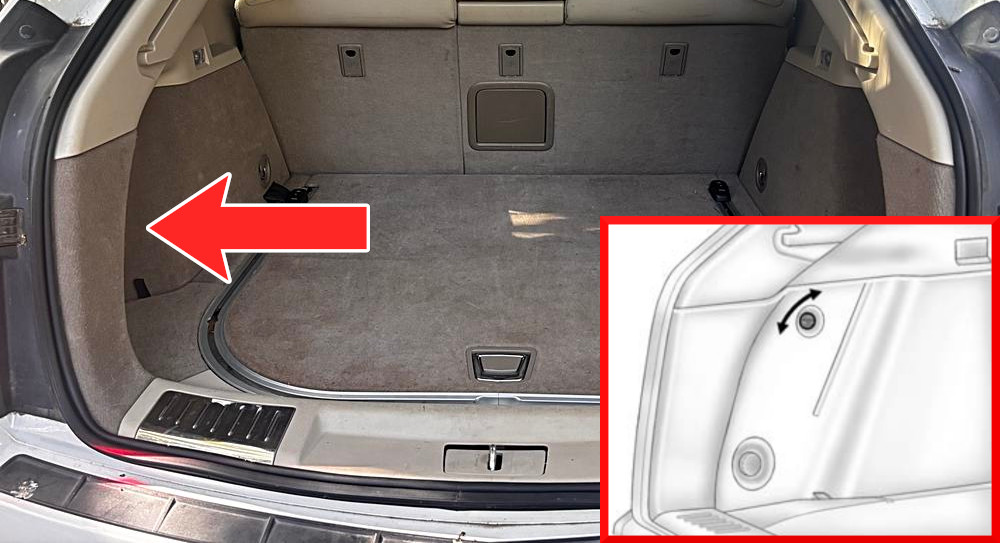

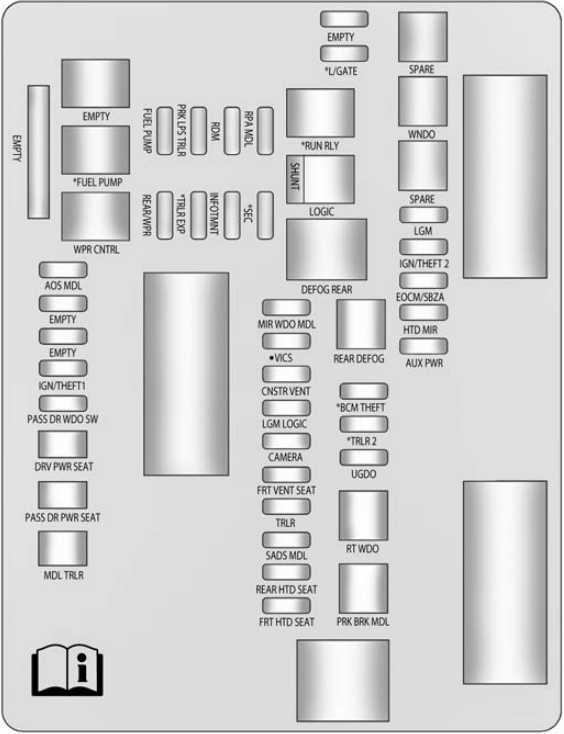

Assignment of the fuses in the luggage compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description SPARE FUSES Spare Fuses AOS MDL Automatic Occupant Sensing Module SPARE Not Used SPARE Not Used DLC2 Data LinkConnector 2 PASS DR WDO SW Passenger Door Window Switch DRV PWR SEAT Driver Power Seat PASS DR PWR SEAT Passenge/Driver Power Seats MDL TRLR Trailer Module RPA MDL Rear Parking Assist Module RDM Rear Drive Module PRK LPS TRLR Trailer Park Lamps FUEL PUMP Fuel Pump SEC Security INFOTMNT Infotainment TRLR EXP Trailer Export WPR REAR Rear Wiper MIR WDO MDL Mirror Window Module VICS Vehicle Information Communications System (Export) CNSTR VENT Canister Vent LGM LOGIC Lift Gate Module Logic CAMERA Rear Vision Camera FRT VENT SEAT Front Ventilated Seats TRLR MDL Trailer Module SADS MDL Semi Active Damping System Module RR HTD SEAT Rear Heated Seats FRT HTD SEAT Front Heated Seats THEFT HORN Theft Horn LGATE Liftgate SHUNT Shunt REAR DEFOG Rear Defog BCM THEFT Body Control Module Theft TRLR 2 Trailer 2 UGDO Universal Garage Door Opener RT WDO Right Window PRK BRK MDL Park Brake Module SPARE Not Used LT WDO Left Window WNDO Power Window IGN/THEFT 1 Ignition/Theft 1 LGATE MDL Liftgate Module IGN/THEFT 2 Ignition/Theft 2 EOCM/SBZA External Object Calculating Module/Side Blind Zone Alert HTD MIR Heated Mirror AUX PWR Auxiliary Power Outlet
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the luggage compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description SPARE Not Used FUEL PUMP Fuel Pump WPR CONTRL Wiper Control RUN RLY Run Relay LOGIC Logistic Relay DEFOG REAR Rear Window Defogger
This content requires JavaScript and a valid membership to view.
