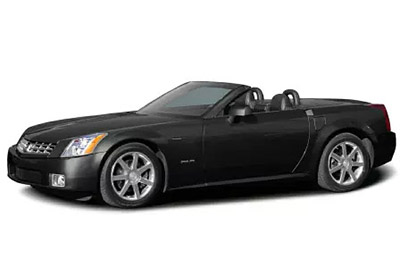

Browse Cadillac XLR fuse box diagrams for 2004–2009 models with relay locations, fuse assignments, panel layouts, and electrical system details. This article covers the luxury roadster Cadillac XLR , available from 2004 , and includes fuse box diagrams for Cadillac XLR 2004, 2005, 2006, 2007, 2008 and 2009 , along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse and relay (fuse layout).

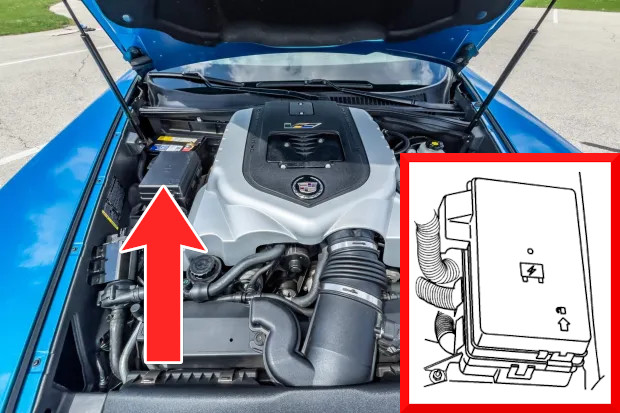

Fuse box is located in the engine compartment on the passenger’s side.

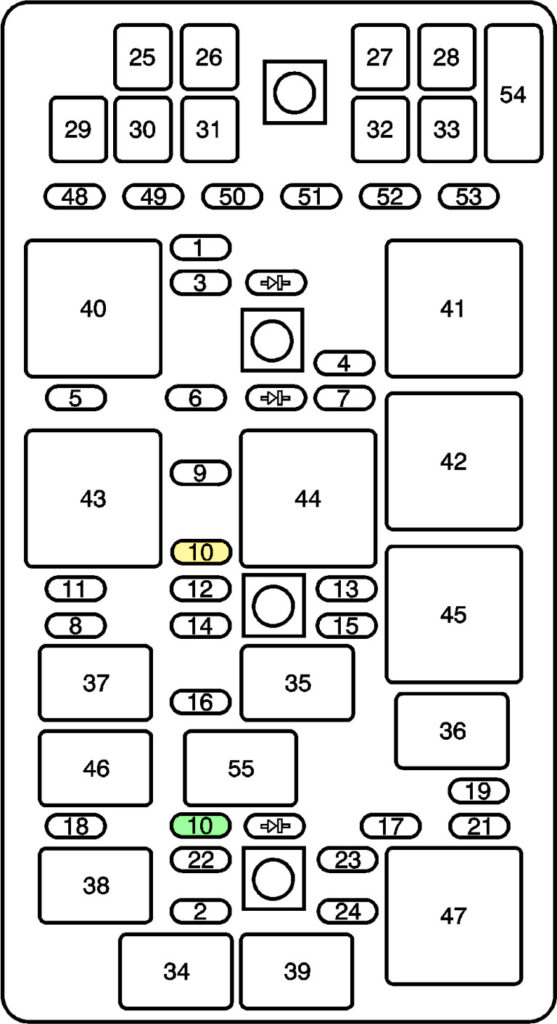

Yellow – 2004 to 2005 Assignment of the fuses in the engine compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 1 2004-2008: Anti-Lock Brake System, Magnetic Ride Control2009: Antilock Brake System, Electronic Suspension Control, Adaptive Forward Lighting System (AFS)2 Horn 3 Adaptive Cruise Control (ACC), Transmission Controls 4 Windshield Wipers 5 Stop/Back-Up Lamps 6 Oxygen Sensor 7 Battery 5 8 Parking Lamps 9 Electronic Throttle Control 10 Fuel Pump 11 2004-2008: Engine Control Module, Transmission Control Module2009: Antilock Brake System (ABS)12 Odd Injectors 13 Electronic Suspension Control 14 Emission Controls 15 Air Conditioning Compressor 16 Even Injectors 17 2004-2005: Windshield Washer2006-2008: Windshield Washer, Intercooler Pump2009: Windshield Washer, Adaptive Forward Lighting System (AFS), Intercooler Pump18 Headlamp Washer 19 Right Low Beam Headlamp 20 Not Used 21 Left Low Beam Headlamp 22 Fog Lamp 23 Right High Beam Headlamp 24 Left High Beam Headlamp 25 2004-2005: Not Used2006-2009: Cooling Fan26 Battery 3 27 Anti-Lock Brakes 28 Climate Controls 29 Battery 2 30 Starter 31 Audio Amplifier 32 2004-2005: Not Used2006-2009: Cooling Fan33 Battery 1 48-52 Spare fuses 53 Not Used 54 Fuse Puller 56 2009: Engine Control Module, Transmission Control Module
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the engine compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 34 Horn 35 Air Conditioning Compressor 36 Windshield Washer 37 Parking Lamps 38 Fog Lamps 39 High Beam Headlamps 40 Rear Window Defogger 41 Windshield Wiper High/Low 42 Wiper RUN/ACCESSORY Power 43 Starter/Crank 44 Ignition 1 45 Windshield Wiper On/Off 46 Headlamp Washer 47 Low Beam Headlamps 55 2006-2009: Fuel Pump
This content requires JavaScript and a valid membership to view.

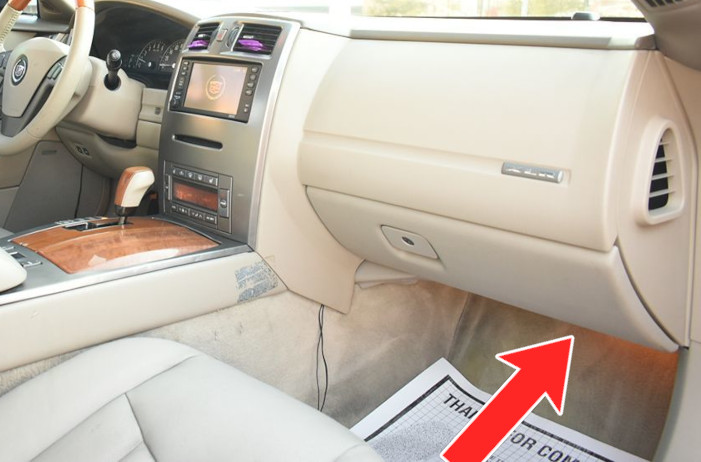

The fuse box is situated beneath the glove box, in the front passenger footwell behind the toe board.

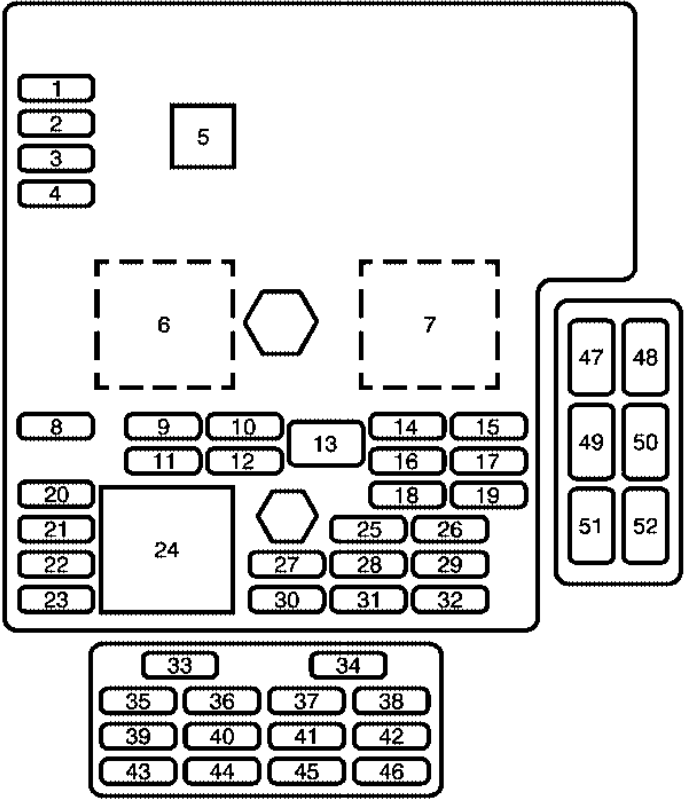

Assignment of the fuses in the passenger compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 1-4 Spare fuses 5 Fuse Puller 6 Reverse Lamp 7 Starter/Crank 8 Parking Brake Solenoid A 9 Reverse Lamps 10 BTSI Solenoid, Column Lock 11 Not Used 12 Not Used 13 GMLAN Devices 14 Rear Park Aid, Heated/Cooled Seats, Windshield Wiper Relays 15 Door Locks 16 Engine Control Module 17 Interior Lights 18 Air Bags, Passenger Air Bag Off Switch 19 Not Used 20 OnStar 21 Adaptive Cruise Control (ACC), Driver Door Switch 22 Power Tilt Wheel, Telescopic Steering Column, Memory Seat, Driver Seat Switch, Retractable Hardtop Switch 23 Ignition Switch, Intrusion Sensor 24 Stop Lamp 25 Inside Rearview Mirror, Climate Control System, Column Lock, Power Sounder 26 Instrument Panel Cluster, Head-Up Display (HUD) 27 Radio, S-Band, CD Changer 28 Tap-Up/Tap-Down Switch, Adaptive Cruise Control (ACC) Switch, Cruise Control Switch 29 Climate Control System, Power Sounder 30 Rear Fog Lamps, Diagnostic Link Connector 31 Power Folding Mirror 32 Trunk Close Button, Parking Brake Solenoid B 33 Power Seats 34 Door Controls 35 Run, Accessory Power 36 Not Used 37 Not Used 38 Rainsense 39 Steering Wheel Control Button Lights 40 Power Lumbar 41 Passenger’s Side Heated Seat 42 Driver’s Side Heated Seat 43 Not Used 44 Retractable Hardtop, Trunk Latch 45 Auxiliary Power 46 Cigar Lighter
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the passenger compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 47 Park Brake Hold 48 Park Brake Release 49 Not Used 50 Not Used 51 Not Used 52 Fuel Door
This content requires JavaScript and a valid membership to view.
