View Cadillac XT4 fuse box diagrams for 2024–2025 facelifted models with relay locations, fuse assignments, panel layouts, and electrical details. This article covers the facelifted subcompact luxury crossover SUV Cadillac XT4, available from 2024, and includes fuse box diagrams for facelifted Cadillac XT4 2024 and 2025, along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse and relay (fuse layout).
NEED A REPLACEMENT?
Looking for the right fuse or relay?
Search common fuse types, fuse kits and relay options for your vehicle.

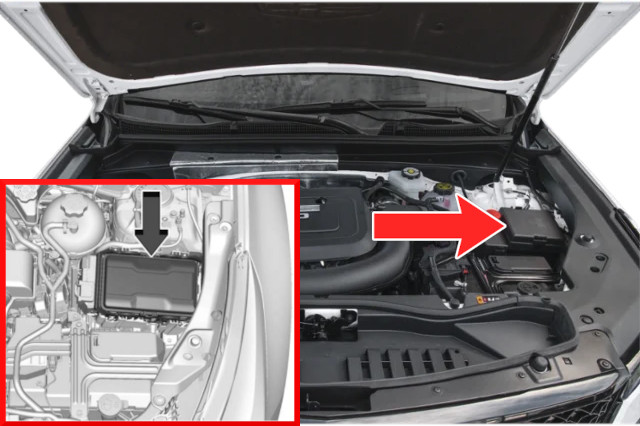

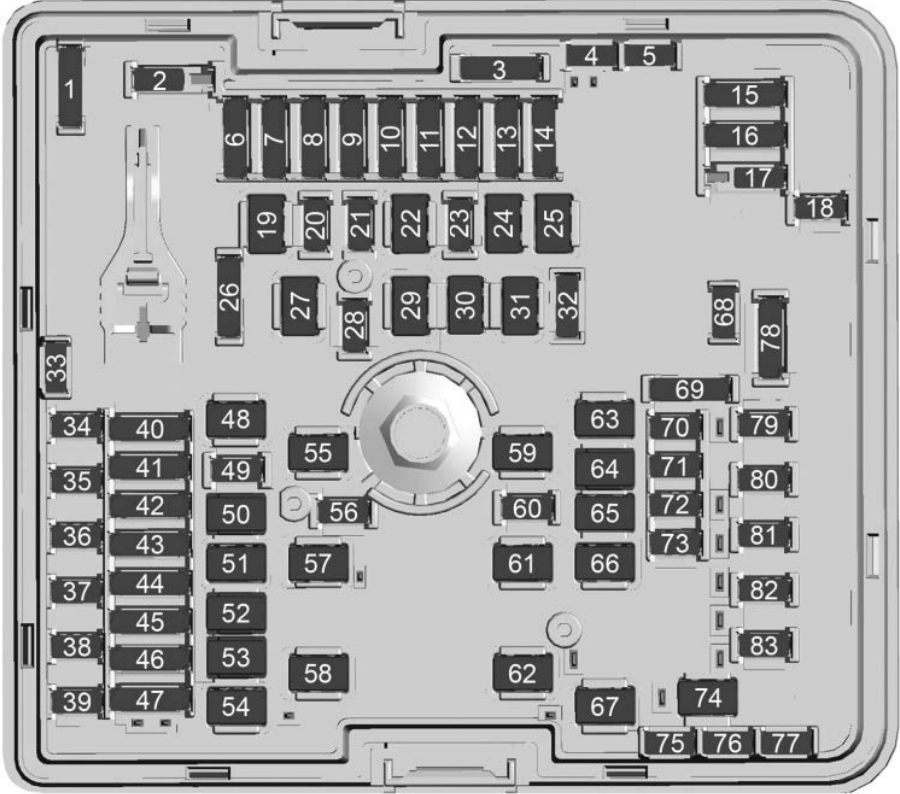

ECM 2 – Engine Control Module 2 / ECM 3 – Engine Control Module 3
8
Micro3
ECM MAIN – Engine Control Module Main
9
—
–
10
Micro3
OFF ENG
11
Micro3
OFF ENG 2 / OFF ENG 1
12
Micro3
CAC – Charge Air Cooler / ECM – Engine Control Module
13
Micro3
TCM – Transmission Control Module
14
—
–
15
—
–
16
—
–
17
Micro3
A/C Control
18
—
–
19
FMM/MCase
Starter Pinion
20
Micro2
MCU – Microprocessor Control Unit
21
—
–
22
—
–
23
—
–
24
—
–
25
FMM/MCase
Starter Motor
26
Micro3
Spare
27
—
–
28
—
–
29
—
–
30
—
–
31
—
–
32
Micro2
Spare
33
FMM/MCase
Spare
34
Micro2
ELM 5 – Exterior Lighting Module 5
35
Micro2
Power Sounder
36
Micro2
ELM 4 – Exterior Lighting Module 4
37
Micro2
ELM 3 – Exterior Lighting Module 3
38
Micro2
MSM_E – Memory Seat Module
39
Micro2
BSM – Battery State Module
40
Micro3
Front Window Switch
41
Micro3
RDCM BATT2 – Rear Drive Control Module Battery 2
42
Micro3
Headlamp Right and Headlamp Left
43
Micro3
FRT HTD SEAT MDL – Front Heated Seat Module
44
Micro3
RFAM & AFL/AHL/RDCM BAT 2 – Radio Frequency Actuator Module and Adaptive Forward Lighting / Automatic Headlamp Leveling / Rear Drive Control Module Battery 2
45
—
–
46
—
–
47
—
–
48
FMM/MCase
DC DC BAT 2 – Direct Current Direct Current Battery 2
49
—
–
50
FMM/MCase
MTR WDW LIFTER LT – Motor Window Lifter Left
51
—
–
52
FMM/MCase
Passenger Power Seat
53
—
–
54
FMM/MCase
TIM1 – Trailer Interface Module 1
55
FMM/MCase
TIM2 – Trailer Interface Module 2
56
Micro2
Trailer Park Lamps
57
FMM/MCase
RDCM BATT1 – Rear Drive Control Module Battery 1
58
FMM/MCase
Driver Power Seat
59
FMM/MCase
EBCM – Electronic Brake Control Module
60
Micro2
Horn
61
FMM/MCase
Rear Defog
62
FMM/MCase
Front Wiper
63
FMM/MCase
Power Tailgate
64
FMM/MCase
MTR WDW LIFTER RT – Motor Window Lifter Right
65
—
–
66
FMM/MCase
Sunroof
67
FMM/MCase
Trailer Run
68
Micro2
Spare
69
Micro3
Spare
70
—
–
71
—
–
72
Micro2
FTZM – Fuel Tank Zone Module
73
Micro2
Handsfree Closure
74
—
–
75
Micro2
Spare
76
Micro2
Spare
77
Micro2
Spare
78
Micro3
Trailer Stop/Turn Left and Right
79
Micro2
TCM (DC to DC) – Transmission Control Module
80
—
–
81
Micro2
SADS – Semi Active Dampening Suspension
82
—
–
83
Micro2
Washer Pump
Passenger Compartment

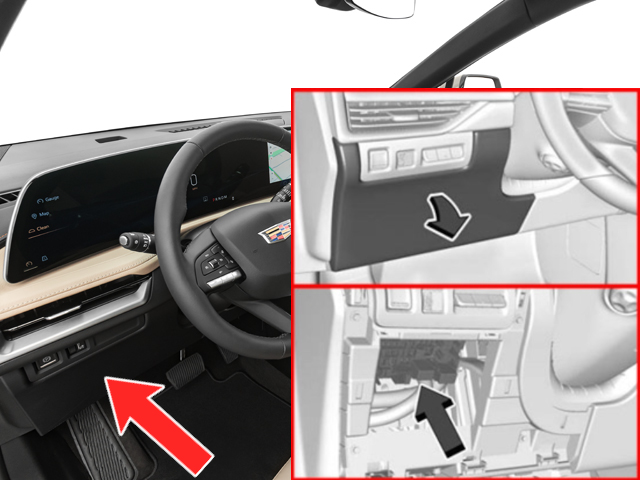

Fuse Box Location
The fuse box is located on the driver’s side of the dash panel, behind the lid.

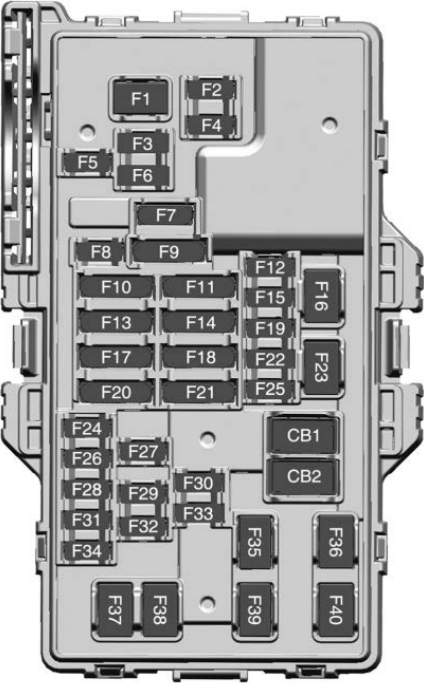

Fuse Box Diagram
Fuses
Assignment of the fuses in the passenger compartment
Fuse Data
Full access is available to registered users — log in or register.
Where are the cigar lighter / power outlet fuses in the Cadillac XT4?
They are in the instrument panel fuse box: F5 (cargo), F37 (front), F43 (console circuit breaker), and F44 (console).
