Cadillac XTS | 2013-2017

Access Cadillac XTS fuse box diagrams for 2013–2017 models featuring relay assignments, fuse locations, panel diagrams, and electrical layout details. This article covers the Cadillac XTS before the facelift, available from 2013, and includes fuse box diagrams for Cadillac XTS 2013, 2014, 2015, 2016 and 2017, along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse and relay (fuse layout).

Engine Compartment

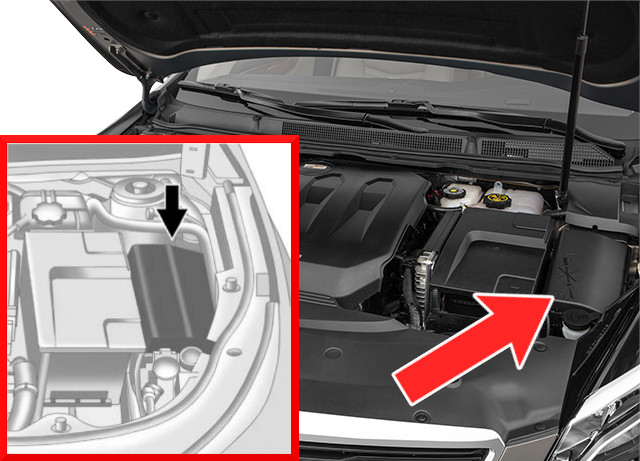

Fuse Box Location

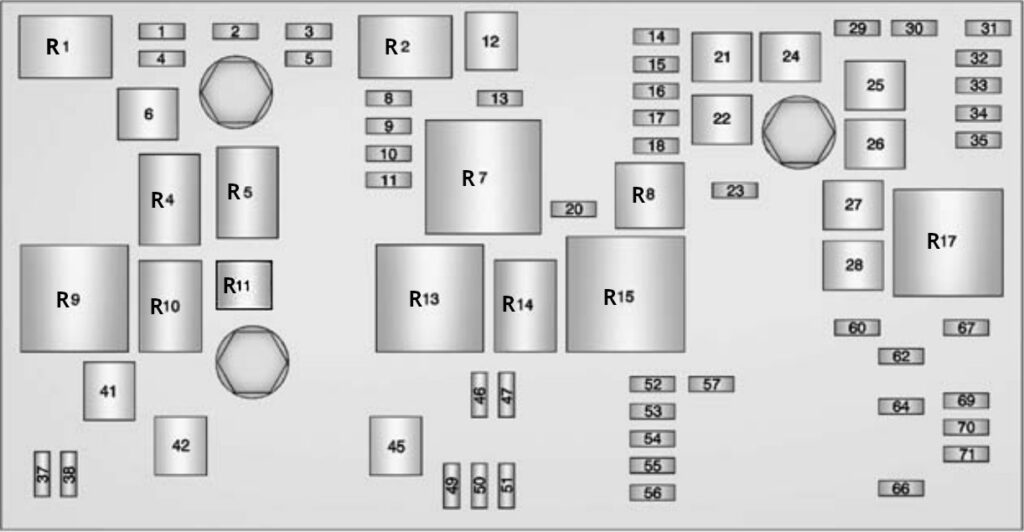

Fuse Box Diagram

Fuses

Assignment of the fuses in the engine compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.TypeDescription
1Mini fuseTransmission Control Module — Battery
2Mini fuseEngine Control Module Battery
3Mini fuseAir Conditioning Compressor Clutch
4Mini fuseN/A
5Mini fuseEngine Control Module Run/Crank
6J-Case fuseWiper
8Mini fuseIgnition Coils — Even (Six Cylinder Engine)
9Mini fuseIgnition Coils — Odd (Six Cylinder Engine)
10Mini fuseEngine Control Module — Switched Battery (from Engine Control Module Relay)
11Mini fuseSix Cylinder Engine: Post Catalytic Converter Oxygen Sensor Heater, Mass Air Flow Sensor, Flex Fuel Sensor
12J-Case fuseStarter
13Mini fuseRun/Crank for Transmission Control Module and Fuel System Control Module
14Mini fuseRight Rear Heated Seat
15Mini fuseLeft Rear Heated Seat
16Mini fuse2013-2015: Vented Seats Run/Crank
2016: N/A
17Mini fuseBody Run/Crank
18Mini fuseAutonet Run/Crank (Aftermarket)
20Mini fuse2013-2015: Heated Steering Wheel
2016: N/A
21J-Case fuseRear Power Windows
22J-Case fuseSunroof
23Mini fuseVariable Effort Steering
24J-Case fuseFront Power Windows
25J-Case fuseRetained Accessory Power
26J-Case fuseAntilock Brake System Pump
27J-Case fuseElectric Parking Brake
28J-Case fuseRear Window Defogger
29Mini fusePassive Entry/Passive Start Module – Battery
30Mini fuseAll-Wheel Drive Module
31Mini fuseLeft Front Heated Seat
32Mini fuseBody Control Module 6
33Mini fuseRight Front Heated Seat
34Mini fuseAntilock Brake System Valves
35Mini fuseAmplifier
37Mini fuseRight High Beam
38Mini fuseLeft High Beam
41J-Case fuseBrake Vacuum Assist Pump
42J-Case fuseCooling Fan K2
44J-Case fuseHeadlamp Washer
45J-Case fuseCooling Fan K1
46Mini fuseCooling Fan Relay
47Mini fuseSix Cylinder Engine: Pre Catalytic Converter Oxygen Sensor Heater, Canister Purge Solenoid
48Mini fuse2016: Coolant Pump
49Mini fuseRight High Intensity Discharge Headlamp
50Mini fuseLeft High Intensity Discharge Headlamp
51Mini fuseHorn
52Mini fuseCluster Run/Crank
53Mini fuseRun/Crank for Inside Rearview Mirror, Rear Vision Camera
54Mini fuseRun/Crank for Heating, Ventilation, and Air Conditioning
55Mini fuseOutside Rearview Mirror, Universal Garage Door Opener, Front Window Switches
56Mini fuseWindshield Washer
57Mini fuseSteering Column Lock
60Mini fuseHeated Mirror
62Mini fuse2013: Ultrasonic Rear Parking Assist/Front Camera Module – Battery
2014-2015: N/A
2016: Massage Memory Bolster
64Mini fuseAdaptive Forward Lighting (AFL) Module — Battery
66Mini fuseTrunk Release
67Mini fuseChassis Control Module
69Mini fuseRegulated Voltage Control Sensor
70Mini fuseVent Canister Solenoid
71Mini fuseMemory Module

Relays

Assignment of the relays in the engine compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.TypeDescription
R1Micro relayAir Conditioning Compressor Clutch
R2Micro relayStarter
R4Micro relayWiper Speed
R5Micro relayWiper Control
R7Mini relayEngine Control Module
R8Micro relay2013-2015: Run
2016: N/A
R9Mini relayCooling Fan
R10Micro relayCooling Fan
R11Micro relay2016: Headlamp Washer
R13Mini relayCooling Fan
R14Micro relayHeadlamp Low Beam
R15Mini relayRun/Crank
R17Mini relayRear Window Defogger

Passenger Compartment

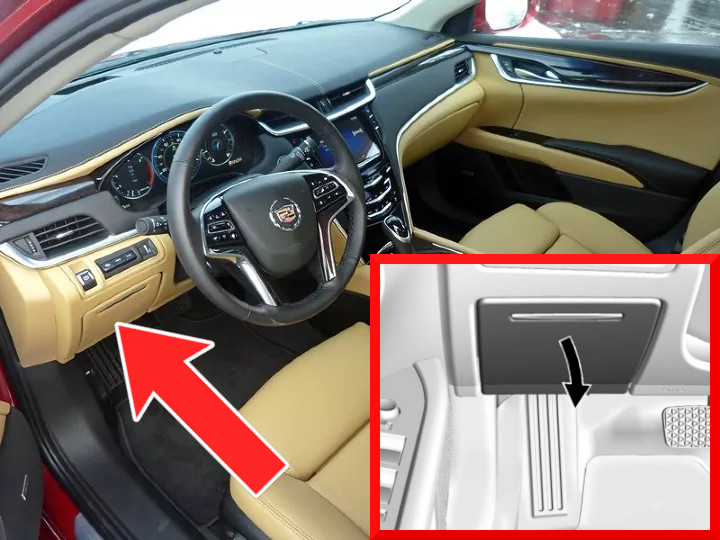

Fuse Box Location

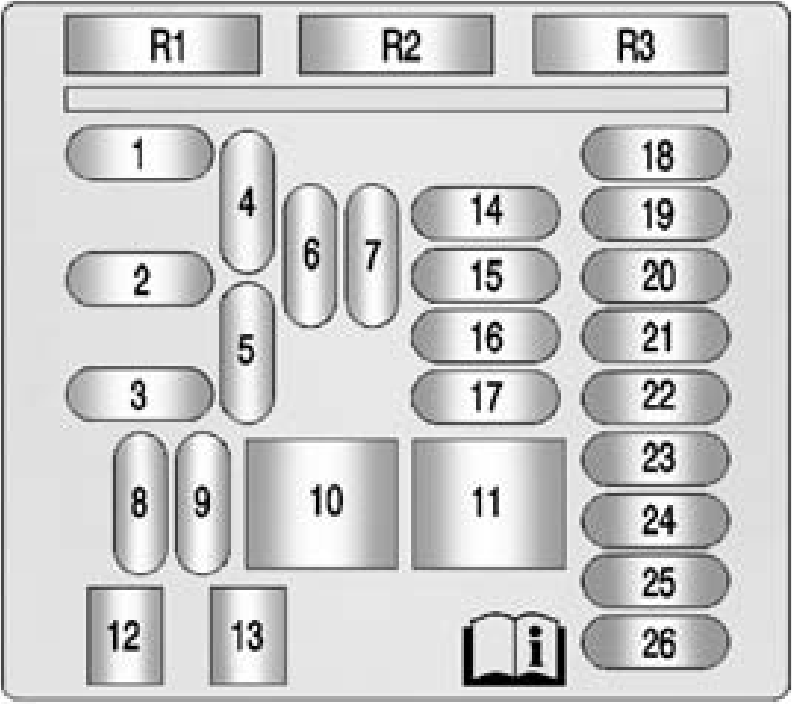

Fuse Box Diagram

Fuses

Assignment of the fuses in the passenger compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.TypeDescription
1Mini fuse2013-2015: OnStar
2016: Wireless Charger Module
2Mini fuseBody Control Module 7
3Mini fuseBody Control Module 5
4Mini fuseRadio
5Mini fuseInfotainment and Center Stack Displays, Head-up Display, Instrument Cluster, Rear Seat Entertainment
6Mini fusePower Outlet 1
7Mini fusePower Outlet 2
8Mini fuseBody Control Module 1
9Mini fuseBody Control Module 4
10FMX/JCase fuseBody Control Module 8
11FMX/JCase fuseFront Heater Ventilation Air Conditioning / Blower
12Mini circuit breakerPassenger Seat
13Mini circuit breakerDriver Seat
14Mini fuseDiagnostic Link Connector
15Mini fuseAirbag AOS
16Mini fuseGlove Box
17Mini fuseHeater Ventilation Air Conditioning Controller
18Mini fuse2013-2015: Pre-Fuse for Fuses 1, 4, and 5
2016: Logistic
19Mini fuseElectronic Steering Column Lock
20Mini fuse2013-2015: Automatic Occupant Sensing
2016: Telematics (OnStar)
21Mini fuseN/A
22Mini fuseSteering Wheel Controls / Backlight
23Mini fuseBody Control Module 3
24Mini fuseBody Control Module 2
25Mini fuse2013-2015: Column Lock Module
2016: Power Steering Column
26Mini fuseAC / DC Inverter

Relays

Assignment of the relays in the passenger compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
R1Glove Box Relay
R22013: Not Used
2014-2016: Logistic Relay
R3Retained Accessory Power/Accessory Relay

Luggage Compartment

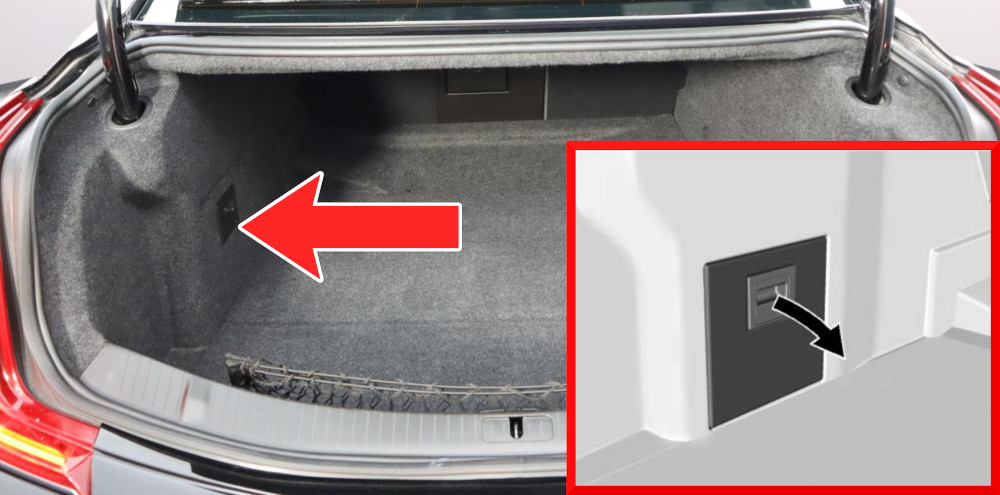

Fuse Box Location

It is positioned on the left side of the trunk, behind the cover.

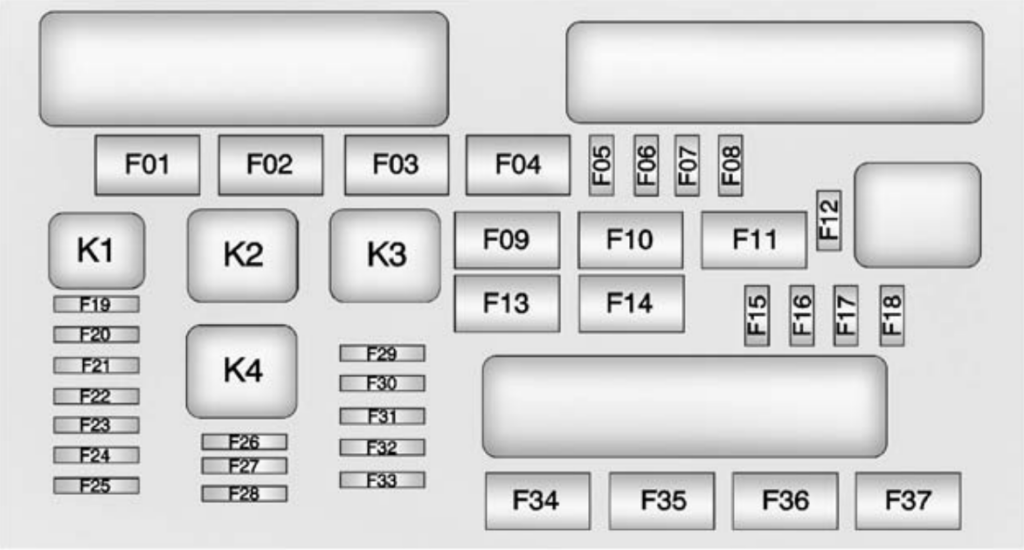

Fuse Box Diagram

Fuses

Assignment of the fuses in the luggage compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.TypeDescription
1—N/A
2—N/A
3—N/A
4FMX/JCase fuseLeveling Compressor
5—N/A
6—N/A
7—N/A
8Mini fuseFront Courtesy Lamps
9—N/A
10—N/A
11—N/A
12—N/A
13—N/A
14—N/A
15—N/A
16Mini fuse2013-2015: N/A
2016: Video Processing Module
17—N/A
18Mini fuseSemi-active Damping System
19Mini fuseUniversal Garage Door Opener, Rain, Light, and Humidity Sensor
20Mini fuseShunt
21Mini fuseSide Blind Zone
22—N/A
23Mini fuseAll-Wheel Drive
24—N/A
25—N/A
26—N/A
27—N/A
28—N/A
29—N/A
30Mini fuse2013-2015: Front Camera
2016: Front Camera, EOCM
31Mini fuseUltrasonic Rear Parking Assist, Lane Departure Warning
32—N/A
33—N/A
34—N/A
35—N/A
36—N/A
37—N/A

Relays

Assignment of the relays in the luggage compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
K1Not used
K2Front Courtesy Lamps Relay
K3Leveling Compressor Relay
K42013: Not Used
2014-2016: Logic
