Explore Chevrolet Aveo fuse box diagrams in this clear guide that outlines the electrical layout of the early first-generation model. In this article, we consider the first-generation Chevrolet Aveo (Model Code: T200) and provide fuse box diagrams for Chevrolet (Chevy) Aveo 2002, 2003, 2004, 2005 and 2006 , along with information about the location of the fuse panels and the assignment of each fuse and relay (fuse layout).
It is located on the driver’s side of the instrument panel, behind the cover.
Fuse Data
Full access is available to registered users — log in or register.
Log in or register This content requires JavaScript and a valid membership to view.

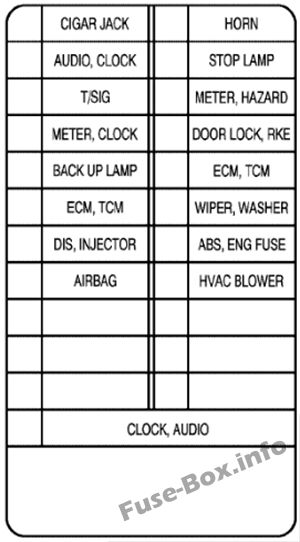

Assignment of the fuses in the instrument panel (2002-2004)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description CIGAR JACK Cigar Jack HORN Horn AUDIO, CLOCK Audio, Clock STOP LAMP Stop Lamp T/SIG Turn Signal METER, HAZARD Instrument Panel Cluster, Hazard Flasher METER, CLOCK Instrument Panel Cluster, Clock DOOR LOCK, RKE Door Lock, Remote Keyless Entry BACKUP LAMP Back Up Lamp ECM, TCM Engine Control Module, Transmission Control Module ECM, TCM Engine Control Module, Transmission Control Module WIPER, WASHER Wiper, Washer DIS, INJECTOR Direct Ignition System, Injector ABS, ENG FUSE Antilock Brake System, Engine Fuse AIRBAG Air Bag HVAC BLOWER HVAC Blower BLANK Not Used BLANK Not Used BLANK Not Used BLANK Not Used BLANK Not Used BLANK Not Used CLOCK, AUDIO Clock, Audio
This content requires JavaScript and a valid membership to view.
Fuse Data
Full access is available to registered users — log in or register.
Log in or register This content requires JavaScript and a valid membership to view.
Assignment of the fuses in the instrument panel (2005-2006)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description LTR Cigar Lighter HORN, REAR/FOG Horn, Rear Fog Lamps RADIO, CLK Audio, Clock STOP Stop Lamp TRN/SIG Turn Signal CLSTR, HAZRD Instrument Panel Cluster, Hazard Flasher CLSTR, CLK Instrument Panel Cluster, Clock DR/LCK Door Lock, Remote Keyless Entry BCK/UP Back-Up Lamp ECM, TCM Engine Control Module, Transmission Control Module ECM, TCM Engine Control Module, Transmission Control Module WPR, WSWA Wiper, Washer DIS, INJECTOR Direct Ignition System, Injector ENG FUSE Engine Fuse AIRBAG Airbag HVAC HVAC Blower ABS Anti-lock Brake System BLANK Not Used BLANK Not Used DIODE (ABS) Anti-lock Brake System Diode BLANK Not Used BLANK Not Used CLK, RADIO Clock, Audio
This content requires JavaScript and a valid membership to view.

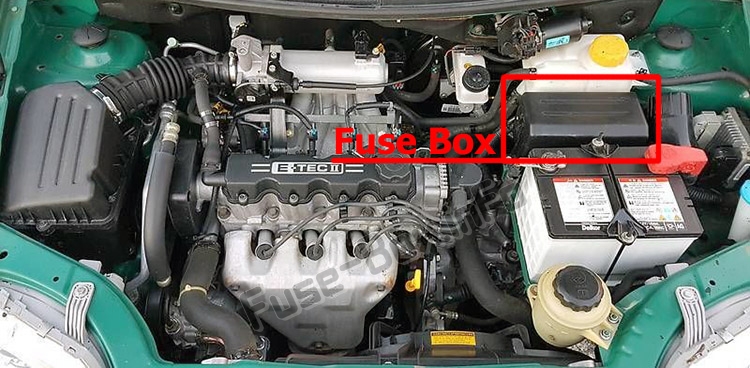

It is located in the engine compartment, near the battery.
Fuse Data
Full access is available to registered users — log in or register.
Log in or register This content requires JavaScript and a valid membership to view.
Assignment of the fuses in the engine compartment (2002-2004)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description H/L HI RH Head Lamp High Right Side BLANK Not Used H/L HI LH Head Lamp High Left Side BLANK Not Used H/L LOW RH Head Lamp Low Right Side ILL RH Parking Lamp Right Side, Illumination Circuit H/L LOW LH Head Lamp Low Left Side ILL LH Parking Lamp Left Side, License Plate Lamp ROOM LAMP Room Lamp BLANK Not Used DEFOG Defogger SUN ROOF Sunroof ILL LAMP Illumination Relay HORN Horn HEAD LAMP Headlamp FUEL PUMP Fuel Pump A/C COMP Air Conditioning Compressor FRT FOG Front Fog Lamp BLOWER Blower ABS Antilock Brake System IP F/BOX Instrument Panel Fuse Box RAD FAN Radiator Fan IGN 2 Ignition 2 IGN 1 Ignition 1 POWER WINDOW Power Windows FUSE SPARE Spare Fuse
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the engine compartment (2002-2004)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description BLANK Not Used RAD FAN LOW RELAY Radiator Fan Low Relay HEAD LAMP HIGH RELAY Head Lamp High Relay HEAD LAMP LOW RELAY Head Lamp Low Relay PWR WINDOW RELAY Power Window Relay FOG LAMP RELAY Fog Lamp Relay MAIN RELAY/FAN CONTROL RELAY Main Relay/Fan Control Relay FUEL PUMP RELAY Fuel Pump Relay A/C COMP RELAY Air Conditioning Relay (OPTION) MAIN RELAY Main Relay (Option) RAD FAN HI RELAY Radiator Fan High Relay ILLUMINATION RELAY Illumination Relay BLANK Not Used
This content requires JavaScript and a valid membership to view.
Fuse Data
Full access is available to registered users — log in or register.
Log in or register This content requires JavaScript and a valid membership to view.

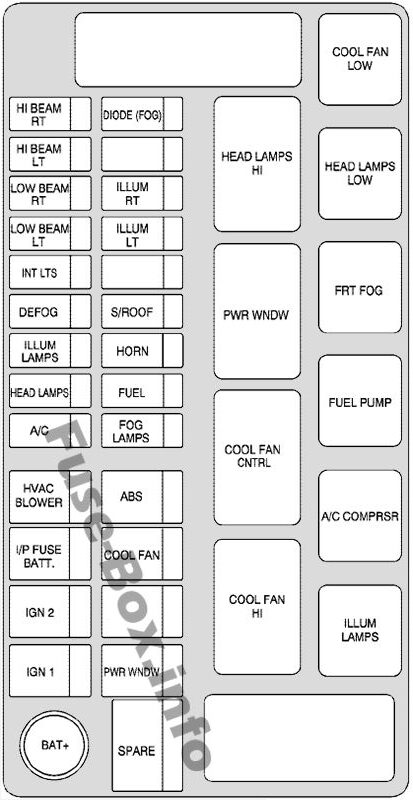

Assignment of the fuses in the engine compartment (2005-2006)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description HI BEAM RT Passenger’s Side Headlamp High DIODE (FOG) Fog Lamp Diode HI BEAM LT Driver’s Side Headlamp High BLANK Not Used LOW BEAM RT Passenger’s Side Headlamp Low ILLUM RT Parking Lamp Right Side, Illumination Circuit LOW BEAM LT Driver’s Side Headlamp Low ILLUM LT Parking Lamp Left Side, License Plate Lamp INT LTS Room Lamp BLANK Not Used DEFOG Defog ger S/ROOF Sunroof ILLUM LAMPS Illumination Relay HORN Horn HEAD LAMPS Headlamps FUEL Fuel Pump A/C Air Conditioning Compressor FOG LAMPS Front Fog Lamp HVAC BLOWER Heating, Ventilation, Air Conditioning Blower ABS Anti-lock Brake System I/P FUSE BATT Instrument Panel Fuse Box COOL FAN Radiator Fan IGN 2 Ignition 2 BLANK Blank IGN 1 Ignition 1 PWR WNDW Power Windows SPARE Spare
This content requires JavaScript and a valid membership to view.
Assignment of the fuses in the engine compartment (2005-2006)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description BLANK Not Used COOL FAN LOW Cooling Fan Low HEAD LAMPS HI Headlamp High HEAD LAMPS LOW Headlamp Low PWR WNDW Power Window FRT FOG Fog Lamp COOL FN CNTRL Cooling Fan Control FUEL PUMP Fuel Pump A/C COMPRSR Air Conditioning Compressor COOL FAN HI Cooling Fan High ILLUM LAMPS Illumination Lamps BLANK Not Used
