Explore Chevrolet Aveo fuse box diagrams in this straightforward guide that explains the electrical layout of the first-generation subcompact car. In this article, we consider the first-generation Chevrolet Aveo (Model Code: T250) and provide fuse box diagrams for Chevrolet (Chevy) Aveo 2007, 2008, 2009, 2010 and 2011 , along with information about the location of the fuse panels and the assignment of each fuse and relay (fuse layout).

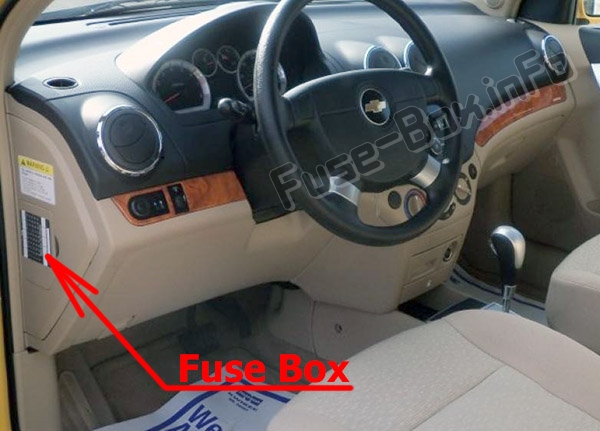

The fuse box is located on the driver’s side of the instrument panel, behind the cover.
Fuse Data
Full access is available to registered users — log in or register.
Log in or register This content requires JavaScript and a valid membership to view.
Assignment of the fuses in the instrument panel (2007, 2008 (Hatchback))
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Name Usage AUX LTR Auxiliary Cigarette Lighter HORN, REAR/FOG Horn, Rear Fog Lamps LTR Cigarette Lighter STOP Stop Lamp RADIO, CLK Audio, Clock CLSTR, HAZRD Instrument Panel Cluster, Hazard Flasher TRN/SIG Turn Signal DR/LCK Door Lock, Remote Keyless Entry CLSTR, CLK Instrument Panel Cluster, Clock ECM, TOM Engine Control Module (ECM), Transmission Control Module (TCM) BCK/UP Back-Up Lamp WPR, WSWA Wiper, Washer ECM, TOM Engine Control Module (ECM), Transmission Control Module (TCM) ENG FUSE Engine Fuse ALTERNATOR Alternator HVAC HVAC Blower AIRBAG 1 Airbag 1 BLANK Not Used ABS Antilock Brake System DIODE (ABS) Antilock Brake System Diode AIRBAG 2 Airbag 2 BLANK Not Used CLK, RADIO Clock, Audio
This content requires JavaScript and a valid membership to view.
Fuse Data
Full access is available to registered users — log in or register.
Log in or register This content requires JavaScript and a valid membership to view.

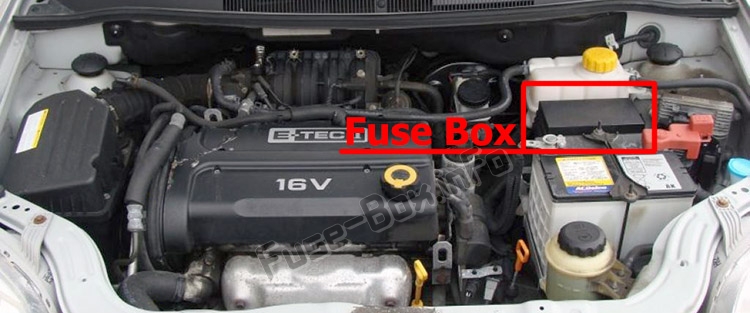

Assignment of the fuses in the engine compartment (2007, 2008 (Hatchback))
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description HI BEAM RT Passenger Side High Beam Headlamp DIS Direct Ignition System HI BEAM LT Driver Side High Beam Headlamp DIODE (FOG) Fog Lamp Diode LOW BEAM RT Passenger Side Low Beam Headlamp ILLUM RT Parking Lamp Right Side, Illumination Circuit LOW BEAM LT Driver Side Low Beam Headlamp ILLUM LT Driver Side Parking Lamp, License Plate Lamp INT LTS Room Lamp INJECTOR Injector DEFOG Defogger S/ROOF Sunroof ILLUM LAMPS Illumination Relay HORN Horn HEAD LAMPS Headlamps FUEL Fuel Pump A/C Air Conditioning Compressor FOG LAMPS Front Fog Lamp HVAC BLOWER Heating : Ventilation, Air Conditioning Blower ABS Anti lock Brake System I/P FUSE BATT Instrument Panel Fuse Box COOL FAN Radiator Fan IGN 2 Ignition 2 BLANK Blank IGN 1 Ignition 1 PWR WNDW Power Windows SPARE Spare
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the engine compartment (2007, 2008 (Hatchback))
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description BLANK Not Used COOL FAN LOW Cooling Fan Low HEAD LAMPS HI High Beam Headlamp HEAD LAMPS LOW Low Beam Headlamp PWR WNDW Power Window FRT FOG Fog Lamp MAIN POWER Main Power FUEL PUMP Fuel Pump A/C COMPRSR Air Conditioning Compressor COOL FAN HI Cooling Fan High ILLUM LAMPS Illumination Lamps BLANK Not Used
This content requires JavaScript and a valid membership to view.
Fuse Data
Full access is available to registered users — log in or register.
Log in or register This content requires JavaScript and a valid membership to view.

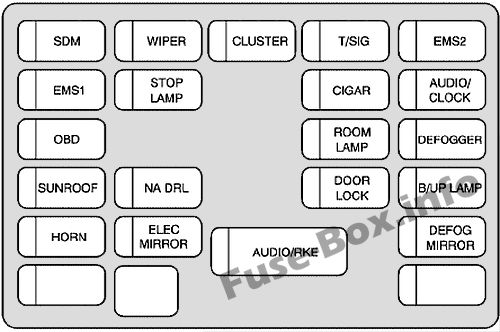

Assignment of the fuses in the instrument panel (2007, 2008 (Sedan))
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Name Usage SDM Sensing and Diagnostic Module WIPER Windshield Wiper Switch, Windshield Wiper Motor CLUSTER Instrument Panel Cluster, Brake Switch, Anti-theft Mode T/SIG Turn Signal, Hazard Switch EMS2 Stoplamp Switch EMS1 Engine Room Fuse Block, Rear H02S, Transaxle Control Module, VSS, Fuel Pump STOP LAMP Brake Switch CIGAR Cigarette Lighter, Auxiliary Power Outlet AUDIO/CLOCK Radio, Clock OBD On-Board Diagnostics, Immobilizer ROOM LAMP Trunk Lamp, Trunk Open Switch, Cluster, Dome Lamp DEFOGGER Rear Defogger SUNROOF Sunroof Module (Option) DRL Daytime Running Lamps DOOR LOCK Door Lock/Unlock B/UP LAMP Back-up Lamps HORN Horn ELEC MIRROR Mirror Control Switch, Dome Lamp, Air Conditioning Switch AUDIO/RKE Radio, Remote Keyless Entry, Clock, Power Mirror Unit, Anti-Theft Module DEFOG MIRROR Power Mirror Unit, Air Conditioning Switch BLANK Not Used BLANK Not Used BLANK Not Used
This content requires JavaScript and a valid membership to view.
Fuse Data
Full access is available to registered users — log in or register.
Log in or register This content requires JavaScript and a valid membership to view.

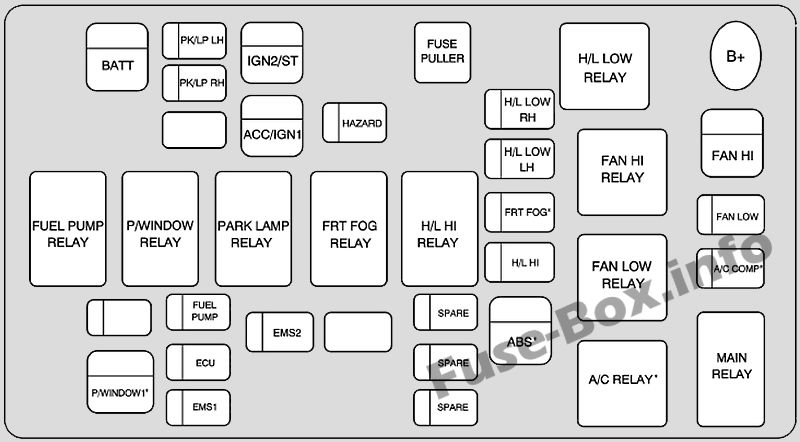

Assignment of the fuses in the engine compartment (2007, 2008 (Sedan))
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description BATT Instrument Panel Fuse Block PK/LP LH Driver Side Parking Lamp : Taillamp PK/LP RH Passenger Side Parking Lamp ; Taillamp IGN2/ST Ignition Switch ACC/IGN1 Ignition Switch HAZARD Hazard Lamps. Theft-Deterrent System H/L LOW RH Passenger Side Low-Beam Headlamp FAN HI Cooling Fan High Speed H/L LOW LH Driver Side Low-Beam Headlamp FRT FOG Front Fog Lamps (Option) FAN LOW Cooling Fan Low Speed H/L HI High-Beam Headlamps A/C COMP Air Conditioning Compressor (Option) FUEL PUMP Fuel Pump SPARE Spare ABS Antilock Brake System (Option) EMS2 LEGR Valve, HO2S, EVAP Canister Purge Solenoid, CMP Sensor P/WINDOW1 Power Window Switch (Option) ECU Engine Control Module, Transmission Control Module SPARE Spare EMS1 Engine Control Module, Injector, Cooling Fan. Air Conditioning Compressor SPARE Spare
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the engine compartment (2007, 2008 (Sedan))
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description H/L LOW RELAY Low-Beam Headlamp Relay FAN HI RELAY Cooling Fan High Speed Relay FUEL PUMP RELAY Fuel Pump Relay P/WINDOW RELAY Power Window Relay PARK LAMP RELAY Parking Lamp Relay FRT FOG RELAY Front Fog Lamps Relay H/L HI RELAY High-Beam Headlamp Relay FAN LOW RELAY Cooling Fan Low Speed Relay A/C RELAY Air Conditioning Relay (Option) MAIN RELAY Main Relay
This content requires JavaScript and a valid membership to view.
Fuse Data
Full access is available to registered users — log in or register.
Log in or register This content requires JavaScript and a valid membership to view.

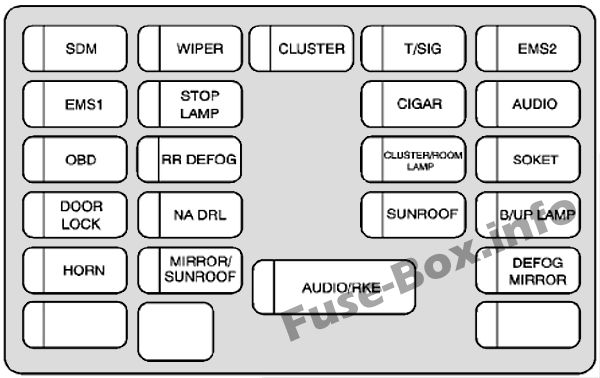

Assignment of the fuses in the instrument panel (2009, 2010, 2011)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description AUDIO Audio, Clock, Immobilizer AUDIO/RKE A/C Switch, Clock, Power Mirror Unit, Audio, Anti-Theft Module, TPMS B/UP LAMP PNP Switch, Reverse Lamp Switch BLANK Not Used BLANK Not Used BLANK NotUsed BLANK NotUsed CIGAR Cigar Lighter CLUSTER Brake Switch, TPMS, Anti-Theft Module DEFOG MIRROR Power Mirror Unit, A/C Switch RR DEFOG Rear Defog DOOR LOCK Door Lock NA DRL NA DRL Circuit MIRROR/ SUNROOF Mirror Control Switch, Room Lamp, A/ C Switch EMS 1 Engine Room Fuse Block, TCM, VSS, Fuel Pump EMS 2 Stop lamp Switch HORN Horn OBD DLC, Immobilizer CLUSTER/ ROOM LAMP Trunk Room Lamp, Trunk Open Switch, IPC, Room Lamp SDM Sensing and Diagnostic Module SOKET Power Jack STOP LAMP Brake Switch SUNROOF Sunroof Module (Option) T/SIG Hazard Switch WIPER Wiper Switch, Wiper Motor
This content requires JavaScript and a valid membership to view.
Fuse Data
Full access is available to registered users — log in or register.
Log in or register This content requires JavaScript and a valid membership to view.

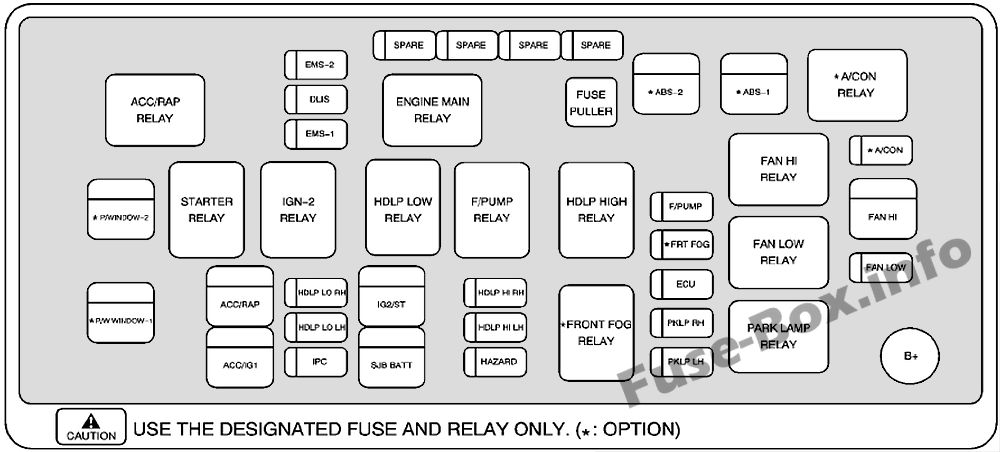

Assignment of the fuses in the engine compartment (2009, 2010, 2011)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description FAN HI Cooling Fan HI Relay ABS-1 EBCM ABS-2 EBCM SJB BATT Instrument Panel Fuse Block ACC/IG1 IGN1 Relay IG2/ST IGN2 Relay, Starter Relay ACC/RAP Instrument Panel Fuse Block P/WINDOW-2 Power Window Switch P/W WINDOW-1 Power Window Switch FAN LOW Cooling Fan LOW Relay A/CON A/C Compressor Relay PKLP LH Tail Lamp (LH), Side Marker (LH), Turn Signal & Parking Lamp (LH), License Lamp PKLP RH Tail Lamp (RH), Side Marker (RH), Turn Signal & Parking Lamp (RH), License Lamp, I/P Fuse Block ECU ECM, TCM FRT FOG Front Fog Lamp Relay F/PUMP Fuel Pump Relay HAZARD Hazard Switch, Hood Contact Switch HDLP HI LH Head Lamp (LH), IPC HDLP HI RH Head Lamp (RH) IPC IPC HDLP LO LH Head Lamp (LH), I/P Fuse Block HDLP LO RH Head Lamp (RH) EMS-1 ECM, Injector DLIS Ignition Switch EMS-2 EVAP Canister Purge Solenoid, Thermostat Heater, H02S, MAF Sensor SPARE Not Used
This content requires JavaScript and a valid membership to view.
Assignment of the fuses in the engine compartment (2009, 2010, 2011)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description F/PUMP RELAY Fuel Pump STARTER RELAY Starter PARK LAMP RELAY Park Lamp FRONT FOG RELAY Fog Lamp HDLP HIGH RELAY Head Lamp High HDLP LOW RELAY Head Lamp Low FAN HIGH RELAY Cooling Fan High FAN LOW RELAY Cooling Fan Low A/CON RELAY Air Conditioner ENGINE MAIN RELAY Main Power ACC/RAP RELAY I/P Fuse Block IGN-2 RELAY Ignition
