Chevrolet Bolt EV (2017-2023)

Explore Chevrolet Bolt EV fuse box diagrams in this clear guide that explains the electrical layout of Chevrolet’s all-electric subcompact hatchback. In this article, we cover the Chevrolet Bolt EV, available from 2017 to 2023, and provide fuse box diagrams for Chevrolet (Chevy) Bolt EV 2017, 2018, 2019, 2020, 2021, 2022 and 2023, along with information about the location of the fuse panels and the assignment of each fuse and relay (fuse layout).

Passenger Compartment

Fuse Box Location

The fuse box is located behind the cover on the left side of the instrument panel. To access it, open the fuse panel door by pulling out. To reinstall the door, insert the top tab first, then push the door back into its original location.

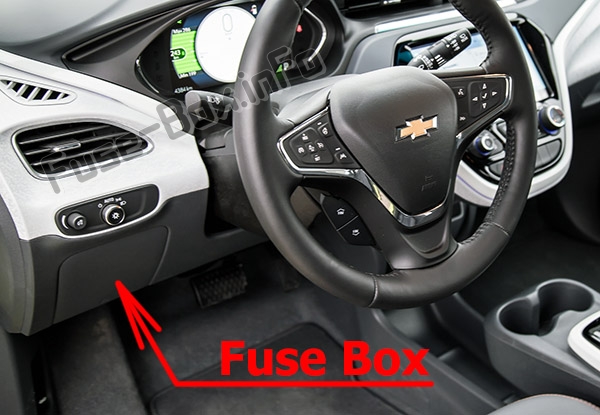

The location of the fuses in the passenger compartment: Chevrolet Bolt EV (2016-2020..)

Fuse Box Diagram

Instrument panel fuse box diagram: Chevrolet Bolt EV (2016, 2017, 2018, 2019, 2020..)

Fuses

Assignment of the fuses in the passenger compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
F01Video processing module
F02Indicator light solar sensor
F03Side blind zone alert
F04Passive entry, passive start
F05CGM (Central gateway module)
F06Body control module 4
F07Body control module 3
F08Body control module 2
F09Body control module 1
F102017-2021: Trailer interface module 1
from 2022: Police SSV
F11Amplifier
F12Body control module 8
F13Data link connector 1
F14Automatic parking assist
F152017: Data link connector 2
2018-2021: Not Used
from 2022: Headlamp LH
F16Single power inverter module 1
F17Body control module 6
F18Body control module 5
F19—
F20—
F21—
F22—
F23USB
F24Wireless charging module
F25Reflected LED alert display
F26Heated steering wheel
F272017-2018: Not Used
2019-2023: CGM 2 (Central gateway module)
F28Instrument cluster 2
F292017-2021: Trailer interface module 2
F302017-2020: Headlamp leveling device
F312017-2021: OnStar
from 2022: Telemetics Control Platform (OnStar
F322017-2018: Not Used
2019-2023: Virtual keypass sensor
F33Heating, ventilation, and air conditioning module
F342017-2018: Not Used
2019-2021: Virtual keypass module
from 2022: Heating, Ventilation and Air Conditioning Display/ Integrated Center Stack
F35Instrument cluster 1
F362017-2021: Radio
from 2022: Center Stack Module
F37—
F38—
F39—
F40—
F41—
F42—
F43Body control module 7
F44Sensing and diagnostic module
F45Front camera module
F46Vehicle integration control module
F47Single power inverter module 2
F482017-2020: Electric steering column lock
from 2022: Headlamp RH
F49Auxiliary jack
F50Steering wheel controls
F512017-2021: Steering wheel controls backlighting
F522017-2020: Smartphone remote function module
F53Auxiliary power outlet
F54—
F55Logistic
F56from 2022: Police SSV

Relays

Assignment of the relays in the passenger compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
F57From 2022: Police SSV
F58Logistics relay
F59—
F60Accessory/Retained accessory power relay

Engine Compartment

Fuse Box Location

To open the cover, press the clips at the side and back and pull the cover up.

The location of the fuses in the engine compartment: Chevrolet Bolt EV (2016-2020..)

Fuse box diagram

Under-hood fuse box diagram: Chevrolet Bolt EV (2016, 2017, 2018, 2019, 2020..)

Fuses

Assignment of the fuses in the engine compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
1—
2Power window rear
3from 2022: Cargo Lamp
4Rechargeable energy storage system 1
5from 2022: Power Seat Driver
72017-2021: Left high-beam headlamp
82017-2021: Right high-beam headlamp
92017-2021: Left low-beam headlamp
102017-2021: Right low-beam headlamp
11Horn
12—
13Front wiper motor driver
15Front wiper motor co-driver
16Electronic brake control module supply electronics
17Rear wiper
18Liftgate
19Seat module front
20Washer
22Linear power module
23Electronic brake control module supply motor
24Seat module rear
26Transmission range control module
27Aeroshutter
28Auxiliary oil pump
29Electric brake boost motor source
30Front power windows
31In-panel bussed electrical center
32Rear window defogger
33Heated exterior rearview mirror
34Pedestrian friendly alert function
35—
36—
37Current sensor
382017-2021: Rain sensor
from 2022: Humidity Sensor
39—
40Electric brake boost (ECU)
41Power line communication module
42Automatic (Infant) occupant sensing
43Window switch
44Rechargeable energy storage system
45Vehicle integration control module
462017-2021: Integrated chassis control module
from 2022: Shifter Interface Board
472017-2020: Headlamp leveling
from 2022: Humidity Sensor
482017-2021: Integrated chassis control module
from 2022: Shifter Interface Board
49Interior rearview mirror
50—
51Electric brake boost
522017-2020: Rear camera
54A/C control module
55Rechargeable energy storage system coolant pump
56—
57Power electronics coolant pump
58Engine control module
592017-2020: Electric steering column lock
60HVAC electric heater
61On-board charging module
62Transmission range control module 1
63Electric cooling fan
64Engine control module
65Auxiliary heater pump
66Powertrain
67Drive unit controller
70A/C control module
71—
72Transmission range control module
73Single power inverter module
74—

Relays

Assignment of the relays in the engine compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
62017-2019: Not Used
2020-2023: Pedestrian friendly alert function
14Liftgate
212017-2021: HID lamp
25Powertrain
53Run/Crank
68Rear window defogger
69Second run/Crank
