Explore Chevrolet Camaro fuse box diagrams in this straightforward guide that explains the electrical layout of the fourth-generation model before its facelift. In this article, we consider the fourth-generation Chevrolet Camaro (Model Code: Z28) before a facelift, available from 1993 to 1997 , and provide fuse box diagrams for Chevrolet (Chevy) Camaro 1993, 1994, 1995, 1996 and 1997 , along with information about the location of the fuse panels and the assignment of each fuse and relay (fuse layout).
It is located on the left side of the instrument panel (to access, open the fuse panel door).

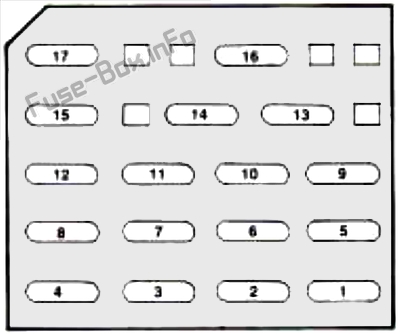

Assignment of the fuses in the instrument panel (1993-1995)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Short-Code Description 1 AIR BAG SIR Components 2 TURN B-U Backup Lamp, Daytime Running Lamps Module (Canada), Turn Flasher 3 HVAC Heater Control Selector Switch (Heater/Air Conditioner), Rear Defogger 4 RADIO ASSY 1993-1994: Engine/Powertrain Control Module, Instrument Cluster, PASS-Keys II Decoder Module; 5 PCM IGN Powertrain Control Module, PASS-Key II Decoder Module, Fuel Pump Relay 6 STOP/HAZARD Brake Lamp/Cruise Release Switch, Hazard Flasher 7 PWR ACCY Power Door Locks, Power Mirrors, Hatch Release 8 COURTESY Audio Alarm Module, BOSE Relay (1993-1994), Courtesy Lamps, Console Compartment, Glove Box, Dome, Trunk, Rear Courtesy, Rearview Mirror and Radio 9 GAGES Audio Alarm Module, Daytime Running lamps Module (Canada), Diagnostic Energy Reserve Module, Instrument Cluster, Remote Lock Control Module 10 TAIL LTS Exterior Lighting 11 CIGAR/HORN Cigarette Lighter, Horn Relay 12 DEFOG/SEATS Power Seats, Rear Defogger (Circuit Breaker) 13 IP DIMMER Brightness Control 14 WIPER/WASH Windshield Wiper/Washer 15 WINDOWS Power Windows, Convertible Top Switch (Circuit Breaker) 16 CRANK Diagnostic Energy Reserve Module 17 RADIO/WASH Radio Amplifier
This content requires JavaScript and a valid membership to view.

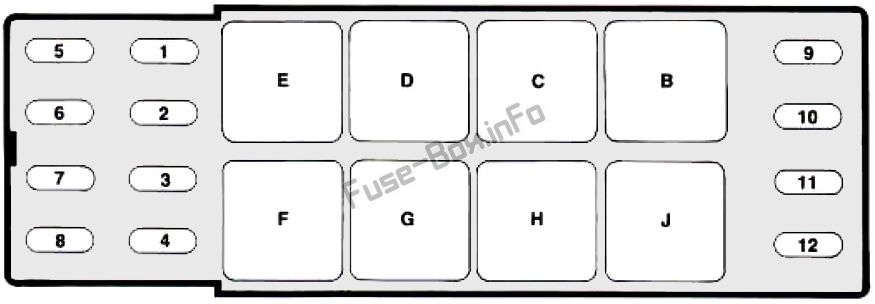

Assignment of the fuses in the engine compartment (1993-1995)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Short-Code Description 1 ABS BAT Electronic Brake Control Module 2 FOG LTS Fog Lamps 3 Not Used 4 Not Used 5 ABS IGN Anti-Lock Brake System 6 FAN/ACTR Coolant Fan Relays, EVAP Canister Purge Solenoid, Exhaust Gas Recirculation, Low Coolant Relay, Reverse Lockout Solenoid 7 AIR PUMP Air Injection Pump Assembly, Air Pump Relay 8 PCM 1993-1994: Not Used, 9 INJECTOR Fuel Injectors 10 INJECTOR Fuel Injectors 11 IGNITION VIN Engine Code S: Camshaft Position Sensor, Crankshaft Position Sensor, Electronic Ignition Module; 12 A/C-CRUISE Air Conditioning Compressor Relay, Cruise Control Switches and Module
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the engine compartment (1993-1995)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
ID. Description B Air Conditioning Compressor C Anti-Lock Brake System D Primary Coolant Fan (Driver Side) E Air Pump F Secondary Coolant Fan (Passenger Side) G ASR H Fog Lamps J Not Used
This content requires JavaScript and a valid membership to view.
Fuse Data
Full access is available to registered users — log in or register.
Log in or register This content requires JavaScript and a valid membership to view.
Assignment of the fuses in the instrument panel (1996-1997)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
№ Name Description 1 STOP/HAZARD Hazard Rasher, Brake Switch Assembly 2 TURN B-U Performance/Traction Control Switch, Transmission Range Switch, Back-Up Lamp Switch, Turn Flasher, Daytime Running Lamps (DRL) Module 3 PCM BATT Powertrain Control Module (PCM), Fuel Pump Relay, Remote Compact Disc Changer (1996) 4 RADIO ACCY Radio Power Antenna, Bose Relay, Amplifier 5 TAIL LTS Daytime Running Lamps (DRL) Module, Headlamp Switch 6 HVAC HVAC Selector Switch, Rear Defogger Timer Relay, Rear Defogger Switch, Rear Defogger Switch/Timer 7 PWR ACCY Park Lamp Relay, Hatch Release Relay, Power Mirror Switch, Radio, Shock Sensor, Instrument Cluster 8 COURTESY Body Control Module (BCM) 9 GAGES Body Control Module (BCM), Brake Switch Assembly (BTSI), Instrument Cluster, Daytime Running Lamps (DRL) Module, Auxiliary Accessory Wire 10 AIR BAG Air Bag System, Dual Pole Arming Sensor 11 CIGAR/ACCY Cigarette Lighter, Data Link Connector (DLC), Auxiliary Accessory Wire 12 DEFOG/SEATS Rear Defogger Switch/Timer, Rear Defogger Timer/Relay, Power Seats 13 PCM IGN Powertrain Control Module (PCM), EVAP Canister Purge Vacuum Switch, EVAP Canister Purge Valve, Transmission 14 WIPER/WASH Wiper Motor Assembly, Wiper/Washer Switch 15 WINDOWS Power Windows Switch (RH, LH), Express-Down Module, Coolant Level Latching Module, Convertible Top Switch 16 I/P DIMMER Door Illumination Lamp (LH, RH), Headlamp Switch, Fog Lamp Switch, Instrument Cluster, HVAC Control Assembly, PRNDL Illumination Lamp, Ashtray l,amp, Radio, Steering Wheel Controls-Radio, Rear Window Defogger Switch/Timer, Performance/ASR Switch 17 RADIO Body Control Module (BCM), Radio, Amplifier, Steering Wheel Controls-Radio
This content requires JavaScript and a valid membership to view.
Assignment of the fuses in the engine compartment (1996-1997)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Short-Code Description 1 ABS IGN Anti-Lock Brake System 2 ACTUATORS Daytime Running Lamp Module, Headlamp Switch, Cooling Fan Relay, Exhaust, Gas Recirculation, EVAP Canister Purge Solenoid 3 R HDLP DR Headlamp Door Module (Right) 4 L HDLP DR Headlamp Door Module (Left) 5 ABS VLV Brake Pressure Valve 6 ABS BAT Electronic Brake Control Module 7 AIR PUMP Air Pump (V8) Relay, Pump, Bleed Valve and Cooling Fan 8 HORN Horn Relay 9 INJECTOR Fuel Injectors 10 ENG SEN Mass Air Flow, Heated Oxygen Sensor, Reverse Lockout Solenoid, Skip Shift Solenoid, Automatic Transmission, Brake Switch 11 IGNITION V6 VIN K: Electronic Ignition Control Module; 12 A/C-CRUISE Air Conditioning Compressor Relay, Cruise Control Switches and Module
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the engine compartment (1996-1997)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
ID. Description B Air Conditioning Compressor C Anti-Lock Brake System/Traction Control System (ASR) D Cooling Fan 1 E Air Pump F Cooling Fan 2 G Not Used H Fog Lamps J Cooling Fan 3
This content requires JavaScript and a valid membership to view.
