Explore Chevrolet Camaro fuse box diagrams in this clear guide that outlines the electrical layout of the refreshed fourth-generation muscle car. In this article, we consider the fourth-generation Chevrolet Camaro after a facelift, available from 1998 to 2002 , and provide fuse box diagrams for Chevrolet (Chevy) Camaro 1998, 1999, 2000, 2001 and 2002 , along with information about the location of the fuse panels and the assignment of each fuse and relay (fuse layout).
The fuse box is located behind a cover on the driver’s side of the instrument panel.
Fuse Data
Full access is available to registered users — log in or register.
Log in or register This content requires JavaScript and a valid membership to view.

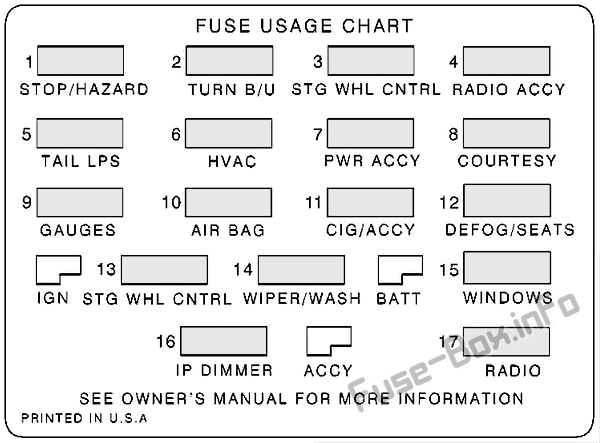

Assignment of the fuses in the passenger compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Short-Code Description 1 STOP/HAZARD Hazard Flashers, Brake Switch Assembly 2 TURN B/U Traction Control/Second-Gear Start Switch, Back-Up Lamp Switch, Turn Flasher, Daytime Running Lamps (DRL) Module 3 STG WHL CNTRL 1999-2002: Steering Wheel Controls 4 RADIO ACCY Delco Monsoon Radio Amplifier, Remote CD Player (Trunk) 5 TAIL LPS Daytime Running Lamps (DRL) Module, Headlamp Switch 6 HVAC HVAC Selector Switch, Rear Defogger Switch, Timer 7 PWR ACCY Parking Lamp Relay, Hatch Release Relay, Power Mirror Switch, Radio, Shock Sensor, Instrument Cluster 8 COURTESY Body Control Module (BCM) 9 GAUGES Body Control Module (BCM), Brake-Transmission Shift Interlock (BTS1), Instrument Cluster, Daytime Running Lamps (DRL) Module 10 AIR BAG 1998: Air Bag System, Dual Pole Arming Sensor 11 CIG/ACCY 1998-1999: Cigarette Lighter, Data Link Connector (DLC), Auxiliary Accessory Wire 12 DEFOG/SEATS Rear Defogger Switch/Timcr, Power Seats (IGN) Aftermarket Use Only 13 STG WHL CNTRL 1999-2002: Steering Wheel Controls Illumination 14 WIPER/WASH Wiper Motor Assembly, Wiper/Washer Switch (BATT) Aftermarket Use Only 15 WINDOWS Power Windows Switch (RH, LH), Express-Down Module, Convertible Top Switch 16 IP DIMMER Door Illumination Lamp (LH, RH), Headlamp Switch, Fog Lamp Switch, Instrument Cluster, HVAC Control Assembly, PRNDL Illumination Lamp, Ashtray Lamp, Radio, Rear Window Defogger SwitchyTimcr, Traction Control (ASR)/Second-Gear Start Switch, Convertible Top Switch (ACCY) Aftermarket Use Only 17 RADIO Body Control Module (BCM), Radio, Amplifier, Steering Wheel Controls-Radio
This content requires JavaScript and a valid membership to view.
The other two are located in the engine compartment on the driver’s side of the vehicle.
Fuse Data
Full access is available to registered users — log in or register.
Log in or register This content requires JavaScript and a valid membership to view.
Assignment of the fuses in the engine compartment fuse box #1
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description ABS BAT SOL Anti-Lock Brake System TCS BAT Traction Control System (ASR) and ETC COOL FAN Cooling Fan Control PCM BAT Powertrain Control Module (PCM) FUEL PUMP Fuel Pump AIR PUMP Air Pump Relay and Bleed Valve LH HDLP DR Left Headlamp Door and Module RH HDLP DR Right Headlamp Door and Module HORN Horn Relay ABS BAT-1 Anti-Lock Brake System Module H/L DR HORN Horn and Headlamp Doors ABS BAT-2 Anti-Lock Brake and Traction Control System (ASR) COOL FAN Cooling Fan Relays
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the engine compartment fuse box #1
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description FOG LAMP Fog Lamps HORN Horn FAN #3 Cooling Fans FAN #2 Cooling Fans FAN #1 Cooling Fans
This content requires JavaScript and a valid membership to view.
Fuse Data
Full access is available to registered users — log in or register.
Log in or register This content requires JavaScript and a valid membership to view.
Assignment of the fuses in the engine compartment fuse box #2
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description INJ-2 Fuel Injectors (Not Used for V6) (LH Injectors for V8 and Ignition Module) INJ-1 Fuel Injectors (All for V6) (RH Injectors for V8 and Ignition Module) ENG SEN Mass Air Flow, Heated Oxygen Sensor, Skip Shift Solenoid (V8 Only), Reverse Lockout Solenoid, Brake Switch STRTR Powertrain Control Module (PCM) and Clutch Pedal Switch ABS IGN Anti-Lock Brake System Module PCM IGN Powertrain Control Module (PCM) ETC Electronic Throttle Control (V6 Only) ENG CTRL Ignition Module (V6 Only), Automatic Transmission and Charcoal Canister Purge Solenoid A/C CRUISE Air Conditioning Compressor Relay, Cruise Control Switches and Module ENG CTRL Engine Controls, Fuel Pump, Powertrain Control Module (PCM), A.I.R. and Cooling Fans I/P-1 HVAC Blower Control and Relay IGN Ignition Switch, Relay and Starter Enable Relay I/P-2 Instrument Panel Fuse Center
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the engine compartment fuse box #2
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description AIR SOL 1998-1999: Air Solenoid AIR PUMP Air Pump A/C COMP Air Conditioning Compressor FUEL PUMP Fuel Pump STARTER Starter IGN Engine Controls, Cruise Control, Air Conditioning
This content requires JavaScript and a valid membership to view.
