Explore Chevrolet Camaro fuse box diagrams in this practical guide that explains the electrical layout of the fifth-generation muscle car. In this article, we consider the fifth-generation Chevrolet Camaro, available from 2010 to 2015 , and provide fuse box diagrams for Chevrolet (Chevy) Camaro 2010, 2011, 2012, 2013, 2014 and 2015 , along with information about the location of the fuse panels and the assignment of each fuse and relay (fuse layout).
The fuse box is located on the driver’s side of the instrument panel, behind the cover.

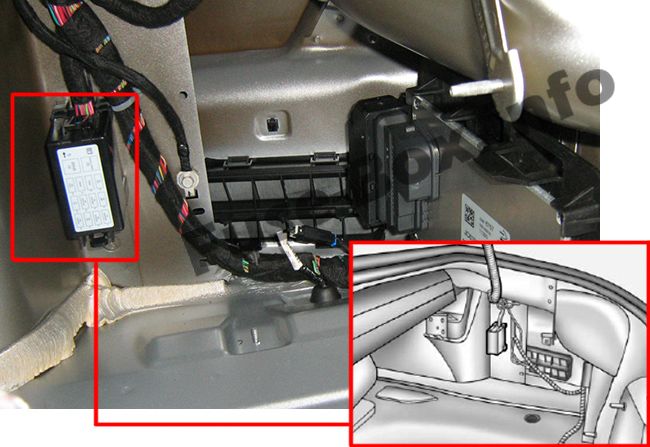

The rear compartment fuse block is located on the right side of the trunk behind a cover. Remove the convenience net retainers, the rear sill plate, and the passenger side trim retainers, then swing the trim out of the way.
Fuse Data
Full access is available to registered users — log in or register.
Log in or register This content requires JavaScript and a valid membership to view.
Assignment of the fuses in the Instrument Panel (2010, 2011)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description F1 Discrete Logic Ignition Switch F2 Diagnostic Link Connector F3 Airbag F4 Cluster F5 Heating Ventilation Air Conditioning Controller F6 Body Control Module F8 Battery F9 Spare F10 Spare F12 Spare F13 Display F14 OnStar Universal Hands‐Free Phone (If Equipped) F15 Body Control Module 3 F16 Body Control Module 4 F17 Power Outlet 1 F18 Power Outlet 2 F19 Steering Wheel Controls Backlight F20 Spare F21 Spare F23 Trunk F24 Automatic Occupant Sensing F25 Body Control Module 1 F27 Body Control Module 8 F28 Front Heater, Ventilation, and Air Conditioning F29 Body Control Module 5 F30 Body Control Module 7
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the Instrument Panel (2010, 2011)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description K10 Retained Accessory Power K609 Trunk
This content requires JavaScript and a valid membership to view.
Assignment of the circuit breakers in the Instrument Panel (2010, 2011)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description CB7 Passenger Seat CB26 Driver Seat
This content requires JavaScript and a valid membership to view.
Assignment of the fuses in the Engine Compartment (2010, 2011)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Type Description 6 J-Case Fuse Wiper 12 J-Case Fuse Starter 22 J-Case Fuse Brake Vacuum Pump 25 J-Case Fuse Power Windows Rear 26 J-Case Fuse Power Windows Front 27 J-Case Fuse Rear Defog 41 J-Case Fuse Cooling Fan High 42 J-Case Fuse 2010 : Front Heater, Ventilation and Air Conditioning; 2011 : Not used43 J-Case Fuse Antilock Brake System Pump 44 J-Case Fuse Cooling Fan Low 1 Mini Fuse Air Conditioning Compressor Clutch 2 Mini Fuse Transmission Control Module 5 Mini Fuse Engine Control Module Main 7 Mini Fuse Pre-Catalytic Converter Oxygen Sensor 8 Mini Fuse Post-Catalytic Converter Oxygen Sensor 9 Mini Fuse Fuel Injectors – Even 10 Mini Fuse Fuel Injectors – Odd 11 Mini Fuse Cooling Fan Relay 14 Mini Fuse Manifold Air Flow/Chassis Control 15 Mini Fuse Ignition 16 Mini Fuse Run/Crank IP 17 Mini Fuse Sensing Diagnostic Module/Ignition 18 Mini Fuse Run/Crank Body 19 Mini Fuse Transmission Control Module/Ignition 20 Mini Fuse Engine Control Module/Ignition 31 Mini Fuse Outside Rear View Mirror 32 Mini Fuse Canister Vent Solenoid 33 Mini Fuse Body Control Module #6 34 Mini Fuse Sunroof 35 Mini Fuse Front Heated Seats 38 Mini Fuse Washer Pump Front 40 Mini Fuse Antilock Brake System Valves 46 Mini Fuse HID Headlamp – Left Front 47 Mini Fuse HID Headlamp – Right Front 50 Mini Fuse Fog Lamps 51 Mini Fuse Horn 52 Mini Fuse Spare 55 Mini Fuse High Beam Headlamp – Right Front 56 Mini Fuse High Beam Headlamp – Left Front 61 Mini Fuse Heated Mirror
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the Engine Compartment (2010, 2011)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Type Description K26 Mini Relay Powertrain K50 Mini Relay Run / Crank K55 Mini Relay Rear Defog K612 Mini Relay Cooling Fan High K614 Mini Relay Cooling Fan Control K61 Micro Relay Starter K69 Micro Relay Wiper Control K613 Micro Relay Cooling Fan Low K617 Micro Relay Air Conditioning Compressor Clutch K619 Micro Relay Wiper Speed K627 Micro Relay High Intensity Discharge Headlamps K632 Micro Relay Brake Vacuum Pump
This content requires JavaScript and a valid membership to view.
Fuse Data
Full access is available to registered users — log in or register.
Log in or register This content requires JavaScript and a valid membership to view.
Assignment of the fuses in the Luggage Compartment (2010, 2011)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description F1 Universal Garage Door Opener/Ultrasonic Reverse Parking Aid F2 Amplifier F3 Radio F4 Convertible Top 1 F5 Convertible Top 2 F6 Spare 1 F7 Spare 2 F8 Spare 3 F9 Spare 4 F10 Engine Control Module/Battery F11 Regulated Voltage Control F12 Fuel System Control Module
This content requires JavaScript and a valid membership to view.
Fuse Data
Full access is available to registered users — log in or register.
Log in or register This content requires JavaScript and a valid membership to view.
Assignment of the fuses in the Instrument Panel (2012-2015)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description F1 Discrete Logic Ignition Switch F2 Diagnostic Link Connector F3 Airbag F4 Cluster F5 Heating Ventilation Air Conditioning Controller F6 Body Control Module 2 F8 Battery F9 Spare F10 Spare F12 Spare F13 Display F14 OnStar Universal Hands‐Free Phone (If Equipped) F15 Body Control Module 3 F16 Body Control Module 4 F17 Power Outlet 1 F18 Power Outlet 2 F19 Steering Wheel Controls Backlight F20 Spare F21 Spare F23 Trunk F24 Automatic Occupant Sensing F25 Body Control Module 1 F27 Body Control Module 8 F28 Front Heater, Ventilation, and Air Conditioning F29 2012-2013 : Body Control Module 52014-2015 : Not usedF30 Body Control Module 7
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the Instrument Panel (2012-2015)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description K10 Retained Accessory Power K609 Trunk SPARE SPARE
This content requires JavaScript and a valid membership to view.
Assignment of the circuit breakers in the Instrument Panel (2012-2015)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description CB7 Passenger Seat CB26 Driver Seat
This content requires JavaScript and a valid membership to view.

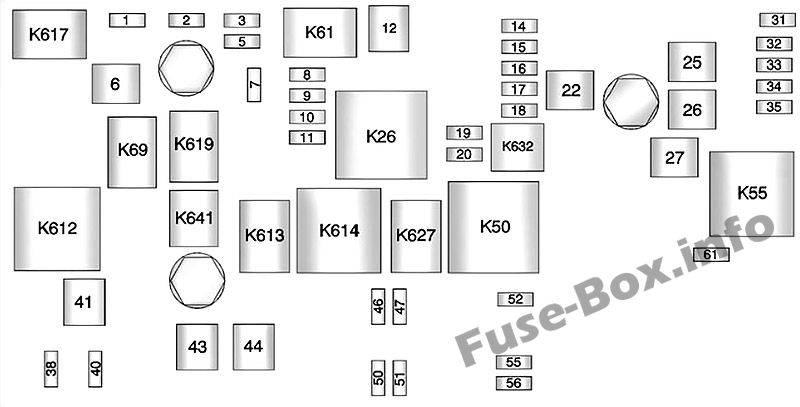

Assignment of the fuses in the Engine Compartment (2012-2015)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Type Description 6 J-Case Fuse Wiper 12 J-Case Fuse Starter 22 J-Case Fuse Brake Vacuum Pump 25 J-Case Fuse Power Windows Rear 26 J-Case Fuse Power Windows Front 27 J-Case Fuse Rear Defog 41 J-Case Fuse Cooling Fan High 43 J-Case Fuse Antilock Brake System Pump 44 J-Case Fuse Cooling Fan Low 1 Mini Fuse Air Conditioning Compressor Clutch 2 Mini Fuse Transmission Control Module 3 Mini Fuse 2012 : Not used; 2013-2015 : Intercooler Pump5 Mini Fuse Engine Control Module Main 7 Mini Fuse Pre-Catalytic Converter Oxygen Sensor 8 Mini Fuse Post-Catalytic Converter Oxygen Sensor 9 Mini Fuse Fuel Injectors – Even 10 Mini Fuse Fuel Injectors – Odd 11 Mini Fuse Cooling Fan Relay 14 Mini Fuse Manifold Air Flow/Chassis Control 15 Mini Fuse Ignition 16 Mini Fuse Run/Crank IP 17 Mini Fuse Sensing Diagnostic Module/Ignition 18 Mini Fuse Run/Crank Body 19 Mini Fuse Transmission Control Module/Ignition 20 Mini Fuse Engine Control Module/Ignition 31 Mini Fuse Outside Rear View Mirror 32 Mini Fuse Canister Vent Solenoid 33 Mini Fuse Body Control Module #6 34 Mini Fuse Sunroof 35 Mini Fuse Front Heated Seats 38 Mini Fuse Washer Pump Front 40 Mini Fuse Antilock Brake System Valves 46 Mini Fuse HID Headlamp – Left Front 47 Mini Fuse HID Headlamp – Right Front 50 Mini Fuse Fog Lamps 51 Mini Fuse Horn 52 Mini Fuse Spare 55 Mini Fuse High Beam Headlamp – Right Front 56 Mini Fuse High Beam Headlamp – Left Front 61 Mini Fuse Heated Mirror
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the Engine Compartment (2012-2015)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Type Description K26 Mini Relay Powertrain K50 Mini Relay Run / Crank K55 Mini Relay Rear Defog K612 Mini Relay Cooling Fan High K614 Mini Relay Cooling Fan Control K61 Micro Relay Starter K69 Micro Relay Wiper Control K613 Micro Relay Cooling Fan Low K617 Micro Relay Air Conditioning Compressor Clutch K619 Micro Relay Wiper Speed K627 Micro Relay High Intensity Discharge Headlamps K632 Micro Relay Brake Vacuum Pump K641 Micro Relay Intercooler Pump
This content requires JavaScript and a valid membership to view.
Fuse Data
Full access is available to registered users — log in or register.
Log in or register This content requires JavaScript and a valid membership to view.
Assignment of the fuses in the Luggage Compartment (2012-2015)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description F1 Universal Garage Door Opener/Ultrasonic Rear Parking Assist/Inside Rearview Mirror F2 Amplifier F3 Radio F4 Convertible Top 1 F5 Convertible Top 2 F6 Spare 1 F7 Real Time Damping F8 Active Exhaust Flapper F9 Spare 4 F10 Engine Control Module/Battery F11 Regulated Voltage Control F12 Fuel System Control Module
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the Luggage Compartment (2012-2015)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description R1 Spare R2 Active Exhaust Flapper
