Explore Chevrolet Camaro fuse box diagrams in this clear guide that outlines the electrical layout of the modern muscle car era. In this article, we consider the sixth-generation Chevrolet Camaro, available from 2016 to 2024 , and provide fuse box diagrams for Chevrolet (Chevy) Camaro 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023 and 2024 , along with information about the location of the fuse panels and the assignment of each fuse and relay (fuse layout).

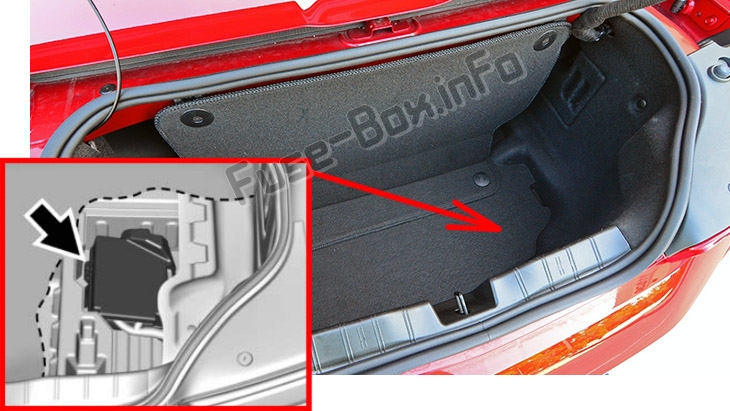

The rear compartment fuse block is located on the right side of the trunk under the floor and cover.

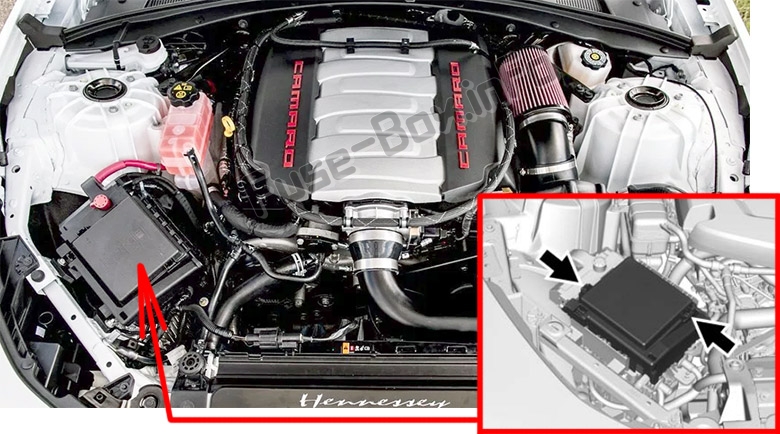

Assignment of the fuses in the Engine Compartment (2016, 2017, 2018)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description F1 Antilock brake system pump F2 Not used F3 Driver power seat F4 Cooling fan F5 Passenger power seat F6 Not used F7 Not used F8 Not used F9 Not used F10 Not used F11 Not used F12 Front wiper F13 Starter F14 Brake vacuum pump F15 Not used F16 Heated seat F17 Passenger window F18 2016: Not used. F19 2016: Not used. F20 2016: Not used. F21 Body control module 6 F22 Antilock brake system valve F23 Not used F24 Not used F25 Steering column lock F26 2016: Not used. F27 Not used F28 2016: Not used. F29 2016: Not used. F30 Windshield wiper F31 Right HID headlamp F32 Left HID headlamp F33 Not used F34 Horn F35 Not used F36 Left hi-beam headlamp F37 Right high-beam headlamp F38 Manual headlamp leveling F39 Not used F40 Rear electrical center ignition F41 Malfunction indicator lamp ignition F42 Instrument panel body ignition F43 Exhaust valve/Active fuel management F44 AOS display ignition F45 Sunroof F46 Body control module 7 F47 2016: Not used. F48 Not used F49 Heated steering wheel F50 Fuel system control module ignition F51 Exhaust valve ptsq F52 Air conditioning compressor clutch F53 Not used F54 Coolant pump F55 Not used F56 Not used F57 Engine control module ignition F58 Transmission control module ignition F59 Not used F60 Transmission control module battery F61 MAF/O2 sensor F62 Odd coils F63 Non-walk O2 F64 Even coils F65 Not used F66 Engine control module 1 F67 Engine control module 2 F68 Not used F69 Not used F70 Not used F71 Not used F72 Not used F73 Not used F74 Not used F75 Not used F76 Not used F77 Not used
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the Engine Compartment (2016, 2017, 2018)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description K1 Not used K2 Run/Crank K3 Not used K4 Vacuum pump K5 Not used K6 Coolant pump K7 Engine control module K8 Air conditioning control K9 Not used K10 Starter
This content requires JavaScript and a valid membership to view.

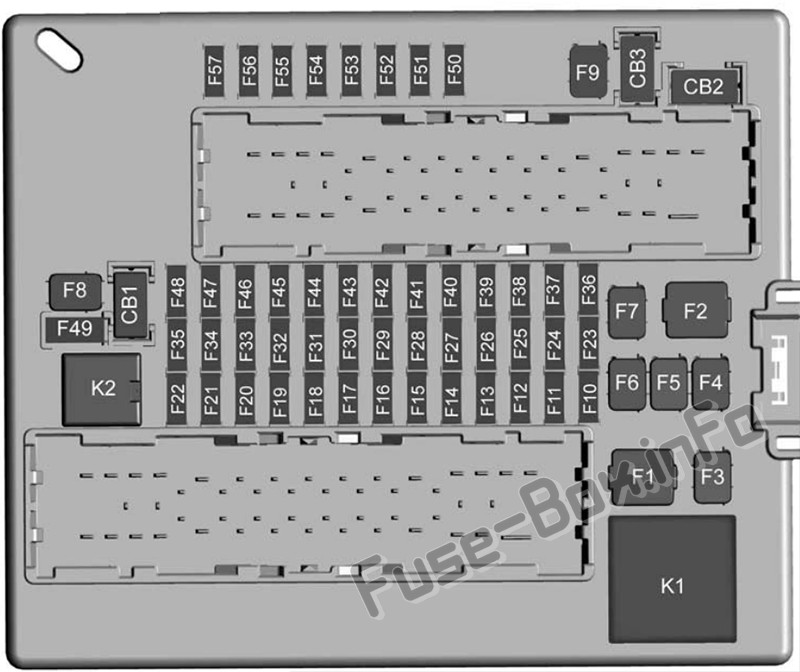

Assignment of the fuses in the Luggage Compartment (2016, 2017, 2018)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description F1 Rear defogger F2 Front heater, ventilation/and air conditioning F3 Electric parking brake F4 2016: Body control module 8. F5 Not used F6 Rear drive control module F7 Right window 1 F8 Not used F9 Left window 1 F10 Heated mirror 1 F11 Not used F12 Heated steering wheel F13 Not used F14 Heater, ventilation/ and air conditioning control F15 2016: Airbag module/AOS. F16 Display F17 Camera F18 Not used F19 Front ventilated seat 1 F20 Reverse lamps F21 Not used F22 Not used F23 Body control module 1 F24 2016: Body control module 2. F25 Not used F26 2016: Body control module 3. F27 RGB lights F28 Passive entry/ Passive start battery 1 F29 Data link connector F30 Canister vent F31 Memory seat module folding top F32 Memory seat module F33 Wireless charger F34 Engine control module battery F35 Fuel pump/Fuel system control module F36 2016: CGM. F37 Electric steering column lock F38 Mirror window module F39 Rear closure F40 2016: Body control module 4. F41 Battery regulated voltage control F42 SADS F43 Not used F44 Folding top solenoid F45 Amplifier F46 FPPM 22 F47 Shunt F48 Not used F49 Steering wheel F50 Inside rearview mirror F51 Camera module F52 Rear parking assist F53 Electronic limited-slip differential F54 Side blind zone alert F55 Radio controls F56 Theft/Universal remote system F57 OnStar/Navigation (export)
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the Luggage Compartment (2016, 2017, 2018)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description K1 Rear defogger K2 2016: Not used.
This content requires JavaScript and a valid membership to view.
Assignment of the circuit breakers in the Luggage Compartment (2016, 2017, 2018)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description CB1 Not used CB2 C1 Retained accessory power accessory CB3 Not used
This content requires JavaScript and a valid membership to view.
Assignment of the fuses in the Engine Compartment (2019, 2020, 2021, 2022, 2023, 2024)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description F1 ABS pump F2 — F3 Driver power seat F4 Cooling fan F5 Passenger power seat F6 — F7 — F8 — F9 — F10 — F11 AUX DRL F12 Front wiper F13 Starter F14 Brake vacuum pump F15 Automatic headlamp leveling module F16 Front heated seat F17 Passenger window F18 Body control module 4 F19 SDM/AOS F20 OnStar / Navigation F21 Body control module 6 F22 ABS valve F23 — F24 — F25 Electric steering column lock F26 Body control module 2 F27 — F28 Body control module 3 F29 Body control module 8 F30 Windshield wiper F31 Right LED headlamp F32 Left LED headlamp F33 — F34 Horn F35 Automatic headlamp leveling motor F36 Left high-beam headlamp F37 Right high-beam headlamp F38 — F39 — F40 Rear electrical center/lgnition F41 2019: Instrument panel cluster/ Ignition. F42 HVAC/ISRVM/ OSRVM F43 2019: Front exhaust valve active fuel management. F44 — F45 Sunroof F46 Body control module 7 F47 CGM F48 A/C clutch F49 Heated steering wheel F50 Fuel system control module/ Ignition F51 Rear exhaust valve PTSQ F52 — F53 — F54 Engine coolant pump F55 Fuel prime F56 — F57 Engine control module/lgnition F58 Transmission control module/ Ignition F59 — F60 Transmission control module battery F61 Non-walk/ Vehicle F62 Ignition coils – odd F63 Non-walk/O2 sensor F64 Ignition coils – even F65 — F66 Engine control module 1 F67 Engine control module 2 F68-F77 Spare fuses
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the Engine Compartment (2019, 2020, 2021, 2022, 2023, 2024)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description K1 — K2 Run/Crank K3 — K4 Vacuum pump K5 A/C control K6 Coolant pump K7 Engine control module K8 Fuel prime K9 — K10 Starter
This content requires JavaScript and a valid membership to view.
Assignment of the fuses in the trunk (2019, 2020, 2021, 2022, 2023, 2024)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description F1 Rear window defogger F2 Front blower F3 Electric parking brake F4 — F5 — F6 Rear drive control module F7 Right window F8 — F9 Left window F10 Heated mirror F11 — F12 Heated steering wheel F13 — F14 HVAC control F15 Spare F16 Display F17 Spare F18 — F19 Front ventilated seat F20 Spare F21 — F22 — F23 Body control module F24 — F25 — F26 — F27 RGB lights F28 Passive entry/ Passive start battery F29 Data link connector F30 Canister vent F31 Power fold top F32 Memory seat module F33 Wireless charger F34 Engine control module battery F35 Fuel system control module V6 F36 — F37 Electric steering column lock F38 Outside rear view mirror/ Power window F39 Rear closure F40 — F41 Battery regulated voltage control F42 SADS F43 2019: Not Used. F44 Folding top solenoid F45 Amplifier F46 Fuel system control module V8 F47 Shunt F48 — F49 Steering wheel F50 Front camera module F51 Camera module F52 Park assist F53 2019: Rear driver control module. F54 Side blind zone alert F55 Radio F56 — F57 —
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the trunk (2019, 2020, 2021, 2022, 2023, 2024)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description K1 Rear window defogger K2 Fuel system control module
This content requires JavaScript and a valid membership to view.
Assignment of the circuit breakers in the trunk (2019, 2020, 2021, 2022, 2023, 2024)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description CB1 — CB2 Retained accessory power CB3 —
This content requires JavaScript and a valid membership to view.
