Explore Chevrolet Captiva fuse box diagrams in this straightforward guide that explains the electrical layout of this compact crossover SUV. In this article, we consider the Chevrolet Captiva, produced from 2012 to 2016 , and provide fuse box diagrams for Chevrolet (Chevy) Captiva 2012, 2013, 2014, 2015 and 2016 , along with information about the location of the fuse panels and the assignment of each fuse and relay (fuse layout).
It is located under the instrument panel on the passenger’s side, behind the cover on the central console.
Fuse Data
Full access is available to registered users — log in or register.
Log in or register This content requires JavaScript and a valid membership to view.
Assignment of the fuses in the Instrument Panel
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description AMP Amplifier APO JACK (CONSOLE) Auxiliary Power Outlet Jack APO JACK (REAR CARGO) Auxiliary Power Outlet Jack Rear Cargo AWD/VENT All-Wheel Drive/ Ventilation BCM (CTSY) Body Control Module (Courtesy) BCM (DIMMER) Body Control Module (Dimmer) BCM (INT LIGHT) Body Control Module (Interior Light) BCM (PRK/TN) Body Control Module (Parking/ Turn Signal) BCM (STOP) Body Control Module (Stoplamp) BCM (TRN SIG) Body Control Module (Turn Signal) BCM (VBATT) Body Control Module (Battery Voltage) CIGAR Cigarette Lighter CIM Communications Integration Module CLSTR Instrument Cluster DRL Daytime Running Lamps DR/LCK Driver Door Lock DRVR PWR SEAT Driver Power Seat DRV/ PWR WNDW Driver Power Window F/DOOR LOCK Fuel Door Lock FRT WSR Front Washer FSCM Fuel System Control Module FSCM VENT SOL Fuel System Control Module Vent Solenoid HEATING MAT SW Heating Mat Switch HTD SEAT PWR Heated Seat Power HVAC BLWR Heating, Ventilation, and Air Conditioning Blower IPC Instrument Panel Cluster ISRVM/RCM Inside Rearview Mirror/Remote Compass Module KEY CAPTURE Key Capture L/GATE Liftgate LOGISTIC MODE Logistic Mode OSRVM Outside Rearview Mirror PASS PWR WNDW Passenger Power Window PWR DIODE Power Diode PWR/ MODING Power Moding RADIO Radio RR FOG Rear Defogger RUN 2 Power Battery Key On Run RUN/CRNK Run Crank SDM (BATT) Safety Diagnosis Module (Battery) SDM (IGN 1) Safety Diagnosis Module (Ignition 1) SPARE Spare S/ROOF Sunroof S/ROOF BATT Sunroof Battery SSPS Speed Sensitive Power Steering STR/ WHL SW Steering Wheel Switch TRLR Trailer TRLR BATT Trailer Battery XBCM Export Body Control Module XM/ HVAC/DLC SiriusXM Satellite Radio (If Equipped)/Heating, Ventilation, and Air Conditioning/Data Link Connection
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the Instrument Panel
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description ACC/ RAP RLY Accessory/Run Accessory Power CIGAR APO JACK RLY Cigarette and Auxiliary Power Outlet RUN/ CRN K RLY Run/Crank RUN RLY Run
This content requires JavaScript and a valid membership to view.

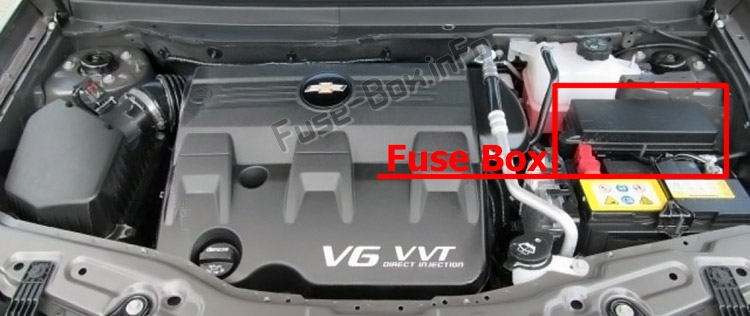

It is located in the engine compartment.
Fuse Data
Full access is available to registered users — log in or register.
Log in or register This content requires JavaScript and a valid membership to view.

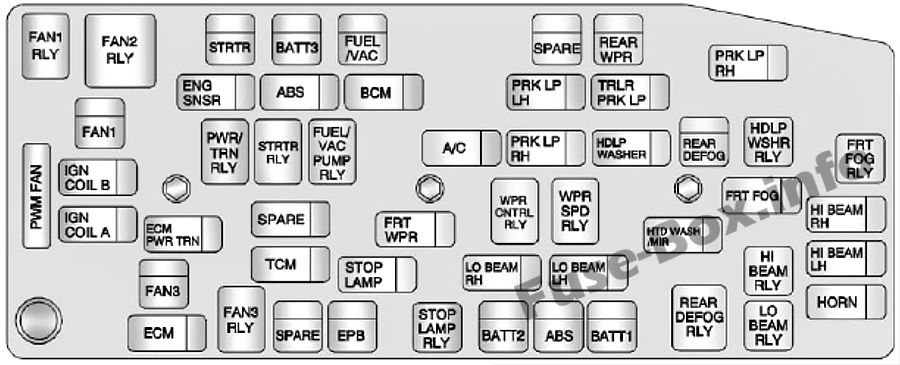

Assignment of the fuses in the Engine Compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description ABS Antilock Brake System A/C Heater, Ventilation, and Air Conditioning System BATT1 Instrument Panel Fuse Block Main Feed 1 BATT2 Instrument Panel Fuse Block Main Feed 2 BATT3 Instrument Panel Fuse Block Main Feed 3 BCM Body Control Module ECM Engine Control Module ECM PWR TRN Engine Control Module/Powertrain ENG SNSR Miscellaneous Engine Sensors EPB Electric Parking Brake FAN1 Cooling Fan 1 FAN3 Cooling Fan 3 FRTFOG Front Fog Lamps FRT WPR Front Wiper Motor FUEL/VAC Fuel Pump/ Vacuum Pump HDLP WASHER Headlamp Washer HI BEAM LH High-Beam Headlamp (Left) HI BEAM RH High-Beam Headlamp (Right) HORN Horn HTD WASH/MIR Heated Washer Fluid/Heated Mirrors IGN COIL A Ignition Coil A IGN COIL B Ignition Coil B LO BEAM LH Low-Beam Headlamp (Left) LO BEAM RH Low-Beam Headlamp (Right) PRK LP LH Parking Lamps (Left) PRK LP RH Parking Lamps (Right) PRK LP RH Parking Lamps (Right) (Europe Park Lamps) PWM FAN Pulse Width Modulation Fan REAR DEFOG Rear Window Defogger REARWPR Rear Wiper Motor SPARE Not Used STOP LAMP Stoplamps STRTR Starter TCM Transmission Control Module TRLR PRK LP Trailer Parking Lamps
This content requires JavaScript and a valid membership to view.
Assignment of the fuses in the Engine Compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description FAN1 RLY Cooling Fan 1 FAN2 RLY Cooling Fan 2 FAN3 RLY Cooling Fan 3 FRT FOG RLY Front Fog Lamps FUEL/VAC PUMP RLY Fuel Pump/Vacuum Pump Relay HDLP WSHR RLY Headlamp Washer HI BEAM RLY High-Beam Headlamps LO BEAM RLY Low-Beam Headlamps PWR / TRN RLY Powertrain REAR DEFOG RLY Rear Window Defogger STOP LAMP RLY Stoplamps STRTR RLY Starter WPR CNTRL RLY Wiper Control WPR SPD RLY Wiper Speed
This content requires JavaScript and a valid membership to view.

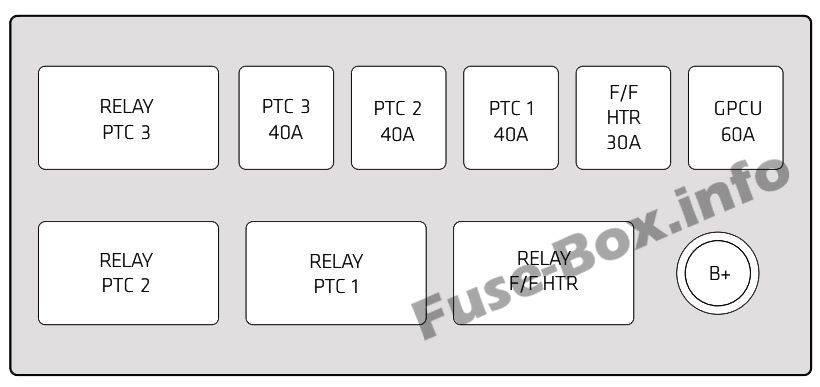

Located in Engine Compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register This content requires JavaScript and a valid membership to view.
