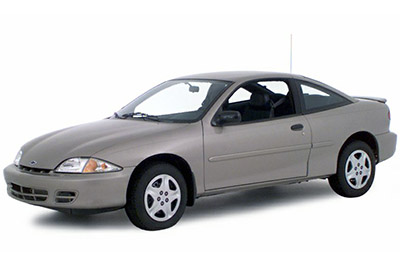

Explore Chevrolet Cavalier fuse box diagrams in this practical guide that outlines the electrical layout of the long-running compact sedan. In this article, we consider the third-generation Chevrolet Cavalier, produced from 1994 to 2005 , and provide fuse box diagrams for Chevrolet (Chevy) Cavalier 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004 and 2005 , along with information about the location of the fuse panels and the assignment of each fuse and relay (fuse layout).

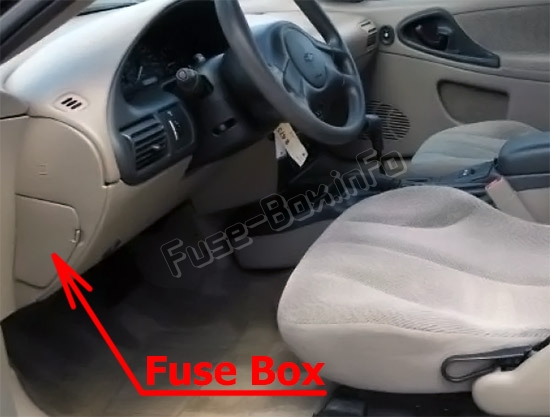

The fuse box is located on the driver’s side of the instrument panel, behind the cover.

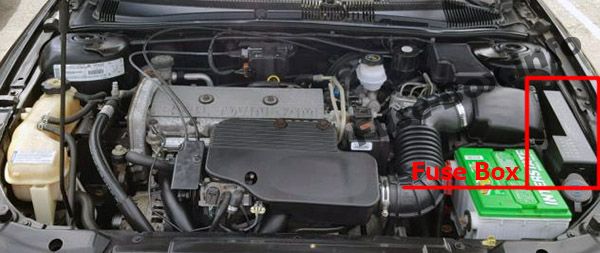

It is located in the engine compartment (left-side).
Fuse Data
Full access is available to registered users — log in or register.
Log in or register This content requires JavaScript and a valid membership to view.

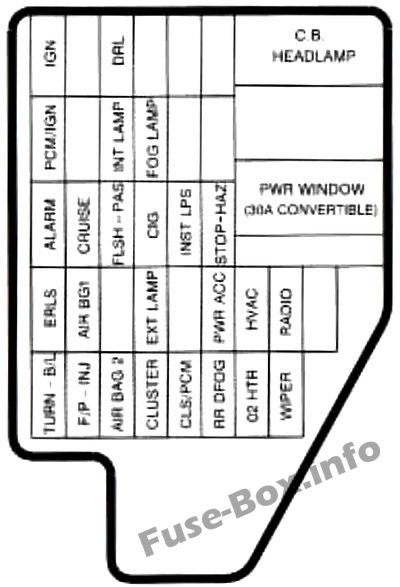

Assignment of the fuses and relay in the Instrument Panel Fuse Box (1995)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description AIR BG 1 Air Bag-DERM (Diagnostic Energy Reserve Module) Power AIR BG 2 Air Bag-DERM Crank Signal ALARM Alarm Module: Illuminated Entry, Warning Chimes CIG Cigar Lighter, Horn, Diagnostic Connector CLS/PCM Instrument Cluster, Powertrain Control Module CLUSTER Instrument Cluster, Anti-Lock Brake System CRUISE Cruise Control DRL Daytime Running Lamps ERLS Automatic Transaxle, Brake-Transaxle Shift Interlock, A/C Compressor, Cruise Control, Exhaust Gas Recirculation (2.2L Engine), Cannister Purge Valve, A/C High Pressure Switch (2.3L Engine) EXT LAMP Park Lamps, Side Marker Lamps, Instrument Panel Lamp F/P-INJ Fuel Pump, Fuel Injectors FLSH-PAS Flash To Pass Lamps HEADLAMP Headlamps HVAC Heater/A/C Control, Rear Window Defogger, Anti-lock Brake System, Engine Cooling Fan (2.2L Engine), Engine Vent Heater (2.3L Engine) IGN Engine Ignition INST LPS Instrument Panel Lamps INT LAMP Alarm Module: illuminated Entry, Warning Chimes, Overhead Lamps, Map/Reading Lamps, Glove Box Lamp, Trunk Lamp, Radio, Power Mirrors O2 HTR Rear O2 HTR Sensor Heater (2.3L Engine, Cal. Auto) PCM/IGN Powertrain Control Module PWR ACC Power Door Lock PWR WINDOW Power Windows, Power Sunroof RADIO Radio RR DFOG Rear Window Defogger STOP-HAZ Stop Lamps, Hazard Lamps TURN-B/U Turn Signal Lamps, Backup Lamps WIPER Windshield Wipers, Windshield Washers
This content requires JavaScript and a valid membership to view.
Fuse Data
Full access is available to registered users — log in or register.
Log in or register This content requires JavaScript and a valid membership to view.
Assignment of the fuses and relay in the Engine Compartment Fuse Box (1995)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description A/C A/C Compressor (2.3L Engine) ABS Anti-Lock Brake System ABS Electronic Variable Orifice Steering, Anti-Lock Brake System BATT 1 Power ACC/Stop Lamp Circuits BATT 2 Lighting Circuits BLO Heater/ A/C Blower COOLING FAN Engine Cooling Fan GEN Generator-Voltage Sense IGN Ignition Switch Circuits PCM Powertrain Control Module
This content requires JavaScript and a valid membership to view.
Fuse Data
Full access is available to registered users — log in or register.
Log in or register This content requires JavaScript and a valid membership to view.

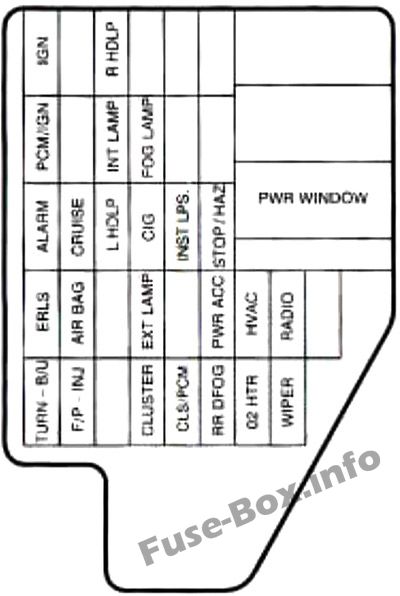

Assignment of the fuses and relay in the Instrument Panel Fuse Box (1996, 1997)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description TURN-B/U Exterior Lamps, Back-up Lamps F/P-INJ Fuel Pump, Fuel Injectors CLUSTER Instrument Cluster, Anti-Lock Brake System CLS/PCM Instrument Cluster, Powertrain Control Module, Daytime Running Lamps RR DFOG Rear Window Defogger O2 HTR Multiport Fuel Injection WIPER Windshield Wipers, Windshield Washers ERLS Automatic Transaxle, Brake-Transaxle Shift Interlock, A/C Compressor, Cruise Control, Multiport Fuel Injection AIR BAG Supplemental Inflatable Restraint System EXT LAMP Exterior Lamps, Instrument Panel Lights PWR ACC Power Door Locks, Convertible Top (Convertible Model) HVAC Heater and A/C Control, Anti-Lock Brake System, Engine Cooling Fan (2.2L Engine), Engine Vent Heater (2.4L Engine) RADIO Radio, Remote Keyless Entry ALARM Alarm Module – Interior Lamps, Warning Chime CRUISE Cruise Control L HDLP Left Headlamp CIG Cigarette Lighter, Horn, Interior Lamps, Diagnostic Connector INST LPS Instrument Panel Lights, Warning Chimes STOP/HAZ Exterior Lamps, Anti-Lock Brake System, Cruise Contro PWR WINDOW Power Windows, Power Sunroof, Convertible Top Controls (Convertible Model) (Circuit Breaker) PCM/IGN Powertrain Control Module INT LAMP Alarm Module: Illuminated Entry, Warning Chimes, Overhead Lamps, Mapmeading Lamps, Glove Box Lamp, Trunk Lamp, Radio, Power Mirrors, Remote Keyless Entry FOG LAMP Fog Lamps (2-24 Only) IGN Engine Ignition R HDLP Right Headlamp
This content requires JavaScript and a valid membership to view.
Fuse Data
Full access is available to registered users — log in or register.
Log in or register This content requires JavaScript and a valid membership to view.

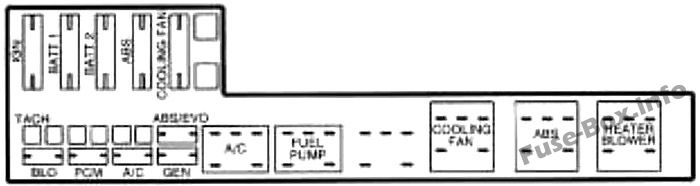

Assignment of the fuses and relay in the Engine Compartment Fuse Box (1996, 1997)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description IGN Ignition Switch Circuits BATT 1 Power ACC/Stoplamp Circuits BATT 2 Lighting Circuits ABS Electronic Variable Orifice Steering, Anti-Lock Brake System COOLING FAN Engine Cooling Fan BLO Heater and A/C Blower PCM Powertrain Control Module A/C A/C Compressor ABS/EVO Anti-Lock Brake System GEN Gen Voltage Sensor (2.2L Engine)
This content requires JavaScript and a valid membership to view.
Fuse Data
Full access is available to registered users — log in or register.
Log in or register This content requires JavaScript and a valid membership to view.
Assignment of the fuses and relay in the Instrument Panel Fuse Box (1998)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description TRN-BL Exterior Lamps, Back-up Lamps F/P-INJ Fuel Pump, Fuel Injectors RR DFOG Rear Window Defogger CLUSTER Instrument Cluster, Anti-Lock Brake System CLS/PCM Instrument Cluster, Powertrain Control Module, Daytime Running Lamps O2 HTR Multiport Fuel Injection WIPER Windshield Wipers, Windshield Washers ERLS Automatic Transaxle, Brake-Transaxle Shift Interlock, A/C Compressor, Cruise Control, Multiport Fuel Injection AIR BAG Supplemental Inflatable Restraint System PWR ACC Power Door Locks, Convertible Top (Convertible Model Only) EXT LAMP Exterior Lamps, Instrument Panel Lights HVAC Heater and A/C Control, Anti-lock Brake System, Engine Cooling Fan RADIO Radio, Remote Keyless Entry ALARM Alarm Module – Interior Lamps, Warning Chime CRUISE Cruise Control STOP/HAZ Exterior Lamps, Anti-Lock Brake System, Cruise Control, Turn Signals CIG Cigarette Lighter, Horn, Interior Lamps, Diagnostic Connector INST LPS Instrument Panel Lights, Warning Chimes PCM/IGN Powertrain Control Module L HDLP Left Headlamp, Fog Lamp (2-24) INT LAMP Alarm Module: Illuminated Entry, Warning Chimes, Overhead Lamps, MapReading Lamps, Glove Box Lamp, Trunk Lamp, Radio, Power Mirrors, Remote Keyless Entry IGN Engine Ignition R HDLP Right Headlamp, Fog Lamp (2-24) PWR WDO/SRF Power Windows, Power Sunroof, Convertible Top Controls (Convertible Models) (Circuit Breaker) DRL Daylight Running Lamps (Relay)
This content requires JavaScript and a valid membership to view.
Fuse Data
Full access is available to registered users — log in or register.
Log in or register This content requires JavaScript and a valid membership to view.

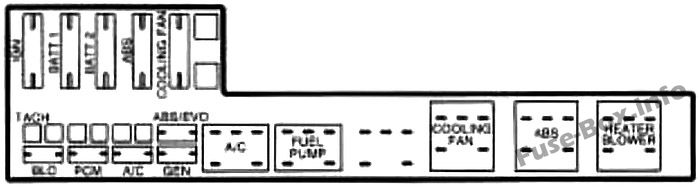

Assignment of the fuses and relay in the Engine Compartment Fuse Box (1998)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description IGN Ignition Switch Circuits BATT 1 Power ACC/Stoplamp Circuits BATT 2 Lighting Circuits ABS Anti-Lock Brake System COOLING FAN Engine Cooling Fan TACH Tachometer BLO Heater and A/C Blower PCM Powertrain Control Module A/C A/C Compressor ABS/EVO Anti-Lock Brake System GEN Gen Voltage Sensor (2.2L Engine)
This content requires JavaScript and a valid membership to view.
Fuse Data
Full access is available to registered users — log in or register.
Log in or register This content requires JavaScript and a valid membership to view.

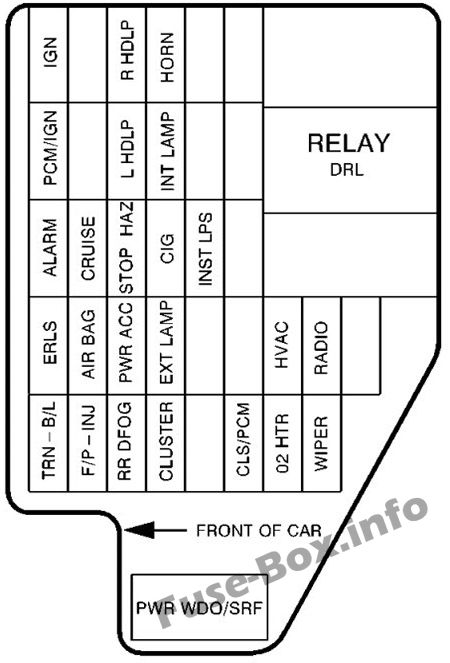

Assignment of the fuses and relay in the Instrument Panel Fuse Box (1999)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description TRN-BL Exterior Lamps, Back-up Lamps F/P-INJ Fuel Pump, Fuel Injectors RR DFOG Rear Window Defogger CLUSTER Instrument Cluster, Anti-Lock Brake System CLS/PCM Instrument Cluster, Powertrain Control Module, Daytime Running Lamps O2 HTR Rear O2 Sensor Heater WIPER Windshield Wipers, Windshield Washers ERLS Automatic Transaxle, Brake Transaxle Shift Interlock (BTSI), A/C Compressor, Cruise Control, Multiport Fuel Injection AIR BAG Supplemental Inflatable Restraint (SIR) System PWR ACC Power Door Locks, Convertible Top (Convertible Model Only) EXT LAMP Exterior Lamps, Instrument Panel Lights HVAC Heater and A/C Control, Anti-lock Brake System, Engine Cooling Fan RADIO Radio, Remote Keyless Entry ALARM Alarm Module – Interior Lamps, Warning Chime CRUISE Cruise Control STOP/HAZ Exterior Lamps, Anti-Lock Brake System, Cruise Control, Turn Signals CIG Cigarette Lighter INST LPS Instrument Panel Lights, Warning Chimes PCM/IGN Powertrain Control Module L HDLP Left Headlamp, Fog Lamp (Z-24 Model Only) INT LAMP Alarm Module: Illuminated Entry, Warning Chimes, Overhead Lamps, Map/Reading Lamps, Glove Box Lamp, Trunk Lamp, Radio, Power Mirrors, Remote Keyless Entry IGN Engine Ignition R HDLP Right Headlamp, Fog Lamp (Z-24 Model Only) HORN Horn, Diagnostic Connector PWR WDO/SRF Power Windows, Power Sunroof, Convertible Top Controls (Convertible Model Only) (Circuit Breaker) DRL Daylight Running Lamps (Relay)
This content requires JavaScript and a valid membership to view.
Fuse Data
Full access is available to registered users — log in or register.
Log in or register This content requires JavaScript and a valid membership to view.

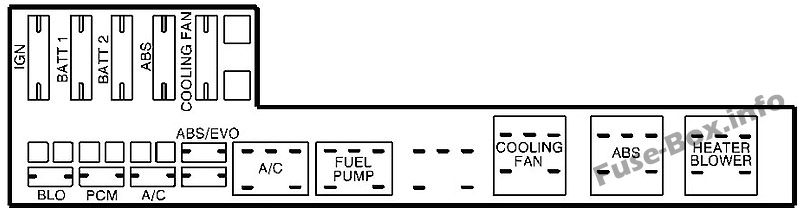

Assignment of the fuses and relay in the Engine Compartment Fuse Box (1999)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description IGN Ignition Switch Circuits BATT 1 Power ACC/Stoplamp Circuits BATT 2 Lighting Circuits ABS Anti-Lock Brake System COOLING FAN Engine Cooling Fan BLO Heater and A/C Blower PCM Powertrain Control Module A/C A/C Compressor ABS/EVO Anti-Lock Brake System
This content requires JavaScript and a valid membership to view.
Fuse Data
Full access is available to registered users — log in or register.
Log in or register This content requires JavaScript and a valid membership to view.

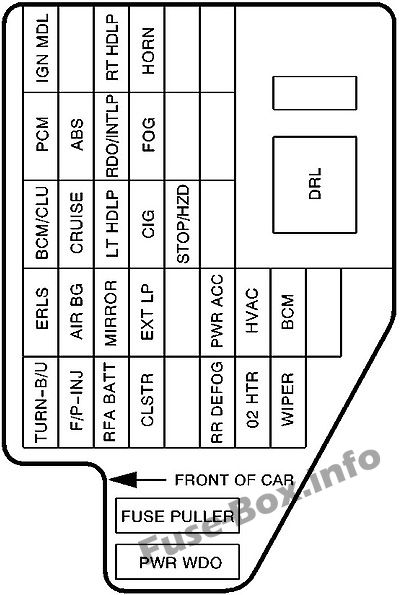

Assignment of the fuses and relay in the Instrument Panel Fuse Box (2000, 2001)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description TURN-B/U Turn Signals, Back-Up Lamps ERLS Engine Relays BCM/CLU Body Control Module, Instrument Panel Cluster PCM Powertrain Control Module IGN MDL Ignition Module F/P-INJ Fuel Pump, Fuel Injectors AIR BG Air Bag CRUISE Cruise Control Switch ABS Anti-Lock Brake (Ignition) Blank Not Used RFA BATT Remote Keyless Entry System MIRROR Power Mirror LT HDLP Left Headlamp RDO/INTLP Radio, Interior Lamps RT HDLP Right Headlamp CLSTR Instrument Panel Cluster EXT LP Exterior Lamps CIG Cigarette Lighter, Diagnostic Link Connector FOG Fog Lamps HORN Horn Blank Not Used Blank Not Used STOP/HZD Stop Lamps, Hazard Lamps Blank Not Used Blank Not Used RR DEFOG Rear Window Defogger PWR ACC Power Door Locks, Convertible Top Switch Blank Not Used Blank Not Used Blank Not Used O2 HTR Oxygen Sensor Heater HVAC Climate Control System WIPER Windshield Wiper BCM Body Control Module Blank Not Used PWR WDO Power Windows, Sunroof, Convertible Top (Circuit Breaker) DRL Daytime Running Lamps (Relay)
This content requires JavaScript and a valid membership to view.
Fuse Data
Full access is available to registered users — log in or register.
Log in or register This content requires JavaScript and a valid membership to view.

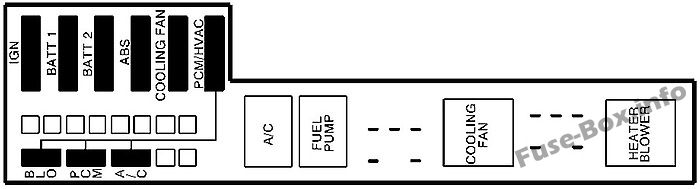

Assignment of the fuses and relay in the Engine Compartment Fuse Box (2000, 2001)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description IGN Ignition Switch Circuits BATT 1 Power ACC/Stoplamp Circuits BATT 2 Lighting Circuits ABS Anti-Lock Brake System COOLING FAN Engine Cooling Fan PCM/HVAC Powertrain Control Module, Heater and A/C Blower BLO Heater and A/C Blower PCM Powertrain Control Module A/C A/C Compressor FUEL PUMP Fuel Pump HEATER BLOWER Heater and A/C Blower
This content requires JavaScript and a valid membership to view.
Fuse Data
Full access is available to registered users — log in or register.
Log in or register This content requires JavaScript and a valid membership to view.

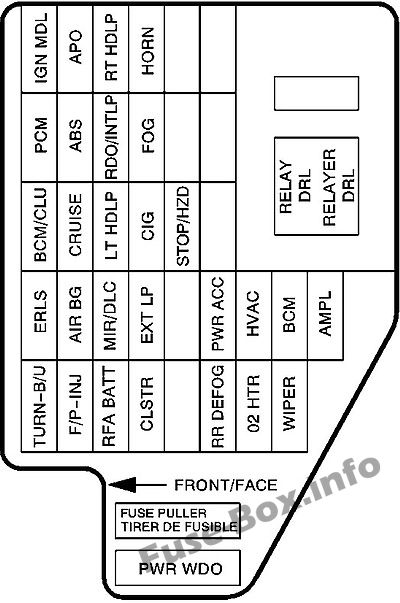

Assignment of the fuses and relay in the Instrument Panel Fuse Box (2002-2005)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description TURN-B/U Turn Signals, Back-Up Lamps ERLS Engine Relays BCM/CLU Body Control Module, Instrument Panel Cluster PCM Powertrain Control Module IGN MDL Ignition Module F/P-INJ Fuel Pump, Fuel Injectors AIR BG Air Bag CRUISE Cruise Control Module/Switch ABS Anti-Lock Brake (Ignition) APO Accessory Power Outlet RFA BATT Remote Keyless Entry System MIR/DLC Power Mirror/Diagnostic Link Connector LT HDLP Left Headlamp RDO/INTLP Radio, Interior Lamps RT HDLP Right Headlamp CLSTR Instrument Panel Cluster EXT LP Exterior Lamps CIG Cigarette Lighter FOG Fog Lamps HORN Horn Blank Not Used Blank Not Used STOP/HZD Stop Lamps, Hazard Lamps Blank Not Used Blank Not Used RR DEFOG Rear Window Defogger PWR ACC Power Door Locks Blank Not Used Blank Not Used Blank Not Used O2 HTR Oxygen Sensor Heater HVAC Climate Control System WIPER Windshield Wiper BCM Body Control Module AMPL Audio Amplifier PWR WDO Power Windows, Sunroof RELAY DRL Daytime Running Lamps (Relay) Blank Not Used
This content requires JavaScript and a valid membership to view.
Fuse Data
Full access is available to registered users — log in or register.
Log in or register This content requires JavaScript and a valid membership to view.

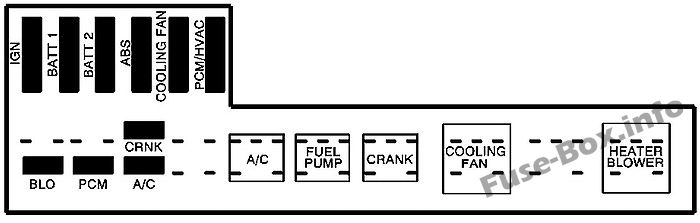

Assignment of the fuses and relay in the Engine Compartment Fuse Box (2002-2005)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description IGN Ignition Switch Circuits BATT 1 Exterior Lamps, Power Outlet, Horn, Audio Amplifier BATT 2 Rear Defogger, Starter, Power Locks, Stoplamps ABS Anti-Lock Brake System COOLING FAN Engine Cooling Fan PCM/HVAC Powertrain Control Module, Heater and A/C Blower CRNK Starter BLO Heater and A/C Blower PCM Powertrain Control Module A/C A/C Compressor A/C A/C Compressor FUEL PUMP Fuel Pump CRNK Starter COOLING FAN Engine Cooling Fan HEATER BLOWER Heater and A/C Blower
