Explore Chevrolet Colorado fuse box diagrams in this clear guide that outlines the electrical layout of the second-generation midsize pickup. In this article, we consider the second-generation Chevrolet Colorado, produced from 2011 to 2022 , and provide fuse box diagrams for Chevrolet (Chevy) Colorado 2015, 2016, 2017, 2018, 2019, 2020, 2021 and 2022 , along with information about the location of the fuse panels and the assignment of each fuse and relay (fuse layout).

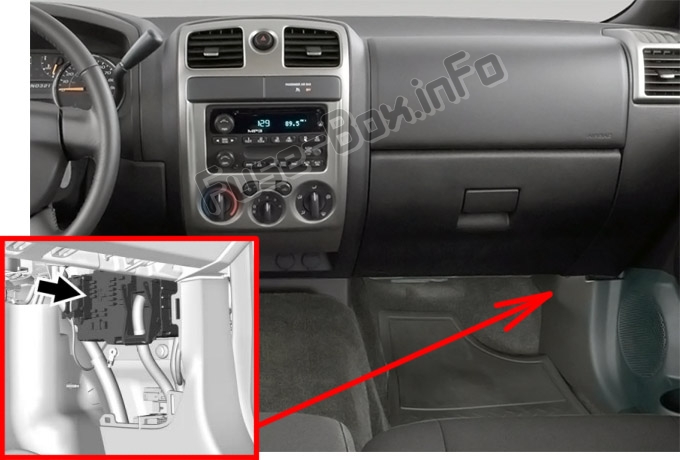

The instrument panel fuse box is located under the glove box, behind the passenger side cowl side trim panel.

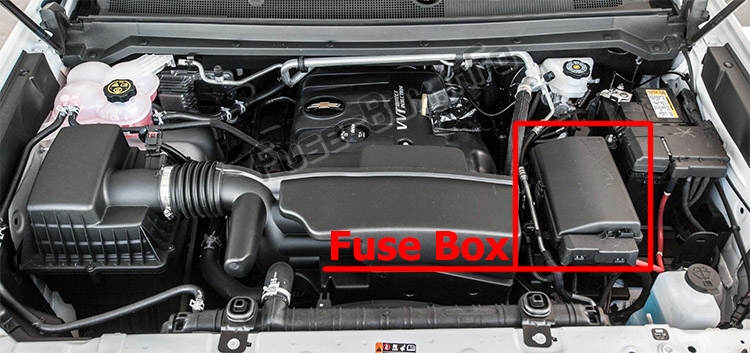

The fuse box is located in the engine compartment (on the driver’s side).

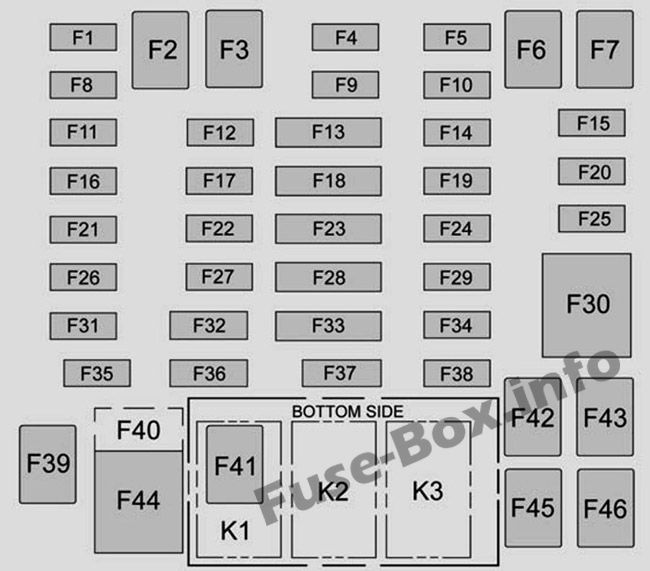

Assignment of the fuses in the Instrument Panel (2015, 2016)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Type Description F01 Micro fuse (2 pin) Body Control Module 1 F04 Micro fuse (2 pin) Steering Wheel Controls F05 Micro fuse (2 pin) Body Control Module 2 F08 Micro fuse (2 pin) Mirror Window Module F09 Micro fuse (2 pin) Instrument Cluster F10 Micro fuse (2 pin) Not Used F11 Micro fuse (2 pin) Body Control Module 8 F12 Micro fuse (2 pin) Not Used F14 Micro fuse (2 pin) Radio/HMI F15 Micro fuse (2 pin) Body Control Module 6 F16 Micro fuse (2 pin) Not Used F17 Micro fuse (2 pin) Body Control Module 4 F19 Micro fuse (2 pin) Not Used F20 Micro fuse (2 pin) Amplifier (if equipped) F21 Micro fuse (2 pin) Not Used F22 Micro fuse (2 pin) Not Used F24 Micro fuse (2 pin) Heating, Ventilation, and Air Conditioning Ignition F25 Micro fuse (2 pin) Body Control Module 7 F26 Micro fuse (2 pin) Not Used F27 Micro fuse (2 pin) Not Used F29 Micro fuse (2 pin) Miscellaneous Ignition F31 Micro fuse (2 pin) Front Camera F32 Micro fuse (2 pin) Steering Wheel Controls Backlighting F34 Micro fuse (2 pin) Not Used F35 Micro fuse (2 pin) Park, Reverse, Neutral, Drive, Low F36 Micro fuse (2 pin) Discrete Logic Ignition Sensor F38 Micro fuse (2 pin) Not Used F13 Micro fuse (3 pin) OnStar/Heating, Ventilation, and Air Conditioning F18 Micro fuse (3 pin) Airbag F23 Micro fuse (3 pin) Data Link Connector/USDB F28 Micro fuse (3 pin) Instrument Panel/ Sensing and Diagnostic Module Ignition F33 Micro fuse (3 pin) Not Used F02 Micro J-case fuse Not Used F03 Micro J-case fuse Not Used F06 Micro J-case fuse Not Used F07 Micro J-case fuse Not Used F39 Micro J-case fuse Auxiliary Power Outlet 2 F41 Micro J-case fuse Auxiliary Power Outlet 1/Lighter F42 Micro J-case fuse Left Power Window F43 Micro J-case fuse Driver Power Seat F45 Micro J-case fuse Right Power Window F46 Micro J-case fuse Passenger Power Seat F30 J-case fuse Not Used F40 J-case fuse Auxiliary Power Outlet F44 J-case fuse Auxiliary Power Outlet F37 Mini fuse Not Used
This content requires JavaScript and a valid membership to view.
Assignment of the micro relays in the Instrument Panel (2015, 2016)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description K1 Retained Accessory Power/Accessory K2 Run/Crank
This content requires JavaScript and a valid membership to view.

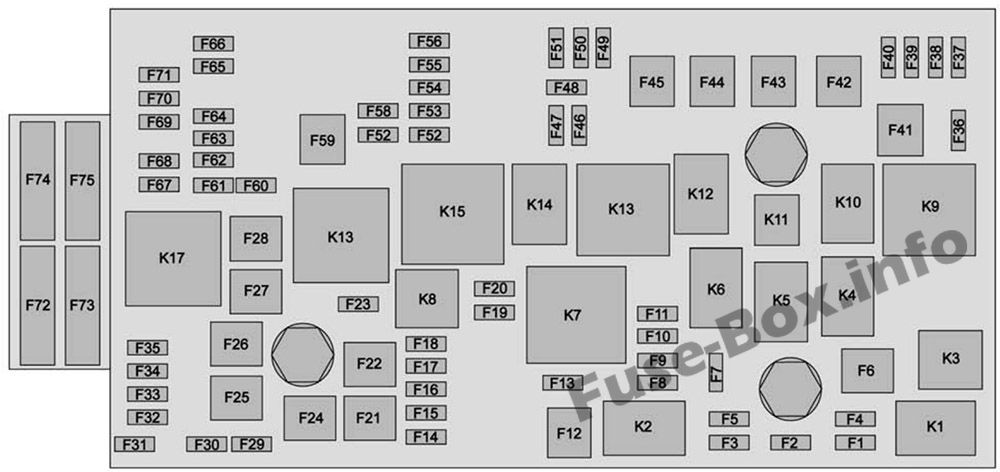

Assignment of the fuses in the Engine Compartment (2015, 2016)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Type Description F01 Mini fuse Traction Control Module Power F02 Mini fuse Engine Control Module Power F03 Mini fuse Air Conditioning Compressor Clutch F04 Mini fuse Not Used F05 Mini fuse Fuel Module Ignition F07 Mini fuse Cargo Lamp F08 Mini fuse Fuel Injectors – Even F09 Mini fuse Fuel Injectors – Odd F10 Mini fuse Engine Control Module F11 Mini fuse Miscellaneous 1 Ignition F13 Mini fuse Traction Control Module F14 Mini fuse Not Used F15 Mini fuse Not Used F16 Mini fuse Not Used F17 Mini fuse Front Axle Actuator F18 Mini fuse Not Used F19 Mini fuse Aeroshutters F20 Mini fuse Not Used F23 Mini fuse Not Used F29 Mini fuse Not Used F30 Mini fuse Heated Seat Power 1 F31 Mini fuse Not Used F32 Mini fuse Heated Seat Power 2 F33 Mini fuse Body Control Module 3 F34 Mini fuse Fuel System Control Module F35 Mini fuse Not Used F36 Mini fuse Center High Mounted Stop Lamp F37 Mini fuse Right High-Beam Headlamp F38 Mini fuse Left High-Beam Headlamp F39 Mini fuse Not Used F40 Mini fuse Not Used F46 Mini fuse Not Used F47 Mini fuse Miscellaneous 2 Ignition F48 Mini fuse Fog Lamps (If Equipped) F49 Mini fuse Not Used F50 Mini fuse Trailer Park Lamps F51 Mini fuse Horn F52 Mini fuse Not Used F53 Mini fuse Not Used F54 Mini fuse Not Used F55 Mini fuse Not Used F56 Mini fuse Washer Pump F57 Mini fuse Not Used F58 Mini fuse Not Used F60 Mini fuse Mirrors Defogger F61 Mini fuse Not Used F62 Mini fuse Canister Vent Solenoid F63 Mini fuse Not Used F64 Mini fuse Trailer Reverse Lamp F65 Mini fuse Left Trailer Stop/ Turn Lamps F66 Mini fuse Right Trailer Stop/ Turn Lamps F67 Mini fuse Electric Power Steering F68 Mini fuse Not Used F69 Mini fuse Battery Regulated Voltage Control F70 Mini fuse Not Used F71 Mini fuse Not Used F06 J-case fuse Wipers F12 J-case fuse Starter F21 J-case fuse Front Blower F22 J-case fuse Antilock Brake System Valves F24 J-case fuse Trailer F25 J-case fuse Transfer Case Electronic Control F26 J-case fuse Antilock Brake System Pump F27 J-case fuse Trailer Brake Control Module F28 J-case fuse Rear Window Defogger F41 J-case fuse Not Used F42 J-case fuse Not Used F43 J-case fuse Cooling Fan F44 J-case fuse Not Used F45 J-case fuse Brake Vacuum Pump F59 J-case fuse Not Used F72 Midi fuse Not Used F73 Midi fuse Not Used F74 Midi fuse Generator F75 Midi fuse Not Used
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the Engine Compartment (2015, 2016)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Type Description K01 Micro relay Air Conditioning Compressor Clutch K02 Micro relay Starter K03 Micro relay Not Used K04 Micro relay Wipers Speed K05 Micro relay Wipers Control K06 Micro relay Cargo Lamp K07 Mini relay Powertrain K08 Micro relay Not Used K09 Micro relay Not Used K10 Micro relay Not Used K11 Micro relay Center High Mounted Stop Lamp K12 Micro relay Not Used K13 Micro relay Vacuum Pump K14 Micro relay Park Lamps K15 Mini relay Run/Crank K16 Solid state relay Not Used K17 Mini relay Rear Window Defogger
This content requires JavaScript and a valid membership to view.

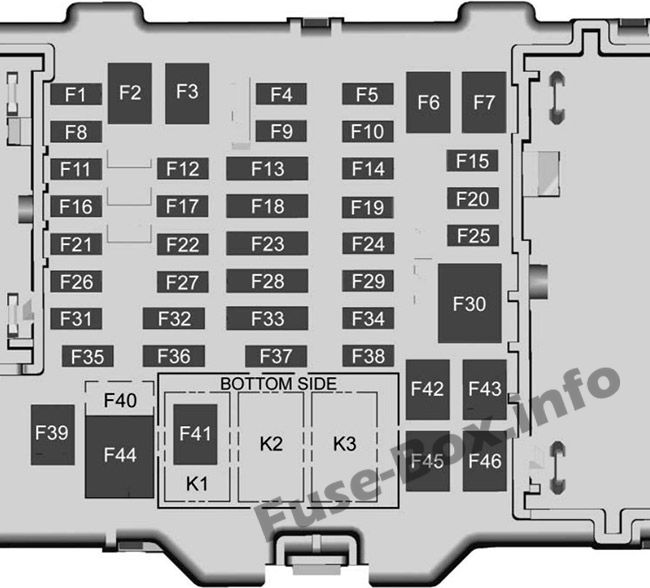

Assignment of the fuses in the Instrument Panel (2017)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description F1 Body Control Module 1 F2 — F3 — F4 Steering Wheel Controls F5 Body Control Module 2 F6 — F7 — F8 Mirror Window Module F9 Instrument Cluster F10 — F11 Body Control Module 8 F12 — F13 OnStar/HVAC F14 Radio/HMI F15 Body Control Module 6 F16 Communication gateway module F17 Body Control Module 4 F19 — F20 Amplifier (if equipped) F21 — F22 — F23 Data link connector/USB F24 HVAC ignition F25 Body Control Module 7 F26 — F27 — F28 Instrument panel/Sensing and diagnostic module/Ignition F29 Miscellaneous Ignition F30 — F31 Front Camera F32 Steering wheel controls backlighting F33 Heated steering wheel F34 Front ventilated seats F35 Park/Reverse/Neutral/Drive/Low/Wireless charging module F36 Discrete Logic Ignition Sensor F37 — F38 — F39 Auxiliary power outlet 2 F40 Auxiliary power outlet F41 Auxiliary power outlet 1/Lighter F42 Left power window F43 Driver power seat F44 — F45 Right power window F46 Passenger power seat
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the Instrument Panel (2017)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description K1 Retained accessory power K2 Run/Crank
This content requires JavaScript and a valid membership to view.

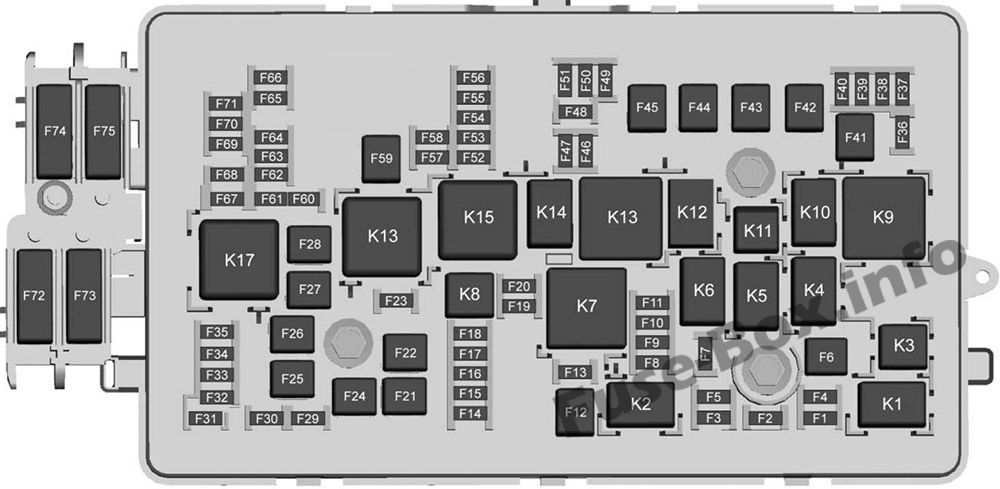

Assignment of the fuses in the Engine Compartment (2017)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description F01 Traction Control Module Power F02 Engine Control Module Power F03 A/C Clutch F04 — F05 Engine control module/Integrated chassis control module/Fuel pump power module F06 Wipers F07 Cargo lamp/Bed lighting (if equipped) F08 Fuel Injectors – Even F09 Fuel Injectors – Odd F10 Engine Control Module 1 F11 Miscellaneous 1 / Ignition F12 Starter F13 Traction Control Module F14 — F15 — F16 — F17 Front Axle Actuator F18 — F19 Aeroshutters F20 — F21 Front blower F22 Antilock brake system valves F23 — F24 Trailer F25 Transfer case electronic control F26 Antilock brake system pump F27 Trailer brake control module F28 Rear window defogger F29 — F30 Driver heated seat F31 — F32 Passenger heated seat F33 Body Control Module 3 F34 Fuel System Control Module F35 Integrated chassis control module (if equipped) F36 Center high-mounted stoplamp F37 Right high-beam headlamp F38 Left high-beam headlamp F39 — F40 — F41 — F42 — F43 Cooling fan F44 Vacuum pump F45 — F46 Engine control module 2 F47 Miscellaneous 2/Ignition F48 Fog Lamps (If Equipped) F49 — F50 Trailer Park Lamps F51 Horn F52 — F53 — F54 — F55 — F56 Washer Pump F57 — F58 — F60 Mirrors Defogger F61 — F62 Canister Vent Solenoid F63 — F64 Trailer Reverse Lamp F65 Left trailer stoplamp/Turn signal lamps F66 Right trailer stoplamp/Turn signal lamps F67 Electric Power Steering F68 — F69 Battery Regulated Voltage Control F70 — F71 — F72 — F73 — F74 Generator F75 —
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the Engine Compartment (2017)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description K1 A/C clutch K2 Starter K3 — K4 Wipers Speed K5 Wipers Control K6 Cargo lamp/Bed lighting (if equipped) K7 Powertrain K8 — K9 — K10 — K11 Center high-mounted stoplamp K12 Vacuum pump K13 Vacuum pump K14 Trailer parking lamps K15 Run/Crank K16 — K17 Rear window defogger
This content requires JavaScript and a valid membership to view.
Assignment of the fuses in the Instrument Panel (2018)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
№ Usage F1 Body Control Module 1 F2 — F3 — F4 Steering Wheel Controls F5 Body Control Module 2 F6 — F7 — F8 Mirror Window Module F9 Instrument Cluster F10 — F11 Body Control Module 8 F12 — F13 OnStar/HVAC F14 Radio/Infotainment F15 Body Control Module 6 F16 Communication gateway module F17 Body Control Module 4 F18 Airbag F19 — F20 Amplifier (if equipped) F21 — F22 — F23 Data link connector/USB F24 HVAC ignition F25 Body Control Module 7 F26 — F27 — F28 Instrument panel/Sensing and diagnostic module/Ignition F29 Miscellaneous Ignition F30 — F31 Front Camera F32 Steering wheel controls backlighting F33 Heated steering wheel F34 Front ventilated seats F35 Park/Reverse/Neutral/Drive/Low/Wireless charging module F36 Discrete Logic Ignition Sensor F37 — F38 — F39 Auxiliary power outlet 2 F40 Auxiliary power outlet F41 Auxiliary power outlet 1/Lighter F42 Left power window F43 Driver power seat F44 — F45 Right power window F46 Passenger power seat
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the Instrument Panel (2018)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description K1 Retained accessory power K2 Run/Crank
This content requires JavaScript and a valid membership to view.
Assignment of the fuses in the Engine Compartment (2018)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description F01 Traction Control Module Power F02 Engine Control Module Power F03 A/C Clutch F04 — F05 Engine control module/Integrated chassis control module/Fuel pump power module F06 Wipers F07 Cargo lamp/Bed lighting (if equipped) F08 Fuel Injectors – Even F09 Fuel Injectors – Odd F10 Engine Control Module 1 F11 Miscellaneous 1 / Ignition F12 Starter F13 Traction Control Module F14 — F15 — F16 — F17 Front Axle Actuator F18 — F19 — F20 — F21 Front blower F22 Antilock brake system valves F23 — F24 Trailer F25 Transfer case electronic control F26 Antilock brake system pump F27 Trailer brake control module (if equipped)/Trailer wiring F28 Rear window defogger F29 — F30 Driver heated seat F31 — F32 Passenger heated seat F33 Body Control Module 3 F34 Fuel System Control Module F35 Integrated chassis control module (if equipped) F36 Center high-mounted stoplamp F37 Right high-beam headlamp F38 Left high-beam headlamp F39 Rear differential lock actuators (ZR2 only) F40 Front differential lock actuators (ZR2 only) F41 — F42 — F43 — F44 Vacuum pump F45 — F46 Engine control module 2 F47 Miscellaneous 2/Ignition F48 Fog Lamps (If Equipped) F49 — F50 Trailer Park Lamps F51 Horn F52 — F53 — F54 — F55 — F56 Washer Pump F57 — F58 — F59 — F60 Mirrors Defogger F61 — F62 Canister Vent Solenoid F63 — F64 Trailer Reverse Lamp F65 Left trailer stoplamp/Turn signal lamps F66 Right trailer stoplamp/Turn signal lamps F67 Electric Power Steering F68 — F69 Battery Regulated Voltage Control F70 — F71 — F72 — F73 — F74 Generator F75 —
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the Engine Compartment (2018)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description K1 A/C clutch K2 Starter K3 — K4 Wipers Speed K5 Wipers Control K6 Cargo lamp/Bed lighting (if equipped) K7 Powertrain K8 — K9 Front differential lock actuators (ZR2 only) K10 Rear differential lock actuators (ZR2 only) K11 Center high-mounted stoplamp K12 Vacuum pump K13 — K14 Trailer parking lamps K15 Run/Crank K16 — K17 Rear window/Mirror defogger
This content requires JavaScript and a valid membership to view.
Assignment of the fuses in the Instrument Panel (2019, 2020, 2021)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description F1 Run/Crank relay control/ Horn switch/Dome lamps F2 — F3 — F4 Steering wheel controls F5 Left headlamp low beam/ Front left park lamp/Left front side marker/Left rear side marker F6 — F7 — F8 Mirror window module F9 Instrument panel cluster F10 — F11 Door latches F12 — F13 OnStar/HVAC F14 Radio/Infotainment F15 RAP accessory relay control/Shifter control/ Shifter solenoid/Wiper relay control/Washer pump relay control/Rear defog relay control F16 CGM (Communication gateway module) F17 Left rear side marker/ Right front turn lamp/Left rear stop lamp/Left front turn lamp/Right rear stop lamp F18 Airbag/Sensing and diagnostic module/ Automatic occupant sensing module F19 — F20 Amplifier F21 — F22 — F23 Data link connector/USB front F24 2019: HVAC ignition. F25 Driver door latch F26 — F27 — F28 Instrument panel cluster and automatic sensing display F29 Rear vision camera/ Transfer case control module (4WD)/lnside rear view F30 — F31 Front camera/Rear park assist F32 Steering wheel controls backlighting F33 2019-2020: Heated steering wheel/ Spare F34 2019: Spare. F35 Park/Reverse/Neutral/ Drive/Low display/ Wireless charging module/USB rear F36 Discrete logic ignition sensor F37 — F38 _ F39 Auxiliary power outlet 2 F40 — F41 Auxiliary power outlet 1/ Cigarette lighter F42 Left power window F43 Driver power seat F44 Auxiliary power outlet F45 Right power window F46 Passenger power seat
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the Instrument Panel (2019, 2020, 2021)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description K1 Retained accessory power K2 Run/Crank K3 —
This content requires JavaScript and a valid membership to view.
Assignment of the fuses in the Engine Compartment (2019, 2020, 2021)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description F1 Traction control module power F2 Engine control module power F3 Air conditioning clutch F4 — F5 Engine control module/ Integrated chassis control module/Fuel pump power module F6 Wipers F7 Cargo lamp/Bed lighting F8 Fuel injectors-even F9 Fuel injectors-odd F10 Engine control module ignition 1 F11 Oxygen/Mass air flow/ Humidity/lnduction air temperature/Throttle inlet pressure sensors F12 Starter F13 Traction control module F14 — F15 — F16 — F17 Front axle actuator F18 — F19 Aeroshutters F20 — F21 Front blower F22 Antilock brake system valves F23 — F24 Trailer F25 Transfer case electronic control F26 Antilock brake system pump F27 2019: Trailer brake control module. F28 Rear window defogger F29 — F30 Driver heated seat F31 — F32 Passenger heated seat F33 Right headlamp low beam/FRT right park lamp/Right front side marker/Right rear side marker F34 Fuel pump power module F35 Integrated chassis control module F36 Center high-mounted stoplamp F37 Right high-beam headlamp F38 Left high-beam headlamp F39 Rear differential lock actuators F40 Front differential lock actuators F41 — F42 — F43 — F44 — F45 Vacuum pump F46 Engine control module ignition 2 F47 Mid park phase lock/ Active fuel management/Engine oil and canister purge solenoid(s)/Oxygen sensor//Engine thermostat heater F48 Fog lamps F49 — F50 Trailer parking lamps F51 Horn F52 — F53 — F54 — F55 — F56 Washer pump F57 — F58 — F59 — F60 Mirrors defogger F61 — F62 Canister vent solenoid F63 — F64 Trailer reverse lamp F65 Left trailer stoplamp/ Turn signal lamps F66 Right trailer stoplamp/ Turn signal lamps F67 Electric power steering F68 — F69 Battery regulated voltage control F70 — F71 — F72 — F73 — F74 Generator F75 —
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the Engine Compartment (2019, 2020, 2021)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description K1 Air conditioning clutch K2 Starter K3 — K4 Wipers speed K5 Wipers control K6 Cargo lamp/Bed lighting K7 Powertrain K8 — K9 2019: Rear differential lock actuators. K10 2019: Front differential lock actuators. K11 Center high-mounted stoplamp K12 — K13 Vacuum pump K14 Trailer parking lamps K15 Run/Crank K16 — K17 Rear window/Mirror defogger
This content requires JavaScript and a valid membership to view.
Assignment of the fuses in the Instrument Panel Fuse Box (2022)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
№ Usage F1 Body Control Module 1 – Indicator Dimming Control, Retained Accessory Power (RAP) Relay Coil Control, Rear License Lamp Supply Voltage, Windshield Washer Relay Control, Run/ Crank Relay Coil Control, Cruise/Electronic Torque Control/Torque Converter Clutch Brake Signal, Run Ignition 3 Voltage F2 – F3 – F4 Steering Wheel Controls F5 Body Control Module 2 – Interior Lamp Control, Accessory Voltage (1), Backup Lamp Relay Control, Park Lock Solenoid Control, Trailer Brake Apply Signal F6 – F7 – F8 Mirror Window Module F9 Instrument Panel Cluster F10 – F11 Body Control Module 8 – Door Lock Actuator Lock Control 2, Door Lock Control (2), Door Lock Actuator Unlock Control F12 – F13 OnStar/HVAC F14 Radio/ Infotainment F15 Body Control Module 6 – LED Backlight Dimming Control, Interior Lamps, Lights Exterior Reverse/Backup Lamps Direct Drive, Stop Lamp Relay Coil Supply Voltage F16 Communication Gateway Module F17 Body Control Module 4 – Left Headlamp Low Beam Supply Voltage, Right Park Lamp Supply Voltage, Left Rear Stop Lamp Supply Voltage, Right Rear Park Lamp Supply Voltage F18 Airbag/Sensing and Diagnostic Module/ Automatic Occupant Sensing Module F19 – F20 Amplifier F21 – F22 – F23 Data Link Connector/ USB Front F24 HVAC Ignition/Auxiliary Heater F25 Body Control Module 7 – Right Rear Stop Lamp Supply Voltage, Left Front Turn Signal Lamp Supply Voltage, Standing Lamp Relay Control F26 – F27 – F28 Instrument Panel Cluster/ Automatic Occupant Sensing Display F29 Rear Vision Camera/Transfer Case Control Module (4WD)/Inside Rear View Mirror F30 – F31 Front Camera/Rear Park Assist F32 Steering Wheel Controls Backlighting F33 Heated Steering Wheel/ Communication Gateway Module Ignition F34 Front Vented Seats F35 Park/Reverse/Neutral/ Drive/Low Display/Wireless Charging Module/USB Rear F36 Discrete Logic Ignition Sensor F37 – F38 – F39 Auxiliary Power Outlet 2 F40 – F41 Auxiliary Power Outlet 1/Cigarrette Lighter F42 Left Power Window F43 Driver Power Seat F44 Auxiliary Power Outlet F45 Right Power Window F46 Passenger Power Seats
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the Instrument Panel Fuse Box (2022)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description K1 Retained Accessory Power K2 Run/Crank K3 –
This content requires JavaScript and a valid membership to view.
Assignment of the fuses in the Engine Compartment Fuse Box (2022)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description F1 Traction Control Module Power F2 Engine Control Module Power F3 Air Conditioning Clutch F4 — F5 4 CYL Engine – Engine Control Module Run/Crank / Fuel Pump Power Module Run Crank F6 Front Wipers F7 Cargo Lamp/Bed Lighting F8 4 CYL Engine – Spare F9 4 CYL Engine – Injectors F10 Engine Control Module Ignition F11 Oxygen/Mass Air Flow/Humidity/Induction Air Temperature/Throttle Inlet Pressure Sensors F12 Starter F1B Traction Control Module Run/Crank F14 — F15 — F16 — F17 Front Axle Actuator F18 — F19 Aeroshutters F20 — F21 Front Blower F22 Antilock Brake System Valves F23 — F24 Trailer F25 Transfer Case Electronic Control F26 Antilock Brake System Pump F27 Trailer Brake Control Module F28 Rear Window Defogger F29 — F30 Driver Heated Seat F31 — F32 Passenger Heated Seat F33 Body Control Module 3 – Right Headlamp Low Beam Supply Voltage, Right Front Turn Signal Lamp Supply Voltage, Left Park Lamp Supply Voltage, Left Rear Park Lamp Supply Voltage F34 Fuel Pump Power Module F35 4 CYL Engine – Not Used F36 Center High Mounted Stoplamp F37 Right High-beam Headlamp F38 Left High-beam Headlamp F39 4 CYL Engine – Not Used F40 4 CYL Engine – Not Used F41 — F42 — F43 4 CYL Engine – Cooling Fan F44 — F45 4 CYL Engine – Not Used F46 4 CYL Engine – Not Used F47 Mid Park Phase Lock/Active Fuel Management/Engine Oil and Canister Purge Solenoid(s)/ Oxygen Sensor F48 Fog lamps F49 — F50 Trailer Parking Lamp F51 Horn F52 — F5B — F54 — F55 — F56 Washer Pump F57 — F58 — F59 — F60 Mirror Defogger F61 — F62 Canister Vent Solenoid F6B — F64 Trailer Reverse Lamps F65 Left Trailer Stoplamp/ Turnlamp F66 Right Trailer Stoplamp/ Turnlamp F67 Electric Power Steering F68 — F69 Battery Regulated Voltage Control F70 — F71 — F72 — F73 — F74 Generator F75 —
This content requires JavaScript and a valid membership to view.
Assignment of the fuses in the Engine Compartment Fuse Box (2022)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description K1 Air Conditioning Clutch K2 Starter KB — K4 Wiper Speed K5 Wiper Control K6 Cargo Lamp/Bed Lighting K7 Powertrain K8 — K9 4 CYL Engine – Not Used K10 4 CYL Engine – Not Used K11 Center High Mounted Stop Lamp K12 — K13 4 CYL Engine – Not Used K14 Trailer Park Lamps K15 Run/Crank K16 — K17 Rear Window/ Mirror Defogger
