Chevrolet Colorado (2023-2026)

Explore Chevrolet Colorado fuse box diagrams in this practical guide that explains the electrical layout of the latest midsize pickup generation. In this article, we consider the third-generation Chevrolet Colorado, produced from 2023, and provide fuse box diagrams for Chevrolet (Chevy) Colorado 2023, 2024, 2025 and 2026, along with information about the location of the fuse panels and the assignment of each fuse and relay (fuse layout).

Engine Compartment

Fuse Box Location

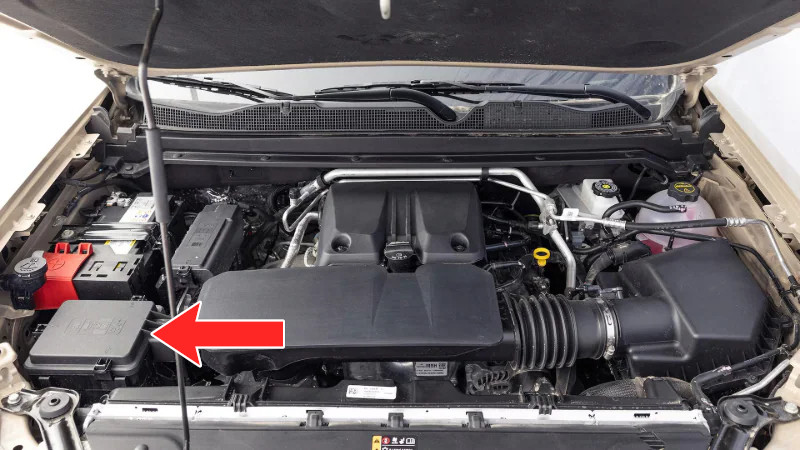

The fuse box is located in the engine compartment on the passenger side, near the main battery.

Fuse Box Diagram

Assignment of the fuses in the engine compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
F01Integrated Chassis Control Module
F02Fuel Tank Zone Module
F03–
F04Cooling Fan 2
F05–
F06–
F07Transmission Auxiliary Oil Pump Motor
F08–
F09–
F10–
F11Front Drive Axle Actuator
F12–
F13Trailer Connector
F14–
F15Side Blind Zone Alert / Canister Vent Solenoid
F16–
F17–
F18–
F19Electronic Brake Control Module 1
F20Cooling Fan 1
F21–
F22–
F23–
F24Cooling Fan 3
F25Wide Range Air Fuel Oxygen Sensor / Canister Purge / Turbo Bypass / Step Cam Intake-Exhaust Solenoids / Block Coolant Valve Actuator / Mass Air Flow / Humidity / Induction Air Temperature / Throttle Inlet Pressure Sensors
F26Air Compressor Clutch
F27Park Lights
F28Trailer Interface Module 2
F29Service Fuse
F30–
F31Power Train Ignition 1
F32–
F33Trailer Reverse Lights / Spare
F34Trailer Interface Module 1
F35Service Fuse
F36Engine Control Module
F37IGNITION COILS
F38Trailer Stop Light Left
F39Trailer Stop Light Right
F40Transfer Case Control Module
F41Starter Pinion
F42Starter
F43–
F44Service Fuse
F45Service Fuse
F46Service Fuse
F47Service Fuse
F48Service Fuse
F49Trailer Brake Power Module / Trailer Wiring Provisions
F50Service Fuse
F51Center High Mounted Stop Light
F52Side Markers
F53Service Fuse
F54–
F55Rear Window Defogger
F56–
F57–
F58Front Wipers
F59Driver Door Panel Switch / Window Motor Left Front / Window Switch Left Rear / Window Motor Left Rear
F60–
F61Service Fuse
F62Amplifier
F63–
F64–
F65Right Front Park Light/Daytime Running Light/Left Trailer Stop/Turn Light/Left Rear Park Light/Right High Beam
F66Front LED Low Beams Left/Right
F67–
F68Front Heated Seats
F69Underbody Camera Washer
F70–
F71DC/AC Current Inverter
F72Service Fuse
F73Aeroshutter
F74Left Low Beam / Right Rear Stop/Turn Light
F75Service Fuse
F76Front Heated Seats
F77–
F78–
F79–
F80–
F81–
F82–
F83LED Cargo Light
F84Left Front Park Light / Daytime Running Light / Left Front Turn Light / Center High Mounted Stop Light / Right Rear Park Light / Reverse Lights
F85–
F86Horn
F87Front Washer Pump
F88–
F89–
F90Passenger Door Panel Switch / Window Motor Right Front / Window Switch Right Rear / Window Motor Right Rear
F91–

Engine Compartment (Additional)

Fuse Box Location

If equipped, the accessory fuse block is located in the engine compartment near the battery and the windshield.

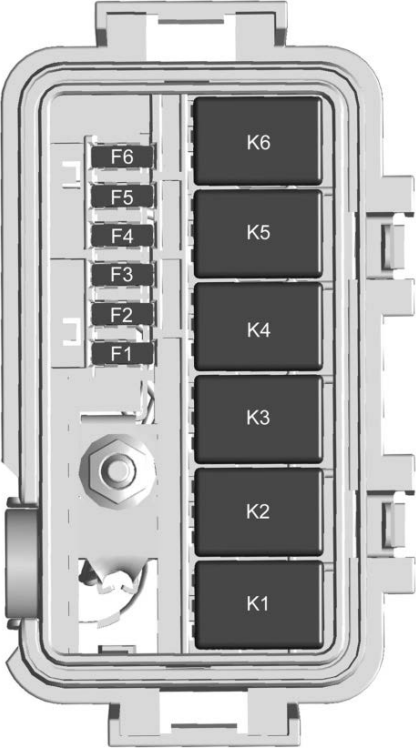

Fuse Box Diagram

Fuses

Assignment of the fuses in the accessory fuse box

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
F01Center Stack Auxiliary Switch 6
F02Auxiliary Switch 1
F03Auxiliary Switch 2
F04Auxiliary Switch 3
F05–
F06–

Relays

Assignment of the relays in the accessory fuse box

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
K01Center Stack Auxiliary Switch 6
K02Auxiliary Switch 1
K03Auxiliary Switch 2
K04Auxiliary Switch 3
K05–
K06–

Passenger Compartment

Fuse Box Location

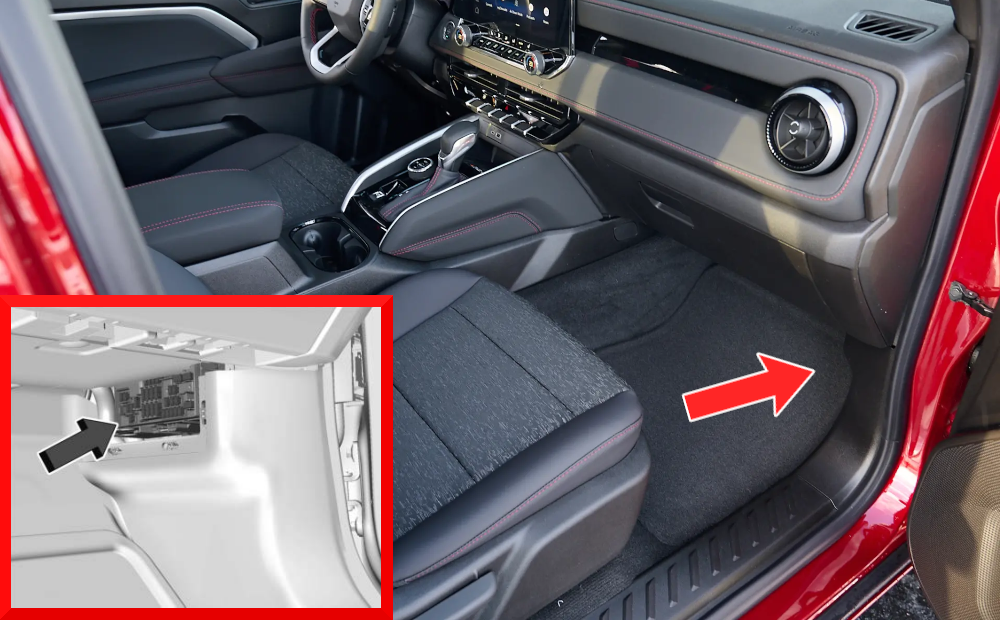

The instrument panel fuse block is located behind a side trim panel. Unclip the sides of the trim panel, then pull the cover away to access the fuse block. To remove the fuse block cover, press the clips on the sides and lift it off.

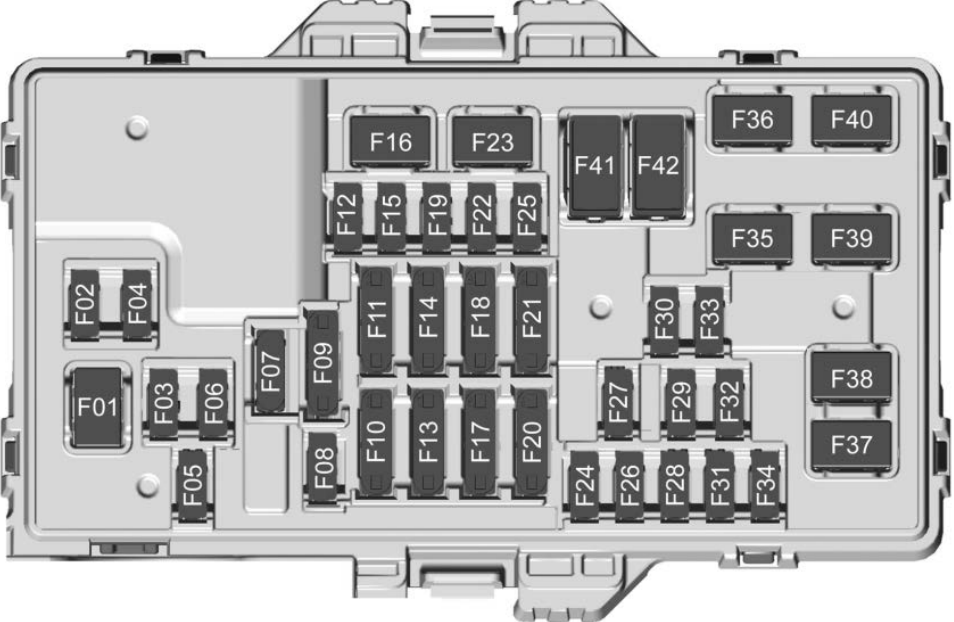

Fuse Box Diagram

Assignment of the relays in the passenger compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
F01Front HVAC Blower
F02Exterior Lighting Module 1
F03Transmission Control Module
F04Exterior Lighting Module 2
F05Driver Memory Seat Module / Seat Position Switch
F06Body Control Module 1
F07Steering Wheel Controls
F08–
F09–
F10Electric Park Brake Switch / Automatic Occupant Sensing Display / SPARE
F11Auxiliary Audio/Video Jack / OnStar / Telematics Control Platform Module
F12–
F13Central Gateway Module / Sensing Diagnostic Module / Automatic Occupant Sensing Module
F14Transmission Control Module / Transfer Case Control Module / Electronic Brake Control Module / Integrated Chassis Control Module / Trailer Interface Module / SPARE
F15Exterior Lighting Module / DC/AC Inverter Module / Seat Fan Control Cushion Module (Vented Mod)
F16–
F17Wireless Charger Module / Data Link Connector
F18E-Stop / Driver Mode Switch / Reflective Light Auxiliary Display / Sensing and Diagnostic Module / Inside Rear View Mirror / Humidity Sensor
F19Engine Control Module Run/Crank
F20Remote Function Receiver Module / Park Assist Module
F21HeadUp Display / HVAC Display / Instrument Panel Display / Virtual Cockpit Display / Video Processor Module
F22Sunroof Motor
F23–
F24Trailer Brake Control Switch
F25Auxiliary USB Power Outlet
F26Body Control Module 2
F27Driver Door Switch Panel and Power Window Regulators (Express Up/Down)
F28Body Control Module 3
F29Exterior Lighting Module 3
F30Front Camera Module
F31Virtual Cockpit Unit Module
F32Heated Steering Wheel Module
F33Exterior Lighting Module 5
F34Body Control Module 4
F35DC/DC Converter Module Batt 2
F36DC/DC Converter Module Batt 1
F37Front Seat Lumbar Switches
F38–
F39Driver Power Seat Switch / Memory Seat Module
F40Passenger Seat Position Switch
F41Auxiliary DC Power Outlet
F42–
