Explore Chevrolet Corvette fuse box diagrams in this practical guide that explains the electrical layout of the sixth-generation performance icon. In this article, we consider the sixth-generation Chevrolet Corvette (Model Code: C6), produced from 2004 to 2013 , and provide fuse box diagrams for Chevrolet (Chevy) Corvette 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012 and 2013 , along with information about the location of the fuse panels and the assignment of each fuse and relay (fuse layout).
NEED A REPLACEMENT?
Looking for the right fuse or relay?
Search common fuse types, fuse kits and relay options for your vehicle.
Find Fuses & Relays
→

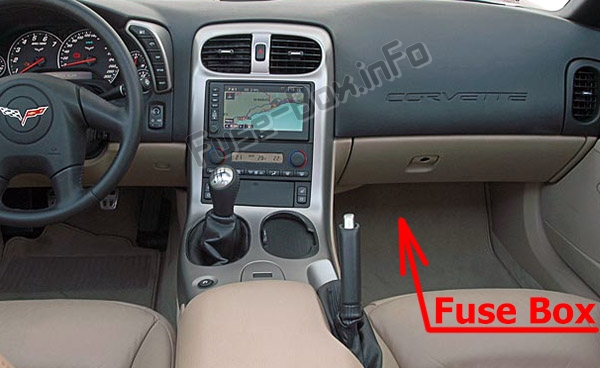

The passenger compartment fuse box is located under the glovebox, in the front-passenger footwell (remove the carpet and toe-board covering).

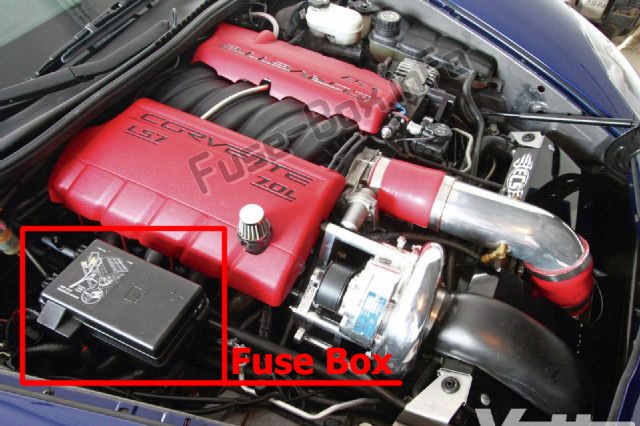

The fuse box is located in the engine compartment (on the right side).
Fuse Data
Full access is available to registered users — log in or register.
Log in or register This content requires JavaScript and a valid membership to view.

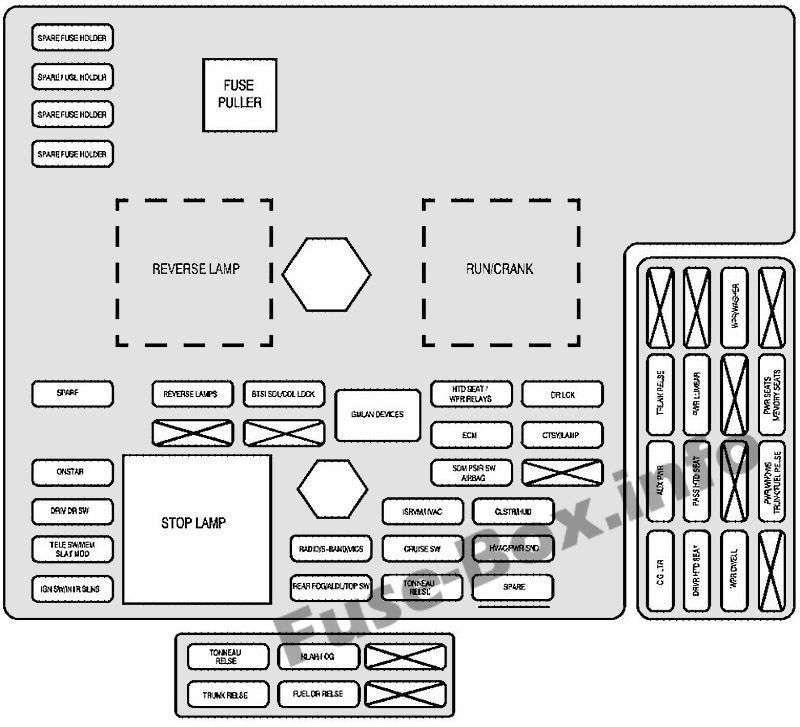

Assignment of the fuses and relay in the Passenger Compartment (2005-2008)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description SPARE FUSE HOLDER Spare Fuse Holder SPARE FUSE HOLDER Spare Fuse Holder SPARE FUSE HOLDER Spare Fuse Holder SPARE FUSE HOLDER Spare Fuse Holder TPA Tonneau Pulldown Actuator ONSTAR OnStar DRIV DR SW Driver Door Switch TELE SW/MEM SEAT MOD Telescope Switch, Memory Seat Module IGN SW/INTR SENS Ignition Switch, Intrusion Sensor REVERSE LAMP Reverse Lamp REVERSE LAMPS Reverse Lamps Blank Not Used STOP LAMP Stop Lamp BTSI SOL/COL LOCK Brake Transmission Shift Interlock, Column Lock BLANK Not Used RADIO/SBAND/VICS Radio, S-Band, VICS REAR FOG/ALDL/TOP SW Rear Fog Lamp, Assembly Line Diagnostic Link Connector, Convertible Top Switch GMLAN DEVICES GM LAN Devices ISRVM/ HVAC Electric Inside Rearview Mirror, Heating Ventilation, Air Conditioning CRUISE SW Cruise Control Switch TONNEAU RELSE Tonneau Release RUN/CRANK Run/Crank Relay HTD SEAT/WPR RELAYS Heated Seat, Wiper Relays ECM Engine Control Module SDM PSIR SW AIRBAG Sensing and Diagnostic Module, Automatic Occupant Sensing Module CLSTR/HUD Cluster, Heads-Up Display HVAC/PWR SND Heating, Ventilation/Air Conditioning, Power Sounder SPARE Spare DR LCK Door Locks CTSY/LAMP Courtesy Lamp BLANK Not Used TONNEAU RELSE Tonneau Release TRUNK RELSE Trunk Release REAR/ FOG Rear Fog Lamps FUEL DR RELSE Fuel Door Release BLANK Not Used BLANK Not Used CIG LTR Cigarette Lighter DRVR HTD SEAT Driver’s Heated Seat WPR DWELL Wiper Dwell BLANK Not Used AUX PWR Auxiliary Power PASS HTD SEAT Passenger’s Heated Seat BLANK Not Used PWR WNDWS/FUEL RELSE Power Windows, Fuel Door Release TRUNK RELSE Trunk Release PWR LUMBAR Power Lumbar BLANK Not Used PWR SEATS MEMORY SEATS Power Seats, Memory Seats BLANK Not Used BLANK Not Used WPR/WASHER Windshield Wiper/Washer BLANK Not Used
This content requires JavaScript and a valid membership to view.

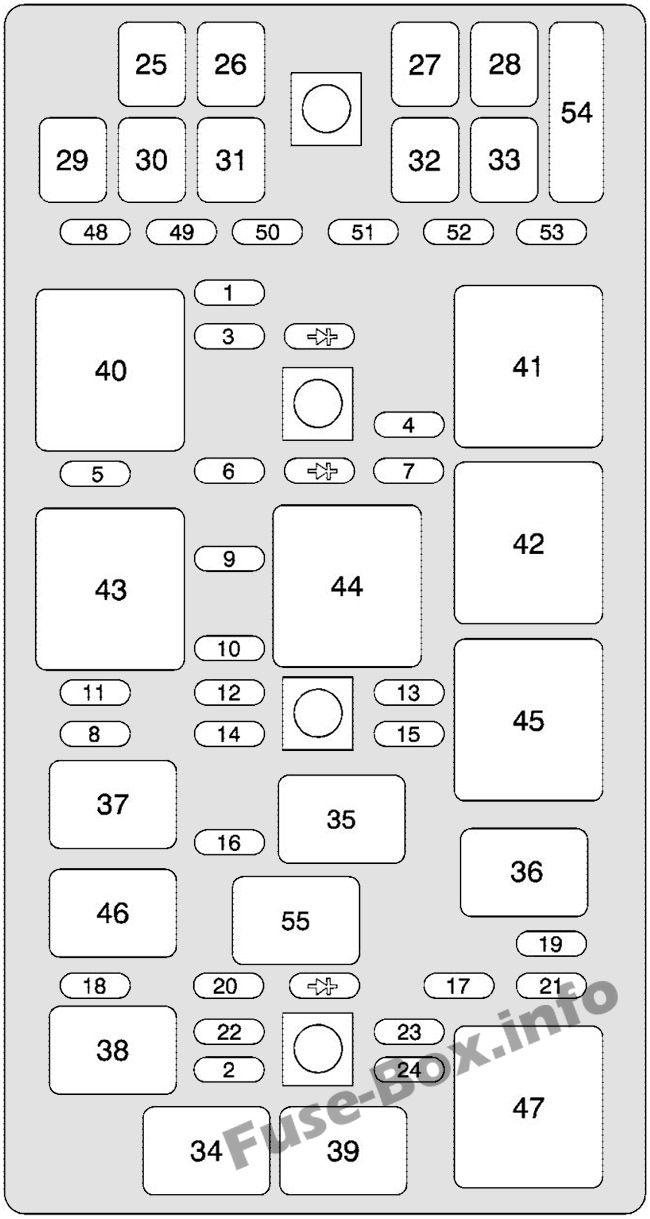

Assignment of the fuses in the Engine Compartment (2005-2008)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Type Description 1 Mini Fuse Transmission Control Module/Transmission 2 Mini Fuse Horn, Alternator Sense 3 Mini Fuse Anti-lock Brakes/Real Time Damping 4 Mini Fuse Wiper 5 Mini Fuse Stoplamps/Back-Up Lamps 6 Mini Fuse O2 Sensor 7 Mini Fuse Battery Main 5 8 Mini Fuse Park Lamps 9 Mini Fuse Powertrain Relay Input/Electronic Throttle Contro 10 Mini Fuse Manual Transmission Solenoids 11 Mini Fuse Engine Control Module/Transmission Control Module/Easy Key Module 12 Mini Fuse Odd Numbered Fuel Injectors 13 Mini Fuse Real Time Damping 14 Mini Fuse Canister Purge Solenoid, Mass Air Flow Sensor 15 Mini Fuse Air Conditioner Compressor 16 Mini Fuse Even Numbered Fuel Injectors 17 Mini Fuse Windshield Washer 18 Mini Fuse Headlamp Washer 19 Mini Fuse Passenger’s Side Low-Beam 20 Mini Fuse Fuel Pump 21 Mini Fuse Driver’s Side Low-Beam 22 Mini Fuse Front Fog Lamp 23 Mini Fuse Passenger’s Side High-Beam 24 Mini Fuse Driver’s Side High-Beam 25 J-Style Fuse Cooling Fan 26 J-Style Fuse Battery Main 3 27 J-Style Fuse Anti-Lock Brake System 28 J-Style Fuse Heating/Ventilation/Air Conditioning Blower 29 J-Style Fuse Battery Main 2 30 J-Style Fuse Starter 31 J-Style Fuse Audio Amplifier 32 J-Style Fuse Blank 33 J-Style Fuse Battery Main 1 48 Spare Fuse Spare 49 Spare Fuse Spare 50 Spare Fuse Spare 51 Spare Fuse Spare 52 Spare Fuse Spare 53 Spare Fuse Spare 54 Tool Fuse Puller
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the Engine Compartment (2005-2008)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Type Description 34 Micro-Relay Horn 35 Micro-Relay Air Conditioning Compressor 36 Micro-Relay Windshield Washer 37 Micro-Relay Park, Position Lamps 38 Micro-Relay Front Fog Lamp 39 Micro-Relay High Beam 46 Micro-Relay Headlamp Washer 55 Micro-Relay Fuel Pump 40 Mini-Relay Rear Defog 41 Mini-Relay Windshield Wiper High/Low 42 Mini-Relay Windshield Wiper Run/Accessory 43 Mini-Relay Crank 44 Mini-Relay Powertrain Ignition 1 45 Mini-Relay Windshield Wiper On/Off 47 Mini-Relay Low Beam
This content requires JavaScript and a valid membership to view.
Fuse Data
Full access is available to registered users — log in or register.
Log in or register This content requires JavaScript and a valid membership to view.

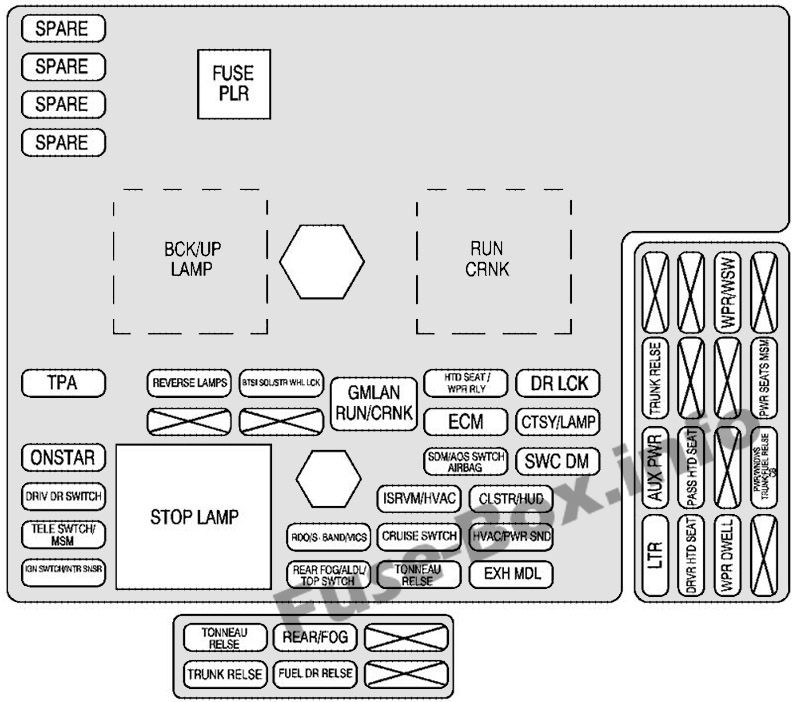

Assignment of the fuses and relay in the Passenger Compartment (2009, 2010)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description BCK/UP LAMP Reverse Lamps BLANK Not Used BLANK Not Used BTSI SOL/STR WHL LCK Brake Transmission Shift Interlock, Steering Wheel Column Lock CLSTR/HUD Cluster, Heads-Up Display CRUISE SWITCH Cruise Control Switch CTSY/LAMP Courtesy Lamp DR LCK Door Locks DRIV DR SWITCH Driver Door Switch ECM Engine Control Module (ECM) EXH MDL Exhaust Module (Z06 & ZR1), Spare (Coupe and Convertible) GM LAN RUN/CRNK GM LAN Devices HTD SEAT/WPR RLY Heated Seat, Wiper Relays HVAC/PWR SND Heating. Ventilation/Air Conditioning, Power Sounder IGN SWTCH/INTR SNSR Ignition Switch, Intrusion Sensor ISRVM/HVAC Electric Inside Rearview Mirror, Heating, Ventilation, Air Conditioning ONSTAR OnStar RDO/S-BAND/VICS Radio, S-Band, VICS REAR FOG/ALDL/TOP SWTCH Rear Fog Lamp, Assembly Line Diagnostic Link Connector, Convertible Top Switch REVERSE LAMPS Reverse Lamps RUN CRNK Run/Crank Relay SDM/AOS SWTCH AIRBAG Sensing and Diagnostic Module, Automatic Occupant Sensing Module, Airbag SPARE Spare SPARE Spare SPARE Spare SPARE Spare STOP LAMP Stop Lamp SWC DM Steering Wheel Dimming TELE SWTCH/MSM Telescope Switch, Memory Seat Module TONNEAU RELSE Tonneau Release TPA Tonneau Pulldown Actuator BLANK Blank BLANK Blank FUEL DR RELSE Fuel Door Release REAR/FOG Rear Fog Lamps TONNEAU RELSE Tonneau Release TRUNK RELSE Trunk Release AUX PWR Auxiliary Power BLANK Not Used BLANK Not Used BLANK Not Used BLANK Not Used BLANK Not Used BLANK Not Used BLANK Not Used DRVR HTD SEAT Driver Heated Seat LTR Cigarette Lighter PASS HTD SEAT Passenger Heated Seat PWR SEATS MSM Power Seats, Memory Seat Module PWR/ WNDWS/TRUNK/FUEL RELSE Power Windows, Trunk, Fuel Door Release TRUNK RELSE Trunk Release WPR DWELL Wiper Dwell WPR/WSW Windshield Wiper/Washer
This content requires JavaScript and a valid membership to view.

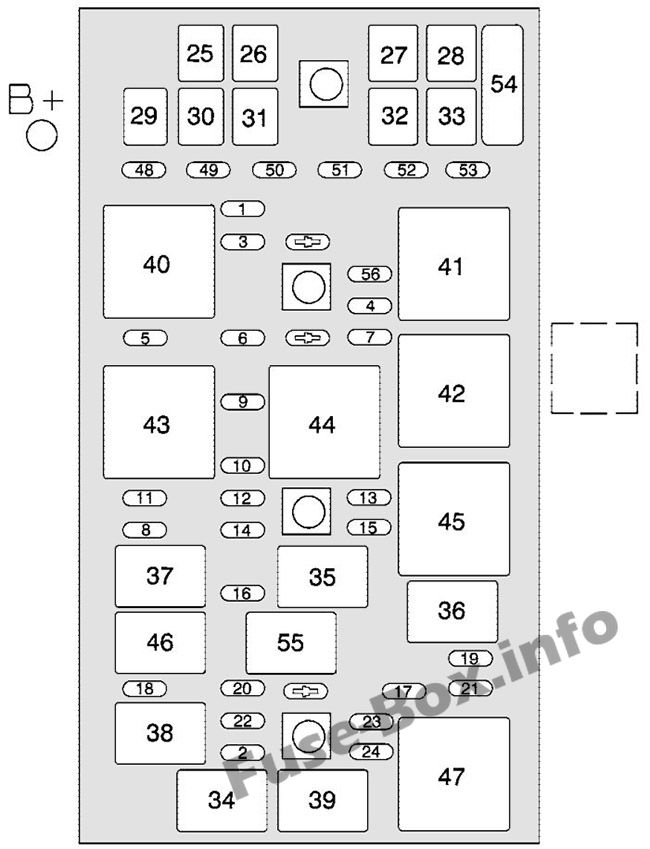

Assignment of the fuses in the Engine Compartment (2009, 2010)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Type Description 1 Mini Fuse Transmission Control Module/Transmission 2 Mini Fuse Horn, Alternator Sense 3 Mini Fuse Antilock Braking System (ABS)/Real Time Damping 4 Mini Fuse Wiper 5 Mini Fuse Stoplamps/Back-Up Lamps 6 Mini Fuse Oxygen Sensor 7 Mini Fuse Battery Main 5 8 Mini Fuse Parking Lamps 9 Mini Fuse Powertrain Relay Input/Electronic Throttle Control 10 Mini Fuse Manual Transmission Solenoids 11 Mini Fuse Antilock Braking System 12 Mini Fuse Odd Numbered Fuel Injectors 13 Mini Fuse Electronic Suspension Control (Option) 14 Mini Fuse Canister Purge Solenoid, Mass Air Flow Sensor 15 Mini Fuse Air Conditioner Compressor 16 Mini Fuse Even Numbered Fuel Injectors 17 Mini Fuse Windshield Washer 18 Mini Fuse Headlamp Washer 19 Mini Fuse Passenger Side Low-Beam Headlamp 20 Mini Fuse Fuel Pump (except ZR1) 21 Mini Fuse Driver Side Low-Beam Headlamp 22 Mini Fuse Front Fog Lamp 23 Mini Fuse Passenger Side High-Beam Headlamp 24 Mini Fuse Driver Side High-Beam Headlamp 56 Mini Fuse Engine Control Module (ECM)/Transmission Control Module (TCM)/Easy Key Module 25 J-Style Fuse Cooling Fan 26 J-Style Fuse Battery Main 3 27 J-Style Fuse Anti-Lock Brake System 28 J-Style Fuse Heating/Ventilation/Air Conditioning Blower 29 J-Style Fuse Battery Main 2 30 J-Style Fuse Starter 31 J-Style Fuse Audio Amplifier 32 J-Style Fuse Intercooler Pump 33 J-Style Fuse Battery Main 1 48 Spare Fuse Spare 49 Spare Fuse Spare 50 Spare Fuse Spare 51 Spare Fuse Spare 52 Spare Fuse Spare 53 Spare Fuse Spare 54 Tool Fuse Puller
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the Engine Compartment (2009, 2010)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Type Description 34 Micro-Relay Horn 35 Micro-Relay Air Conditioning Compressor 36 Micro-Relay Windshield Washer 37 Micro-Relay Parking Lamps, Foglamps 38 Micro-Relay Front Fog Lamp 39 Micro-Relay High-Beam Headlamp 46 Micro-Relay Headlamp Washer 55 Micro-Relay Fuel Pump (except ZR1) 40 Mini-Relay Rear Defog 41 Mini-Relay Windshield Wiper High/Low 42 Mini-Relay Windshield Wiper Run/Accessory 43 Mini-Relay Crank 44 Mini-Relay Powertrain Ignition 1 45 Mini-Relay Windshield Wiper On/Off 47 Mini-Relay Low-Beam Headlamp
This content requires JavaScript and a valid membership to view.
Fuse Data
Full access is available to registered users — log in or register.
Log in or register This content requires JavaScript and a valid membership to view.

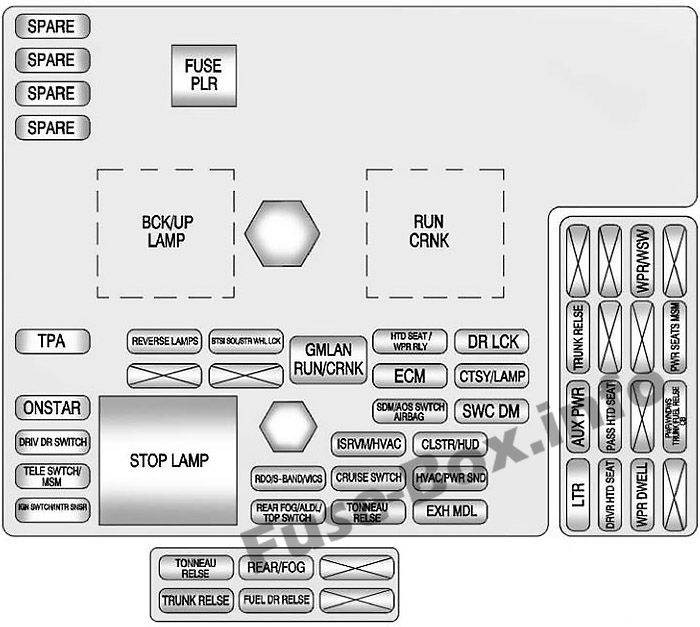

Assignment of the fuses and relay in the Passenger Compartment (2011-2013)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description BCK/UP LAMP Back‐up Lamps BLANK Not Used BLANK Not Used BTSI SOL/STR WHL LCK Brake Transmission Shift Interlock, Steering Wheel Column Lock CLSTR/HUD Cluster, Heads-Up Display CRUISE SWITCH Cruise Control Switch CTSY/LAMP Courtesy Lamp DR LCK Door Locks DRIV DR SWITCH Driver Door Switch ECM Engine Control Module (ECM) EXH MDL Exhaust Module (Z06 & ZR1), Spare (Coupe and Convertible) FUSE PLR Fuse Puller GM LAN RUN/CRNK GM LAN Devices HTD SEAT/WPR RLY Heated Seat, Wiper Relays HVAC/PWR SND Heating. Ventilation/Air Conditioning, Power Sounder IGN SWTCH/INTR SNSR Ignition Switch, Intrusion Sensor ISRVM/HVAC Electric Inside Rearview Mirror, Heating, Ventilation, Air Conditioning ONSTAR OnStar® (if equipped) RDO/S-BAND/VICS Radio, S-Band REAR FOG/ALDL/TOP SWTCH Rear Fog Lamp, Assembly Line Diagnostic Link Connector, Convertible Top Switch REVERSE LAMPS Reverse Lamps RUN CRNK Run/Crank Relay SDM/AOS SWTCH AIRBAG Sensing and Diagnostic Module, Automatic Occupant Sensing Module, Airbag SPARE Spare SPARE Spare SPARE Spare SPARE Spare STOP LAMP Stop Lamp SWC DM Steering Wheel Dimming TELE SWTCH/MSM Telescope Switch, Memory Seat Module TONNEAU RELSE Tonneau Release TPA Tonneau Pulldown Actuator BLANK Blank BLANK Blank FUEL DR RELSE Fuel Door Release REAR/FOG Rear Fog Lamps TONNEAU RELSE Tonneau Release TRUNK RELSE Trunk Release AUX PWR Auxiliary Power BLANK Not Used BLANK Not Used BLANK Not Used BLANK Not Used BLANK Not Used BLANK Not Used BLANK Not Used DRVR HTD SEAT Driver Heated Seat LTR Cigarette Lighter PASS HTD SEAT Passenger Heated Seat PWR SEATS MSM Power Seats, Memory Seat Module PWR/ WNDWS/TRUNK/FUEL RELSE CB Power Windows, Trunk, Fuel Door Release Circuit Breaker TRUNK RELSE Trunk Release WPR DWELL Wiper Dwell WPR/WSW Windshield Wiper/Washer
This content requires JavaScript and a valid membership to view.
Assignment of the fuses in the Engine Compartment (2011- 2013)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Type Description 1 Mini Fuse Transmission Control Module/Transmission 2 Mini Fuse Horn, Alternator Sense 3 Mini Fuse Antilock Braking System (ABS)/Real Time Damping 4 Mini Fuse Wiper 5 Mini Fuse Stop-lamps/Back-Up Lamps 6 Mini Fuse Oxygen Sensor 7 Mini Fuse Battery Main 5 8 Mini Fuse Parking Lamps 9 Mini Fuse Powertrain Relay Input/Electronic Throttle Control 10 Mini Fuse Manual Transmission Solenoids 11 Mini Fuse Antilock Braking System 12 Mini Fuse Odd Numbered Fuel Injectors 13 Mini Fuse Electronic Suspension Control (Option) 14 Mini Fuse Canister Purge Solenoid, Mass Air Flow Sensor 15 Mini Fuse Air Conditioner Compressor 16 Mini Fuse Even Numbered Fuel Injectors 17 Mini Fuse Windshield Washer 18 Mini Fuse Headlamp Washer 19 Mini Fuse Passenger Side Low-Beam Headlamp 20 Mini Fuse Fuel Pump (except ZR1) 21 Mini Fuse Driver Side Low-Beam Headlamp 22 Mini Fuse Front Fog Lamp 23 Mini Fuse Passenger Side High-Beam Headlamp 24 Mini Fuse Driver Side High-Beam Headlamp 56 Mini Fuse Engine Control Module (ECM)/Transmission Control Module (TCM)/Easy Key Module 25 J-Style Fuse Cooling Fan 26 J-Style Fuse Battery Main 3 27 J-Style Fuse Anti-Lock Brake System 28 J-Style Fuse Heating/Ventilation/Air Conditioning Blower 29 J-Style Fuse Battery Main 2 30 J-Style Fuse Starter 31 J-Style Fuse Audio Amplifier 32 J-Style Fuse Intercooler Pump 33 J-Style Fuse Battery Main 1 48 Spare Fuse Spare 49 Spare Fuse Spare 50 Spare Fuse Spare 51 Spare Fuse Spare 52 Spare Fuse Spare 53 Spare Fuse Spare 54 Tool Fuse Puller
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the Engine Compartment (2011- 2013)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Type Description 34 Micro-Relay Horn 35 Micro-Relay Air Conditioning Compressor 36 Micro-Relay Windshield Washer 37 Micro-Relay Parking Lamps, Foglamps 38 Micro-Relay Front Fog Lamp 39 Micro-Relay High-Beam Headlamp 46 Micro-Relay Headlamp Washer 55 Micro-Relay Fuel Pump (except ZR1) 40 Mini-Relay Rear Defog 41 Mini-Relay Windshield Wiper High/Low 42 Mini-Relay Windshield Wiper Run/Accessory 43 Mini-Relay Crank 44 Mini-Relay Powertrain Ignition 1 45 Mini-Relay Windshield Wiper On/Off 47 Mini-Relay Low-Beam Headlamp
This content requires JavaScript and a valid membership to view.
