Explore Chevrolet Cruze fuse box diagrams in this clear guide that outlines the electrical layout of the original compact car generation. In this article, we consider the first-generation Chevrolet Cruze (Model Code: J300), produced from 2008 to 2016 , and provide fuse box diagrams for Chevrolet (Chevy) Cruze 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015 and 2016 , along with information about the location of the fuse panels and the assignment of each fuse and relay (fuse layout).
Passenger Compartment

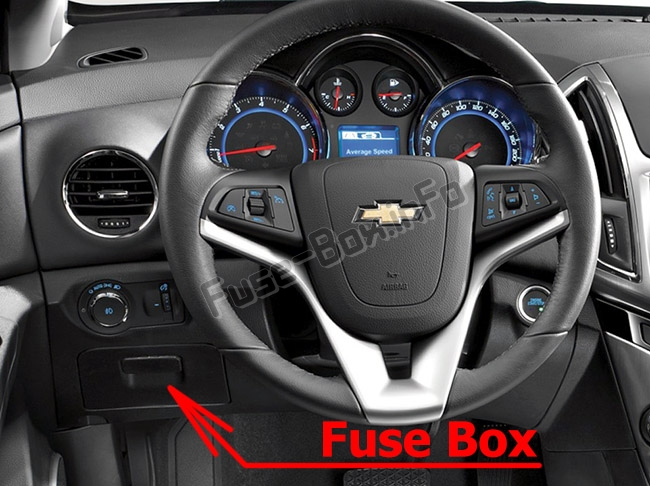

Fuse Box Location
It is located in the instrument panel (on the driver’s side), behind under the cover to the left of the steering wheel.

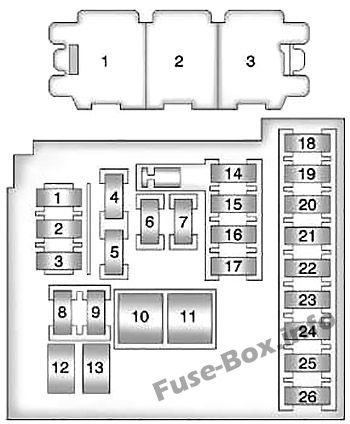

Fuse Box Diagram
Fuses
Assignment of the fuses in the Instrument Panel
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description Amps 1 Mobile Telephone Control Module 10A 2 Not Used – 3 Body Control Module 25A 4 Radio 20A 5 Parking Assist Control Module, Power Sounder, Multifunction Switch – Centre Console, Display 7.5A 6 Cigar Lighter – Front 20A 7 Accessory Power Outlet – Centre Console 1/2 20A 8 Body Control Module 30A 9 Body Control Module 30A 10 Body Control Module 30A 11 Blower Motor Control Module 40A 12 Not Used – 13 Heated Seat Control Module 25A 14 Data Link Connector, Oil Feeding Connector 7.5A 15 Inflatable Restraint Sensing and Diagnostic Module 10A 16 Rear Compartment Lid Release Relay 10A 17 HVAC Control Module / HVAC Control Assembly 15A 18 Not Used – 19 Not Used – 20 Not Used – 21 Instrument Cluster 15A 22 Ignition Switch / Remote Control Door Lock Receiver 2A 23 Body Control Module 20A 24 Body Control Module 20A 25 Steering Column Lock Control Module 20A 26 Not Used –
This content requires JavaScript and a valid membership to view.
Relays
Assignment of the relays in the Instrument Panel
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 1 Rear Compartment Lid Release 2 Logistic Mode Relay 1 3 Auxiliary Power Relay
This content requires JavaScript and a valid membership to view.
Engine Compartment

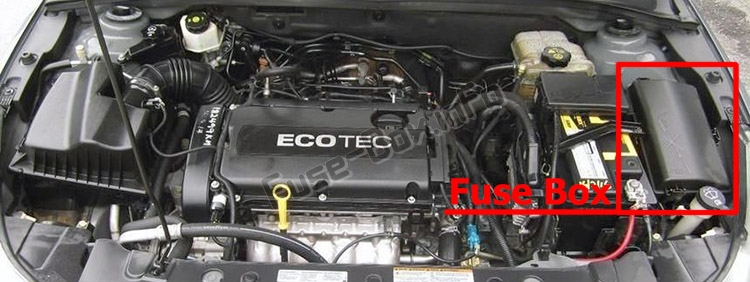

Fuse Box Location
It is located in the engine compartment, under the cover.

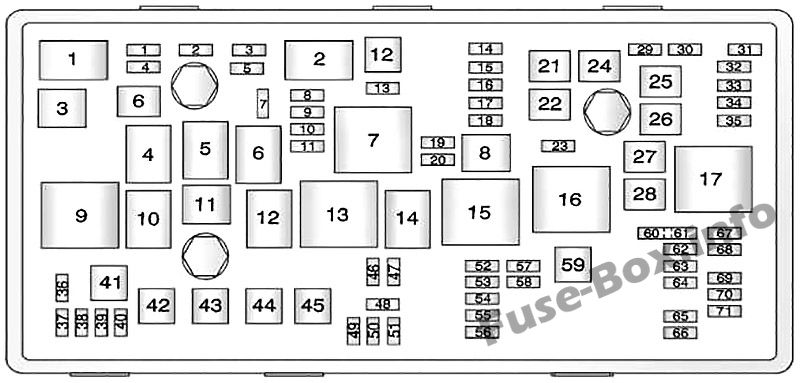

Fuse Box Diagram
Fuses
Assignment of the fuses in the Engine Compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description Amps 1 Transmission Control Module 15A 2 Engine Control Module 15A 3 Not Used – 5 Transmission Control Module, Engine Control Module, Mass Air Flow/Intake Air Temperature Sensor, Output Speed Sensor 15A 6 Windshield Wiper Relays 30A 7 Not Used – 8 Fuel injectors 15A 9 Ignition Coil, Fuel Injectors 15A 10 Engine Control Module, Output Speed Sensor 15A 11 Heated Oxygen Sensors 10A 12 Starter Motor 30A 13 Evaporative Emission (EVAP) Canister Vent Solenoid Valve 7.5A 14 Not Used – 15 Not Used – 16 Air Quality Sensor 7.5A 17 Inflatable Restraint Sensing and Diagnostic Module 5A 18 Fuel Pump Control Module 10A 19 Not Used – 20 Fuel Pump Relay 20A 21 Windows Motors, Front Door 30A 22 Not Used – 23 Not Used – 24 Windows Motors, Front Door 30A 25 Not Used – 26 Electronic Brake Control Module (EBCM) 40A 27 Remote Control Door Lock Receiver 30A 28 Rear Demister Grid 40A 29 Not Used – 30 Electronic Brake Control Module (EBCM) 15A 31 Body Control Module 20A 32 Body Control Module 20A 33 Heated Seat Control Module 30A 34 Sunroof Control Module 25A 35 Audio Amplifier 30A 36 Not Used – 37 Headlamp – Right Main beam 10A 38 Headlamp – Left Main beam 10A 39 Not Used – 40 Not Used – 41 Not Used – 42 Cooling Fan Relays, Cooling Fan Motor 20A / 30A 43 Not Used – 44 Not Used – 45 Cooling Fan High Speed Relay, Cooling Fan Motor 30A / 40A 46 Cooling Fan Relays 10A 47 Heated Oxygen Sensors, Throttle Body 10A 48 Fog Lights, Front 15A 49 Not Used – 50 Not Used – 51 Horn 15A 52 Instrument Cluster 5A 53 Inside Rearview Mirror 10A 54 Headlamp Switch, Electrical Auxiliary Heater, HVAC Control Module 5A 55 Window Switches, Front, Mirror Switch 7.5A 56 Windscreen Washer Pump 15A 57 Steering Column Lock Control Module 15A 58 Not Used – 59 Fuel Heater 30A 60 Outside Rearview Mirrors 7.5A 61 Not Used – 62 A/C Compressor Clutch Relay, A/C Compressor Clutch 10A 63 Not Used – 64 Inflatable Restraint Sensing and Diagnostic Module 5A 65 Not Used – 66 Not Used – 67 Fuel Pump Control Module 20A 68 Not Used – 69 Body Control Module 5A 70 Rain Sensor 5A 71 Not Used –
This content requires JavaScript and a valid membership to view.
Relays
Assignment of the relays in the Engine Compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 1 A/C Compressor Clutch 2 Starter 3 Cooling Fan 4 Windshield Wiper Speed Control 5 Windshield Wiper 6 Not Used 7 Powertrain 8 Fuel Pump 9 Cooling Fan Medium Speed 1 10 Cooling Fan Medium Speed 2 11 Not Used 12 Cooling Fan Speed Control (Or in Relay Block – Under-bonnet) 13 Cooling Fan High Speed Relay 14 Not Used 15 Ignition Main Relay 16 Fuel Heater Relay 17 Rear Window Defogger – Horn Relay* – Windscreen Washer Pump Relay* – Front Fog Lamp Relay* – Headlamp High Beam Relay*
*Non-serviceable Relay (Printed Circuit Board (PCB))
This content requires JavaScript and a valid membership to view.
Engine Pre-Fuse Box

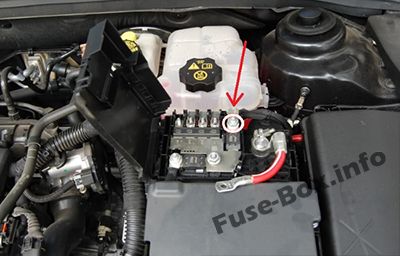

Fuse Box Location
It is located on the battery terminal in the engine compartment.
Fuse Box Diagram

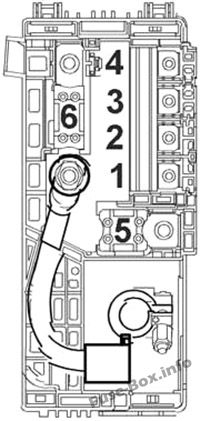

Engine Pre-Fuse Box
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description Amps 1 Fuse Block – Instrument Panel 100A 2 Fuse Block – Instrument Panel 100A 3 Electrical Power Steering (EPS) (NJ1) 80A 4 Not Used – 5 Fuse Block – Battery Auxiliary 250A 6 Starter Motor 250A / 500A
This content requires JavaScript and a valid membership to view.

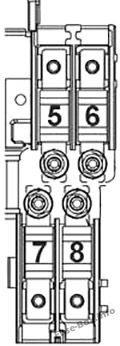

Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description Amps 5 Glow Plug Control Module 80A 6 Electrical Auxiliary Heater 100A 7 Not Used – 8 Not Used –
This content requires JavaScript and a valid membership to view.
Relay Box

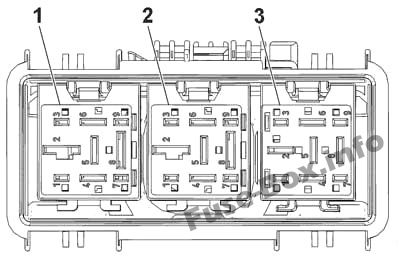

Relay Box Diagram
Relays
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 1 Cooling Fan Left Medium Speed Relay 2 Cooling Fan Speed Control 2 Relay 3 Cooling Fan Right Medium Speed Relay
This content requires JavaScript and a valid membership to view.
