Chevrolet Cruze (2016-2019)

Explore Chevrolet Cruze fuse box diagrams in this practical guide that explains the electrical layout of the compact sedan’s second generation. In this article, we consider the second-generation Chevrolet Cruze (Model Code: J400), produced from 2016 to 2019, and provide fuse box diagrams for Chevrolet (Chevy) Cruze 2016, 2017, 2018 and 2019, along with information about the location of the fuse panels and the assignment of each fuse and relay (fuse layout).

Passenger Compartment

Fuse Box Location

It is located behind the cover in the central console under the HVAC controls.

The location of the fuses in the passenger compartment: Chevrolet Cruze (J400; 2016-2019..)

How to access:
1) Open the cover by pulling out at the top;
2) Remove the lower edge of the cover;
3) Remove the cover.

Fuse Box Diagram

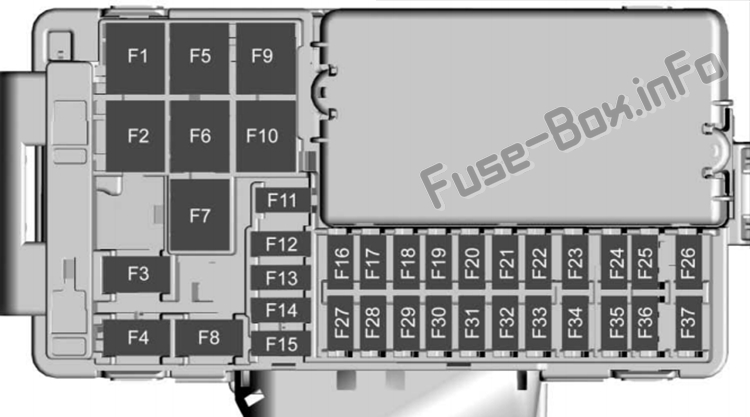

Interior fuse box diagram: Chevrolet Cruze (J400; 2016, 2017, 2018)

Assignment of the fuses in the interior fuse box

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
F12016, 2018: Not Used.
2017: Right rear power window
F2Blower
F3Driver power seat
F4Front power outlet
F52016, 2018, 2019: Not Used.
2017: Right front power window
F62016, 2018, 2019: Front power windows
2017: Front left power window
F7ABS valves
F8Cyber gateway module (CGM)
F9Body control module 8
F102016, 2018, 2019: Rear power windows.
2017: Left rear power window
F11Sunroof
F12Body control module 4
F13Heated front seats
F14Exterior mirrors / Lane keep assist / High-beam headlamp auto control
F15Body control module 1
F16Body control module 7
F17Body control module 6
F18Body control module 3
F19Data link connector
F20Airbag
F21A/C
F22Trunk release
F23Passive entry / Passive start
F242016-2017: Right front child presence detection.
2018: Passenger sensing system.
2019: AOS (Automatic Occupant Sensing) system
F25Steering wheel switch illumination
F26Ignition switch
F27Body control module 2
F28Amplifier
F292016-2017: Not Used.
2018-2019: USB charge
F30Shift lever illumination
F31Rear wiper
F322016-2018: Transmission control module (with Stop/ Start).
2019: Virtual key system
F33Mobile phone wireless charging / DC/AC converter
F34Parking assist / Side blind zone alert / Infotainment / USB
F35OnStar
F36Display / Cluster
F37Radio

Engine Compartment

Fuse Box Location

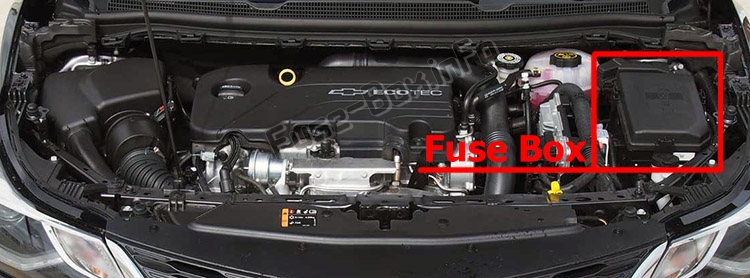

The location of the fuses in the engine compartment: Chevrolet Cruze (J400; 2016-2019..)

Fuse Box Diagram

Under-hood fuse box diagram: Chevrolet Cruze (J400; 2016, 2017, 2018)

Fuses

Assignment of the fuses in the engine compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
F01Starter
F02Starter
F03O2 sensor
F04Engine control module
F052016-2018: Engine functions.
2019: Aero shutter / Fuel flex
F06Transmission control module
F07Not Used
F08Engine control module
F09A/C
F10Canister vent
F11Heated seats
F12CGM module
F132016-2018: After boil pump / Heated steering wheel.
2019: Aero shutter / Fuel flex
F14Diesel NOx / CVT8 transmission
F15O2 sensor
F16Fuel injection
F17Fuel injection
F18Diesel NOx
F192016-2018: Diesel NOx.
2019: Diesel NOx / Coolant motor
F20Not Used
F212016-2018: Electric parking brake.
2019: DC/AC converter
F22ABS system
F23Windshield washer / Rear windows
F24Not Used
F252016-2018: Diesel fuel heating / Secondary air induction.
2019: Diesel fuel heating
F26Transmission
F27Not Used
F28Not Used
F29Rear window defogger
F30Mirror defogger
F31Not Used
F32Display LED / DC-DC converter / FPPM / Electrical heater / A/C module
F33Anti-theft warning horn
F34Horn
F35Trunk power outlet
F36Right high-beam headlamp
F37Left high-beam headlamp
F38Not Used
F39Front fog lamps
F40AIR solenoid
F41Switchable water pump / Water in fuel sensor
F42Manual headlamp leveling
F43Fuel pump
F44Interior rearview mirror / Rear vision camera / Trailer
F45Fleated steering wheel
F46Cluster
F47Steering column lock
F48Rear wiper
F49Not Used
F50Not Used
F51Not Used
F52Engine / Transmission control module
F53Not Used
F54Windshield wiper
F552016-2018: Diesel NOx.
2019: Not Used
F562016-2018: Aeroshutter.
2019: Not Used
F57Not Used

Relays

Assignment of the relays in the engine compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
K01Starter
K02A/C control
K03Engine functions
K042016-2017: CVT8 transmission.
2018-2019: Not Used
K05Starter
K06Diesel fuel heating / Secondary air induction
K07Right low-beam headlamp / Right daytime running lamp
K08Transmission
K09Diesel NOx
K10Fuel pump
K11—
K12High-beam headlamps
K13Left daytime running lamp / Left low-beam headlamp
K14Run/Crank
K15Mirror defogger / Rear window defogger / Anti-theft warning sensor
K16Horn/Dual horn
K17Diesel NOx
K18Front fog lamps
K19After boil pump / Heated steering wheel
K20Anti-theft warning horn
K21Rear window washer
K22Front window washer
K23Rear window wiper

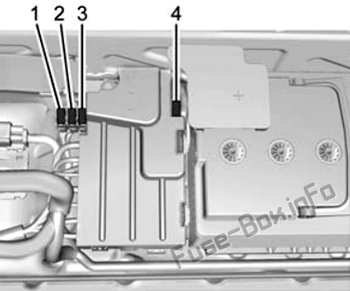

Additional Fuses (2018, 2019)

Fuse Box Location

Located near the vehicle battery in the engine compartment.

Fuse Box Diagram

Assignment of the fuses in the additional fuse box

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
12018: Transmission control module (AT only).
2019: Engine control module
2Fuel pump
32018: Engine control module.
2019: Transmission control module
4Power supply
