Explore Chevrolet Epica fuse box diagrams in this clear guide that explains the electrical layout of this mid-size sedan. In this article, we cover the Chevrolet Epica, produced from 2000 to 2006 , and provide fuse box diagrams for Chevrolet (Chevy) Epica 2000, 2001, 2002, 2003, 2004, 2005 and 2006 , along with information about the location of the fuse panels and the assignment of each fuse and relay (fuse layout).

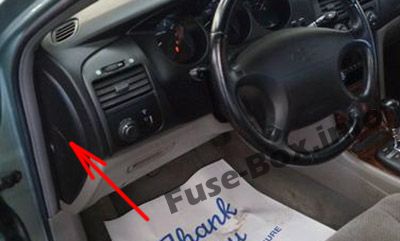

It is located on the driver’s side of the instrument panel, behind the cover.
Fuse Data
Full access is available to registered users — log in or register.
Log in or register This content requires JavaScript and a valid membership to view.

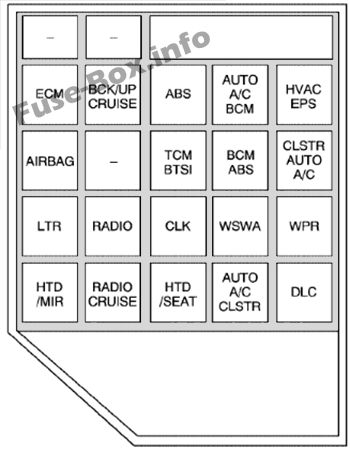

Assignment of the fuses and relay in the Instrument Panel (2001-2004)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description BLANK Not Used BLANK Not Used BLANK Not Used ECM Engine Main Relay, Fuel Pump Relay, Engine Control Module (ECM) BCK/UP CRUISE Back-Up Lamp Switch, Cruise Control ABS Electronic Brake Control Module (EBCM), A/D Converter AUTO A/C BCM Automatic Temperature Control, A/C Compressor Relay, Body Control Module (BCM) HVAC EPS Manual Air Conditioning, Electronic Power Steering (EPS), HVAC EPS AIRBAG Sensing and Diagnostic Module (SDM) BLANK Not Used TCM BTSI Transmission Control Module (TCM), Brake Transmission Shift-Interlock/Automatic Transaxle Shift-Lock (BTSI) BCM ABS Body Control Module (BCM), Antilock Brake System (ABS) CLSTR AUTO A/C Instrument Panel Cluster, Automatic Temperature Control. Daytime Running Lamps (DRL) LTR Cigarette Lighter, Glove Box Lamp RADIO Radio CLK Clock, Dome Lamp, Key Interlock Unit WSWA Windshield Washer WPR Wiper HTD/MIR Outside Rearview Mirror (OSRVM), Rear Glass Defogger Switch RADIO CRUISE Radio Battery Positive Voltage, Cruise HTD/SEAT Heating Mat, Accessory Power Outlet AUTO A/C CLSTR Automatic Temperature Control, Cluster DLC Data Link Connector (DLC)
This content requires JavaScript and a valid membership to view.
Fuse Data
Full access is available to registered users — log in or register.
Log in or register This content requires JavaScript and a valid membership to view.

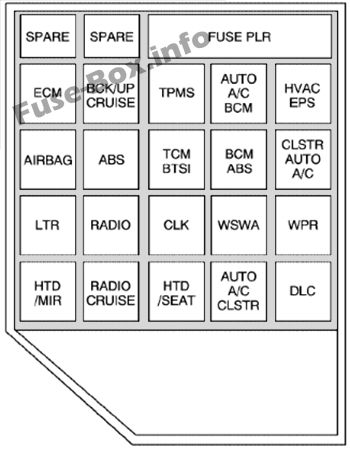

Assignment of the fuses and relay in the Instrument Panel (2005-2006)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description SPARE Spare SPARE Spare FUSE PLR Fuse Puller ECM Engine Main Relay : Fuel Pump Relay, Engine Control Module (ECM) BCK/UP CRUISE Back-Up Lamp Switch, Cruise Control TPMS Tire Pressure Monitor System (Option) AUTO A/C BCM Automatic Temperature Control, A/C Compressor Relay, Body Control Module (BCM) HVAC EPS Manual Air Conditioning, Electronic Power Steering (EPS) (Option) AIRBAG Sensing and Diagnostic Module (SDM) (Option) ABS Anti-lock Brake System (Option) TCM BTSI Transmission Control Module (TCM), Brake Transmission Shift-Interlock/Automatic Transaxle Shift-Lock (BTSI) BCM ABS Body Control Module (BCM), Antilock Brake System (ABS) CLSTR AUTO A/C Instrument Panel Cluster, Automatic Temperature Control, Daytime Running Lamps (DRL) LTR Cigarette Lighter, Glove Box Lamp RADIO Radio CLK Clock, Dome Lamp, Key Interlock Unit WSWA Windshield Washer WPR Windshield Wiper HTD/MIR Outside Rearview Mirror (OSRVM), Rear Glass Defogger Switch RADIO CRUISE Radio Battery Positive Voltage, Cruise HTD/SEAT Heating Mat. Accessory Power Outlet AUTO A/C CLSTR Automatic Temperature Control, Cluster DLC Data Link Connector (DLC)
This content requires JavaScript and a valid membership to view.

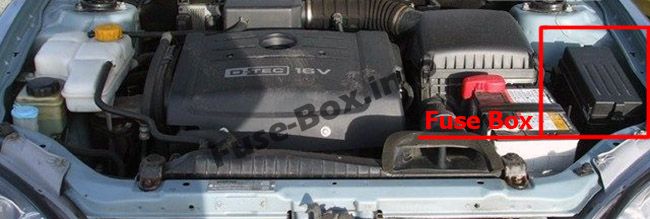

It is located in the engine compartment, under the cover.
Fuse Data
Full access is available to registered users — log in or register.
Log in or register This content requires JavaScript and a valid membership to view.

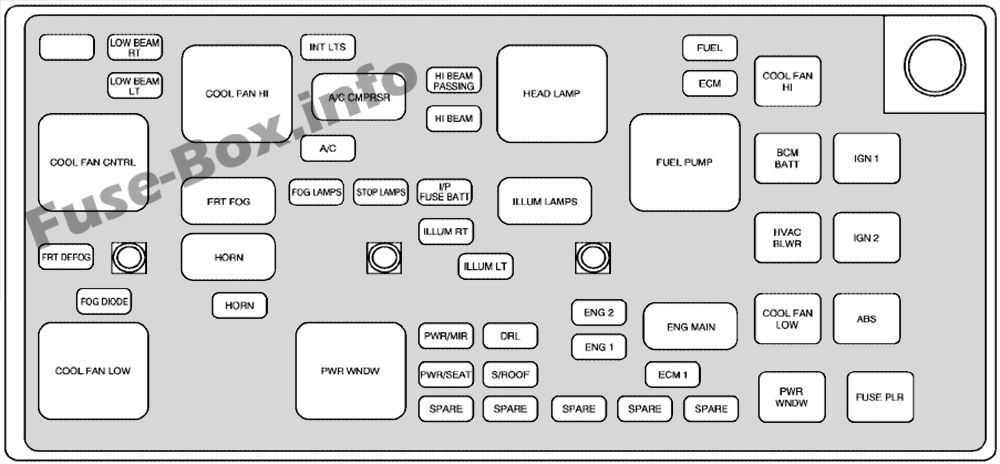

Assignment of the fuses in the Engine Compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description BLANK Not Used LOW BEAM RT Right Side Headlamp Low Beam LOW BEAM LT Left Side Headlamp Low Beam INT LTS Interior Lamp A/C Air Conditioning HI BEAM PASSING Headlamp Passing Light HI BEAM Headlamp High Beam FUEL Fuel Pump, Data Link Connector (DLC) ECM Ignition Coil COOL FAN HI Electric Cooling Fan High Speed BCM BATT Body Control Module (BCM) IGN 1 Ignition Key (ACC : ON : START) FOG LAMPS Fog Lamp Relay STOP LAMPS Brake Switch I/P FUSE BATT Instrument Panel Fuse Box ILLUM RT Illumination, Right Parking Lamp FRT DEFOG Front Defogger ILLUM LT Left Parking Lamp HVAC BLWR Blower Motor IGN 2 Ignition Key (ON. START) FOG DIODE Fog Lamp Relay HORN Horn PWR/MIR Power Mirror DRL Daytime Running Lamps ENG 2 Injector Variable Induction System (VIS) : Electronic Exhaust Gas Recirculation (EEGR), Canister Purge Solenoid ENG 1 Oxygen Sensor. Generator. Engine Control Module (ECM) COOL FAN LOW Electric Cooling Fan Low Speed ABS Electronic Brake Control Module (EBCM) PWR/SEAT Front Power Seat S/ROOF Sunroof ECM 1 Engine Control Module (ECM), Transmission Control Module (TCM), Engine Main Relay SPARE Spare SPARE Spare SPARE Spare SPARE Spare SPARE Spare PWR WNDW Power Window FUSE PLR Fuse Puller COOL FAN HI Electric Cooling Fan High Speed A/C CMPRSR Air Conditioning Compressor HEAD LAMP Headlamp COOL FAN CNTRL Electric Cooling Fan Control FRT FOG Front Fog Lamp HORN Horn
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the Engine Compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description ILLUM LAMPS Taillamp FUEL PUMP Fuel Pump COOL FAN LOW Electric Cooling Fan Low Speed PWR WNDW Power Window ENG MAIN Engine Control Module (ECM), Ignition Coil
