Explore Chevrolet Impala fuse box diagrams in this detailed guide that outlines the electrical layout of the ninth-generation full-size sedan. In this article, we consider the ninth-generation Chevrolet Impala, produced from 2005 to 2013 , and provide fuse box diagrams for Chevrolet (Chevy) Impala 2006, 2007, 2008, 2009, 2010, 2011, 2012 and 2013 , along with information about the location of the fuse panels and the assignment of each fuse and relay (fuse layout).

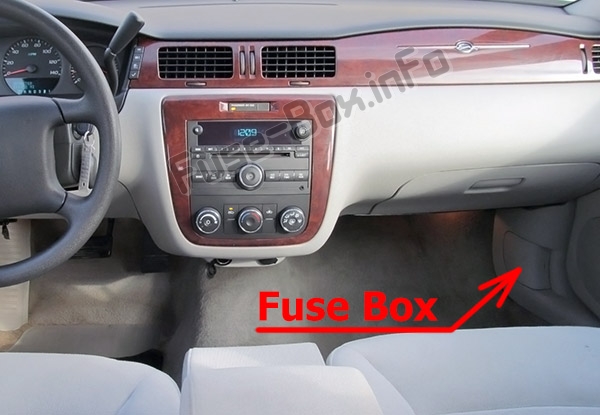

It is located in the front-passenger footwell, behind the cover.
Fuse Data
Full access is available to registered users — log in or register.
Log in or register This content requires JavaScript and a valid membership to view.
Assignment of the fuses and relay in the Passenger Compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description AIRBAG Airbags AMP Amplifier AUX Auxiliary Outlets CNSTR Canister DR/LCK Door Locks HTD/SEAT Heated Seats PWR/MIR Power Mirrors PWR/SEAT Power Seats PWR/WNDW Power Window RAP Retained Accessory Power S/ROOF Sunroof TRUNK Trunk TRUNK Trunk Relay XM XM Radio
This content requires JavaScript and a valid membership to view.

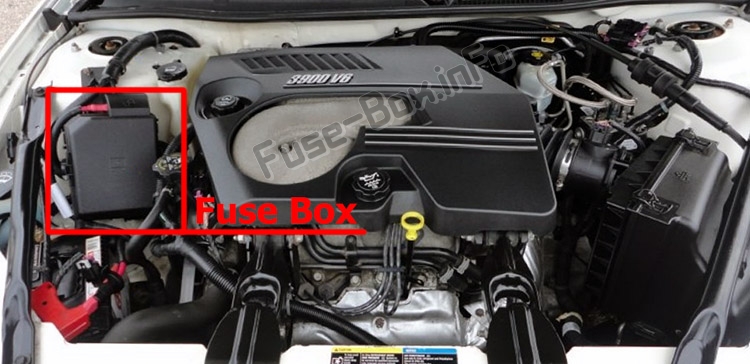

It is located in the engine compartment (right-side).
Fuse Data
Full access is available to registered users — log in or register.
Log in or register This content requires JavaScript and a valid membership to view.

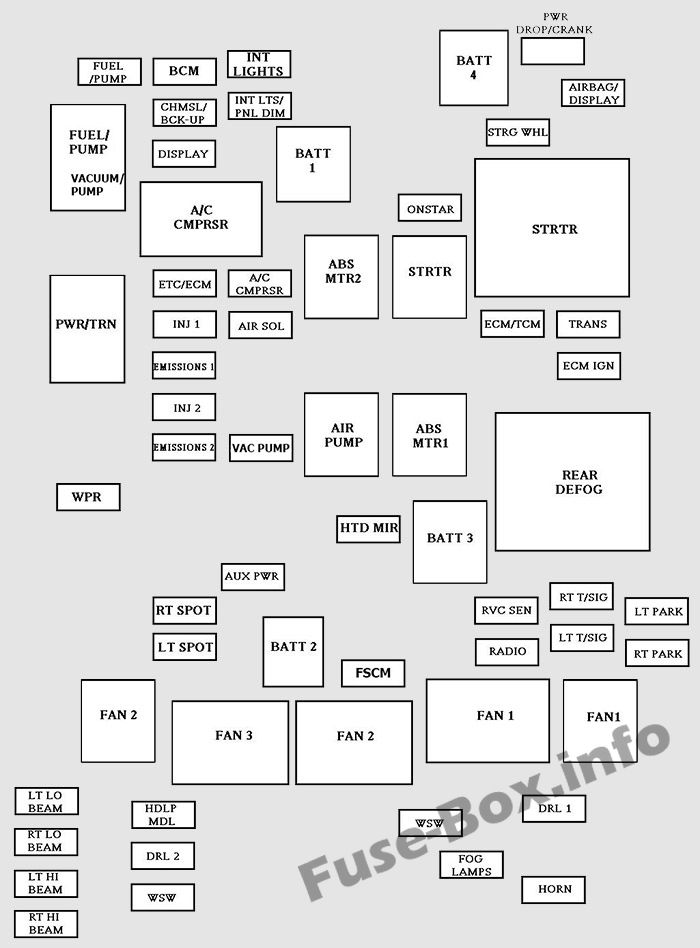

Assignment of the fuses in the Engine Compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description A/C CMPRSR Air Conditioning Compressor ABS MTR 1 Antilock Brake System (ABS) Motor 1 ABS MTR 2 ABS Motor 2 AIR PUMP Air Pump AIR SOL Air Injection Reactor Solenoid AIRBAG/ DISPLAY Airbag, Display AUX PWR Auxiliary Power BATT 1 Battery 1 BATT 2 Battery 2 BATT 3 Battery 3 BATT 4 Battery 4 BCM Body Control Module (BCM) CHMSL/ BCK-UP Center High-Mounted Stoplamp, Back-up Lamp DISPLAY Display DRL 1 Daytime Running Lamps 1 DRL 2 Daytime Running Lamps 2 ECM IGN Engine Control Module (ECM), Ignition ECM/TCM ECM, Transmission Control Module (TCM) EMISSIONS 1 Emissions 1 EMISSIONS 2 Emissions 2 ETC/ECM Electronic Throttle Control, ECM FAN 1 Cooling Fan 1 FAN 2 Cooling Fan 2 FOG LAMPS Fog Lamps (If Equipped) FSCM Fuel SystemControl Module FUEL/PUMP Fuel Pump HDLP MDL Headlamp Module HORN Horn HTD MIR Heated Mirror INJ 1 Injector 1 INJ 2 Injector 2 INT LIGHTS Interior Lamps INT LTS/ PNL DIM Interior Lamps, Instrument Panel Dimmer LT HI BEAM Driver Side High-Beam Headlamp LT LO BEAM Driver Side Low-Beam Headlamp LT PARK Driver Side Parking Lamp LT SPOT Left Spot LT T/SIG Driver Side Turn Signal Lamp ONSTAR OnStar PWR DROP/ CRANK Power Drop, Crank RADIO Audio System RT HI BEAM Passenger Side High-Beam Headlamp RT LO BEAM Passenger Side Low-Beam Headlamp RT PARK Passenger Side Parking Lamp RT SPOT Right Spot RT T/SIG Passenger Side Turn Signal Lamp RVC SEN Regulated Voltage Control Sensor STRG WHL Steering Wheel STRTR Starter VAC PUMP Vacuum Pump TRANS Transmission WPR Wiper WSW Windshield Wiper
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the Engine Compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description A/C CMPRSR Air Conditioning Compressor FAN 1 Cooling Fan 1 FAN 2 Cooling Fan 2 FAN 3 Cooling Fan 3 FUEL/PUMP Fuel Pump/Vacuum Pump PWR/TRN Powertrain REAR DEFOG Rear Defogger STRTR Starter
