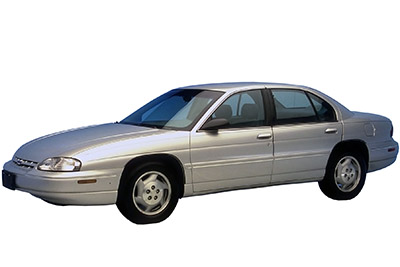

Explore Chevrolet Lumina fuse box diagrams in this straightforward guide that explains the electrical layout of the second-generation sedan. In this article, we consider the second-generation Chevrolet Lumina, produced from 1994 to 2001 , and provide fuse box diagrams for Chevrolet Lumina 1995, 1996, 1997, 1998, 1999, 2000 and 2001 , along with information about the location of the fuse panels and the assignment of each fuse and relay (fuse layout).
The fuse box is located behind the cover on the passenger side of the instrument panel.
There are two fuse blocks that are located in the engine compartment, one on the passenger side, the other on the driver’s side.
Assignment of the fuses in the instrument panel
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 1 Cigarette lighter – Instrument panel & console cigarette lighter 2 Not used 3 1995–1997: 1996 = DRL MDL; 1995 & 1997 = Not used · 1998–2001: Not used4 1995–1997: 1995 = Not used; 1996 = HVAC #2 (HVAC control assembly solenoid box); 1997 = HVAC (solenoid box, mix motor, DRL module, HVAC control head, blower control switch) · 1998–2001: HVAC (solenoid box, mix motor, DRL module, HVAC control head, defogger relay) + (S.E.O.) digital speedometer5 Hazard flasher 6 1995–1997: 1995 = Not used; 1996 = Power Accessory #2 (subroof control unit); 1997 = RH spot lamp (S.E.O.) · 1998–2001: RH spot lamp (S.E.O.)7 1995–1997: Not used · 1998–2001: Starter relay8 Not used 9 Not used 10 I/P electronics battery feed – chime module, EBCM, theft-deterrent module, radio, ALDL/DLC 11 1995–1997: 1995 = Air Bag #2 (SDM) + starter relay; 1996–1997 = Starter relay · 1998–2001: Power accessory #2 (sunroof control unit) + (S.E.O.) accessory feed12 1995–1997: Anti-theft/PCM – theft-deterrent module · 1998–2001: Anti-theft/PCM – theft-deterrent module + PCM + (PCM) IGN system relay13 1995–1997: 1995 = Not used; 1996–1997 = ABS (EBCM, ABS relay) · 1998–2001: ABS (EBCM, ABS relay)14 HVAC blower motor – blower motor relay 15 1995–1997: 1995–1996 = HVAC #1 (air temp valve motor, DRL module, HVAC control assembly, multifunction lever/cruise switch); 1997 = LH spot lamp (S.E.O.) · 1998–2001: LH spot lamp (S.E.O.)16 1995–1997: 1995–1996 = Rear defog (HVAC control assembly rear defog switch); 1997 = Not used · 1998–2001: Steering wheel control #1 – steering wheel radio control lighting17 Not used 18 Not used 19 1995–1997: 1995 = Power accessory #1 (door lock switches); 1996–1997 = Power accessory #1 (door lock switches, trunk courtesy lamp, O/S mirror switch) · 1998–2001: Power accessory #1 (door lock switches, trunk courtesy lamp, O/S mirror switch) + (S.E.O.) emergency vehicle rear compartment lid lamp/window panel lamps20 1995–1997: 1995 = Not used; 1996–1997 = Power accessory #2 (sunroof) control unit · 1998–2001: Steering wheel control #2 – steering wheel radio controls21 1995–1997: 1995 = Air Bag #1 (SDM); 1996–1997 = Air bag system · 1998–2001: Air bag system22 1995–1997: 1995–1996 = Not used; 1997 = Cruise control cut-out switch · 1998–2001: Cruise control (cut-out switch, cruise module, turn-signal cruise switches)23 Stoplamps – 1995–1997: TCC/brake switch · 1998–2001: stoplamp switch (brake) 24 1995–1997: 1995 = HVAC #2; 1996 = Cruise control; 1997 = Not used · 1998–2001: Not used25 1995–1997: 1995–1996 = Not used; 1997 = English/Metric (S.E.O.) · 1998–2001: English/Metric (S.E.O.)26 Not used 27 Not used 28 Courtesy lamps – vanity mirrors, I/P compartment lamp, I/S lighted rearview mirror, dome lamp (1995–1997 also lists header courtesy/reading lamp; 1995–1996 mention defogger relay ) 29 Wiper – wiper switch 30 Turn signal – turn signal flasher 31 Not used 32 Power locks – door lock relay, keyless entry receiver / remote keyless entry receiver 33 1995–1997: 1995 = ABS; 1996 = Not used; 1997 = DRL module · 1998–2001: DRL module + (S.E.O.) accessory switch34 Not used 35 Not used 36 Not used 37 1995–1997: 1995–1996 = Not used; 1997 = Rear defog switch · 1998–2001: Rear defog – rear window defogger switch relay38 1995–1997: 1995 = Radio; 1996–1997 = Radio + steering wheel radio switches + power drop · 1998–2001: Radio + power drop39 I/P electronics ignition feed – headlamp switch, instrument cluster, chime module, keyless entry receiver, stoplamp switch (TCC/BTSI); 1995–1997 adds cruise cut-out & SDM in 1995–1996; 1998–2001 adds (S.E.O.) accessory switch 40 Not used 41 1995–1997: 1995–1996 = Not used; 1997 = Power drop · 1998–2001: Power drop42 1995–1997: 1995–1996 = Not used; 1997 = Enhanced EVAP solenoid · 1998–2001: EVAP solenoid (canister vent solenoid valve)43 Not used 44 Not used 45 Not used
This content requires JavaScript and a valid membership to view.
Assignment of the circuit breakers in the instrument panel
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
ID Description A Not used B Not used C Power windows D Power seats E Not used
This content requires JavaScript and a valid membership to view.

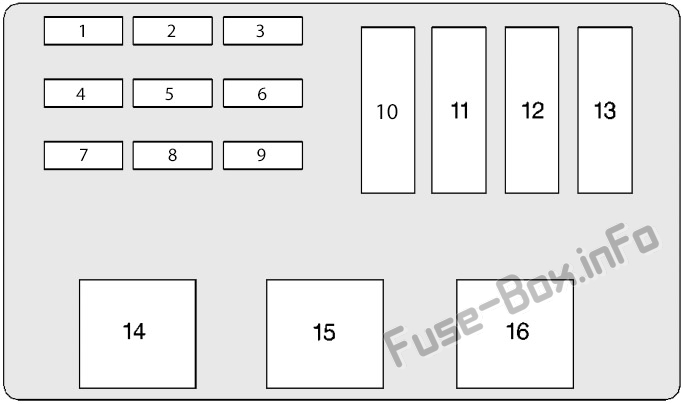

Assignment of the fuses in the engine compartment driver side fuse box
Assignment of the fuses in the engine compartment driver side fuse box
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Short-Code Description 1 Not used 2 Not used 3 Not used 4 FAN #3 / FOG LPS 1995–1996: Fog lamps · 1997: FAN CONT #3 relay · 1998–2001: FAN #3 relay5 PARK LPS Headlamp switch 6 HORN 1995–1997: Horn relay, underhood lamp · 1998–2001: Horn relay7 ABS 1995: Not used · 1996–1997: Anti-lock brake system · 1998–2001: Anti-lock brake system8 Not used 9 VAR P/S 1996: EVO steering · 1997: Not used · 1998–2001: Not used10 IGN SW2 1995–1996: I/P fuse block power window feed + circuit breaker D; underhood center: TCC & ENG EMIS fuses · 1997: Not used · 1998–2001: Not used11 IGN SW1
1995–1996: I/P fuse block: radio, wiper, HVAC, ABS, turn signal fuses; underhood center: F/IJN, ECM IGN, ELEK IGN fuses ·
1997: I/P fuse block: radio, wiper, HVAC, ABS, turn signal fuses + PWR WDO & circuit breaker D; underhood center: F/IJN, ECM IGN, TCC, ENG EMIS, ELEK IGN fuses ·
1998–2001: Circuit breaker C, starter relay, steering wheel control #2, power accessory #2, theft-deterrent relay
12 HD LPS Circuit breaker to headlamp switch 13 ABS ABS relay
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the engine compartment driver side fuse box
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Short-Code Description 14 ABS Anti-lock brake system 15 FAN #3 / FOG LPS 1995: Fog lamps · 1996: Not used · 1997: Secondary cooling fan (passenger side) · 1998–2001: FAN #3 secondary cooling fan (passenger side)16 HORN Horn
This content requires JavaScript and a valid membership to view.

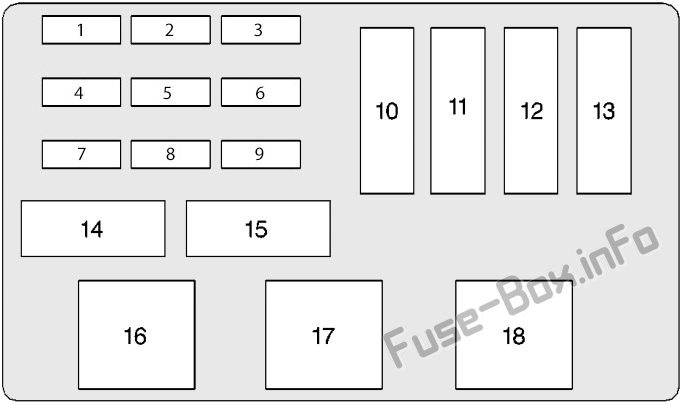

Assignment of the fuses in the engine compartment passenger side fuse box
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Short-Code Description 1 A.I.R. PMP 1995: Not used · 1996: A.I.R. relay · 1997: Not used · 1998–2001: Not used2 R/CMPT REL
Remote trunk release, back-up lamps
(1996–1997) ·
1998–2001: Remote trunk release, back-up lamps, remote control door lock receiver
3 PCM BAT / ECM BAT
1995: PCM, fuel pump/oil pressure switch, fuel pump relay, fan cont #1 relay ·
1996–1997: PCM, fuel pump, fuel pump relay, fan cont #1 & #2 relay ·
1998–2001: PCM, fuel pump relay, fan cont #1 & #2 relay
4 TCC 1995: Automatic transaxle, transaxle range switch (VIN M only) · 1996–1997: Not used · 1998–2001: Not used5 A/C CONT / ENG EMIS
1995: Generator, DEGR valve, EVAP purge valve solenoid, heated O2 sensor, fan cont #2 relay, A/C compressor relay (VIN M only) ·
1996–1997: A/C compressor relay (VIN M only) ·
1998–2001: A/C compressor relay
6 CRUISE / TRANS / TCC
1995: Cruise control module, A/C compressor relay (VIN X only) ·
1996–1997: Automatic transaxle, transaxle range switch (VIN M only) ·
1998–2001: TRANS – Automatic transaxle
7 F/INJN
1995: Fuel injectors, 24X crankshaft position sensor (high resolution), camshaft position sensor ·
1996–1997: Fuel injectors ·
1998–2001: Fuel injectors
8 PCM IGN / ECM IGN
1995: PCM, MAF sensor (VIN X only) ·
1996–1997: PCM, MAF (VIN X only), EGR, CCP, O2 sensor, vacuum canister switch, fan #2 relay (1996) ·
1998–2001: PCM IGN – MAF sensor, heated O2 sensor #1 & #2, EVAP canister purge solenoid valve
9 ELEK IGN Electronic ignition (EI) control module 10 I/P fuse block 11 1995–1996: Fan cont #1 relay · 1997: Not used · 1998–2001: Not used12
1995–1996: Passenger-side underhood center & I/P fuse blocks (fuses 5, 14, 23, 32) ·
1997: Passenger-side underhood center, fuel pump relay, cooling fans #1 & #2, ignition relay, P/N switch ·
1998–2001: Passenger-side underhood center, ignition system relay, R/CMPT REL fuse, PCM BAT fuse
13
1995–1996: Fan cont #2 relay and I/P fuse block (fuse 16) + power seat circuit breaker D ·
1997: Fan cont #1 relay ·
1998–2001: Fan cont #1 relay
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the engine compartment passenger side fuse box
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Short-Code Description 14 FUEL PUMP Fuel pump 15 A/C CMPR A/C compressor 16 FAN CONT #2 Secondary cooling fan (passenger side) 17 FAN CONT #1 Primary cooling fan (driver side) 18 1995: Not used · 1996–1997: Ignition relay · 1998–2001: Ignition system relay
This content requires JavaScript and a valid membership to view.
