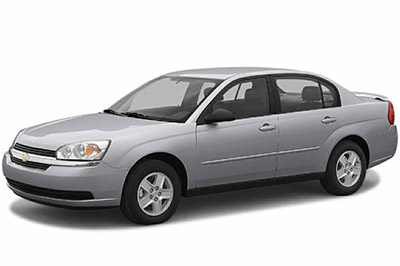

Explore Chevrolet Malibu fuse box diagrams in this clear guide that covers the electrical layout of the sixth-generation midsize sedan. In this article, we consider the sixth-generation Chevrolet Malibu, produced from 2003 to 2007 , and provide fuse box diagrams for Chevrolet Malibu 2004, 2005, 2006 and 2007 , along with information about the location of the fuse panels and the assignment of each fuse and relay (fuse layout).

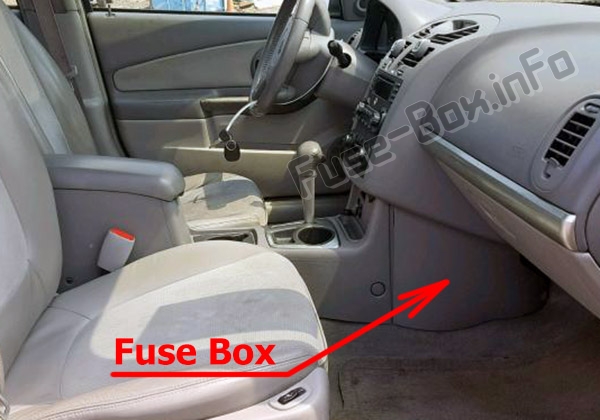

It is located on the passenger side of the vehicle, on the lower portion of the instrument panel near the floor, behind the cover.
Fuse Data
Full access is available to registered users — log in or register.
Log in or register This content requires JavaScript and a valid membership to view.

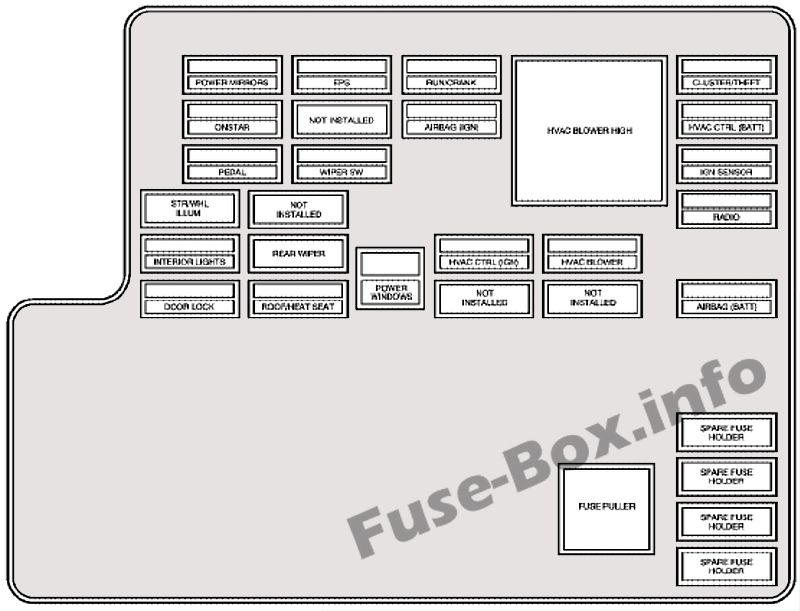

Assignment of the fuses and relays in the Passenger Compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description POWER MIRRORS Power Mirrors EPS Electric Power Steering RUN/CRANK Cruise Control, Electronic Range Select, Driver Shift Control, Passenger Airbag Status Indicator HVAC BLOWER HIGH (Relay) Climate Control System CLUSTER/ THEFT Instrument Panel Cluster, Theft Deterrent System ONSTAR OnStar System NOT INSTALLED Not Used AIRBAG (IGN) Airbag System HVAC CTRL (BATT) Climate Control System PEDAL Adjustable Throttle and Brake Pedal WIPER SW Windshield Wiper/Washer Switch IGN SENSOR Ignition Switch STR/WHL ILLUM Steering Wheel Controls Backlighting NOT INSTALLED Not Used RADIO Audio System INTERIOR LIGHTS Overhead Lighting, Trunk/Cargo Lighting REAR WIPER Rear Wiper System/Washer Pump HVAC CTRL (IGN) Climate Control System HVAC BLOWER Climate Control System DOOR LOCK Automatic Door Lock System ROOF/HEAT SEAT Sunroof, Heated Seats, Automatic Dimming Rearview Mirror, Compass, Rear Wiper/Washer System POWER WINDOWS Power Window Switch NOT INSTALLED Not Used NOT INSTALLED Not Used AIRBAG (BATT) Airbag System FUSE PULLER Fuse Puller SPARE FUSE HOLDER Spare SPARE FUSE HOLDER Spare SPARE FUSE HOLDER Spare SPARE FUSE HOLDER Spare
This content requires JavaScript and a valid membership to view.

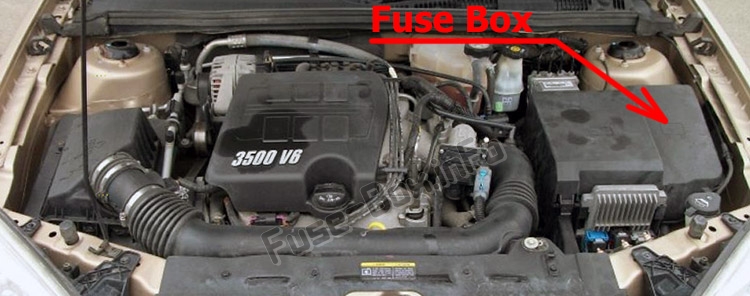

It is located in the engine compartment (left-side), under the cover.

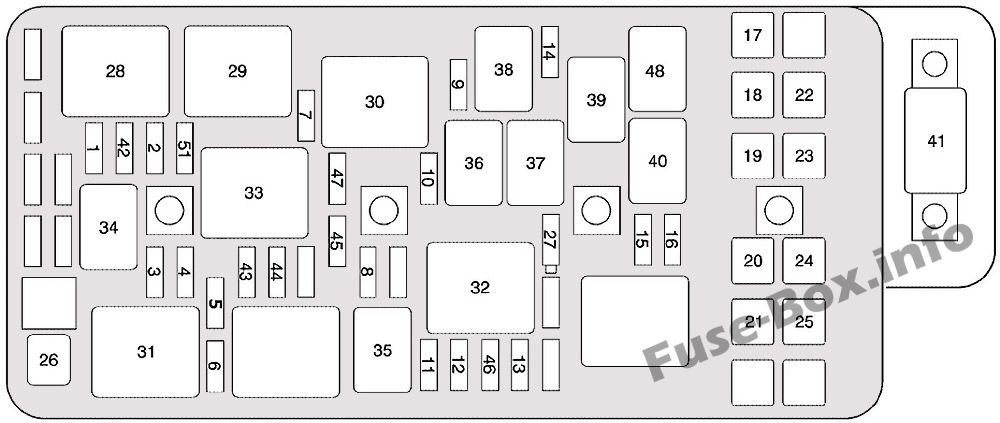

Assignment of the fuses in the Engine Compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 1 Air Conditioning Clutch 2 Electronic Throttle Control 3 Engine Control Module (IGN 1) (V6) 4 Transmission 5 2004-2005: Fuel Injectors 6 Emission 1 7 Left Headlamp Low-Beam 8 Horn 9 Right Headlamp Low-Beam 10 Front Fog Lamps 11 Left Headlamp High-Beam 12 Right Headlamp High-Beam 13 Engine Control Module (BATT) (L4) 14 Windshield Wiper 15 Anti-lock Brake System 16 Engine Control Module (IGN 1) (L4) 17 Cooling Fan 1 18 Cooling Fan 2 19 Run Relay 20 IBCM 1 21 IBCM (R/C) 22 Rear Electrical Center 1 23 Rear Electrical Center 2 24 Anti-lock Brake System 25 IBCM2 26 Starter 41 Electric Power Steering 42 Transaxle Control Module 43 Ignition Module 44 2006-2007: Fuel Injectors 45 Rear Oxygen Sensors 47 Daytime Running Lamps 51 Engine Control Module (BATT) (V6)
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the Engine Compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 28 Cooling Fan 1 29 Cooling Fan Mode Series/Parallel 30 Cooling Fan 2 31 Starter 32 Run/Crank, Ignition 33 Powertrain 34 Air Conditioning Clutch 35 High-Beam Headlamps 36 Front Fog Lamps 37 Horn 38 Low-Beam Headlamps 39 Windshield Wiper 1 40 Windshield Wiper 2 48 Daytime Running Lamps
This content requires JavaScript and a valid membership to view.
Assignment of the diode in the Engine Compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 27 Windshield Wiper
This content requires JavaScript and a valid membership to view.
Assignment of the resistor in the Engine Compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 46 Brake Lamp Diagnostic
This content requires JavaScript and a valid membership to view.

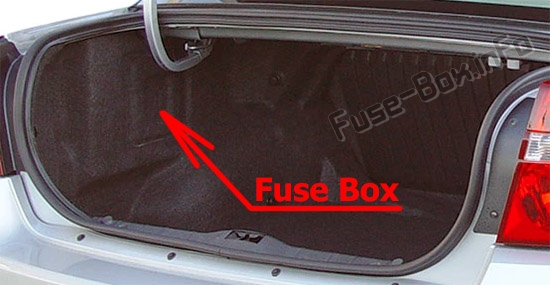

Rear Compartment Fuse Block is located in the luggage compartment (on the left-side), behind the cover.

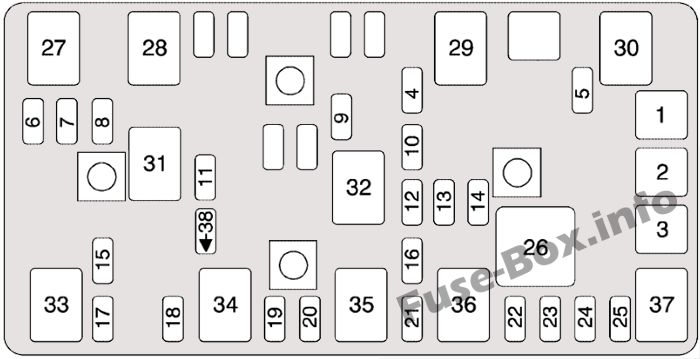

Assignment of the fuses in the Luggage Compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 1 Not Used 2 Driver Seat Controls 3 Not Used 5 Emission 6 Parklamps 7 Not Used 8 Not Used 9 Not Used 10 Sunroof Controls 11 Not Used 12 Auxiliary Power 2 13 Not Used 14 Heated Seat Controls 15 Not Used 16 Remote Keyless Entry System, XM Satellite Radio, Rear Seat Entertainment System, Homelink 17 Back-up Lamps 18 Not Used 19 Not Used 20 Cigarette Lighter, Auxiliary Power Outlet 21 Not Used 22 Trunk 23 Rear Window Defogger 24 Heated Mirror Controls 25 Fuel Pump
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the Luggage Compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 26 Rear Window Defogger 27 Parklamps 28 Not Used 29 Not Used 30 Not Used 31 Not Used 32 Not Used 33 Back-up Lamps 34 Not Used 35 Not Used 36 Trunk 37 Fuel Pump
This content requires JavaScript and a valid membership to view.
Assignment of the diode in the Luggage Compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 38 Trunk, Cargo Lamps
This content requires JavaScript and a valid membership to view.
Assignment of the resistor in the Luggage Compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 4 Driver Door Key Lock Cylinder / Not Used
