Chevrolet Malibu (2008-2012)

Explore Chevrolet Malibu fuse box diagrams in this practical guide that explains the electrical layout of the seventh-generation midsize sedan. In this article, we consider the seventh-generation Chevrolet Malibu, produced from 2007 to 2012, and provide fuse box diagrams for Chevrolet Malibu 2008, 2009, 2010, 2011 and 2012, along with information about the location of the fuse panels and the assignment of each fuse and relay (fuse layout).

Passenger Compartment

Fuse Box Location

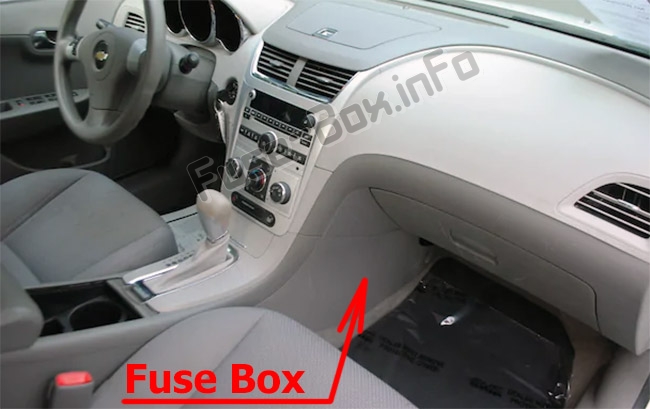

It is located on the passenger side of the vehicle, on the lower portion of the instrument panel near the floor, behind the cover.

The location of the fuses in the passenger compartment: Chevrolet Malibu (2008-2012)

Fuse Box Diagram

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

Interior fuse box diagram: Chevrolet Malibu (2008, 2009, 2010, 2011, 2012)

Assignment of the fuses and relays in the Passenger Compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

Short-CodeDescription
POWER MIRRORSPower Mirrors
EPSElectric Power Steering
RUN/CRANKCruise Control Switch, Passenger Airbag Status Indicator
HVAC BLOWER HIGHHeating Ventilation Air Conditioning Blower – High Speed Relay
CLUSTER/THEFTInstrument Panel Cluster, Theft Deterrent System
ONSTAROnStar (If Equipped)
NOT INSTALLEDNot Used
AIRBAG (IGN)Airbag (Ignition)
HVAC CTRL (BATT)Heating Ventilation Air Conditioning Control Diagnostic Link Connector (Battery)
PEDALNot Used
WIPER SWWindshield Wiper/ Washer Switch
IGN SENSORIgnition Switch
STRG WHL ILLUMSteering Wheel Illumination
NOT INSTALLEDNot Used
RADIOAudio System
INTERIOR LIGHTSInterior Lamps
NOT INSTALLEDNot Used
POWER WINDOWSPower Windows
HVAC CTRL (IGN)Heating Ventilation Air Conditioning Control (Ignition)
HVAC BLOWERHeating Ventilation Air Conditioning Blower Switch
DOOR LOCKDoor Locks
ROOF/HEAT SEATSunroof, Heated Seat
NOT INSTALLEDNot Used
NOT INSTALLEDNot Used
AIRBAG (BATT)Airbag (Battery)
SPARE FUSE HOLDERSpare Fuse Holder
SPARE FUSE HOLDERSpare Fuse Holder
SPARE FUSE HOLDERSpare Fuse Holder
SPARE FUSE HOLDERSpare Fuse Holder
FUSE PULLERFuse Puller

Engine Compartment

Fuse Box Location

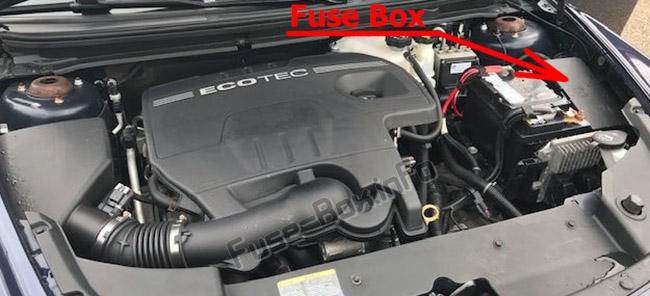

The location of the fuses in the engine compartment: Chevrolet Malibu (2008-2012)

Fuse Box Diagram

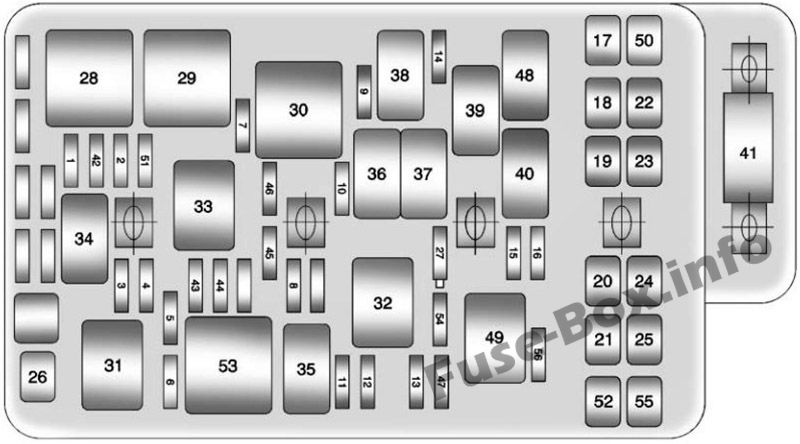

Under-hood fuse box diagram: Chevrolet Malibu (2008, 2009, 2010, 2011, 2012)

Fuses

Assignment of the fuses in the Engine Compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
1Air Conditioning Clutch
2Electronic Throttle Control
32008-2009: Engine Control Module IGN 1(LZ4 & LZE)
2010-2012: Not Used
4Transmission Control Module Ignition 1
5Mass Airflow Sensor (LY7)
6Emission
7Left Headlamp Low-Beam
8Horn
9Right Headlamp Low-Beam
10Front Fog Lamps
11Left Headlamp High-Beam
12Right Headlamp High-Beam
13Engine Control Module BATT
14Windshield Wiper
15Antilock Brake System (IGN 1)
16Engine Control Module IGN 1
17Cooling Fan 1
18Cooling Fan 2
19Run Relay, Heating, Ventilation, Air Conditioning Blower
20Body Control Module 1
21Body Control Module Run/Crank
22Rear Electrical Center 1
23Rear Electrical Center 2
24Anti-lock Brake System
25Body Control Module 2
26Starter
41Electric Power Steering
42Transmission Control Module Battery
43Ignition Module (LZ4, LZE, LE9 & LE5); Injectors, Ignition Coils Odd (LY7)
44Injectors (LZ4, LZE, LE9 & LE5); Injectors, Ignition Coils Even (LY7)
45Post Cat 02 Sensor Heaters (LY7)
46Daytime Running Lamps
47Center High-Mounted Stoplamp
50Driver Power Window
512008-2009: Engine Control Module BATT(LZ4 & LZE)
2010-2012: Not Used
52AIR Solenoid
54Regulated Voltage Control
55DC/AC Inverter
56Antilock Brake System BATT

Relays

Assignment of the relays in the Engine Compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
28Cooling Fan 1
29Cooling Fan Mode Series/Parallel
30Cooling Fan 2
31Starter
32Run/Crank, Ignition
33Powertrain
34Air Conditioning Clutch
35High Beam
36Front Fog Lamps
37Horn
38Low-Beam Headlamps
39Windshield Wiper 1
40Windshield Wiper 2
48Daytime Running Lamps
49STOP lamps
53AIR Solenoid

Diode

Assignment of the diode in the Engine Compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
27Wiper

Luggage Compartment

Fuse Box Location

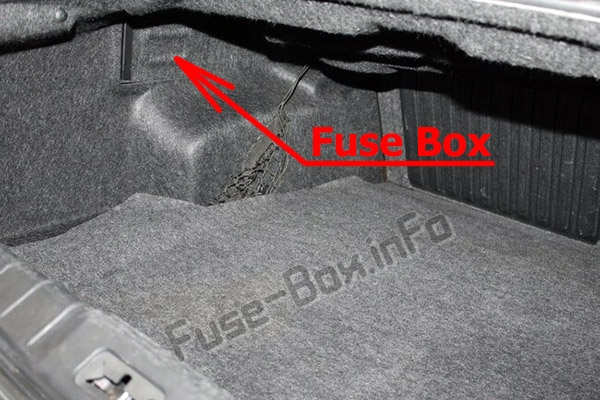

Rear Compartment Fuse Block is located in the luggage compartment (on the left-side), behind the cover.

The location of the fuses in the trunk: Chevrolet Malibu (2008-2012)

Fuse Box Diagram

Trunk fuse box diagram: Chevrolet Malibu (2008, 2009, 2010, 2011, 2012)

Fuses

Assignment of the fuses in the Luggage Compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
1Passenger Seat Controls
2Driver Seat Controls
3Not Used
4Not Used
5Emission 2, Canister Vent Solenoid
6Park Lamps, Instrument Panel Dimming
7Not Used
8Not Used
9Not Used
10Sunroof Controls
11Not Used
12Not Used
13Audio Amplifier
14Heated Seat Controls
15Not Used
16Remote Keyless Entry (RKE) System, XM Satellite Radio (If Equipped)
17Back-up Lamps
18Not Used
19Not Used
20Auxiliary Power Outlets
21Not Used
22Trunk Release
23Rear Defog
24Heated Mirror
25Fuel Pump

Relays

Assignment of the relays in the Luggage Compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
26Rear Window Defogger
27Park Lamps
28Not Used
29Not Used
30Not Used
31Not Used
32Not Used
33Back-up Lamps
34Not Used
35Not Used
36Trunk Release
37Fuel Pump

Diode

Assignment of the diode in the Luggage Compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
38Cargo Lamp
