Explore Chevrolet Malibu fuse box diagrams in this practical guide that covers the electrical layout of the eighth-generation midsize sedan. In this article, we consider the eighth-generation Chevrolet Malibu, produced from 2011 to 2016 , and provide fuse box diagrams for Chevrolet (Chevy) Malibu models from 2013, 2014, 2015 and 2016 , along with information about the location of the fuse panels and the assignment of each fuse and relay (fuse layout).

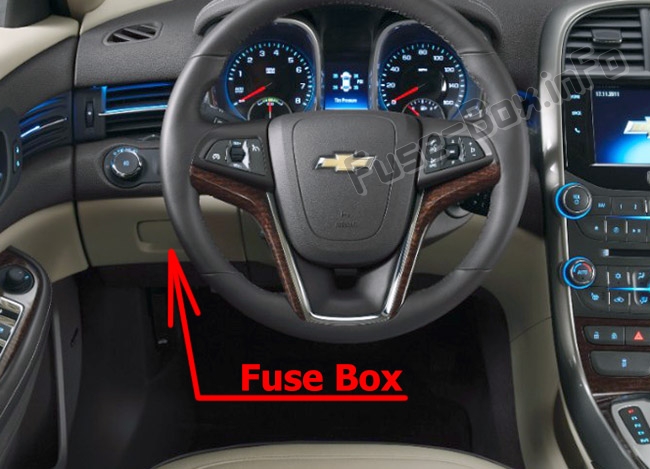

It is located on the driver’s side of the instrument panel, behind the cover to the left of the steering wheel.

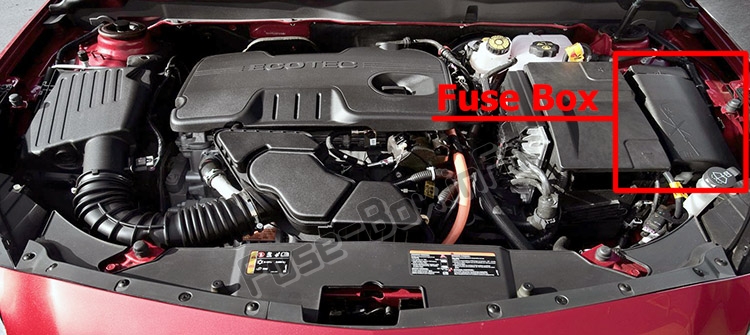

On the driver side, near the maid battery.

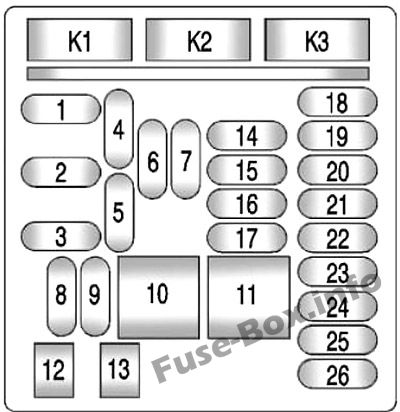

Assignment of the fuses in the Instrument Panel
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 1 Steering Wheel Controls Backlight 2 Right Rear Turn Signal, Left Mirror Turn Signal, Left Front Turn Signal, Door Locks 3 Left Stoplamp, Left DRL Lamp, Headlamp Control, Right Taillamp, Right Park/Sidemarker Lamps, Right Mirror Turn, Right Front Turn Signals 4 Radio 5 OnStar (If Equipped) 6 Front Accessory Power Outlet 7 Console Bin Power Outlet 8 License Plate Lamp, Center High-Mounted Stoplamp, Rear Fog Lamps, Right Front Park/Sidemarker Lamps, LED Indicator Dim, Washer Pump, Right Stoplamp, Trunk Release 9 Left Low-Beam Headlamp, DRL 10 Body Control Module 8 (J-Case Fuse), Power Locks 11 Front Heater Ventilation Air Conditioning/Blower (J-Case Fuse) 12 Passenger Seat (Circuit Breaker) 13 Driver Seat (Circuit Breaker) 14 Diagnostic Link Connector 15 Airbag, SDM 16 Trunk Release 17 Heater Ventilation Air Conditioning Controller 18 Audio Main 19 Displays 20 Passenger Occupant Sensor 21 Instrument Cluster 22 Ignition Switch 23 Right Low-Beam Headlamp, DRL 24 Ambient Light, Switch Backlighting (LED), Trunk Lamp, Shift Lock, Key Capture 25 110V AC 26 Spare
This content requires JavaScript and a valid membership to view.
Assignment of the fuses in the Instrument Panel
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description K1 Trunk Release K2 Not used K3 Power Outlet Relay
This content requires JavaScript and a valid membership to view.

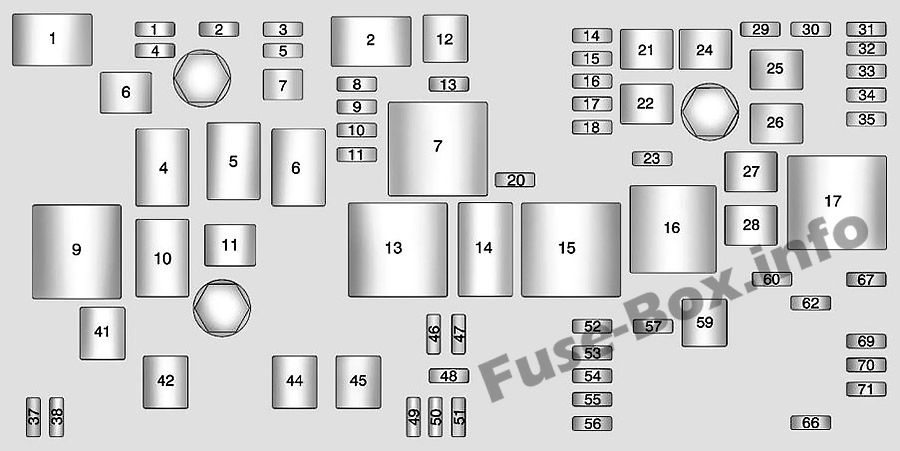

Assignment of the mini fuses in the Engine Compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 1 Transmission Control Module Battery 2 Engine Control Module Battery (LTG/ LUK)/Air Conditioning Compressor Clutch (LWK) 3 Air Conditioning Compressor Clutch (LTG/LUK) 4 Air Conditioning Compressor Clutch (LTG/LUK) 5 Engine Control Module Battery (LKW) 7 Engine Control Module Battery (LKW) 8 Spare 9 Ignition Coils 10 Engine Control Module 11 Emissions 13 Transmission Module Ignition 14 Cabin Heater Coolant Pump/SAIR Solenoid 15 2013-2014: MGU Coolant Pump 16 Aero Shutter/eAssist Ignition 17 2013-2014: SDM Ignition 18 R/C Dual Battery Isolator Module 20 Transmission Auxiliary Oil Pump (LKW) 23 eAssist Module/ Spare (LKW) 29 Left Seat Power Lumber Control 30 Right Seat Power Lumber Control 31 eAssist Module/ Chassis Control Module 32 Back-Up Lamps/ Interior Lamps 33 Front Heated Seats 34 Antilock Brake System Valve 35 Amplifier 37 Right High Beam 38 Left High Beam 46 Cooling Fan 47 Emissions 48 Foglamp 49 Low Beam HID Headlamp Right 50 Low Beam HID Headlamp Left 51 Horn/Dual Horn 52 Cluster Ignition 53 Inside Rearview Mirror/Rear Camera/ Fuel Module Ignition 54 Heating, Ventilation, and Air Conditioning Module Ignition 55 Front Power Windows/Mirrors 56 Windshield Washer 57 Spare 60 Heated Mirror 62 Canister Vent Solenoid 66 2013-2014: SAIR Solenoid 67 Fuel Module 69 Battery Voltage Sensor 70 Lane Departure/Rear Parking Aid/Side Blind Zone Assist 71 PEPS BATT
This content requires JavaScript and a valid membership to view.
Assignment of the J-Case fuses in the Engine Compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 6 Front Wiper 12 Starter 1 21 Rear Power Window 22 Sunroof 24 Front Power Window 25 PEPS MTR 26 Antilock Brake System Pump 27 Not Used 28 Rear Defogger 41 Brake Vacuum Pump 42 Cooling Fan K2 44 Starter 2 45 Cooling Fan K1 59 Air Pump Emissions
This content requires JavaScript and a valid membership to view.
Assignment of the mini relays in the Engine Compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 7 Powertrain 9 Cooling Fan K2 13 Cooling Fan K1 15 Run/Crank 16 2013-2014: Air Pump Emissions 17 Window/Mirror Defogger
This content requires JavaScript and a valid membership to view.
Assignment of the micro relays in the Engine Compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 1 Air Conditioning Compressor Clutch 2 Starter Solenoid 4 Front Wiper Speed 5 Front Wiper On 6 2013-2014: Cabin Pump eAssist/ SAIR Solenoid 8 Transmission Auxiliary Oil Pump (LKW) 10 Cooling Fan K3 11 Transmission Oil Pump (LUK)/Starter 2 Solenoid (LKW) 14 Headlamp Low Beam/DRL
