Chevrolet Silverado EV (2024-2026)

Looking for Chevrolet Silverado EV fuse box diagrams? This article covers the battery electric full-size pickup truck Chevrolet Silverado EV, available from 2024, and includes fuse box diagrams for Chevrolet Silverado EV 2024, 2025 and 2026, along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse (fuse layout).

Front Compartment

Fuse Box Location

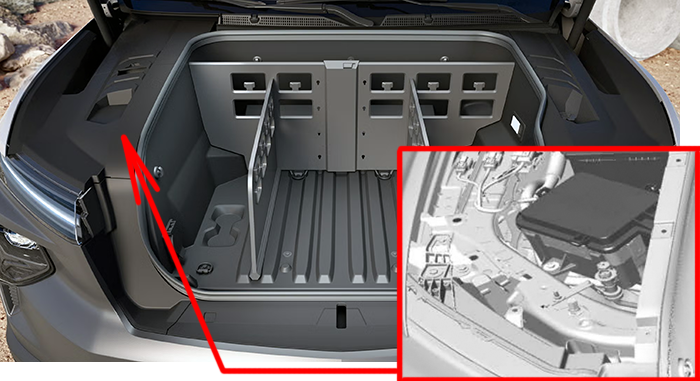

The underhood compartment fuse block is in the front compartment, on the passenger side of the vehicle. Press the clips on the sides and lift the cover to access the fuse block.

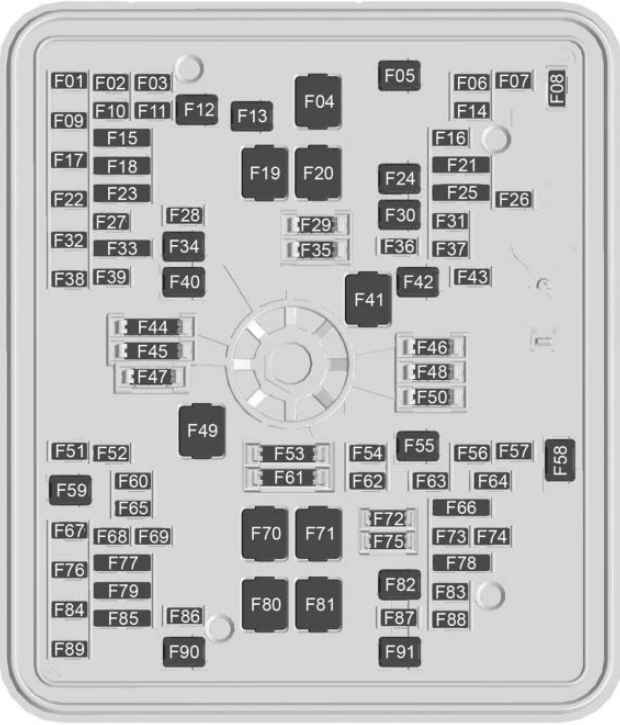

Fuse Box Diagram

Fuses

Assignment of the fuses in the front compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
F1N/A
F2N/A
F3N/A
F4N/A
F5N/A
F6ACEC – Air Conditioning Electric Compressor
F7ESSCP – Energy Storage System Coolant Pump
F8N/A
F9PECP – Power Electric Cooling Pump
F10N/A
F11N/A
F12N/A
F13Trailer Headlights
F14N/A
F15VLM – Vehicle Leveling Module (Air Suspension) / Spare
F16N/A
F17ELM 1 – Exterior Lighting Module 1
F18SADS – Semi Active Damping System / Left Tail Light
F19IECL 2 – Left Internal Electrical Center 2
F20N/A
F21N/A
F22IRM_ACM – Integrated Refrigerant Module and Air Conditioning Module
F23VICMS – Vehicle Integrated Control Module / Right Tail Light
F24N/A
F25N/A
F26N/A
F27Trailer Park Lights
F28N/A
F29Spare
F30PUMP_ONE (Coolant Pump 1)
F31N/A
F32N/A
F33Spare / Reverse Trailer Lights
F34TIM1 – Trailer Interface Module 1
F35Spare
F36TPIM1_BAT2 – Traction Power Inverter Module 1, Battery 2
F37N/A
F38Trailer Stop / Turn Left
F39Trailer Stop / Turn Right
F40VLM_M – Vehicle Leveling Module Motor (Air Suspension Compressor)
F41N/A
F42N/A
F43N/A
F44Spare
F45Spare
F46Spare
F47Spare
F48Spare
F49TBPM – Trailer Brake Power Module
F50Spare
F51MIDGATE MOTOR RIGHT (Controls the folding Midgate behind the cab)
F52N/A
F53Spare
F54PFCM – Power Front Closure Module (Power Frunk Control)
F55Rear Window Defogger
F56N/A
F57MINOR ENDGATE HIGH (Tailgate Control Module)
F58Front Windshield Wiper
F59TIM2 – Trailer Interface Module 2
F60PKLPS_ID – Park Lamps / Identification (Clearance) Lamps
F61Spare
F62ELM 3 – Exterior Lighting Module 3
F63GLASS BREAK – Glass Breakage Sensor (Anti-theft)
F64N/A
F65ELM 4 – Exterior Lighting Module 4
F66N/A
F67EMB/GRILL LIGHT – Illuminated Front Emblem / Grille Light
F68Left Headlamp
F69MIDGATE LEFT MOTOR (Controls the folding Midgate behind the cab)
F70EBCM 1 – Electronic Brake Control Module 1
F71DC/AC INV – DC to AC Inverter (For household-style cabin/bed power outlets)
F72Spare
F73N/A
F74N/A
F75Spare
F76Right Headlamp
F77N/A
F78MIDGATE CROSS BAR MOTOR 2 / MIDGATE CROSS BAR MOTOR 1 (Midgate folding mechanism)
F79PCV_PEEV_ALD / FR RADAR/VIRTUAL KEY – Front Radar Sensor / Virtual Key (Phone-as-key module)
F80IECR 2 – Right Internal Electrical Center 2
F81IECL 1 – Left Internal Electrical Center 1
F82N/A
F83N/A
F84V2LIM – Vehicle to Load Inverter Module (Allows the truck to power external homes/appliances)
F85Spare / HVS (HIGH VOLTAGE SERVICE DISCONNECT)
F86Horn
F87Front Windshield Washer Pump
F88N/A
F89N/A
F90N/A
F91N/A

Dashboard (Driver’s Side)

Fuse Box Location

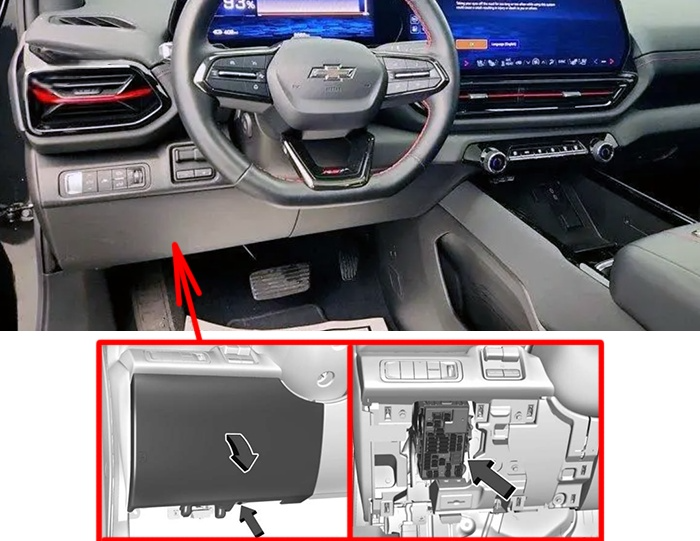

The instrument panel fuse block is on the driver side of the instrument panel, between the steering wheel and the door.

  1. Remove the screw at the bottom of the panel.
  2. Carefully pull the panel from the bottom to release the clips.
  3. Detach the tabs at the top of the panel.
  4. To reassemble, reverse Steps 1-3.

Fuse Box Diagram

Fuses

Assignment of the fuses in the instrument panel (Driver’s Side)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
F1Driver Power Seat
F2Virtual Key System / Trailer Tire Pressure Module
F3Vehicle Energy Control Module
F4Body Control Module 1
F5Exterior Lighting Module 5
F6Passenger Display / Digital Signal Processor
F7SPARE
F8Telematics Control Platform
F94-Way Passenger Power Lumbar / SPARE
F10Wireless Charger Module / Virtual Key Module / Surround Vision / Advanced Park Assist / Pedestrian Friendly Alert
F112nd Row Heated Seat 1
F12SPARE
F13Traction Power Inverter Module 2
F14SPARE
F15SPARE
F16Tonneau Accessory
F17Sensing Diagnostic Module (Airbags) & Automatic Occupant Sensing / Short Range Radar
F18SPARE
F19SPARE
F20On-Board Charging Module 2 / Memory Seat Module
F21Heated Seat Module Row 1
F22SPARE
F23Major Endgate High
F24Traction Power Inverter Module 1 & Vehicle Battery 1
F25SPARE
F26Traction Power Inverter Module 2 & Vehicle Battery 1
F27Digital Signal Processor
F28Exterior Lighting Module 7
F29SPARE
F30Major Endgate Low
F31Exterior Lighting Module 2
F32Radio Frequency Receiver / Power Liftgate Control Module
F33MIDGATE CONTROL LOW
F34Accessory Power / Video Processing Module
F35Amplifier
F36Passenger Power Seat
F37SPARE
F38Exterior Lighting Module 6
F39Right Hand Power Window
F40Left Hand Power Window

Circuit Breakers

Assignment of the circuit breakers in the instrument panel (Driver’s Side)

No.Description
CB1N/A
CB2N/A

Dashboard (Passenger’s Side)

Fuse Box Location

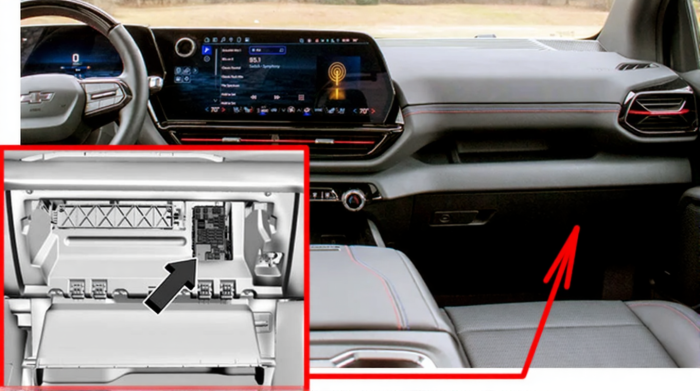

The instrument panel fuse block is located behind the glove box. It is accessible by removing the hush panel located underneath the glove box. To remove the hush panel, remove the four push-pins that secure the hush panel.

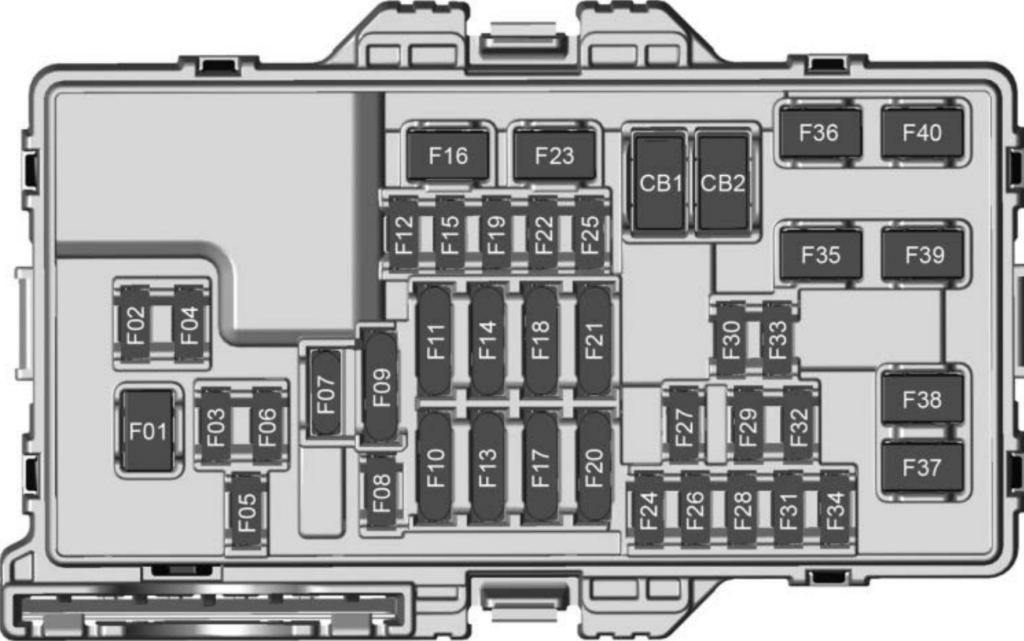

Fuse Box Diagram

Fuses

Assignment of the fuses in the instrument panel (Passenger’s Side)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
F1Front Blower Motor
F2Climate Power Module
F32024: SPARE
2025-2026: VDM – Vehicle Dynamics Module
F4SPARE
F5Body Control Module 2
F6Body Control Module 4
F7COIL CLOCK SPRING
F8Trailer Brake Control Switch / Electric Park Brake
F9Electronic Shifter Module / Spare
F10Displays / SPARE
F11Central Gateway Module / Spare
F122024: SPARE
2025-2026: Steering Column Lock
F13SPARE / Data Link Connection (OBD-II Diagnostic Port)
F14Body Miscellaneous
F15Miscellaneous Instrument Panel 1
F16SPARE
F17SPARE
F18Body 1 / Headliner
F19Vehicle Integration Control Module / Traction Power Inverter Module / Ignition
F202024: OHC / HUD – Overhead Console / Head-Up Display
2025-2026: OHC / HUD / ETC – Overhead Console / Head-Up Display / Electronic Toll Collection
F21Vehicle Control Unit 2
F22SPARE
F23SPARE
F24Forward Camera Module / Roof Light Housing / Universal Garage Door Opener
F252nd Row USB Ports
F26SPARE
F27USB
F28SPARE
F29Front HVAC Display
F30SPARE
F31Body Control Module 3
F32Heated Steering Wheel Module
F33SPARE
F34SPARE
F35SPARE
F36SPARE
F37SPARE
F38SPARE
F39SPARE
F40SPARE

Circuit Breakers

Assignment of the circuit breakers in the instrument panel (Passenger’s Side)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
CB1APO – Auxiliary Power Outlet Center Console
CB2SPARE
