Explore Chevrolet Spark fuse box diagrams in this straightforward guide that explains the electrical layout of the second-generation model. Here we cover the second-generation Chevrolet Spark (2005–2009) (Model Codes: M200, M250 ) and provide fuse diagrams for 2005, 2006, 2007, 2008 and 2009 , along with the location of the fuse panels and the assignment of each fuse and relay , giving you a reliable reference for maintenance and troubleshooting.

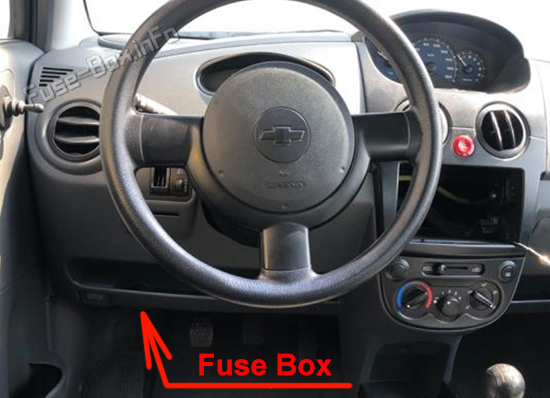

It is located under the instrument panel to the left of the steering wheel.
Fuse Data
Full access is available to registered users — log in or register.
Log in or register This content requires JavaScript and a valid membership to view.

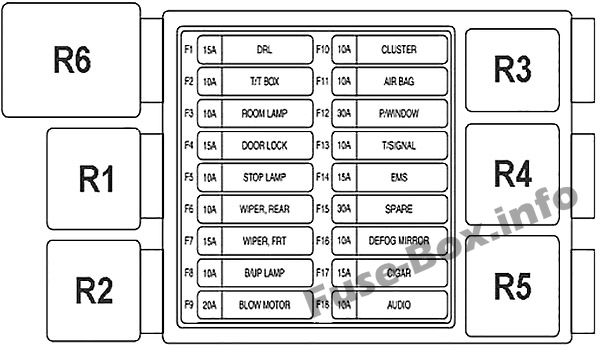

Assignment of the fuses in the Instrument Panel
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description Amps F1 DRL Relay, DRL Module 15 F2 DLC, Cluster, Tell Tale Box, Immobilizer 10 F3 Audio, Battery Saver, Room Lamp, Tailgate Lamp 10 F4 CDL Relay, Central Door Locking Switch, Anti-theft Control Unit 15 F5 Stop Lamp Switch 10 F10 Cluster, Tell Tale Box, Stop Lamp, Battery Saver, Anti-theft Control Unit, O/D Switch 10 F11 SDM 10 F12 Power Window Switch, Co-Driver Power Window Switch 30 F13 Hazard Switch, Over Speed Buzzer Relay, DRL Module 10 F14 Engine Fuse Block 15 F6 Wiper Switch, Rear Wiper Motor, Defog Relay, Defroster Switch 10 F7 Wiper Switch, Wiper Relay 15 F8 TR Switch (A/T), Reverse Lamp Switch (M/T) 10 F9 Blower Switch 20 F16 Electric OSRVM 10 F17 Cigar Lighter 15 F18 Audio 10
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the Instrument Panel
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description R1 Rear Fog Lamp Relay / Over Speed Warning Buzzer R2 DRL Relay R3 Defog Relay R4 Wiper Relay R5 Blinker Unit R6 Battery Saver
This content requires JavaScript and a valid membership to view.

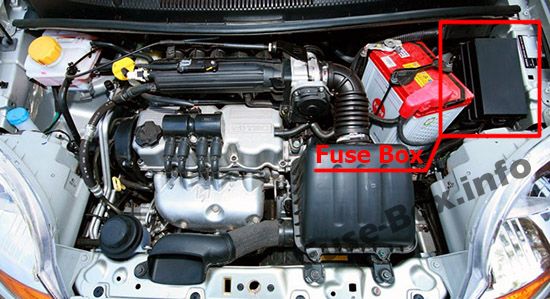

It is located in the engine compartment, under the cover.
Fuse Data
Full access is available to registered users — log in or register.
Log in or register This content requires JavaScript and a valid membership to view.

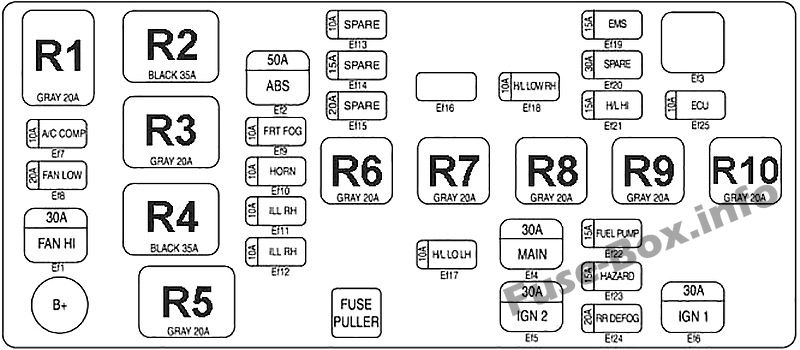

Assignment of the fuses in the Engine Compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description Amps Ef1 Cooling Fan HI Relay 30 Ef2 EBCM 50 Ef4 I/P Fuse Block (F1~F5) 30 Ef5 Ignition Switch 30 Ef6 Ignition Switch 30 Ef7 A/C Compressor Relay 10 Ef8 Cooling Fan LOW Relay 20 Ef9 Front Fog Lamp Relay 10 Ef10 Horn,Horn Relay 10 Ef21 Head Lamp HI Relay 15 Ef22 Fuel Pump Relay 15 Ef23 Hazard Switch 15 Ef24 Defog Relay 20 Ef25 TCM, ECM 10 Ef11 Tail Lamp, Audio, Hazard Switch, Defog Switch, A/C Switch, Gear Lever Illumination(A/T) Cluster, Head Lamp Leveling Switch, DRL Module, DRL Relay, Position Lamp & HLLD 10 Ef12 DRL Module, Tail Lamp, Position Lamp & HLLD 10 Ef17 Head Lamp LOW, ECM, Rear Fog Lamp Relay, DRL Module, Head Lamp Leveling Switch 10 Ef18 Head Lamp LOW 10 Ef19 EI System (Sirius D32), ECM, Injector, Rough Road Sensor, EEGR, HO2S, CMP Sensor, Canister Purge Solenoid 15
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the Engine Compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description R1 A/C Compressor Relay R2 Main Relay R3 Cooling Fan Low Speed Relay R4 Cooling Fan High Speed Relay R5 Illumination Relay R6 FRT Fog Lamp Relay R7 Horn Relay R8 H/L Low Relay R9 H/L Hi Relay R10 Fuel Pump Relay
