Explore Chevrolet Spark fuse box diagrams in this clear guide that covers both global and European versions of the compact city car. Here we focus on the third-generation Chevrolet Spark (2010–2015) , including the EU version (Model Code: M300 ), and provide fuse diagrams for 2010, 2011, 2012, 2013, 2014 and 2015 , along with the location of the fuse panels and the assignment of each fuse and relay , giving you a practical reference for electrical troubleshooting and maintenance.

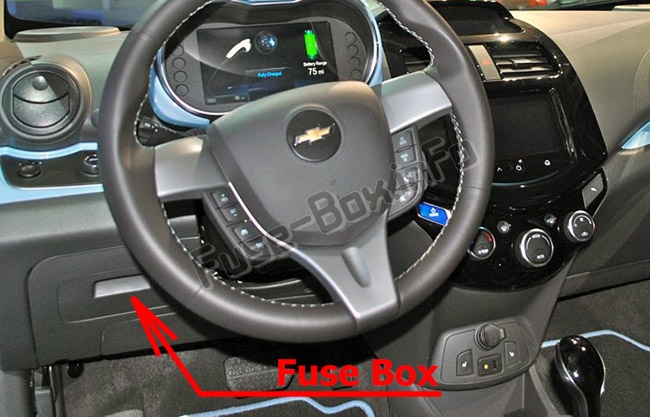

It is located in the instrument panel, under the cover to the left of the steering wheel.
Assignment of the fuses in the Instrument Panel
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Number Usage 1 Not Used 2 Not Used 3 Heater, Ventilation, and Air Conditioning Switch 4 Heated Seat 5 Not Used 6 Blower 7 Body Control Module 4 8 Body Control Module 5 9 Body Control Module 7 10 Instrument Cluster 11 Not Used 12 Air Bag Power 13 Radio 14 Switch Backlighting 15 Rear Parking Assist 16 Body Control Module 1 17 Body Control Module 2 18 Body Control Module 3 19 Body Control Module 6 20 Body Control Module 8 21 Heater, Ventilation, and Air Conditioning 22 Data Link Connector 23 Discrete Logic Ignition Sensor 24 Outside Rearview Mirror 25 Spare Fuse 26 Not Used 27 Not Used 28 Instrument Cluster 29 Air Bag Ignition 30 Rear Window 31 Front Window 32 Lighter/Auxiliary Power Outlet 33 Not Used 34 Run Relay 35 Logic Mode Relay 36 Accessory/ Retained Accessory Power Relay 37 Not Used 38 Radio 39 Heater, Ventilation, and Air Conditioning 40 OnStar 41 Spare Fuse 42 Spare Fuse 43 Spare Fuse 44 Sparc Fuse 45 Spare Fuse 46 Spare Fuse
This content requires JavaScript and a valid membership to view.

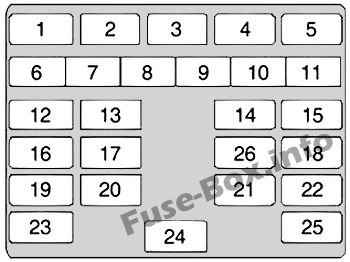

Assignment of the fuses in the Instrument Panel (Europe Version)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
№ Circuit 1 Rear wiper 2 Mirror outside rear view mirror 3 Headlight 4 Electric OSRVM 5 Door lock 6 Front wiper 7 — 8 Reverse lights 9 Indicators 10 Rear defogger 11 Rear fog lights 12 Instrument cluster 13 Blower motor control module 14 Airbag 15 Theft deterrent/data link connector 16 Transmission control module 17 Rear power windows 18 Radio/remote keyless entry/remote entry 19 Engine control module (ECM)/theft deterrent 20 Heat mat 21 Cigarette lighter 22 Brake light 23 Starter 24 Radio/clock/remote keyless entry 25 Airbag 26 Interior lights
This content requires JavaScript and a valid membership to view.

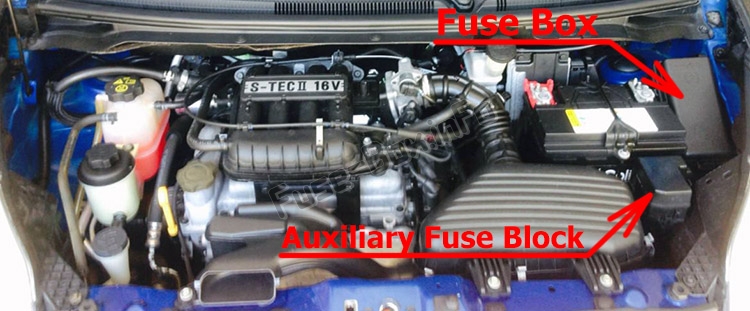

It is located in the engine compartment.

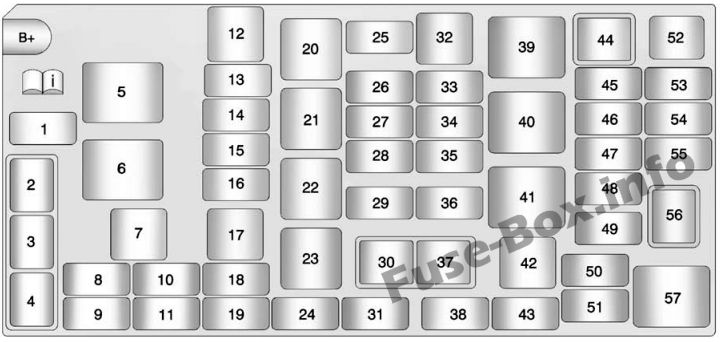

Assignment of the fuses and relay in the Engine Compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Number Usage 1 Windshield Washer 2 Rear Window Washer Relay 3 Windshield Washer Relay 4 Horn Relay 5 Fan High Relay 6 Fan Low Relay 7 Antilock Brake System 1 8 Horn 9 Not Used 10 Not Used 11 Spare Fuse 12 Fan High 13 Front Fog 14 Headlamp High Left 15 Headlamp High Right 16 Fan Low 17 Antilock Brake System 2 18 Transmission Control Module 19 Spare Fuse 20 Front Fog Relay 21 Headlamp High Relay 22 Fuel Pump Relay 23 Transmission Control Module Relay 24 Spare Fuse 25 Antilock Brake System 3 26 EMIS2 27 Canister 28 Fuel Pump 29 Front Wiper 30 Front Wiper Control Relay 31 Spare Fuse 32 Starter 33 Ignition 34 EMIS 1 35 Not Used 36 Not Used 37 Front Wiper Speed Relay 38 Not Used 39 Start Relay 40 Engine Relay 41 Run/Crank Relay 42 Interior Electrical Center 43 Not Used 44 Air Conditioning Relay 45 Air Conditioning 46 ECM/TCM 1 47 ECM/TCM 2 48 Low Vacuum Switch 49 Automatic Occupant Sensing 50 Mirror Heater 51 Rear Defog 52 Fuse Puller 53 Transmission Control Module Relay Coil 54 Voltage Sensing 55 Rear Wiper 56 Rear Wiper Relay 57 Rear Defog Relay
This content requires JavaScript and a valid membership to view.
Fuse Data
Full access is available to registered users — log in or register.
Log in or register

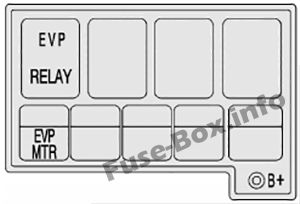

Number Usage EVP RELAY Electric Vacuum Pump Relay EVP MTR Electric Vacuum Pump Motor
This content requires JavaScript and a valid membership to view.

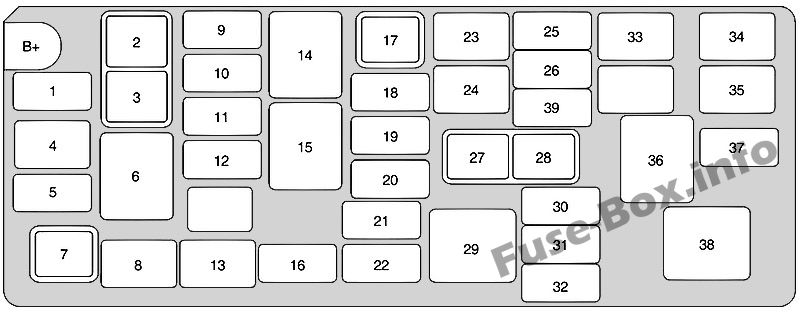

Assignment of the fuses and relay in the Engine Compartment (Europe Version)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
№ Circuit 1 Fuel pump 2 Parking light relay 3 Fan low speed relay 4 Fan high speed 5 Air condition 6 Fan high speed relay 7 Air condition relay 8 ABS 2 9 Parking light LH 10 Parking light RH 11 Front fog light 12 Fan low speed 13 ABS 1 14 Front fog light relay 15 Fuel pump relay 16 Spare fuse 17 Headlight high beam relay 18 Headlight high beam 19 Headlight low beam LH 20 Headlight low beam RH 21 Spare fuse 22 Spare fuse 23 Ignition 2/starter 24 Ignition 1/accessory 25 Hazard lights 26 Horn 27 Headlight low beam relay 28 Horn relay 29 Engine main relay 30 Ignition 31 EMS 1 32 EMS 2 33 Instrument panel battery 34 — 35 Front window 36 Front window relay 37 Engine control module 38 — 39 Spare fuse
