Chevrolet SSR | 2003-2006 | Fuse Box Diagrams and Locations

Explore Chevrolet SSR fuse box diagrams in this concise guide that explains the electrical layout of Chevrolet’s retro-styled pickup roadster. Here we cover the Chevrolet SSR (2003–2006) and provide fuse diagrams for 2003, 2004, 2005 and 2006, along with the location of the fuse panels and the assignment of each fuse and relay, giving you a clear reference for maintenance and electrical troubleshooting.

What’s Included

Passenger Compartment

Fuse Box Location

It is located on the center console between the two seats on the passenger’s side.

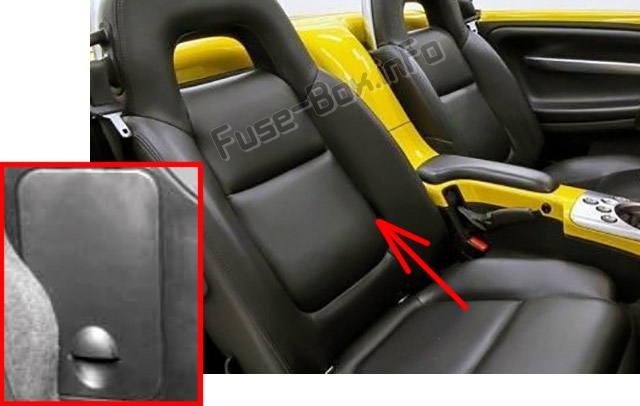

The location of the fuses in the passenger compartment: Chevrolet SSR (2003-2006)

Move the passenger’s seat all the way forward and tilt the seatback forward, pull the handle on the fuse block cover toward you and then slide it to the side. You will then be able to remove the cover completely.

Fuse Box Diagram

Fuse Data

Full access is available to registered users — log in or register.

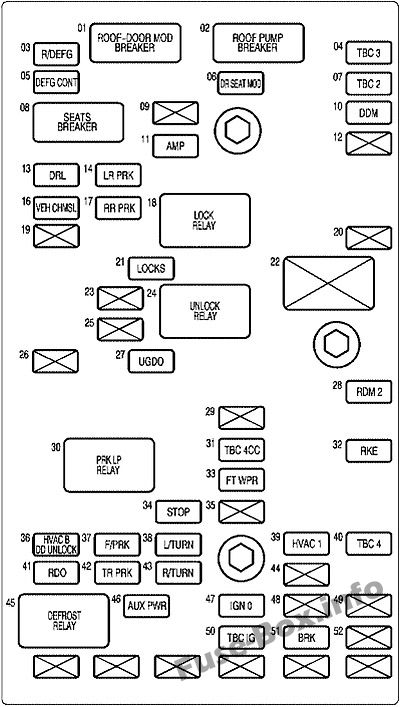

Interior fuse box diagram: Chevrolet SSR

Fuses

Assignment of the fuses in the Floor console fuse block

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
3	Rear Window Defogger
4	Truck Body Controller
5	Rear Window Defogger
6	Driver Seat Module
7	Truck Body Controller
9	Blank
10	Driver’s Door Module, Power Mirrors
11	Amplifier
12	Blank
13	Daytime Running Lamps (DRL)
14	Driver’s Side Rear Parking Lamp
15	Auxiliary Power 2
16	Center High-Mounted Stop Lamp
17	Passenger’s Side Rear Parking Lamp
19	Blank
20	Blank
21	Locks
22	Blank
23	Blank
25	Blank
26	Blank
27	HomeLink System
28	Roof Door Module
29	Transmission Control Module
31	Truck Body Controller
32	Remote Keyless Entry (RKE)
33	Windshield Wipers
34	Stoplamps
35	Blank
36	Climate Control System, Driver’s Door Unlock
37	Front Parking Lamps
38	Driver’s Side Turn Signal
39	Climate Control System
40	Truck Body Controller
41	Radio
42	Trailer Parking Lamps
43	Passenger’s Side Turn Signal
44	Blank
46	Accessory Power Outlets
47	Ignition
48	Blank
49	Blank
50	Truck Body Controller, Ignition
51	Brakes
52	Blank

Relays

Assignment of the relays in the Floor console fuse block

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
18	Locks
24	Unlock
30	Parking Lamps
45	Rear Window Defogger, Outside Power Heated Mirrors

Circuit Breakers

Assignment of the circuit breakers in the Floor console fuse block

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
1	Roof & Door Module
2	Roof Pump
8	Power Seats

Engine Compartment

Fuse Box Location

It is located in the engine compartment (on the driver’s side), under two covers.

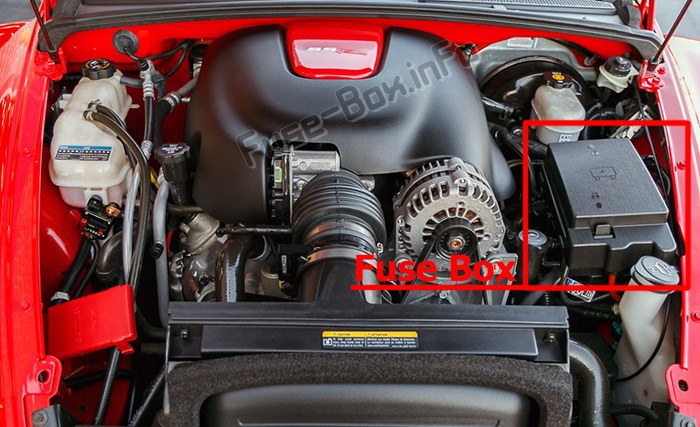

The location of the fuses in the engine compartment: Chevrolet SSR (2003-2006)

Fuse Box Diagrams

2003, 2004

Fuses

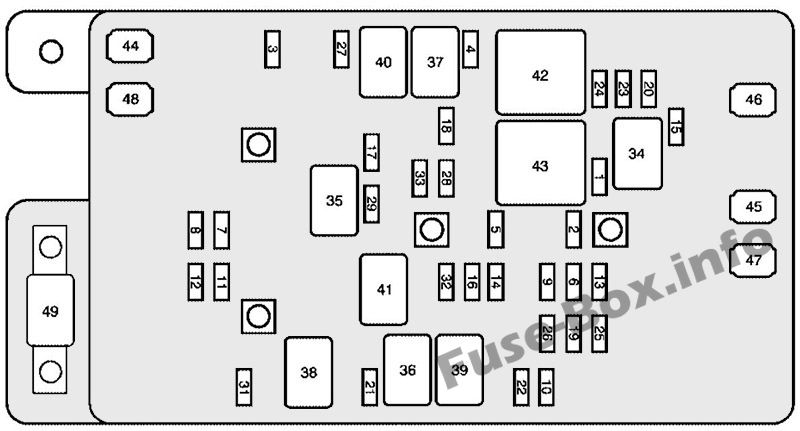

Assignment of the fuses in the Engine Compartment (2003, 2004)

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
1	Air Conditioning
2	Automatic Transmission Shift Lock Control System
3	Canister, Fuel System
4	Ignition
5	Starter
6	Ignition
7	Driver’s Side High Beam Headlamp
8	Passenger’s Side High Beam Headlamp
9	Ignition
10	Instrument Panel Cluster, Driver Information Center (DIC)
11	Driver’s Side Low Beam Headlamp
12	Passenger’s Side Low Beam Headlamp
13	Powertrain Control Module (PCM)
14	Air Bag System
15	Truck Body Controller
16	Truck Body Control, Ignition
17	Driver’s Side Stoplamp/Turn Signals
18	Passenger’s Side Stoplamp/Turn Signals
19	Back-up Lamps
20	Throttle Actuator Control (TAC)
21	Fog Lamps
22	Horn
23	Injector A
24	Injector B
25	Oxygen Sensor A
26	Oxygen Sensor B
27	Windshield Washer
28	Cigarette Lighter
29	Powertrain Control Module (PCM)
30	Blank
31	Cargo Cover Release
32	Hazard Warning Flashers
33	Stoplamps
44	Engine Cooling Fan
45	Climate Control Fan
46	Ignition A
47	Ignition B
48	Anti-lock Brake System (ABS)
49	Body Fuse

Relays

Assignment of the relays in the Engine Compartment (2003, 2004)

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
34	Air Conditioning
35	Fuel Pump
36	Fog Lamps
37	High Beam Headlamps
38	Cargo Cover Release
39	Horn
40	Windshield Washer
41	Headlamp Driver Module
42	Ignition
43	Starter

2005, 2006

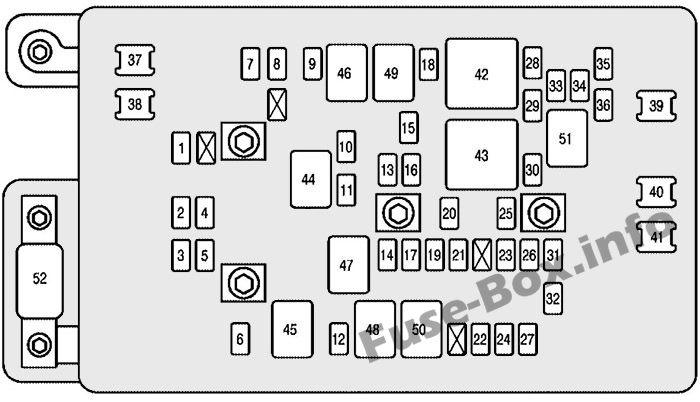

Assignment of the fuses and relay in the Engine Compartment (2005, 2006)

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
1	Auxiliary Power 2
2	Passenger’s Side High Beam Headlamp
3	Passenger’s Side Low Beam Headlamp
4	Driver’s Side High Beam Headlamp
5	Driver’s Side Low Beam Headlamp
6	Cargo Cover Release
7	Transmission Control Module/Canister
8	Truck Body Controller
9	Windshield Washer
10	Driver’s Side Stoplamp/Turn Signals
11	Fuel Pump
12	Fog Lamps
13	Stoplamps
14	Headlamp Driver Module (HDM)
15	Passenger’s Side Stoplamp/Turn Signals
16	Cigarette Lighter
17	Hazard Warning Flashers
18	Coils
19	Truck Body Control, Ignition 1
20	Starter
21	Airbag System
22	Horn
23	Ignition E
24	Instrument Panel Cluster, Driver Information Center (DIC)
25	Automatic Transmission Shift Interlock Control System
26	Back-up lamps, Lock Out
27	Engine Control Module
28	Oxygen Sensor B
29	Injector B
30	Air Conditioning
31	Engine Control Module (ECM), Transmission Control Module (TCM)
32	Transmission
33	Engine 1
34	Engine Control Module, Electronic Brake Controller
35	Oxygen Sensor A
36	Injector A
37	Engine Cooling Fan
38	Anti-lock Brake System (ABS)
39	Ignition A
40	Climate Control Fan
41	Ignition B
42	Powertrain
43	Starter
44	Fuel Pump
45	Cargo Cover Release
46	Windshield Washer
47	Headlamp Driver Module (HDM)
48	Fog Lamps
49	High Beam Headlamps
50	Horn
51	Air Conditioning
52	Instrument Panel Battery

Relays Center

Relay Box Location

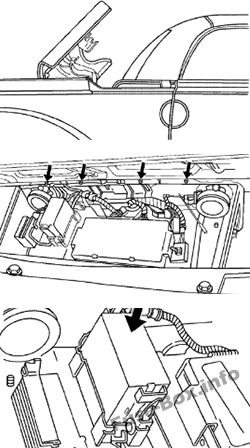

There is a relay center located in the area where the convertible top is stored when it is open.

Open the convertible top until the roof tonneau and the boot cover panel are upright so that you can reach into the convertible top storage area as shown.
Locate the water-tight box that houses the relay center and remove the four nuts that secure the cover to the backside of the passenger compartment.
Press in the tabs on the sides of the cover and lift to remove the cover.
Locate the relay center inside the box. It is located toward the driver’s side of the vehicle. Press in the tabs at each end of the relay center cover and lift to remove.
Reverse the steps to reinstall the relay center cover and close the water-tight box.

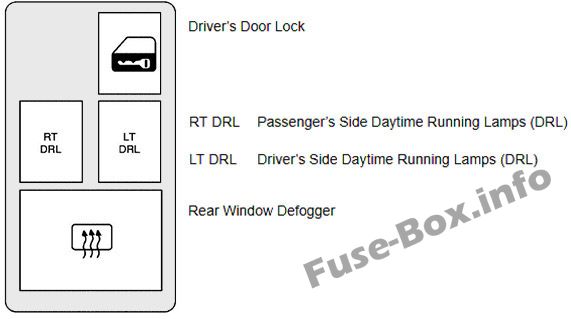

Relay Box Diagram

Fuse Data

Full access is available to registered users — log in or register.

FAQ

Where are the cigar lighter (power outlet) fuses in the Chevrolet SSR?

Floor console fuse block:
Fuse №15 (Auxiliary Power 2)
Fuse №46 (Accessory power outlets)

Engine compartment fuse box:
Fuse №28 (2003–2004) or №16 (2005–2006) – Cigarette lighter
Fuse №1 (2005–2006) – Auxiliary Power 2
