Chevrolet Tracker | 1999-2004 | Fuse Box Diagrams and Locations

Explore Chevrolet Tracker fuse box diagrams in this straightforward guide that covers the Suzuki-based version of the compact SUV. In this article, we focus on the second-generation Chevrolet Tracker (1999–2004), and provide fuse diagrams for 1999, 2000, 2001, 2002, 2003 and 2004, along with the location of the fuse panels and the assignment of each fuse and relay, giving you a clear reference for understanding its electrical system.

What’s Included

Passenger Compartment

Fuse Box Location

It is located under the left side of the instrument panel.

The location of the fuses in the passenger compartment: Chevrolet Tracker (1999-2004)

Fuse Box Diagram

Fuse Data

Full access is available to registered users — log in or register.

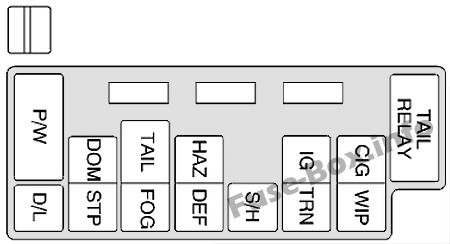

Instrument panel fuse box diagram: Chevrolet Tracker (1999, 2000, 2001, 2002, 2003, 2004)

Assignment of the fuses in the Instrument Panel

Fuse Data

Full access is available to registered users — log in or register.

Short-Code	Description
P/W	Power Windows
DOM	1999-2001: Dome Light 2002-2004: Dome Light, Radio Memory
TAIL	License Plate Light, Clearance/Marker Lights, Instrument Panel Illumination, Warning Tone
HAZ	1999-2001: Hazard Lights 2002-2004: Hazard Lights, Turn Signal
IG	Oxygen Sensor Heater, Cruise Control, Ignition Coil, Meter, G Sensor
CIG	Cigar/Cigarette Lighter, Radio, Power Mirror
D/L	Door Locks
STP	Brake Light, Horn, Center High-Mounted Stop Lamp, Cruise Control
FOG	Not Used
DEF	1999-2001: Rear Window Defogger, DRL 2002-2004: Rear Window Defogger, DRL, Heater, Air Conditioning
S/H	Not Used
TRN	1999-2001: Turn Signal, Back-Up Light 2002-2004: Turn Signal, Back-Up Light, Hazard Lights
WIP	Windshield Wiper/Washer, Rear Window Wiper/Washer

* Fuses for the air bags and the heater/air conditioning system are located next to the instrument panel fuse block

Engine Compartment

Fuse Box Location

It is located in the engine compartment on the passenger side (relays are located next to the fuse box).

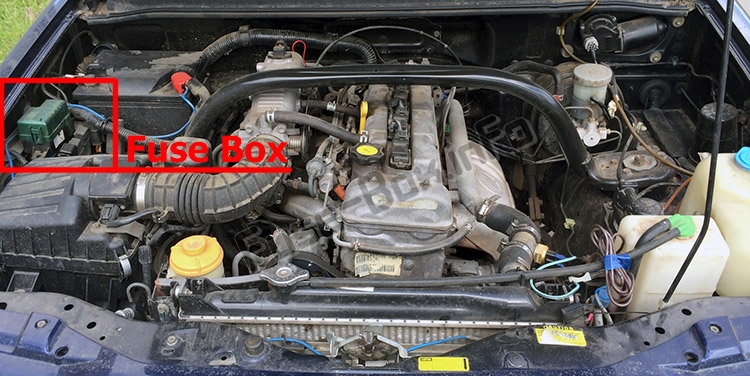

The location of the fuses in the engine compartment: Chevrolet Tracker (1999-2004)

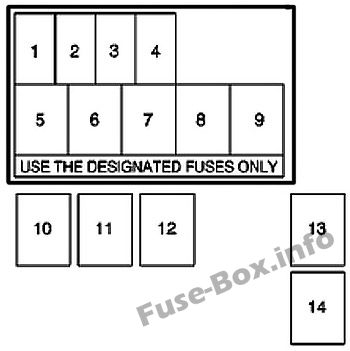

Fuse Box Diagram

Fuses

Assignment of the fuses in the Engine Compartment

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
1	Accessory Power Outlet
2	Electronic Fuel Injection System
3	Right Headlamp
4	Left Headlamp, High-Beam Indicator
5	Heater
6	Hazard Lamps, Rear Combination Lamps, Dome Light, Horn
7	Cigar Lighter, Radio, I.G., Meter, Wiper, Washer, Rear Defroster, Turn Signals, Back-Up Lamps
8	Anti-Lock Brake System
9	All Electrical Loads
14	Air Conditioning

Relays

Assignment of the relays in the Engine Compartment

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
10	Shift Lock
11	Horn (2.5L Engine Only)
12	Air Conditioning Compressor
13	Air Conditioning Condenser Fan

FAQ

Where are the cigar lighter and power outlet fuses in the Chevrolet Tracker?

In the Chevrolet Tracker, the cigar lighter and power outlet fuses are located in two places:
Instrument panel fuse box: fuse labeled “CIG”
Engine compartment fuse box: fuses №1 and №7
