Chevrolet Traverse | 2024-2026

Explore Chevrolet Traverse fuse box diagrams in this up-to-date guide designed to help you understand the electrical layout of the newest generation. Here we take a look at the third-generation Chevrolet Traverse (2024–present) and provide fuse diagrams for 2024, 2025 and 2026, along with the location of the fuse panels and the assignment of each fuse and relay, giving you a clear reference for maintenance and troubleshooting.

NEED A REPLACEMENT?
Looking for the right fuse or relay?
Search common fuse types, fuse kits and relay options for your vehicle.
Find Fuses & Relays

Engine Compartment

Fuse Box Location

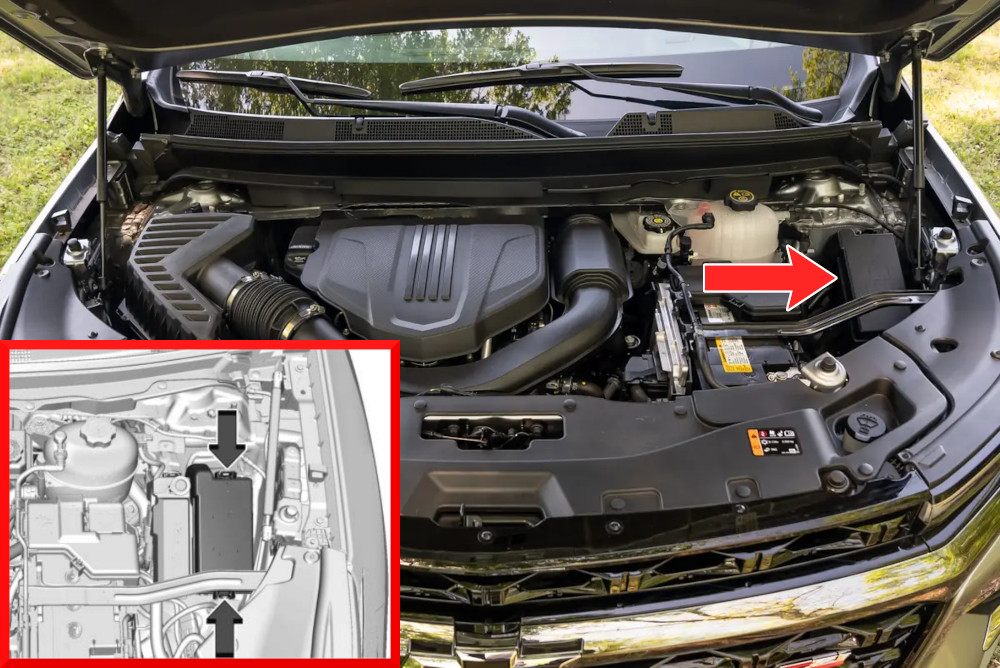

You’ll find the underhood fuse block in the engine bay on the driver’s side of the vehicle.

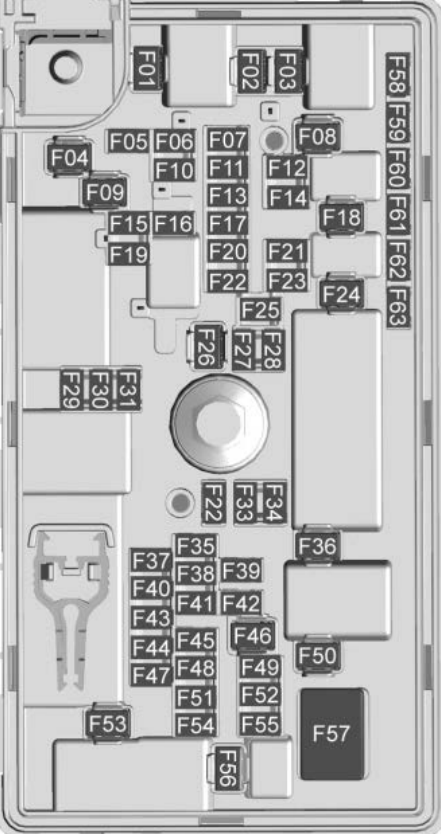

Fuse Box Diagram

Assignment of the fuses in the engine compartment fuse box

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.TypeDescription
F3FMM/MCaseFRT_WIPER – Front Wiper –
F6MICROHDLP RT – Headlamp Right
F7MICRORR WIPER – Rear Wiper –
F9FMM/MCaseRR DEFOG – Rear Defog
F10MICROELM 4 – Exterior Lighting – Module 4
F11MICROHDLP LT – Headlamp Left
F12MICROHORN
F16MICRORR_WPR_CTRL – Rear Wiper Control
F17RelayRLY COIL GND – Relay Coil Ground
F18FMM/MCaseDC DC BATT1 – Direct Current Direct Current Battery 1
F19MICROELM7 – Exterior Lighting Module 7
F22MICROELM 5 – Exterior Lighting Module 5
F23MICROWIPER_DE_ICE
F24FMM/MCaseEBCM1 – Electronic Brake Control Module 1
F25MICROELM 3 – Exterior Lighting Module 3
F27MICROTRLR_LTP_TRN_LT- Trailer Lamp Turn Left
F28MICROTRLR_LTP_TRN_RT – Trailer Lamp Turn Right
F29MICROWASH
F30MICROAERO SHUTTER
F32MICROPCM – Power Control Module
F35MICROPCM – Power Control Module
F36FMM/MCaseSTRTR MTR – Starter Motor
F37MICROAC CLUTCH GAS – Alternating Current Clutch Gas
F38MICROSOL CP TURBO BYPASS – Solenoid Turbo Bypass
F39MICROCOIL ODD
F41MICROB721_B70_M674
F50FMM/MCaseE-PHASER – Electronic Phaser
F52MICROPCM – Power Control Module 2
F54MICROAIR PUMP
F56MICROSTRTR PINION – Starter Pinion
F57RelayWATER PUMP

Passenger Compartment

Fuse Box Location

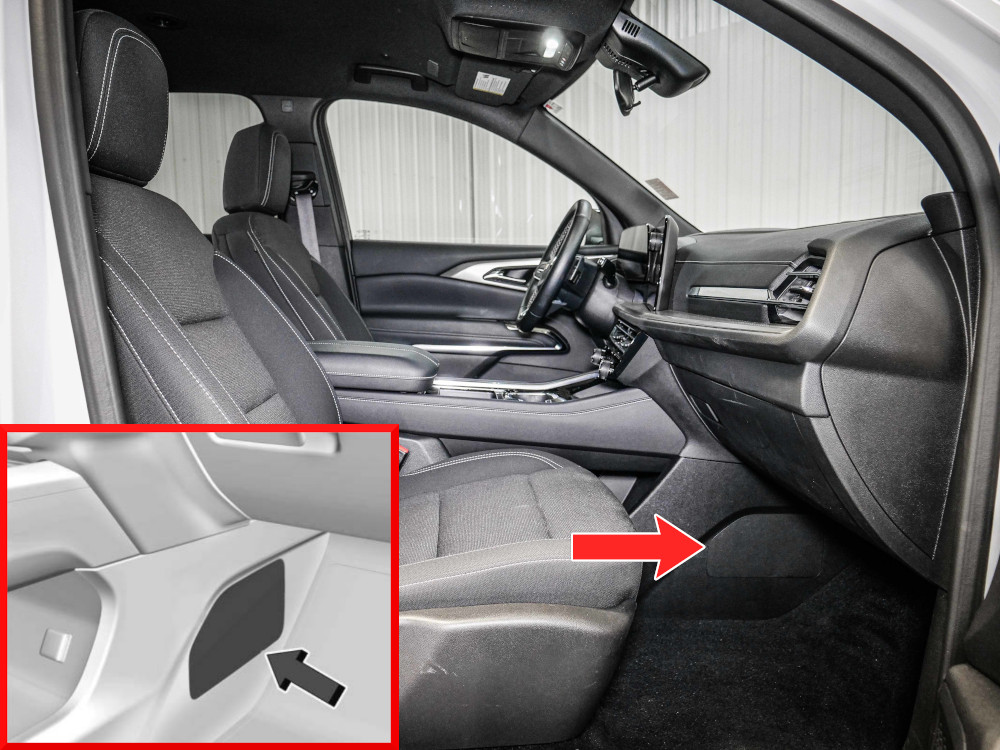

The instrument panel fuse block is located inside the center console on the passenger side of the vehicle. To access it, gently insert a coin or, preferably, a plastic trim tool into the slot on the fuse cover and carefully pry the lid open to avoid damaging it.

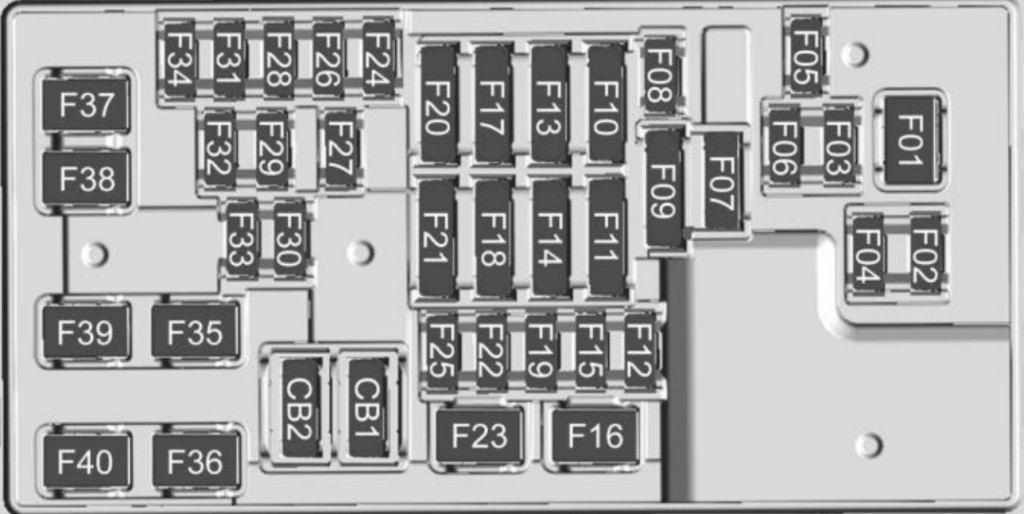

Fuse Box Diagram

Fuses

Assignment of the fuses in the passenger compartment fuse box

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.TypeDescription
F1FMM/MCaseBLOWER MOTOR
F2MICRO2ELM 1 Exterior Lighting Module 1
F3MICRO2SCL – Steering Column Lock
F4MICRO2ELM 2 – Exterior Lighting Module 2
F5MICRO2BCM 2 – Body Control Module 2
F6MICRO2OHC – OnStar Hands-Free Calling
F7MINISTEERING WHEEL CONTROL
F8MICRO2TELEMATICS
F9MICRO3BCM BATT 1 & ETS SHIFTER – Body Control Module Battery 1 and Euro Truck Shifter
F10MICRO3UGDO – Universal Garage Door Opener / Spare
F11MICRO3HVAC & TPIM – Heating, Ventilation, and Air Conditioning and Traction Power Inverter Module
F12MICRO2STEERING COLUMN LOCK
F13MICRO3CGM & DLC – Central Gateway Module and Data Link Connector
F14MICRO3EBCM & PCM – Electronic Brake Control Module and Power Control Module
F15MICRO2AUX DISPLAY
F16FMM/MCaseAPO RR CARGO – Auxiliary Power Outlet Rear Cargo
F17MICRO3SDM AOS – Sensing Diagnostic Module Automatic Occupant Sensor
F18MICRO3SEAT FAN CTR/HDLP CO & DR – Seat Fan Control Headlamp CO and Driver
F19MICRO2ELM RC – Exterior Lighting Module Ride Control
F20MICRO3VKM – Virtual Key Module / Spare
F21MICRO3VCU BATT 1 & 2 – Virtual Cockpit Unit Battery 1 and 2
F22MICRO2SDM – Sensing Data Module
F24MICRO2WCM – Wireless Charging Module
F25MICRO2HVPO – High Voltage Power Outlet
F26MICRO2Spare
F27MICRO2AUX
F28MICRO2LRR – Long Range Radar
F29MICRO2SRR – Short Range Radar
F31MICRO2BCM 3 – Body Control Module 3
F32MICRO2HSWM – Heated Steering Wheel Module
F34MICRO2CPM – Column Position Module
F35FMM/MCaseAMPLIFIER
F36FMM/MCaseDC/DC BATT 2 – Direct Current/Direct Current Battery 2
F37FMM/MCaseBCM 4 – Body Control Module 4
F38FMM/MCaseAMPLIFIER 2
F39FMM/MCaseELM 6 – Exterior Lighting Module 6
F40FMM/MCaseDCAC – Direct Current Alternating Current

Circuit Breakers

Assignment of the circuit breakers in the passenger compartment fuse box

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
CB01–
CB02APO – Auxiliary
Power Outlet

Luggage compartment

Fuse Box Location

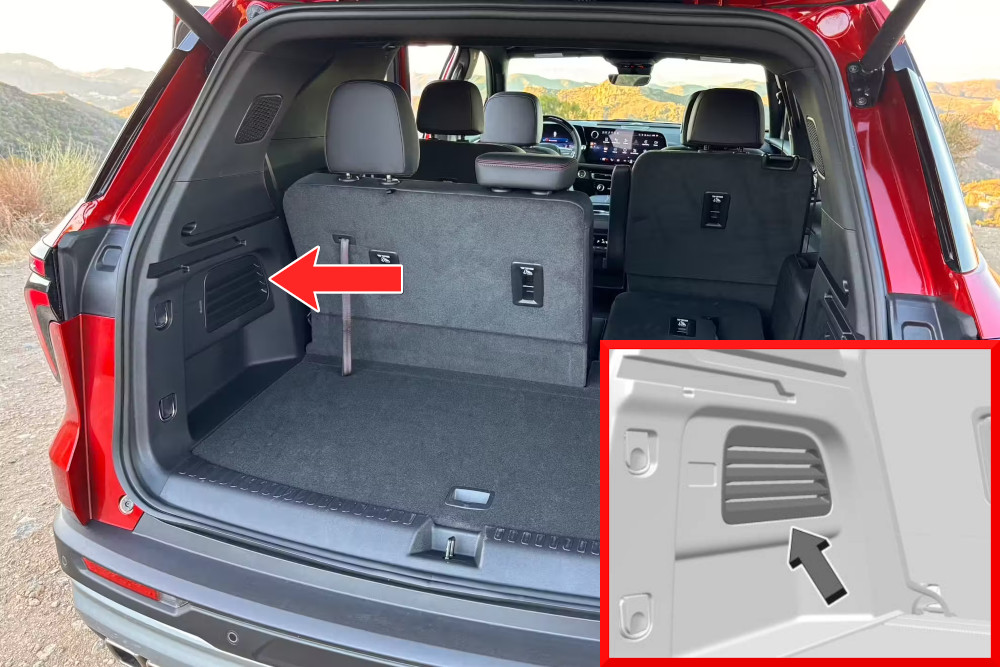

The rear fuse block is located behind a trim panel on the driver’s side of the rear storage area. To access it, gently pry along the top edge of the panel to release it and remove the cover. Once the panel is off, you’ll be able to reach the fuse block.

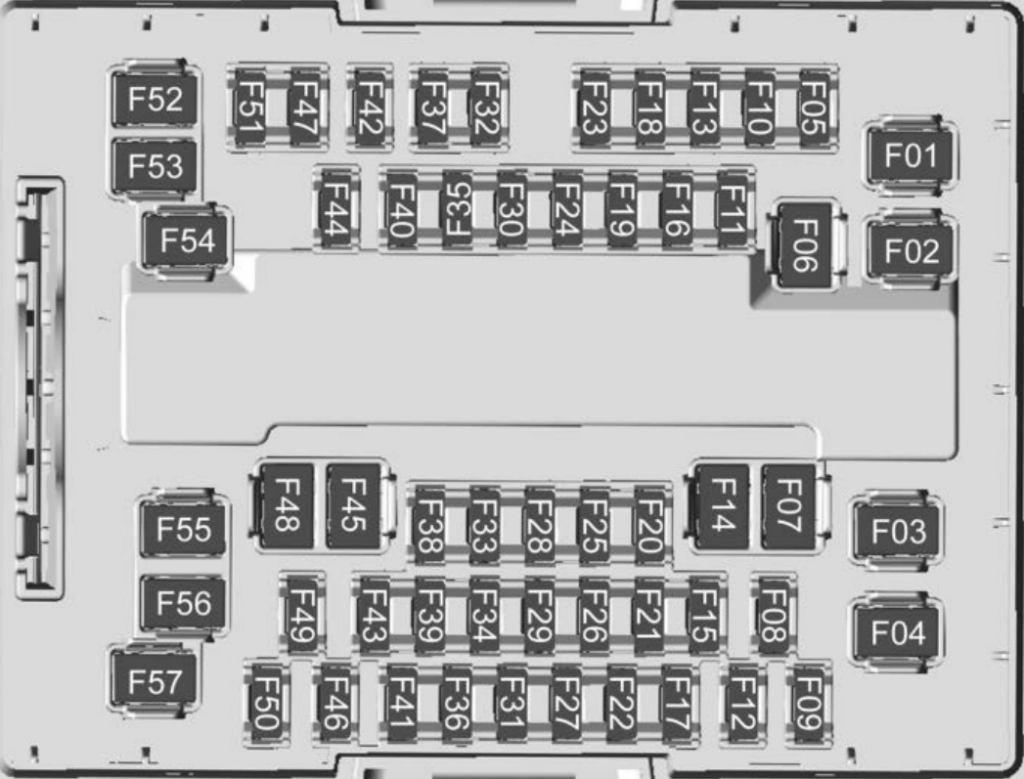

Fuse Box Diagram

Assignment of the circuit breakers in the luggage compartment fuse box

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.TypeDescription
F1FMM/MCaseRR BLOW – Rear Blow –
F2FMM/MCaseDSP CODR – Door – Switch Panel Code
F3FMM/MCaseTAILGATE
F4FMM/MCaseTRLR_BATI – Trailer Battery 1
F5MINIACP2 – AWD Control Processor 2
F6FMM/MCasePWR – FOLD SEAT LLR – Power Fold Seat Left and Rear
F7FMM/MCaseDSP – Door Switch Panel
F8MINISpare
F9MINILAMPS RT – Right Lamps
F10MINISpare
F11MINISpare
F12MINIELM2 – Exterior Lighting Module 2
F13MINILAMPS LT – Left Lamps
F14FMM/MCaseSP DRVR – Driver –
F15MINIMSM DRIVER – Memory – Seat Module Driver
F16MINIMTR PFTS ROW2 –
F17MINIFRT – Front
F18MINISBP CO DRIVER – –
F19MINIMTR PFTS_ROW2_F –
F20MINISpare
F21MINIRFA – Remote Function Actuator
F22MINISpare
F23MINISpare
F24MINISpare
F25MINISpare
F26MINICANISTER
F27MINIUPA – Universal Park Assist
F28MINIRDCM – Right Door Control Module
F29MINISBZA – Side Blind Zone Assist
F30MINITRLR PRK LMP – Trailer – Park Lamp
F31MINIFCM – Front Camera Module
F32MINISpare
F33MINIROW2_BAT1 – Second Row Battery 1
F34MINISpare
F35MINISpare
F36MINIROW2_BAT2 – Second Row Battery 2
F37MINISpare
F38MINISpare
F39MINISpare
F40MINITRLR BACK UP
F41MINISpare
F42MINIDSP – Door Switch Panel
F43MINIPOWER FOLD SEAT SW/N 3 ROW –
F44MINIOUT_OF_PARK_DISABLE –
F45FMM/MCaseTRAILER_BRAKE
F46MINIACP3 – AWD Control Processor 3
F47MINIFTZM – Fuel Tank Zone Module
F48FMM/MCaseSP PASS
F49MINISpare
F50MINIELM1 – Exterior Lighting Module 1
F51MINIFRT BAT2 – Front – Battery 2
F52FMM/MCaseSpare
F53FMM/MCaseSpare
F54FMM/MCaseROW2_FOLD_RH – Second Row Righthand Fold
F55FMM/MCaseROW3 – Third Row
F56FMM/MCaseSUNROOF
F57FMM/MCaseRDCM – Right Door Control Module
