Explore Chevrolet Trax fuse box diagrams in this concise guide that breaks down the electrical layout of the newest generation. Here we examine the second-generation Chevrolet Trax (2024–present) and provide fuse diagrams for 2024, 2025 and 2026 , along with the location of the fuse panels and the assignment of each fuse and relay , giving you a clear and convenient reference for troubleshooting and maintenance.

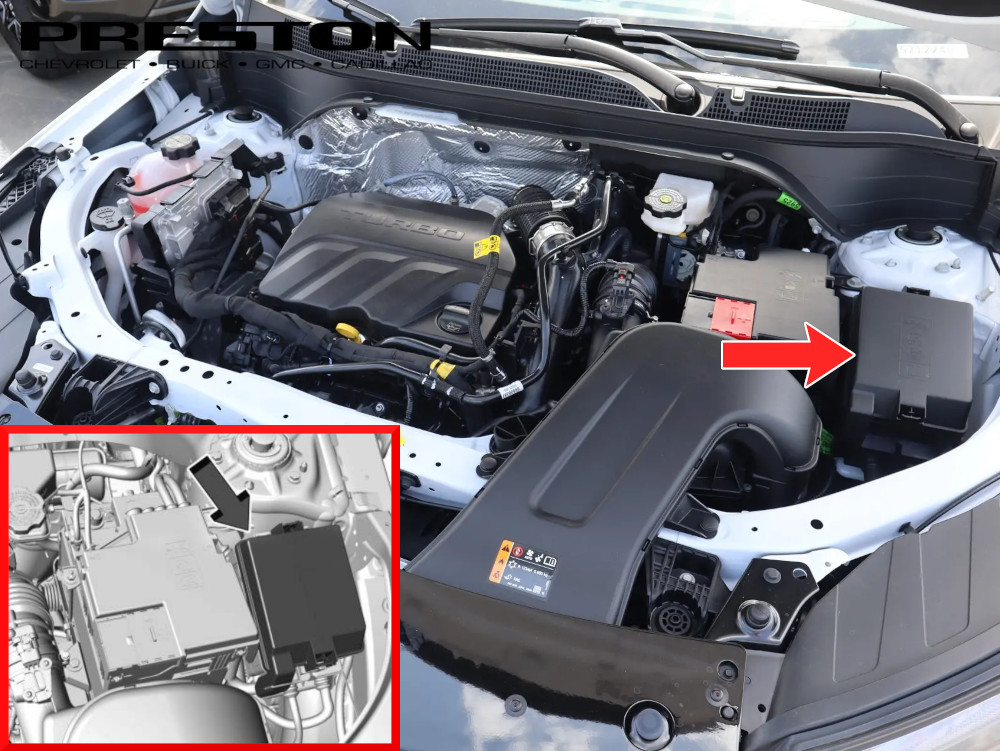

The engine compartment fuse box is located on the driver’s side, near the front wheel.

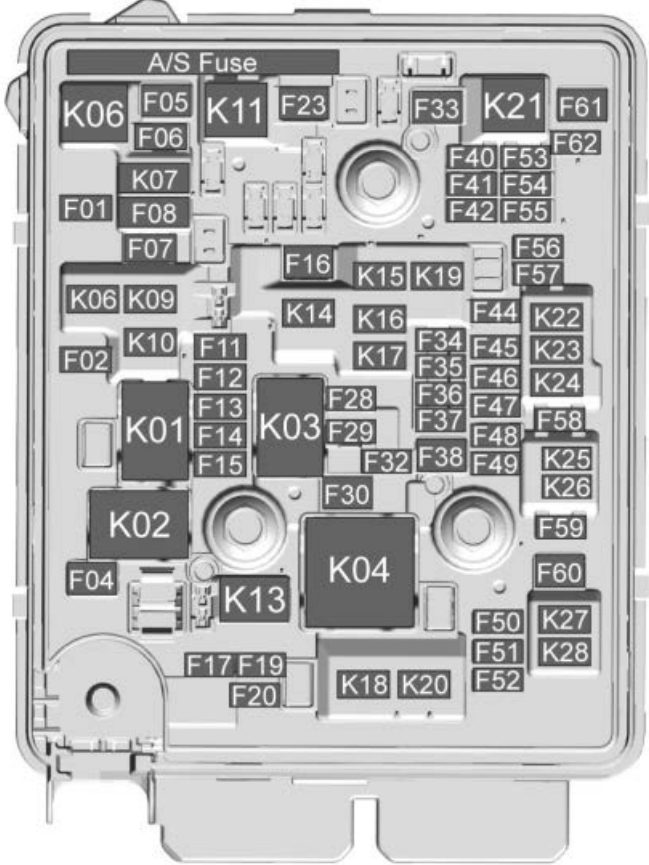

Assignment of the fuses in the Engine Compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amps Description F01 10A L/GATE RELEASE F02 10A A/C CLUTCH F05 30A RR DEFOG F06 7.5A HTD OSRVM F07 40A COOLING FAN MID F11 15A ECM PT – 1 F12 15A IGNITION COIL F13 15A ENG COMPONENT – 2 F14 15A ENG COMPONENT – 1 F15 25A ECM PT – 2 F19 15A ECM BATT F20 10A AUX WATER PUMP F28 10A CAC SHUTTER F32 20A TCM BATT F34 10A ESCL RUN/CRANK F37 7.5A ECM TCM RUN/CRANK F38 60A EBCM – 2 F41 10A HDLP LEVELING F42 5A CLUSTER F44 15A WASH PUMP F47 10A CNSTR VENT SOL F49 20A REAR WIPER PARK F53 10A VENT SEAT F56 10A ISRVM/RLAD F58 20A REAR WIPER F60 30A POWER WINDOW LT F61 30A POWER WINDOW RT F62 10A LUMBER F03 30A STARTER SOL F08 15A HORN F18 5A RVC F21 10A PEPS F22 30A FRONT WIPER F24 15A HTD/SEAT – 1 F25 15A HTD/SEAT – 2 F26 40A COOLING FAN LOW F31 20A FTZM F39 60A COOLING FAN HIGH
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the Engine Compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description K01 STARTER SOL RELAY K03 POWERTRAIN RELAY K04 COOLING FAN HIGH RELAY
This content requires JavaScript and a valid membership to view.

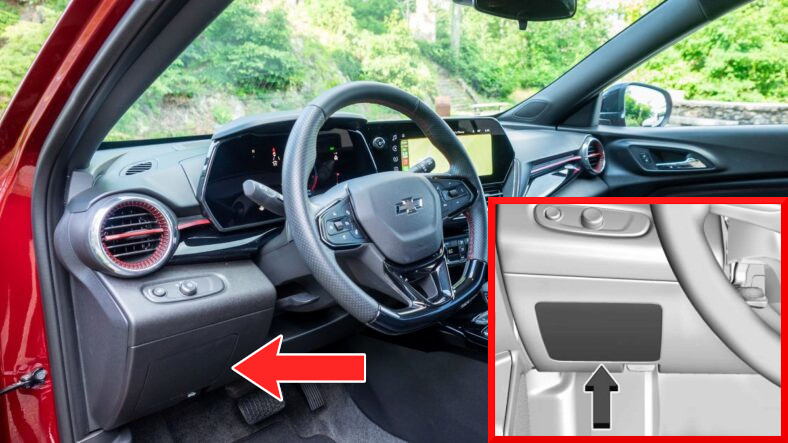

The fuse block is located on the underside of the driver’s side instrument panel.

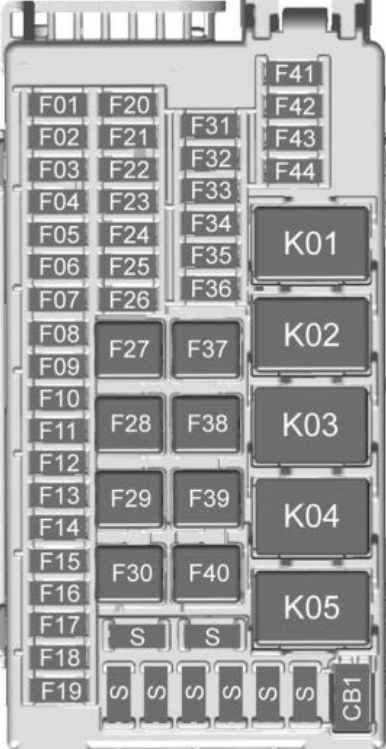

Assignment of the fuses in the Passenger Compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amps Description F01 5A OnStar F02 – Sunshade Motor F03 20A Body Control Module 3 F04 20A Body Control Module 7 F05 20A Body Control Module 6 F06 10A HVAC Module 1 F07 5A Central Gateway Module F08 – Heated Steering Wheel Module F09 10A Virtual Cockpit Display/ Instrument Panel Display/ HVAC Display F10 20A RADIO/Virtual Cockpit Unit Module F11 – OnStar F12 10A Side Blind Zone Alert Module/Camera Module/Ultrasonic Park Assist Module F13 – HVAC Module IGN F14 10A Wireless Charger Module/ Remote Electronic PRNDL Display F15 20A Body Control Module 2 F16 15A Body Control Module 1 F17 2A Steering Wheel Controls Backlighting F20 2A Steering Wheel Controls Switch F21 15A Body Control Module 5 F22 7.5A Data Link Connector F23 10A SDM – Sensing Diagnostic Module F24 2A Discrete Logic Ignition Switch F25 – Power Tailgate Module 1 F26 – Logistic F28 30A Body Control Module 8 F29 40A DC to DC Converter 2 F30 – Power Tailgate Module 2 (Motor) F31 7.5A OSRVM/ETC/Rain Light Humidity Sensor/ Humidity Sensor F32 15A Headlamp Low Beam Lamp LEFT F33 20A Body Control Module 4 F34 10A Headlamp Low Beam Lamp RIGHT F37 – Seat Position Switch DRIVER F38 40A DC to DC Converter 1 F39 30A ACC/RAP Relay/RUN Relay F40 40A Blower Motor Control Module F41 10A Auxiliary Audio/Video Jack/FRT USB F42 – Auxiliary RR USB Power Outlet
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the Passenger Compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description K01 ACC/RAP Relay K02 RUN Relay K03 Logistics Relay K04 – K05 –
This content requires JavaScript and a valid membership to view.
Assignment of the circuit breakers in the Passenger Compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description CB1 Auxiliary DC Power Outlet
This content requires JavaScript and a valid membership to view.
Spare fuses in the Passenger Compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amps Description S1 2A Spare S2 5A Spare S3 7.5A Spare S4 10A Spare S5 15A Spare S6 20A Spare S7 25A Spare S8 30A Spare
