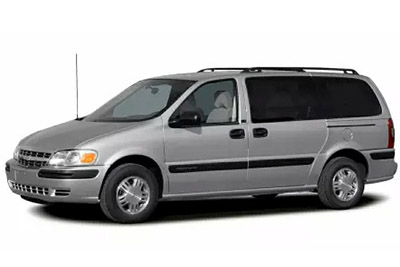

Explore Chevrolet Venture fuse box diagrams in this practical guide that maps out the electrical layout of this long-running family minivan. Here we cover the Chevrolet Venture (produced from 1996 to 2005) and provide fuse diagrams for 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004 and 2005 , along with the location of the fuse panels and the assignment of each fuse and relay , giving you a clear reference for diagnosing electrical systems and performing maintenance.

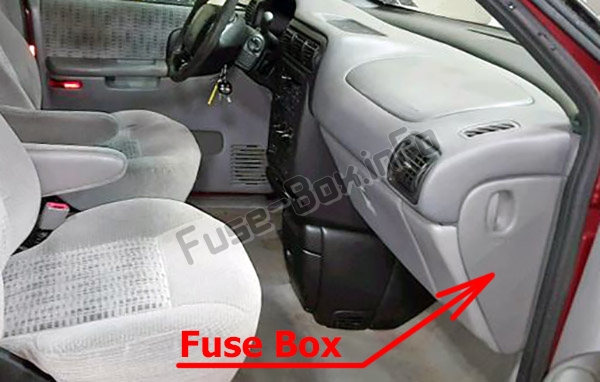

The fuse box is located on the passenger side of the instrument panel, behind the cover.

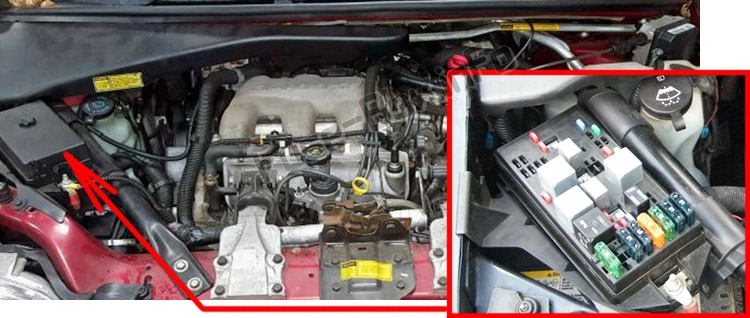

The fuse box is located on the passenger side of the engine compartment.

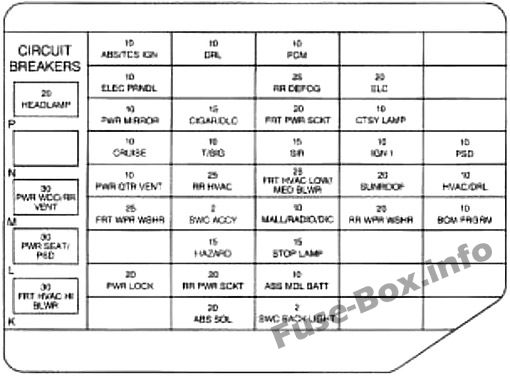

Assignment of the fuses in the Instrument Panel (1997)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description ABS MDL BATT Electronic Brake Traction Control Module (EBTCM) ABS SOL LH and RH Front Brake Solenoid Valve ABS/TCS IGN Electronic Brake Control Relay and EBTCM BCM PRGRM Body Control Module (BCM) CIGAR/DLC Cigarette Lighter and Data Link Connector (DLC) CTSY LAMP BCM DRL DRL Control Module ELC Electronic Level Control (ELC) Air Compressor and ELC Relay ELEC PRNDL Instrument Cluster to PRNDL Indicators FRT HVAC LOW/MED BLWR Heater-A/C Control FRT PWR SCKT Front Electric Accessory Plug Housing FRT WPR/WSHR Windshield Wiper/Washer Motor and Switch HAZARD Turn Signal Switch HVAC/DRL Air Recirculation Motor, DRL Control Module, Heater-A/C Control, Temperature Door Actuator (Front) and Rear Window Defogger Rela IGN 1 ELC Sensor, BCM, Electronic Brake Control Indicator Lamp Driver Module, Instrument Panel Cluster, Rear Side Door Actuator Motor, Rear Window Wipermasher and Multifunction Switch (Foglamp Switch/TCS Enable Switch) and Stoplamp/Torque Converter Clutch (TCC) Switch MALL/RADIODIC BCM, Driver Information Display, Radio and Radio Rear Speaker Amplifie PCM IGN MAIN Relay and PC PSD Rear Side Door Actuator Motor PWR LOCK BCM PWR MIRROR Power Remote Control Mirror Switch PWR QTR VENT Interior Lamps and Multifunction Switch (Power Vent Switch) RR HVAC Rear Blower Motor, Rear Heater-A/C Control, and Temperature Door Actuator (Rear) RR DEFOG Rear Window Defogger Rela RR PWR SCKT Rear Electric Accessory Plug Housing RR WPWSHR Rear Window Wiper Motor, Rear Window Wipermasher and Multifunction Switch (Rear Window WiperNasher Switch) SIR Inflatable Restraint Control Module STOP LAMP Stoplamp Switch to Stoplamps SUNROOF Sunroof Control Module SWC ACCY Steering Wheel Radio Control Switchs SWC BACKLIGHT Steering Wheel Radio Control Switches (Illumination) T/SIG Turn Signal Switch
This content requires JavaScript and a valid membership to view.
Assignment of the circuit breakers in the Instrument Panel (1997)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description FRT HVAC HI BLWR Blower Motor Resistor HEADLAMP DRL Control Module, Headlamp Dimmer Switch and Headlamp Switch PWR SEATPSD 6-way Power Seat(s) and Rear Side Door Actuator Moto PWR WDO/RR VENT Front Power Windows
This content requires JavaScript and a valid membership to view.

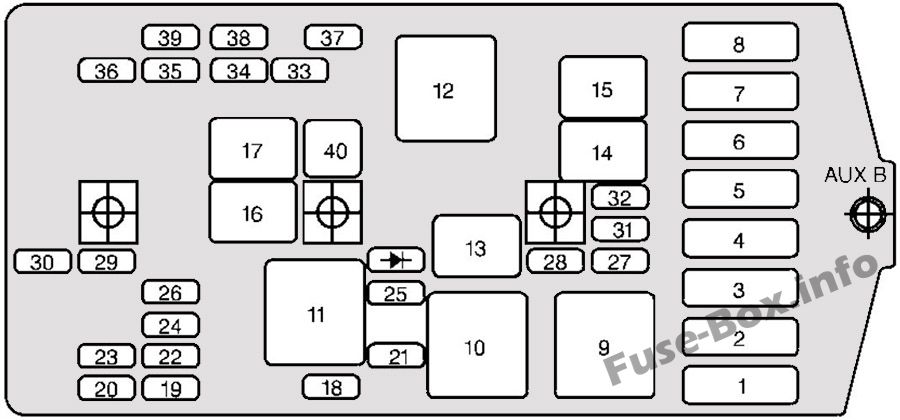

Assignment of the micro fuses in the Engine Compartment (1997-1999)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 18 Fuel Injectors 1-6 19 Not Used 20 Not Used 21 1997: Evaporative Emissions (EVAP) Canister Purge Valve, EVAP Canister Vacuum Switch, Heated Oxygen Sensors #I and #2, Linear Exhaust Gas Recirculation (EGR) Valve, Mass Air Flow (MAF) Sensor and Powertrain Control Module (PCM) 22 Not Used 23 Not Used 24 Not Used 25 Ignition Control Module (ICM) 26 Not Used 27 Transaxle Range Switch to Back-up Lamps 28 A/C CLU Relay to A/C Compressor Clutch Oil 29 Driver Information Display, Heater A/C Control, Radio, Rear Side Door Actuator Control Motor, Remote Control Door Lock Receiver (RCDLR), Security Indicator Lamp and Theft Deterrent Shock Sensor 30 Generator 31 Automatic Transaxle (Torque Converter Clutch Solenoids) Stoplamp Switch to PCM 32 Fuel Pump Relay 33 Powertrain Control Module (PCM) 34 Not Used 35 Fog Lamp Relay 36 Horn Relay 37 Daytime Running Lamps (DRL) Control Module, Headlamps and I/P Dimmer Switch Theft-Deterrent Relay to Headlamps 38 Not Used 39 Not Used 40 Mini Fuse Puller
This content requires JavaScript and a valid membership to view.
Assignment of the maxi fuses in the Engine Compartment (1997-1999)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 1 Coolant Fans 2 Not Used 3 Circuit Breakers: FRT HVAC HI BLWR, and HEADLAMP Fuses (Instrument Panel): HAZARD and STOPLAMP 4 Circuit Breaker: PWR SEATRSD. Fuses (UP): ELC and RR DEFOG 5 Ignition Switch to Fuses (Instrument Panel): ABS/TCS IGN, CRUISE, DRL, ELEC PRNDL, IGN 1, PSD, SIR, T/SIG and PCM [IGN MAIN Relay (Underhood Electrical Center Fuses: A/C CLU, ELEK IGN, IGN 1-U/H, INJ, TCC)] 6 Coolant Fans 7 Fuses (UP): ABS MDL BATT, CIGARDLC, CTSY LAMP, FRT PWR SCKT, PWR LOCK, PWR MIRROR and RR PWR SCKT 8 Ignition Switch to Fuses (I/P): BCM PRGRM, FRT HVAC LOW/MED BLWR, FRT WPR/WSHR, HVAC/DRL, MALL/RADIO/DIC, PWR QRT VENT, RR HVAC, RR WPR/WSHR, SWC ACCY and PWR WDO Circuit Breaker
This content requires JavaScript and a valid membership to view.
Assignment of the mini relays in the Engine Compartment (1997-1999)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 9 RH FAN 1, LH FAN 2 10 LH FAN 2 11 FUSES: A/C CLU, IGN l-U/H, INS, ELEK IGN, TCC 12 RH FAN 1, LH FAN 2
This content requires JavaScript and a valid membership to view.
Assignment of the micro relays in the Engine Compartment (1997-1999)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 13 A/C Clutch 14 Fuel Pump 15 Not Used 16 Horn 17 LH Fog Lamp, RH Fog Lamp, Fog Lamp Indicator
This content requires JavaScript and a valid membership to view.

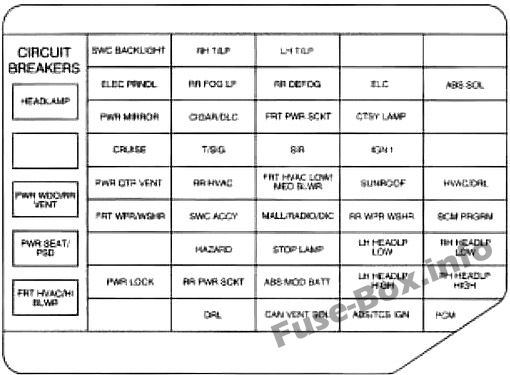

Assignment of the fuses in the Instrument Panel (1998)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description SWC BACKLIGHT Steering Wheel Radio Control Switches (Illumination) ELEC PRNDL Instrument Cluster to PRNDL Indicators PWR MIRROR Power Remote Control Mirror Switch CRUISE Cruise Control Module, Switch and Release Switch PWR QTR VENT Interior Lamps and Multifunction Switch (Power Vent Switch) FRT WPWSHR Windshield Wiper/washer Motor and Switch PWR LOCK BCM RH TLP Not Used RR FOG LP Not Used CIGAR/DLC Cigarette Lighter and Data Link Connector (DLC) T/SIG Turn Signal Switch RR HVAC Rear Blower Motor, Rear Heater-NC Control, and Temperature Door Actuator (Rear) SWC ACCY Steering Wheel Radio Control Switches HAZARD Turn Signal Switch RR PWR SCKT Rear Electric Accessory Plug Housing DRL DRL Control Module LH TLP Not Used RR DEFOG Rear Window Defogger Rela FRT PWR SCKT Front Electric Accessory Plug Housing SIR Inflatable Restraint Control Module FRT HVAC LOWMED BLWR Heater-A/C Control MALL/RADIO/DIC BCM, Driver Information Display, Radio and Radio Rear Speaker Amplifier STOP LAMP Stoplamp Switch to Stoplamps ABS MOD BATT Electronic Brake Control ModuleElectronic Brake Traction Control Module (EBCMEBTCM) CAN VENT SOL Evaporative Emissions (EVAP) Canister Vent Solonoid Valve ELC Electronic Level Control (ELC) Air Compressor and ELC Relay, Trailer Harne CTSY LAMP BCM IGN 1 ALC Sensor, BCM, Electronic Brake Control Indicator Lamp Driver Module, Instrument Panel Cluster, Rear Window Wipermasher and Multifunction Switch (Fog Lamp SwitcWTraction Control Switch) and Stoplamp/Torque Converter Clutch (TCC) Switch SUNROOF Sunroof Control Module RR WPR WSHR Rear Window Wiper Motor, Rear Window Wipermasher and Multifunction Switch (Rear Window Wipermasher Switch) LH HEADLP LOW Not Used LH HEADLP HIGH Not Used ABS/TCS IGN Elect Electronic Brake Control Module/Electronic Brake Traction Control Module (EBCM/EBTCM) ABS SOL LH and RH Front Brake Solenoid Valve HVAC/DRL Air Inlet Actuator, DRL Control Module, Heater-A/C Control, Temperature Door Actuator (Front) and Rear Window Defogger Relay BCM PRGRM Body Control Module (BCM) RH HEADLP LOW Not Used RH HEADLP HIGH Not Used PCM IGN MAIN Relay and PCM
This content requires JavaScript and a valid membership to view.
Assignment of the circuit breakers in the Instrument Panel (1998)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description HEADLAMP DRL Control Module, Headlamp and UP Dimmer Switch PWR WDO/RR VENT Front Power Windows PWR SEATPSD 6-Way Power Seat(s) and Rear Side Door Actuator Motor FRT HVAC/HI BLWR Blower Motor Hi Speed Relay in Module
This content requires JavaScript and a valid membership to view.
Assignment of the micro fuses in the Engine Compartment (1997-1999)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 18 Fuel Injectors 1-6 19 Not Used 20 Not Used 21 1997: Evaporative Emissions (EVAP) Canister Purge Valve, EVAP Canister Vacuum Switch, Heated Oxygen Sensors #I and #2, Linear Exhaust Gas Recirculation (EGR) Valve, Mass Air Flow (MAF) Sensor and Powertrain Control Module (PCM) 22 Not Used 23 Not Used 24 Not Used 25 Ignition Control Module (ICM) 26 Not Used 27 Transaxle Range Switch to Back-up Lamps 28 A/C CLU Relay to A/C Compressor Clutch Oil 29 Driver Information Display, Heater A/C Control, Radio, Rear Side Door Actuator Control Motor, Remote Control Door Lock Receiver (RCDLR), Security Indicator Lamp and Theft Deterrent Shock Sensor 30 Generator 31 Automatic Transaxle (Torque Converter Clutch Solenoids) Stoplamp Switch to PCM 32 Fuel Pump Relay 33 Powertrain Control Module (PCM) 34 Not Used 35 Fog Lamp Relay 36 Horn Relay 37 Daytime Running Lamps (DRL) Control Module, Headlamps and I/P Dimmer Switch Theft-Deterrent Relay to Headlamps 38 Not Used 39 Not Used 40 Mini Fuse Puller
This content requires JavaScript and a valid membership to view.
Assignment of the maxi fuses in the Engine Compartment (1997-1999)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 1 Coolant Fans 2 Not Used 3 Circuit Breakers: FRT HVAC HI BLWR, and HEADLAMP Fuses (Instrument Panel): HAZARD and STOPLAMP 4 Circuit Breaker: PWR SEATRSD. Fuses (UP): ELC and RR DEFOG 5 Ignition Switch to Fuses (Instrument Panel): ABS/TCS IGN, CRUISE, DRL, ELEC PRNDL, IGN 1, PSD, SIR, T/SIG and PCM [IGN MAIN Relay (Underhood Electrical Center Fuses: A/C CLU, ELEK IGN, IGN 1-U/H, INJ, TCC)] 6 Coolant Fans 7 Fuses (UP): ABS MDL BATT, CIGARDLC, CTSY LAMP, FRT PWR SCKT, PWR LOCK, PWR MIRROR and RR PWR SCKT 8 Ignition Switch to Fuses (I/P): BCM PRGRM, FRT HVAC LOW/MED BLWR, FRT WPR/WSHR, HVAC/DRL, MALL/RADIO/DIC, PWR QRT VENT, RR HVAC, RR WPR/WSHR, SWC ACCY and PWR WDO Circuit Breaker
This content requires JavaScript and a valid membership to view.
Assignment of the mini relays in the Engine Compartment (1997-1999)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 9 RH FAN 1, LH FAN 2 10 LH FAN 2 11 FUSES: A/C CLU, IGN l-U/H, INS, ELEK IGN, TCC 12 RH FAN 1, LH FAN 2
This content requires JavaScript and a valid membership to view.
Assignment of the micro relays in the Engine Compartment (1997-1999)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 13 A/C Clutch 14 Fuel Pump 15 Not Used 16 Horn 17 LH Fog Lamp, RH Fog Lamp, Fog Lamp Indicator
This content requires JavaScript and a valid membership to view.
Fuse Data
Full access is available to registered users — log in or register.
Log in or register This content requires JavaScript and a valid membership to view.

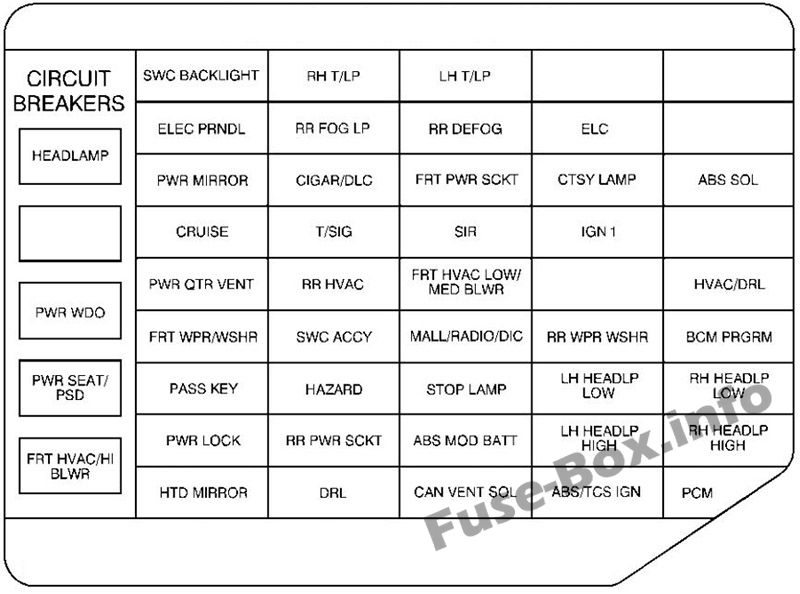

Assignment of the fuses in the Instrument Panel (1999)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description SWC BACKLIGHT Steering Wheel Radio Control Switches (Illumination) ELEC PRNDL Instrument Cluster to PRNDL Indicators PWR MIRROR Power Remote Control Mirror Switch CRUISE Cruise Control Module, Switch and Release Switch PWR QTR VENT Interior Lamps and Multifunction Switch (Power Vent Switch) FRT WPR/WSHR Windshield Wiper/washer Motor and Switch PASS KEY PASS-Key System PWR LOCK Body Control Module (BCM) HTD MIRROR RH T/LP N RH TLP Not Used RR FOG LP Not Used CIGAR/DLC Cigarette Lighter and Data Link Connector (DLC) T/SIG Turn Signal Switch RR HVAC Rear Blower Motor, Rear Heater-NC Control, and Temperature Door Actuator (Rear) SWC ACCY Steering Wheel Radio Control Switches HAZARD Turn Signal Switch RR PWR SCKT Rear Electric Accessory Plug Housing DRL Daytime Running Lamps (DRL) Control Module LH T/LP Not Used RR DEFOG Rear Window Defogger Relay, Heated Mirrors FRT PWR SCKT Front Electric Accessory Plug Housing SIR Inflatable Restraint Control Module FRT HVAC LOWMED BLWR Heater-A/C Control MALL/RADIO/DIC BCM, Driver Information Display, Rear Seat Audio, ELC Sensor and Relay STOP LAMP Stoplamp Switch ABS MOD BATT Electronic Brake Control ModuleElectronic Brake Traction Control Module (EBCM/EBTCM) CAN VENT SOL Evaporative Emissions (EVAP) Canister Vent Solonoid Valve ELC Electronic Level Control (ELC) Air Compressor and ELC Relay, Trailer Harness CTSY LAMP BCM IGN 1 BCM, Electronic Brake Control Indicator Lamp Driver Module, Instrument Panel Cluster, Rear Side Door Actuator Control Module, Rear Window Wiper/Washer and Multifunction Switch (Fog Lamp Switch/Traction Control Switch) and Stoplamp/Torque Converter Clutch (TCC) Switch RR WPR WSHR Rear Window Wiper Motor, Rear Window Wiper/Washer and Multifunction Switch (Rear Window Wiper/Washer Switch) LH HEADLP LOW Not Used LH HEADLP HIGH Not Used ABS/TCS IGN Electronic Brake Control Module/Electronic Brake Traction Control Module (EBCM/EBTCM) ABS SOL LH and RH Front Brake Solenoid Valve HVAC/DRL Air Inlet Actuator, DRL Control Module, Heater-A/C Control, Temperature Door Actuator (Front) and Rear Window Defogger Relay BCM PRGRM Body Control Module (BCM) RH HEADLP LOW Not Used RH HEADLP HIGH Not Used PCM IGN MAIN Relay and PCM
This content requires JavaScript and a valid membership to view.
Assignment of the circuit breakers in the Instrument Panel (1999)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description HEADLAMP DRL Control Module, Headlamp and Instrument Panel Dimmer Switch PWR WDO/RR VENT Front Power Windows PWR SEATPSD 6-Way Power Seat(s) and Rear Side Door Actuator Motor FRT HVAC/HI BLWR Blower Motor Hi Speed Relay in Module
This content requires JavaScript and a valid membership to view.
Assignment of the micro fuses in the Engine Compartment (1997-1999)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 18 Fuel Injectors 1-6 19 Not Used 20 Not Used 21 1997: Evaporative Emissions (EVAP) Canister Purge Valve, EVAP Canister Vacuum Switch, Heated Oxygen Sensors #I and #2, Linear Exhaust Gas Recirculation (EGR) Valve, Mass Air Flow (MAF) Sensor and Powertrain Control Module (PCM) 22 Not Used 23 Not Used 24 Not Used 25 Ignition Control Module (ICM) 26 Not Used 27 Transaxle Range Switch to Back-up Lamps 28 A/C CLU Relay to A/C Compressor Clutch Oil 29 Driver Information Display, Heater A/C Control, Radio, Rear Side Door Actuator Control Motor, Remote Control Door Lock Receiver (RCDLR), Security Indicator Lamp and Theft Deterrent Shock Sensor 30 Generator 31 Automatic Transaxle (Torque Converter Clutch Solenoids) Stoplamp Switch to PCM 32 Fuel Pump Relay 33 Powertrain Control Module (PCM) 34 Not Used 35 Fog Lamp Relay 36 Horn Relay 37 Daytime Running Lamps (DRL) Control Module, Headlamps and I/P Dimmer Switch Theft-Deterrent Relay to Headlamps 38 Not Used 39 Not Used 40 Mini Fuse Puller
This content requires JavaScript and a valid membership to view.
Assignment of the maxi fuses in the Engine Compartment (1997-1999)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 1 Coolant Fans 2 Not Used 3 Circuit Breakers: FRT HVAC HI BLWR, and HEADLAMP Fuses (Instrument Panel): HAZARD and STOPLAMP 4 Circuit Breaker: PWR SEATRSD. Fuses (UP): ELC and RR DEFOG 5 Ignition Switch to Fuses (Instrument Panel): ABS/TCS IGN, CRUISE, DRL, ELEC PRNDL, IGN 1, PSD, SIR, T/SIG and PCM [IGN MAIN Relay (Underhood Electrical Center Fuses: A/C CLU, ELEK IGN, IGN 1-U/H, INJ, TCC)] 6 Coolant Fans 7 Fuses (UP): ABS MDL BATT, CIGARDLC, CTSY LAMP, FRT PWR SCKT, PWR LOCK, PWR MIRROR and RR PWR SCKT 8 Ignition Switch to Fuses (I/P): BCM PRGRM, FRT HVAC LOW/MED BLWR, FRT WPR/WSHR, HVAC/DRL, MALL/RADIO/DIC, PWR QRT VENT, RR HVAC, RR WPR/WSHR, SWC ACCY and PWR WDO Circuit Breaker
This content requires JavaScript and a valid membership to view.
Assignment of the mini relays in the Engine Compartment (1997-1999)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 9 COOL FAN 10 COOL FAN 2 11 IGN MAIN 12 COOL FAN 1
This content requires JavaScript and a valid membership to view.
Assignment of the micro relays in the Engine Compartment (1997-1999)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 13 A/C Clutch 14 Fuel Pump 15 Not Used 16 Horn 17 LH Fog Lamp, RH Fog Lamp, Fog Lamp Indicator
This content requires JavaScript and a valid membership to view.
Fuse Data
Full access is available to registered users — log in or register.
Log in or register This content requires JavaScript and a valid membership to view.

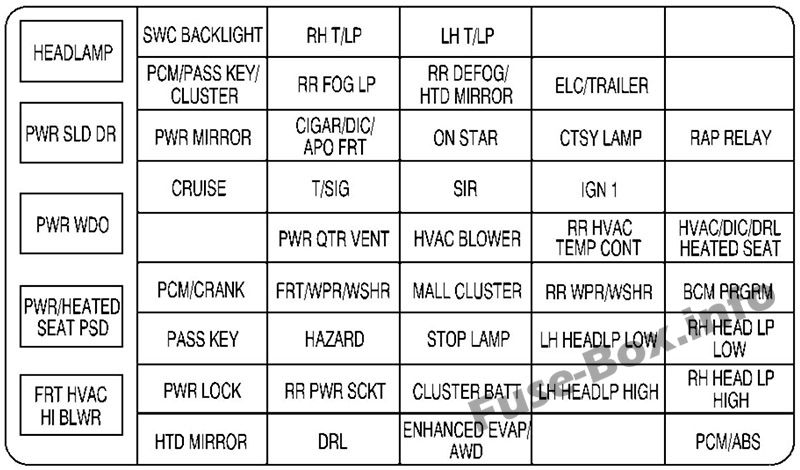

Assignment of the fuses in the Instrument Panel (2000-2005)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description SWC BACKLIGHT Steering Wheel Radio Control Switches (Illumination) PCM/PASS KEY/CLUSTER Instrument Cluster to PRNDL Indicators PWR MIRROR Power Remote Control Mirror Switch CRUISE Cruise Control Module, Switch and Release Switch Blank Not Used PCM/CRANK Power Control Module (PCM), Ignition Crank PASS KEY PASS-Key III System PWR LOCK Power Door Locks HTD MIRROR Heated Mirrors RH T/LP Driver’s Side Taillamp (Export Only) RR FOG LP Fog Lamps (Export Only) CIGAR/DIC/APO FRT Cigarette Lighter, DIC, Front Auxiliary Power Outlets, Data Link T/SIG Turn Signal Switch PWR QTR VENT Interior Lamp ana Multifunciion Switch (Power Vent Switch), Auto Level FRT/WPR/WSHR Windshield Wiper/Washer Motor and Switch HAZARD Hazard Switch RR PWR SCKT Rear Electric Accessory Plug Housing DRL Daytime Running Lamp Control Module LH T/LP Passenger’s Side Taillamp (Export Only) RR DEFOG/HTD MIRROR Rear Window Defogger Relay, Heated Mirrors ON STAR OnStar SIR Inflatable Restraint Control Module HVAC BLOWER Heater-A/C Control MALL CLUSTER Instrument Cluster, Body Control Module, Electronic Level Control (ELC) Sensor and Relay, Theft, Door Ajar STOP LAMP Stoplamp Switch CLUSTER BATT Module/Electronic Brake Control Module/Electronic Brake Traction Control Module (EBCM/EBTCM) ENHANCED EVAP/AWD Evaporative Emissions (EVAP) Canister Vent Solonoid Valve, All-Wheel Drive (AWD) Blank Not Used ELC/TRAILER ELC Air Compressor and ELC Relay, Trailer Harness CTSY LAMP Courtesy Lamp IGN 1 BCM, Electronic Brake Control Indicator Lamp Driver Module, Instrument Panel Cluster, Rear Side Door Actuator Control Module, Rear Windows, Rear Parking Aid RR HVAC TEMP CONT Rear HVAC-A/C Control RR WPR/WSHR Rear Window Wiper Motor, Rear Window Wiper/Washer and Multifunction Switch (Rear Window Wiper/Washer Switch) LH HEADLP LOW Passenger’s Side Low Beam Headlamp (Expert Only) LH HEADLP HIGH Passenger’s Side High Beam Headlamp (Expert Only) Blank Not Used Blank Not Used Blank Not Used RAP RELAY Retained Accessory Power (RAP) Relay Blank Not Used HVAC/DIC/DRL/HEATED SEA Air Inlet Actuator, DIC Display, DRL Control Module, Heater-A/C Control, Temperature Door Actuator (Front) and Rear Window Defogger Relay BCM PRGRAM BCM Programming RH HEAD LP LOW Driver’s Side Low Beam Headlamp (Expert Only) RH HEAD LP HIGH Driver’s Side High Beam Headlamp (Expert Only) PCM/ABS IGN MAIN Relay and PCM, Electronic Break Control Module
This content requires JavaScript and a valid membership to view.
Assignment of the circuit breakers in the Instrument Panel (2000-2005)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Short-Code Description HEADLAMP Daytime Running Lamps (DRL) Control Module, Headlamp and Instrument Panel Dimmer Switch PWR SLD DR Power Sliding Door PWR WDO Front Power Windows PWR/HEATED SEAT PSD Six-Way Power Seats and Rear Side Door Actuator Motor FRT HVAC HI BLWR Blower Motor Hi Speed Relay in Module
This content requires JavaScript and a valid membership to view.
Assignment of the micro fuses in the Engine Compartment (2000-2005)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 18 Fuel Injectors 1-6 19 Not Used 20 Not Used 21 Evaporative Emissions (EVAP) Canister Purge Valve, Heated Oxygen Sensors 1 and 2, Mass Air Flow (MAF) Sensor 22 Not Used 23 Not Used 24 Not Used 25 Ignition Control Module (ICM) 26 Not Used 27 Transaxle Range Switch to Back-up Lamps 28 A/C CLU Relay to A/C Compressor Clutch Oil 29 Driver Information Display, Heater A/C Control, Radio, Rear Side Door Actuator Control Motor, Remote Control Door Lock Receiver (RCDLR), Security Indicator Lamp and Theft Deterrent Shock Sensor 30 Generator 31 Automatic Transaxle (Torque Converter Clutch Solenoids) Stoplamp Switch to PCM 32 Fuel Pump Relay 33 Powertrain Control Module (PCM) 34 Not Used 35 Fog Lamp Relay 36 Horn Relay 37 Daytime Running Lamps (DRL) Control Module, Headlamps and I/P Dimmer Switch Theft-Deterrent Relay to Headlamps 38 Not Used 39 Not Used 40 Mini Fuse Puller
This content requires JavaScript and a valid membership to view.
Assignment of the maxi fuses in the Engine Compartment (2000-2005)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 1 COOL FAN 2 2 – 3 HEADLAMPS 4 BATT MAIN 2 5 IGN MAIN 1 6 COOL FAN 1 7 BATT MAIN 1 8 IGN MAIN 2
This content requires JavaScript and a valid membership to view.
Assignment of the mini relays in the Engine Compartment (2000-2005)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 9 Right Fan 1, Left Fan 2 10 Left Fan 2 11 Fuses: A/C Clutch, Ignition 1-U/H, INS, Electronic Ignition, TCC 12 Right Fan 1, Left Fan 2
This content requires JavaScript and a valid membership to view.
Assignment of the micro relays in the Engine Compartment (2000-2005)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description 13 A/C Clutch 14 Fuel Pump 15 Not Used 16 Horn 17 Left Fog Lamp, Right Fog Lamp, Fog Lamp Indicator
This content requires JavaScript and a valid membership to view.
Assignment of the diode in the Engine Compartment (2000-2005)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Name Description Diode Air Conditioning Clutch Diode
This content requires JavaScript and a valid membership to view.
