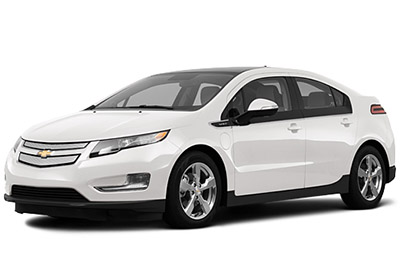

Chevrolet Volt (2011-2015)

Explore Chevrolet Volt fuse box diagrams in this helpful guide that breaks down the electrical layout of the groundbreaking first-generation model. Here we cover the first-generation Chevrolet Volt (produced from 2010 to 2015) and provide fuse diagrams for 2011, 2012, 2013, 2014 and 2015, along with the location of the fuse panels and the assignment of each fuse and relay, giving you a clear and practical reference for troubleshooting and maintenance.

Passenger compartment (Driver’s Side)

Fuse box location

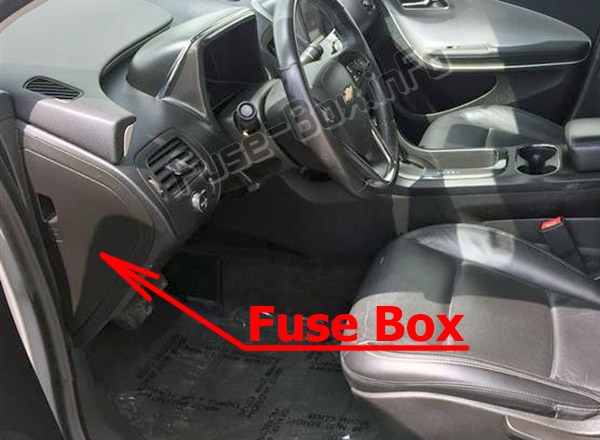

It is located on the driver’s side of the instrument panel, behind the cover.

The location of the fuses in the passenger compartment: Chevrolet Volt (2011-2015)

Fuse box diagram

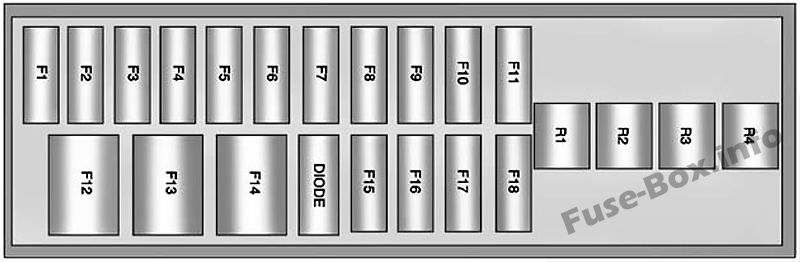

Instrument panel fuse box #1 diagram: Chevrolet Volt (2011, 2012, 2013, 2014, 2015)

Fuses

Assignment of the fuses in the Instrument Panel Fuse Box (Driver’s Side)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
F1Power Outlet – Top of IP Storage Bin
F2Radio
F3Instrument Cluster
F4Infotainment Display
F5Heating, Ventilation & Air Conditioning/ Integrated Center Stack Switches
F6Airbag (Sensing Diagnostic Module/ Passenger Sensing Module)
F72011: Data LinkConnector 1/DataLink Connector 2
2012-2015: Data Link Connector, Left (Primary)
F8Empty
F92011: Empty
2012-2015: OnStar
F10Body Control Module 1/Body Control Module Electronics/Keyless Entry/Power Moding/ Center High Mounted Stoplamp/ License Plate Lamps/Left Daytime Running Lamp/Left Parking Lamps/ Hatch Release Relay Control/ Washer Pump Relay Control/Switch Indicator Lights
F11Body Control Module 4/Left Headlamp
F12Empty
F13Empty
F14Empty
F15Power Outlet (Inside Floor Console/Rear of Floor Console)
F16Empty
F17Empty
F18Empty

Relays

Assignment of the relays in the Instrument Panel Fuse Box (Driver’s Side)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
R1Retained Accessory Power Relay for Power Outlets
R2Empty
R3Empty
R4Empty

Passenger compartment (Passenger’s Side)

Fuse box location

It is located on the on the passenger side of the instrument panel, behind the cover.

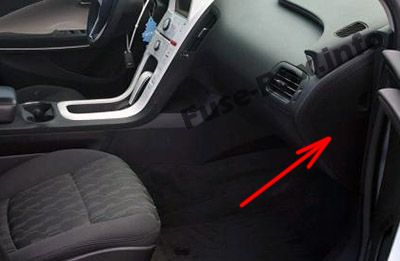

The location of the fuses in the passenger compartment: Chevrolet Volt (2011, 2012, 2013, 2014, 2015)

Fuse box diagram

Instrument panel fuse box #2 diagram: Chevrolet Volt (2011, 2012, 2013, 2014, 2015)

Fuses

Assignment of the fuses in the Instrument Panel Fuse Box (Passenger’s Side)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
F1Steering Wheel Switch Backlighting
F2Empty
F3Empty
F4Body Control Module 3/Right Flead lamp
F5Body Control Module 2/Body Control Module Electronics/Hatch Lamp/Right Daytime Running Lamp/ Shifter Lock/Switch Backlighting
F62011-2013: Body Control Module 5/Retained Accessory Power Relay Control/Right Front Turn Signal Lamp/Left Rear Stop and Turn Signal Lamp/Right Parking Lamps/Remote PRNDL

2014-2015: Empty
F7Body Control Module 6/Map Lights/Courtesy Lights/Back-up Lamp
F8Body Control Module 7/Left Front Turn Signal/Right Rear Stop and Turn Signal Lamp/Child Security Lock Relay Control
F9Body Control Module 8/Locks
F102011: OnStar
2012-2015: Data Link Connector, Right (Secondary)
F11Universal Garage Door Opener (If Equipped)
F12Blower Motor
F13Empty
F14Empty
F15Empty
F16Empty
F17Empty
F18Empty

Relays

Assignment of the relays in the Instrument Panel Fuse Box (Passenger’s Side)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
R1Empty
R2Empty
R3Empty
R42011: Empty
2012-2015: Child Lockout Relay

Engine compartment

Fuse box location

It is located in the engine compartment on the driver’s side.

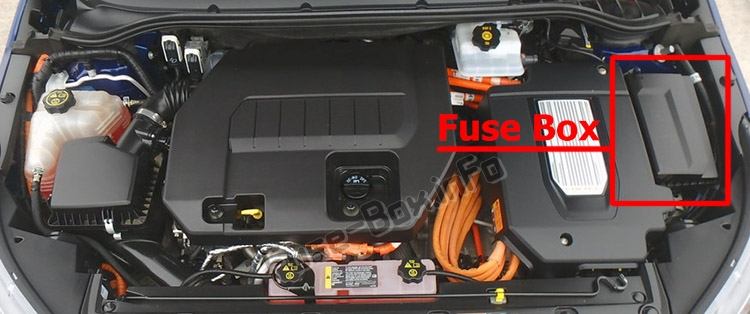

The location of the fuses in the engine compartment: Chevrolet Volt (2011-2015)

Fuse box diagram

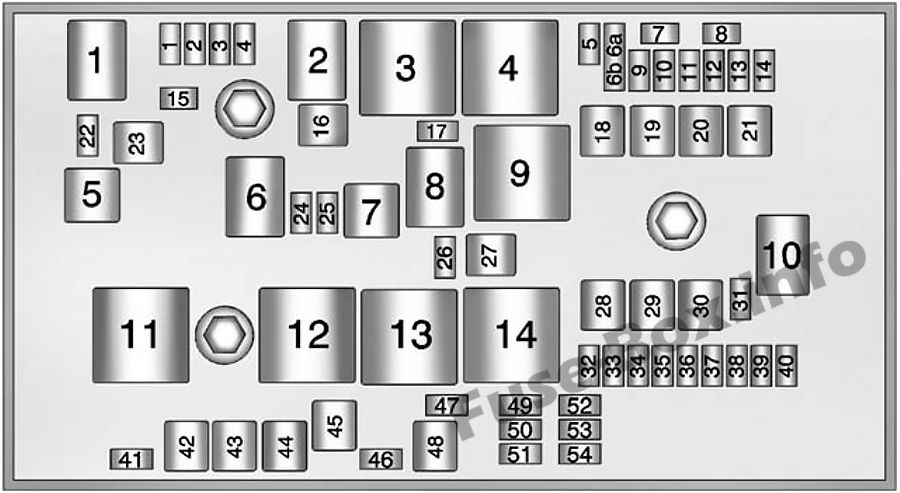

Under-hood fuse box diagram: Chevrolet Volt (2011, 2012, 2013, 2014, 2015)

Fuses

Assignment of the fuses in the Engine Compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
1Engine Control Module – Switched Power
2Emissions
3Not Used
4Ignition Coils/ Injectors
5Not Used
6aEmpty
6bEmpty
7Empty
8Empty
9Heated Mirrors
10Air Conditioning Control Module
11Traction Power Inverter Module -Battery
122011: Cabin Heater Pump and Valve
2012-2015: Not Used
132011: Not used
2012-2015: Cabin Heater Pump and Valve
14Not Used
15Traction Power Inverter Module and Transmission Control Module -Battery
17Engine Control Module – Battery
22Left High -Beam Headlamp
24Empty
25Empty
26Not Used
312011: RechargeableE nergy Storage System (High Voltage Battery) Coolant Pump2012-2015: Not Used
322011: Sensing Diagnostic Module–Run/Crank2012-2015: Run/Crank -Sensing Diagnostic Module (SDM), Instrument Cluster, Passenger Airbag Display, Automatic Dimming Inside Rearview Mirror (If Equipped)
332011: Run/Crank for Fuel System Control Module/Vehicle Integration Control Module2012-2015: Run/Crank for Vehicle Integration Control Module
34Vehicle Integration Control Module -Battery
352011: Power ElectronicsCoolant Pump
2012-2015: Not Used
362011: Not used2012-2015: Power Electronics Coolant Pump
37Cabin Heater Control Module
382011: Empty2012-2015: Rechargeable Energy Storage System (High Voltage Battery) Coolant Pump
39Rechargeable Energy Storage System (High Voltage Battery) Control Module
40Front Windshield Washer
41Right High-Beam Headlamp
46Empty
47Empty
49Empty
502011: Rear Vision Camera–Run/Crank (If Equipped)2012-2015: Run/Crank – Rear Vision Camera, Accessory Power Module
512011: Run/Crank for ABS/Rechargeable Energy Storage System (High Voltage Battery)/Charger2012-2015: Run/Crank for ABS/ Rechargeable Energy Storage System (High Voltage Battery)
52Engine Control Module/ Transmission Control Module -Run/Crank
53Traction Power Inverter Module -Run/Crank
542011: Run/Crank for Air Conditioning Control Module/Instrument Cluster/Passenger Airbag Display/Accessory Power Module2012-2015: Run/Crank – Fuel System Control Module, Air Conditioning Control Module, On Board Charger

J-Case fuses

Assignment of the J-Case fuses in the Engine Compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
162011: Empty
2012-2015: AIR Solenoid (PZEV Only)
18Empty
19Power Window -Front
20Empty
21Antilock Brake System Electronic Control Unit
232011-2013: Charge Port Door
2014-2015: Empty
272011: Empty
2012-2015: AIR Pump (PZEV Only)
28Empty
29Empty
30Antilock Brake System Motor
42Cooling Fan – Right
43Front Wipers
44Charger
45Empty
48Cooling Fan – Left

Mini relays

Assignment of the mini relays in the Engine Compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
3Powertrain
4Heated Mirrors
7Empty
92011: Empty
2012-2015: AIR Pump (PZEV Only)
11Empty
12Empty
13Empty
14Run/Crank

Micro relays

Assignment of the micro relays in the Engine Compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
1Empty
22011: Empty
2012-2015: AIR Solenoid (PZEV Only)
6Empty
8Empty
10Empty

Ultra micro relays

Assignment of the ultra micro relays in the Engine Compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
52011-2013: Charge Port Door
2014-2015: Empty

Luggage compartment

Fuse box location

It is located behind a cover on the left side of the rear compartment.

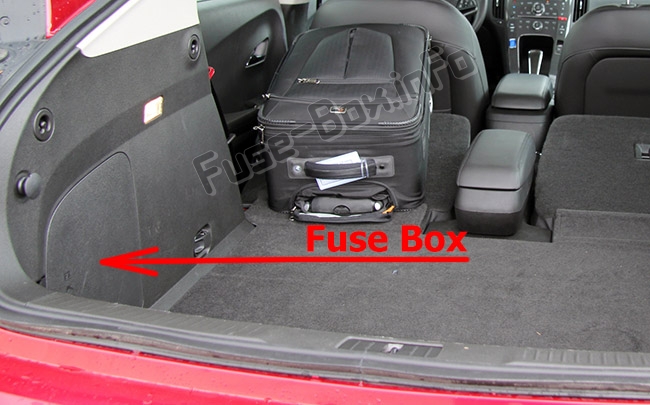

The location of the fuses in the trunk: Chevrolet Volt (2011-2015)

Fuse box diagram

2011-2012

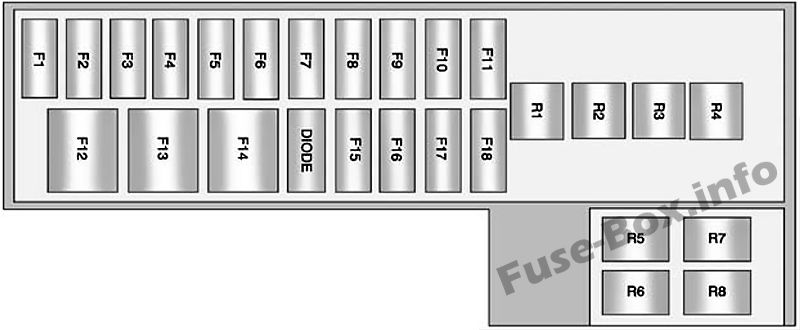

Trunk fuse box diagram: Chevrolet Volt (2011, 2012)

2013-2015

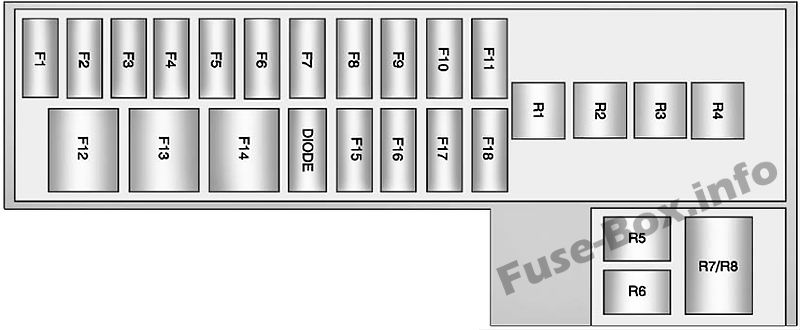

Trunk fuse box diagram: Chevrolet Volt (2013, 2014, 2015)

Fuses

Assignment of the fuses in the Luggage Compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
F1Empty
F2Fuel System Control Module
F3Passive Start/ Passive Entry Module
F4Heated Seats (If Equipped)
F5Driver Door Switches (Outside Rearview Mirror/ Charge Port Door Release/Refuel Request/Driver Window Switch)
F6Fuel (Diurnal Valve and Evap. Leak Check Module)
F7Accessory Power Module Cooling Fan
F8Amplifier (If Equipped)
F9Empty
F10Regulated Voltage Control/Front and Rear Parking Assist (If Equipped)
F11Horn
F12Rear Power Windows
F13Electric Parking Brake
F14Rear Defog
F15Empty
F16Hatch Release
F17Empty
F18Empty

Relays

Assignment of the relays in the Luggage Compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
R1Rear Defog
R2Hatch Release
R3Empty
R4Empty
R5Empty
R6Empty
R7/R82013-2015: Horn
R72011-2012: Empty
R82011-2012: Horn
