Explore Chrysler 300C fuse box diagrams in this simple guide built to make electrical troubleshooting a bit easier. Here we cover the first-generation Chrysler 300C (2004–2010) (Model Codes: Mk1, LX) and provide fuse diagrams for 2005, 2006, 2007, 2008, 2009 and 2010, along with the location of the fuse panels and the assignment of each fuse, helping you track down issues without the hassle.

What’s Included

Fuse box locations

Engine compartment

Front Power Distribution Center is located in the engine compartment:

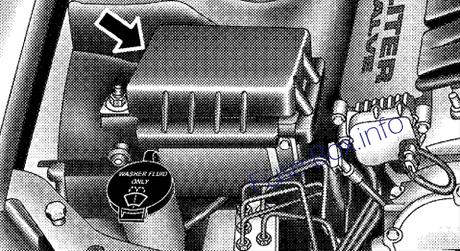

2005-2007

2008-2010

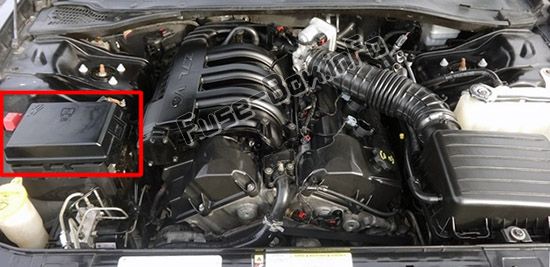

The location of the fuses in the engine compartment: Chrysler 300 / 300C (2008, 2009, 2010)

Luggage compartment

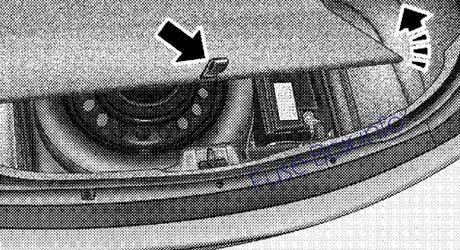

Rear Power Distribution Center is located in the trunk under the spare tire access panel.

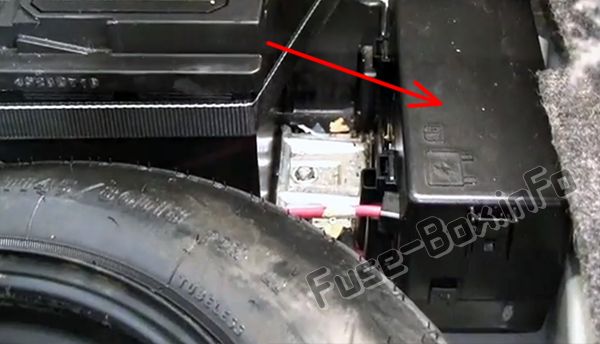

The location of the fuses in the trunk: Chrysler 300 / 300C (2005, 2006, 2007, 2008, 2009, 2010)

Fuse box diagrams

2005, 2006, 2007

Engine compartment

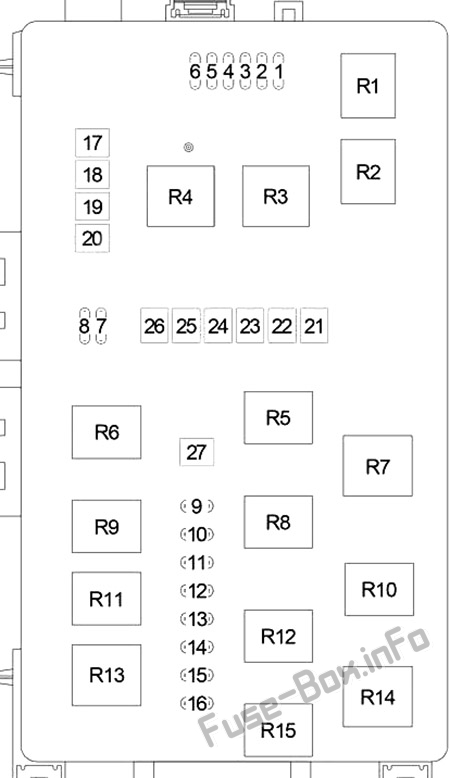

Front Power Distribution Center (fuse box): Chrysler 300 / 300C (2006, 2007)

Assignment of fuses in the Front Power Distribution Center

Fuse Data

Full access is available to registered users — log in or register.

Cavity	Cartridge Fuse	Mini Fuse	Description
1	—	20 Amp Yellow	Left High Intensity Discharge (HID) Headlight – if equipped
2	—	20 Amp Yellow	Right High Intensity Discharge (HID) Headlight – if equipped
3	—	15 Amp Blue	Adjustable Pedals – if equipped
4	—	20 Amp Yellow	AC Clutch/Horn
5	—	20 Amp Yellow	Headlight Washer – If Equipped
6	—	15 Amp Blue	Front Control Module (FCM)
7	—	20 Amp Yellow	Fog Lights – if equipped
8	—	15 Amp Blue	Lights – License, Park, Side Marker, Stop. Turn
9	—	15 Amp Blue	Front Control Module (FCM)
10	—	5 Amp Orange	Powertrain Control Module (PCM)/Starter
11		25 Amp Clear	Auto Shutdown/ Powertrain Control Module (PCM)
12	—	—	—
13	—	—	—
14	—	25 Amp Clear	Powertrain Control Module (PCM)
15	—	20 Amp Yellow	Injectors, Ignition Coils
16	—	—	—
17	30 Amp Pink	—	Anti-lock Brakes System (ABS) Valves – if equipped/Powertrain Control Module (PCM)
18	30 Amp Pink	—	Windshield Wiper/ Washer
19	50 Amp — Red	—	Radiator Fan
20	20 Amp Blue	—	Starter
21	50 Amp — Red	—	Anti-lock Brakes System (ABS) Pump Motor – if equipped
22	40 Amp — Green	—	AC Clutch/Radiator Fan High — Low
23	50 Amp — Red	—	High Intensity Lighting (HID) – if equipped
24	60 Amp Yellow	—	Radiator Fan – AWD
25	30 Amp Pink	—	Front Control Module (FCM)
26	20 Amp — Blue	—	Transmission – RLE
27	30 Amp Pink	—	Front Control Module (FCM)

Luggage compartment

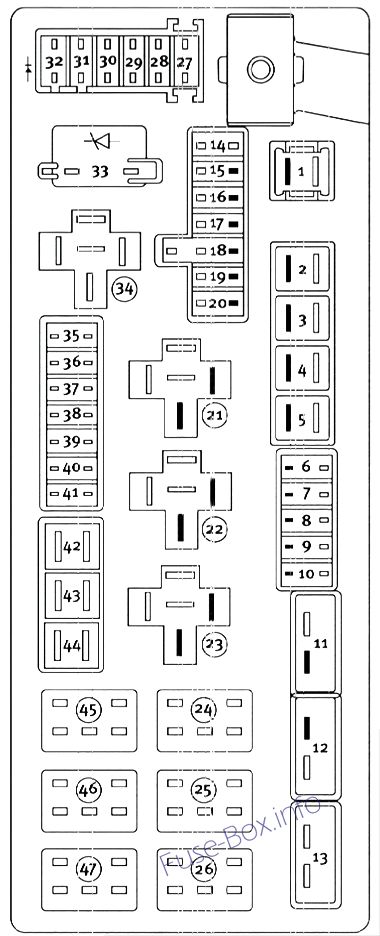

Rear Power Distribution Center (fuse box): Chrysler 300 / 300C (2006, 2007)

Assignment of fuses in the Rear Power Distribution Center

Fuse Data

Full access is available to registered users — log in or register.

Cavity	Cartridge Fuse	Mini Fuse	Description
1	60 Amp Yellow	—	Ignition Off Draw (IOD)
2	40 Amp Green	—	Battery
3	—	—	—
4	40 Amp Green	—	Battery
5	30 Amp Pink	—	Heated Seats – if equipped
6	—	20 Amp Yellow	Fuel Pump
7	—	—	—
8	—	15 Amp Blue	Ignition Switch/Airbag Control Module (ACM)
9	—	20 Amp Yellow	Console Power Outlet
10	—	—	—
11*	25 Amp C/BRKR	—	Cluster – without power memory seat/Driver Seat Switch – with power memory seat/Memory Module – if equipped
12*	25 Amp C/BRKR	—	Passenger Seat Switch
13*	25 Amp C/BRKR	—	Door Modules – except base/ Driver Door Lock Switch – base/Driver Express Power Window Switch – if equipped/ Passenger Door Lock Switch – base
14		10 Amp Red	AC Heater Control/ Cluster/Sentry Key Remote Keyless Entry
15	—	20 Amp Yellow	Trailer Tow Brake Module – if equipped
16	—	—	—
17	—	20 Amp Yellow	Cluster
18	—	20 Amp Yellow	Selectable Power Outlet
19	—	10 Amp Red	Stop Lights
20	—	—	—
21	—	—	—
22	—	—	—
23	—	—	—
24	—	—	—
25	—	—	—
26	—	—	—
27	—	10 Amp Red	Airbag/Airbag Control Module (ACM)
28	—	10 Amp Red	Curtain Airbag – if equipped
29	—	5 Amp Orange	Anti-lock Brakes Module – if equipped/Cluster/Front Control Module (FCM)/Powertrain Control Module (PCM)/Sentry Key Remote Keyless Entry/Stop Lights
30	—	10 Amp Red	Door Modules/Power Mirrors – if equipped/ Steering Control Module
31	—	—	—
32	—	—	—
33	—	—	—
34	—	—	—
35	—	5 Amp Orange	Amplifier – if equipped/ Antenna/Ignition Delay/Overhead Console/Passenger Door Lock & Express Power Window Switch – if equipped/Power Mirrors – if equipped/Rain Sensor – if equipped/ Rear Defrost
36	—	20 Amp Yellow	Hands Free Phone – if equipped/Media System Monitor DVD – if equipped/Radio/Satellite Receiver – if equipped
37	—	15 Amp Blue	Transmission – NAG1
38	—	5 Amp Orange	Analog Clock/Cargo Light/Overhead Console
39	—	10 Amp Red	Heated Mirrors – if equipped
40	—	5 Amp Orange	Heated Seats – if equipped/Inside Rearview Mirror
41	—	10 Amp Red	AC Heater Control/Park Assist – if equipped/Tire Pressure Monitoring – if equipped
42	30 Amp Pink	—	Front Blower Motor
43	30 Amp Pink	—	Amplifier – if equipped/ Antenna/Rear Defrost
44	20 Amp Blue	—	Amplifier – if equipped/ Front Control Module (FCM)/Sunroof – if equipped

2008, 2009, 2010

Engine compartment

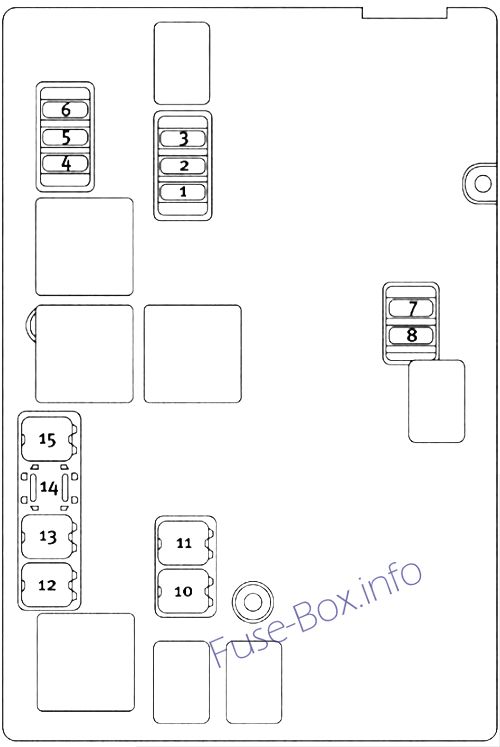

Front Power Distribution Center (fuse box): Chrysler 300 / 300C (2010)

Assignment of fuses in the Front Power Distribution Center

Fuse Data

Full access is available to registered users — log in or register.

Cavity	Cartridge Fuse	Mini-Fuse	Description
1	—	15 Amp Blue	Washer Motor
2	—	25 Amp Neutral	Powertrain Control Module (PCM)
3	—	25 Amp Neutral	Ignition Run/Start
4	—	25 Amp Neutral	Alternator/EGR Solenoid
5	—	—	—
6	—	25 Amp Neutral	Ignition Coils/Injectors/ Short Runner Valve
7	—	—	—
8	—	25 Amp Neutral	Starter
9	—	—	—
10	30 Amp Pink	—	Windshield Wiper
11	30 Amp Pink	—	Anti-Lock Brake System (ABS) Valves – If Equipped
12	40 Amp Green	—	Radiator Fan
13	50 Amp Red	—	Anti-Lock Brake System (ABS) Pump Motor – If Equipped
14	— / 60 Amp Yellow	—	— / Radiator Fan
15	50 Amp Red	—	Radiator Fan
16	—	—	—
17	—	—	—
18	—	—	—
19	—	—	—
20	—	—	—
21	—	—	—
22	—	—	—

Luggage compartment

Rear Power Distribution Center (fuse box): Chrysler 300 / 300C (2010)

Assignment of fuses in the Rear Power Distribution Center

Fuse Data

Full access is available to registered users — log in or register.

Cavity	Cartridge Fuse	Mini-Fuse	Description
1	60 Amp Yellow	–	Ignition Off Draw (IOD) Cavity 1 of the Rear Power Distribution Center contains a black IOD fuse needed for vehicle processing during assembly. The service replacement part is a 60 Amp yellow cartridge fuse.
2	40 Amp Green	–	Integrated Power Module (IPM)
3	–	–	–
4	40 Amp Green	–	Integrated Power Module (IPM)
5	30 Amp Pink	–	Heated Seats – If Equipped
6	–	20 Amp Yellow	Fuel Pump
7	–	15 Amp Blue	Rear Heated Seats – If Equipped
8		15 Amp Blue	Diagnostic Link Connector (DLC)/Wireless Control Module (WCM)/ Wireless Ignition Node (WIN)
9	–	20 Amp Yellow	Power Outlet
10	–	–	–
11 *	25 Amp C/BRKR	–	Cluster – without power memory seat/Driver Seat Switch – with power memory seat/Memory Module – if equipped
12 *	25 Amp C/BRKR	–	Passenger Seat Switch
13 *	25 Amp C/BRKR	–	Door Modules – except base/ Driver Door Lock Switch – base/Driver Express Power Window Switch – if equipped/ Passenger Door Lock Switch – base
14	–	10 Amp Red	AC Heater Control/ Cluster/Security Module – If Equipped
15	–	20 Amp Yellow	Trailer Tow Brake Module – If Equipped
16	–	–	–
17	–	20 Amp Yellow	Cluster
18	–	20 Amp Yellow	Selectable Power Outlet
19	–	10 Amp Red	Stop Lights
20	–	–	–
21	–	–	–
22	–	–	–
23	–	–	–
24	–	–	–
25	–	–	–
26	–	–	–
27	–	10 Amp Red	Occupant Restraint Controller (ORC)
28	–	10 Amp Red	Ignition Run, AC Heater Control/Headlights/ Park Assist – If Equipped/Tire Pressure Monitoring – If Equipped /Occupant Restraint Controller (ORC)
29	–	5 Amp Orange	Adaptive Cruise Control (ACC) – If Equipped/ Cluster/Electronic Stability Program (ESP) – If Equipped/Powertrain Control Module (PCM)/ STOP LIGHT Switch
30	–	10 Amp Red	Door Modules/Power Mirrors/Steering Control Module (SCM)
31	–	–	–
32	–	–	–
33	–	–	–
34	–	–	–
35	–	5 Amp Orange	Antenna Module – If Equipped /Power Mirrors/Rain Sensor – If Equipped
36	–	25 Amp Natural	Hands-Free Phone – If Equipped/Video Monitor – If Equipped /Radio
37	–	15 Amp Blue	Transmission
38	–	10 Amp Red	Analog Clock/Cargo Light/Satellite Receiver (SDARS) Video – If Equipped/Vehicle Information Module – If Equipped
39	–	10 Amp Red	Heated Mirrors – If Equipped
40	–	5 Amp Orange	Auto Inside Rearview Mirror – If Equipped/ Heated Seats – If Equipped/Switch Bank
41	–	15 Amp Blue	AWD Module – If Equipped
42	30 Amp Pink	–	Front Blower Motor
43	30 Amp Pink	–	Rear Window Defroster
44	20 Amp Blue	–	Amplifier – If Equipped/Sunroof – If Equipped

FAQ

Which fuses control the cigar lighter (power outlet) in the Chrysler 300C?

Fuses №9 (Console power outlet), №16 (Trunk power outlet, if equipped), and №18 (Selectable power outlet) in the rear power distribution center (trunk).
