Citroen C-Crosser Fuse Box Locations and Diagrams (2007-2012)
The compact SUV Citroën C-Crosser, produced from 2007 to 2012, was Citroën’s first venture into the SUV segment. Developed in collaboration with Mitsubishi (based on the Outlander platform), the C-Crosser combines French styling with Japanese engineering, offering versatility, all-wheel-drive capability, and family-friendly practicality.
In this article, you will find fuse box diagrams for the Citroën C-Crosser, covering model years 2007, 2008, 2009, 2010, 2011, and 2012. These diagrams will help you understand the fuse layout, locate the appropriate fuse panels, and identify the function of each fuse and relay.
What’s Included:
Fuse Box Diagrams – Detailed illustrations showing the location and layout of fuses and relays for each model year.
Fuse Panel Locations – Information on where to find the fuse boxes inside the Citroën C-Crosser, including cabin and engine compartments.
Fuse Assignments – Comprehensive breakdown of what each fuse controls, aiding in diagnostics and electrical repairs.
Whether you’re trying to fix a malfunctioning electrical component, replace a blown fuse, or perform routine maintenance, this guide is an essential tool for maintaining your Citroën C-Crosser’s electrical system.
Ensure optimal reliability and performance from your Citroën C-Crosser (2007–2012) with this complete fuse panel, fuse layout, and relay guide.

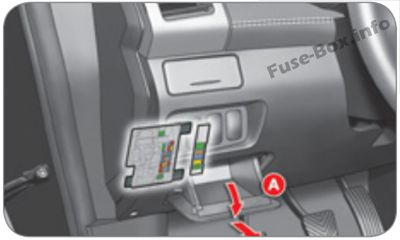

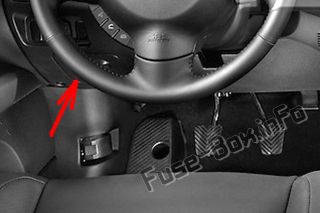

Left-hand drive vehicles: It is located at the bottom of the dashboard behind the storage compartment (on the left).

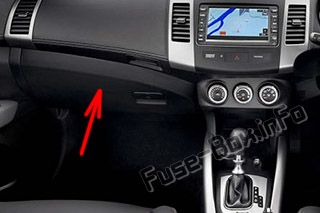

Right-hand drive vehicles: The fuse boxes are placed in the lower part of the fascia behind the glove box.

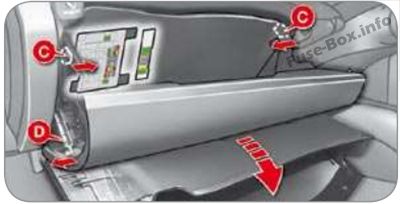

Open the glove box, push the two opening guides A inwards to pass the first notch, remove the retaining tab B pulling it outwards, support the cover and tilt it downwards.

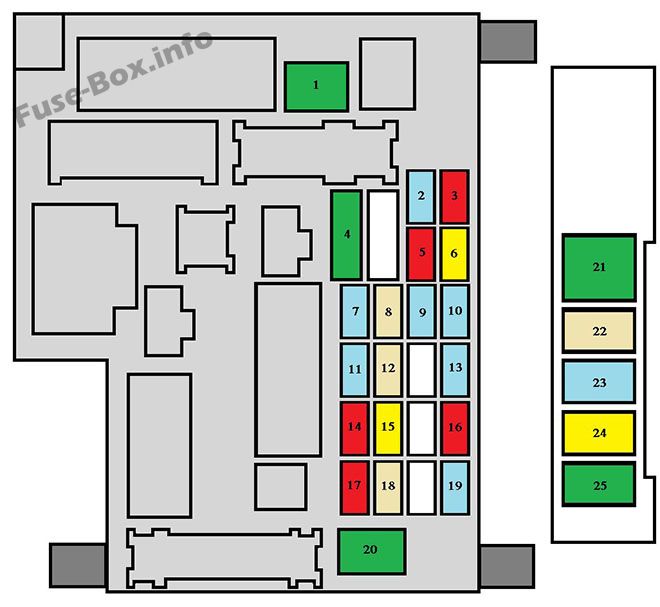

Fuse box diagram
Assignment of the fuses in the Dashboard Fuse box
№
Rating
Functions
1*
30 A
Heating.
2
15 A
Brake lamps, third brake lamp, built-in systems interface.
Remote control key, air conditioning control unit, instrument panel, switch panel, steering mounted controls.
9
15 A
Multifunction screen, instrument panel.
10
15 A
Built-in systems interface.
11
15 A
Rear wiper.
12
7.5 A
Instrument panel, 4 wheel drive control unit, air conditioning control panel, ABS control unit, multifunction screen, automatic headlamp adjustment, heated seats, airbag control unit, steering wheel angle sensor, sunroof, rear screen demisting, remote control.
13
–
Not used.
14
10 A
Ignition switch.
15
20 A
Sunroof.
16
10 A
Door mirrors, audio system, telematics.
17
10 A
4 wheel drive control unit.
18
7.5 A
Reversing lamps, parking sensors control unit, reversing camera, airbag control unit.
19
15 A
Accessory socket.
20*
30 A
Electric window controls.
21*
30 A
Rear screen demisting.
22
7.5 A
Heated door mirrors.
23
–
Not used.
24
25 A
Driver’s electric seat, footwell lighting, rear bench seat release.
25
30 A
Heated seats.
* The maxi-fuses provide additional protection for the electrical systems. All work on the maxi-fuses must be carried out by a CITROËN dealer or a qualifi ed workshop.

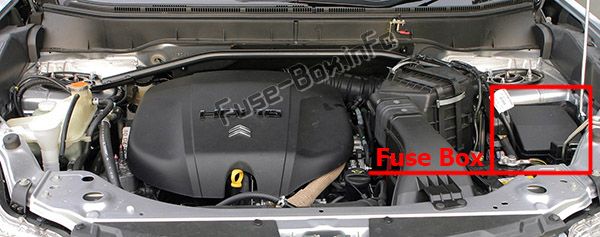

It is placed in the engine compartment near the battery (left-hand side).

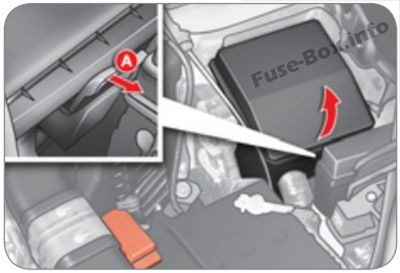

Press on the hook A to release the catch, remove the cover completely.

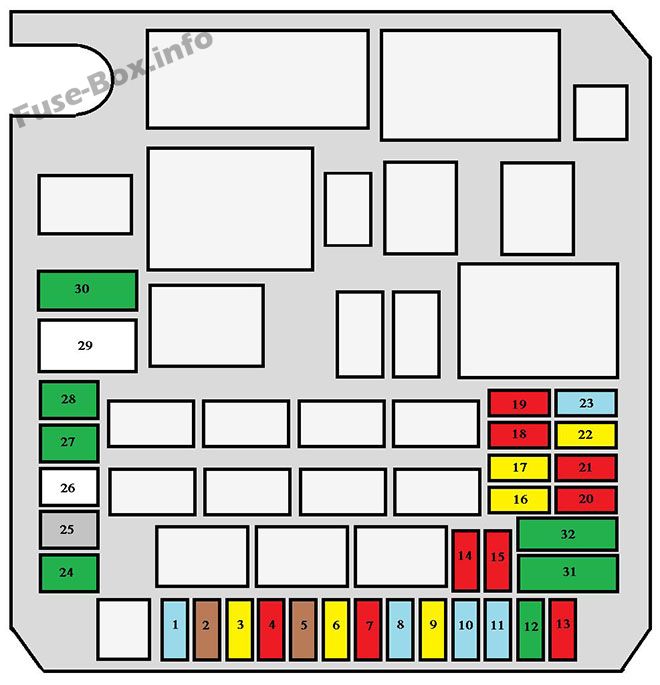

Fuse box diagram
Assignment of the fuses in the Engine compartment
№
Rating
Functions
1
15 A
Front foglamps.
2
7 A
2.4 litre 16V engine control unit.
3
20 A
CVT automatic gearbox control unit, CVT automatic gearbox control relay.
4
10 A
Horn.
5
7.5 A
2.4 litre 16V alternator.
6
20 A
Headlamp wash.
7
10 A
Air conditioning.
8
15 A
2.4 litre 16V engine control unit.
9
–
Not used.
10
15 A
Demisting, wipers.
11
–
Not used.
12
–
Not used.
13
–
Not used.
14
10 A
Left-hand main beam headlamp.
15
10 A
Right-hand main beam headlamp.
16
20 A
Left-hand dipped beam headlamp (xenon).
17
20 A
Right-hand dipped beam headlamp (xenon).
18
10 A
Left-hand dipped beam headlamp, manual and automatic headlamp adjustment.
19
10 A
Right-hand dipped beam headlamp.
20
–
Not used.
21
10 A
Ignition coils.
22
20 A
Engine control unit, water in Diesel detector, injection pump (Diesel), air flow sensor, water presence sensors, oxygen sensor, camshaft position sensor, canister purge electrovalve, vehicle speed sensor, variable timing (VTC) electrovalve, EGR electrovalve.
23
15 A
Petrol pump, fuel gauge.
24*
30 A
Starter.
25
–
Not used.
26*
40 A
ABS control unit, ASC control unit.
27*
30 A
ABS control unit, ASC control unit.
28*
30 A
Condenser fan.
29*
40 A
Radiator fan.
30
30 A
Passenger compartment fusebox.
31
30 A
Audio amplifier.
32
30 A
Diesel engine control unit.
* The maxi-fuses provide additional protection for the electrical systems. All work on the maxi-fuses must be carried out by a CITROËN dealer or a qualifi ed workshop.
