Citroen C-Elysée Fuse Box Locations and Diagrams (2012-2022)

The second-generation Citroën C-Elysée, produced from 2012 to 2022, is a practical compact sedan known for its affordability, comfort, and reliability—especially popular in emerging markets and fleet services. Designed with simplicity and functionality in mind, the C-Elysée offers straightforward mechanics and accessible maintenance.

In this article, you will find fuse box diagrams for the Citroën C-Elysée, covering model years 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, and 2022. These diagrams help you locate the correct fuse panel, understand the fuse layout, and identify the function of each fuse and relay.

What’s Included:

Fuse Box Diagrams – Clear illustrations showing fuse and relay placements for each year and variant.
Fuse Panel Locations – Detailed guidance on where to find the fuse boxes inside the Citroën C-Elysée.
Fuse Assignments – Explanations of what each fuse controls, useful for diagnosing and resolving electrical issues.

Whether you’re troubleshooting an electrical fault, replacing a fuse, or simply doing maintenance, this guide ensures quick and accurate access to your C-Elysée’s electrical system.

Keep your Citroën C-Elysée (2012–2022) in reliable condition with this complete fuse panel and relay guide.

What’s Included

Fuse box location

Dashboard fuse box

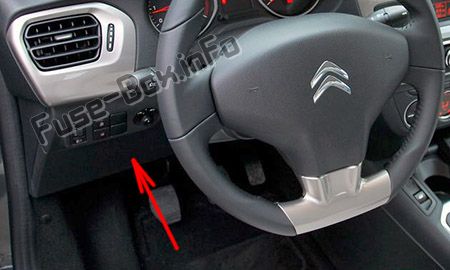

It is located in the lower dashboard (left-hand side).

The location of the fuses in the passenger compartment: Citroen C-Elysee

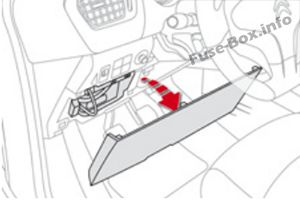

Unclip the cover by pulling at the top right, then left, disengage the cover completely and turn it over.

Engine compartment

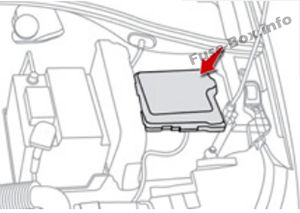

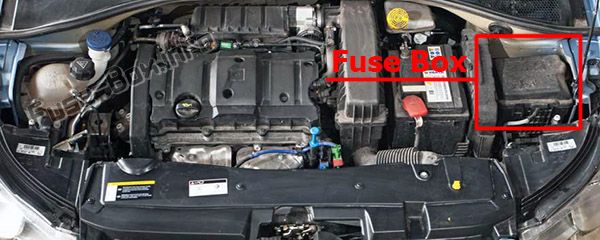

The fuse box is located in the engine compartment near the battery (left-hand side).

Fuse box diagrams

2012

Dashboard

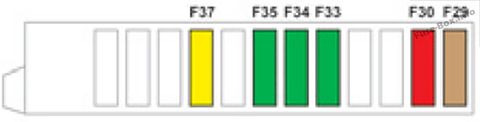

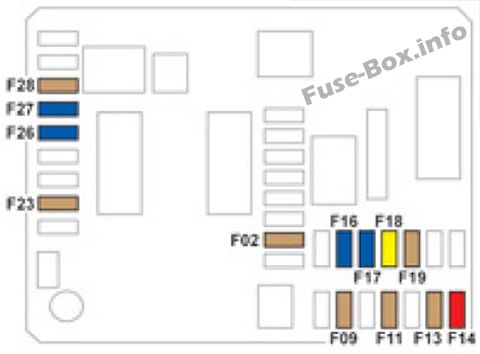

Assignment of the fuses in the Dashboard Fuse box (2012)

№	Rating	Functions
F02	5 A	Headlamp adjusters, diagnostic socket, air conditioning panel.
F09	5 A	Alarm, alarm (accessory).
F11	5 A	Additional heating.
F13	5 A	Parking sensors, parking sensors (accessory).
F14	10 A	Air conditioning panel.
F16	15 A	Cigarette lighter, 12 V socket.
F17	15 A	Audio system, audio system (accessory).
F18	20 A	Audio system / Bluetooth, audio system (accessory).
F19	5 A	Monochrome screen C.
F23	5 A	Courtesy lamps, map reading lamps.
F26	15 A	Horn.
F27	15 A	Screenwash pump.
F28	5 A	Anti-theft.
F29	25 A	Heated rear window.
F30	10 A	Heated door mirrors.
F31	–	Not used.
F32	–	Not used.
F33	30 A	Front electric windows.
F34	30 A	Rear electric windows.
F35	30 A	Heated front seats.
F36	–	Not used.
F37	20 A	Trailer interface.

Engine compartment

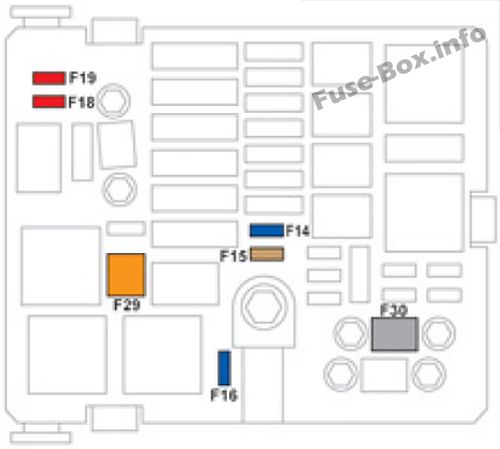

Under-hood fuse box diagram: Citroen C-Elysee (2012)

Assignment of the fuses in the Engine compartment

№	Rating	Functions
F14	15 A	Heated lower windscreen.
F15	5 A	Air conditioning compressor.
F16	15 A	Front foglamps.
F18	10 A	Right hand main beam headlamp.
F19	10 A	Left hand main beam headlamp.
F29	40 A	Front wiper motor.
F30	80 A	Pre-heater plugs (Diesel).

2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022

Dashboard

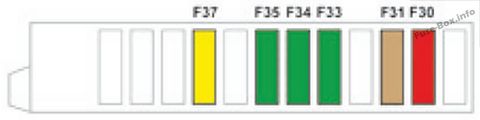

Instrument panel fuse box diagram: Citroen C-Elysee (2015, 2016, 2017)

Assignment of the fuses in the Dashboard Fuse box (2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022)

№	Rating	Functions
F02	5 A	Headlamp adjusters, diagnostic socket, air conditioning panel.
F09	5 A	Alarm, alarm (accessory).
F11	5 A	Additional heating.
F13	5 A	Parking sensors, parking sensors (accessory).
F14	10 A	Air conditioning panel.
F16	15 A	Cigarette lighter, 12 V socket.
F17	15 A	Audio system, audio system (accessory).
F18	20 A	Audio system / Bluetooth, audio system (accessory).
F19	5 A	Monochrome screen C.
F23	5 A	Courtesy lamps, map reading lamps.
F26	15 A	Horn.
F27	15 A	Screenwash pump.
F28	5 A	Anti-theft.
F29	–	Not used.
F30	10 A	Heated door mirrors.
F31	25 A	Heated rear window
F32	–	Not used.
F33	30 A	Front electric windows.
F34	30 A	Rear electric windows.
F35	30 A	Heated front seats.
F36	–	Not used.
F37	20 A	Trailer interface.

Engine compartment

Under-hood fuse box diagram: Citroen C-Elysee (2015, 2016, 2017)

Assignment of the fuses in the Engine compartment (2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022)

№	Rating	Functions
F14	15 A	Heated lower windscreen.
F15	5 A	Air conditioning compressor.
F16	15 A	Front foglamps.
F18	10 A	Right hand main beam headlamp.
F19	10 A	Left hand main beam headlamp.
F29	40 A	Front wiper motor.
F30	80 A	Pre-heater plugs (Diesel).

FAQ

Which fuse controls the cigar lighter and power outlet in the Citroën C-Elysée?

In the Citroën C-Elysée, the cigar lighter and power outlet are protected by fuse F16, located in the Instrument Panel Fuse Box.
