Citroen C4 Aircross Fuse Box Locations and Diagrams (2012-2017) Fuse Box Diagrams and Locations

The Citroën C4 Aircross is a compact crossover SUV that was produced from 2012 to 2017, developed in collaboration with Mitsubishi and sharing its platform with the Mitsubishi ASX. Combining French styling with Japanese engineering, the C4 Aircross offers practicality, comfort, and available all-wheel drive, making it a versatile option for both city driving and light off-road use.

In this article, you will find fuse box diagrams for the Citroën C4 Aircross, covering model years 2012, 2013, 2014, 2015, 2016, and 2017. These diagrams help vehicle owners and technicians locate and identify each fuse and relay in the system.

What’s Included:

Fuse Box Diagrams – Clear layouts of all fuses and relays for fast identification.
Fuse Panel Locations – Step-by-step instructions to find fuse boxes inside the cabin and engine bay.
Fuse Assignments – Detailed listings of what each fuse controls to simplify diagnostics and repairs.

Whether you’re replacing a faulty fuse, resolving an electrical issue, or performing regular maintenance, this guide provides essential information to keep your Citroën C4 Aircross (2012–2017) in optimal condition.

What’s Included

Dashboard

Fuse box location

Left-hand drive vehicles: the fuse box is located in the lower dashboard (left-hand side), behind the cover.

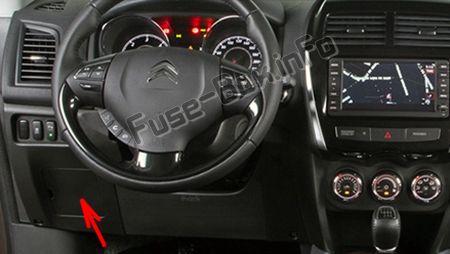

The location of the fuses in the passenger compartment (LHD): Citroen C4 Aircross (2012-2017)

Open the cover and remove it completely by pulling it towards you.

Right-hand drive vehicles: the fuses are located in the lower dashboard behind the glove box.

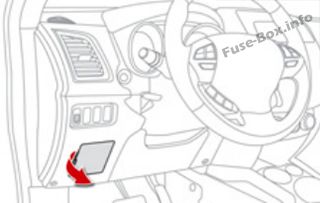

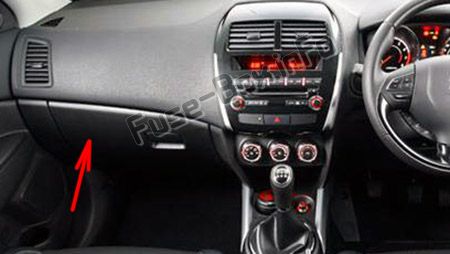

The location of the fuses in the passenger compartment (RHD): Citroen C4 Aircross (2012-2017)

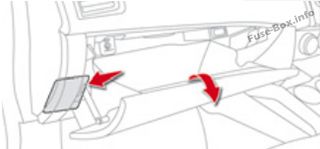

Open the glove box, push the two opening guides towards the middle to by-pass the first catch, hold the glove box lid and tilt it downwards.

Fuse box diagram

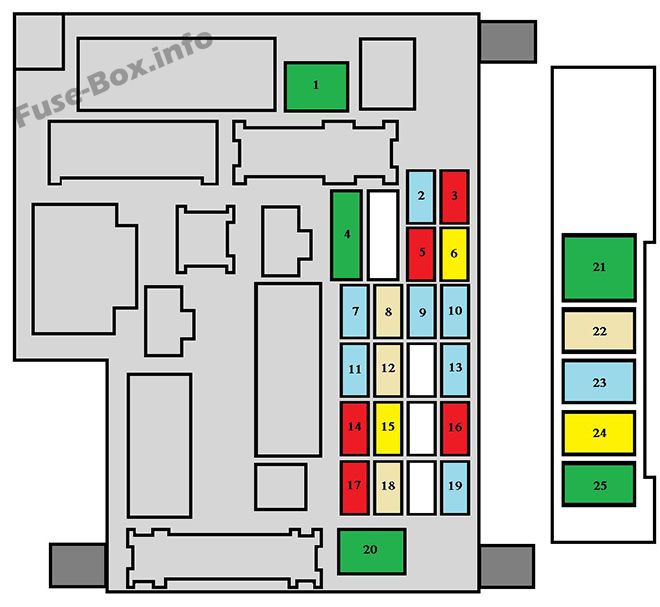

Assignment of the fuses in the Dashboard Fuse box

Fuse Data

Full access is available to registered users — log in or register.

N°	Rating	Functions
1*	30 A	Cabin fan.
2	15 A	Brake lamps, third brake lamp.
3	10 A	Rear foglamps.
4	30 A	Windscreen wiper, screenwash.
6	20 A	Central locking, electric door mirrors.
7	15 A	Audio equipment, telematics, USB unit, Bluetooth system.
8	7.5 A	Remote control key, air conditioning control unit, instrument panel, electric windows, rain and sunshine sensors, alarm, switch panel, steering mounted controls.
9	15 A	Instrument panel and interior lighting.
10	15 A	Hazard warning lamps.
11	15 A	Rear wiper.
12	7.5 A	Instrument panel, multifunction screen, parking sensors, heated seats, heated rear screen, electric blind, automatic headlamp adjustment.
13	15 A	Cigarette lighter, accessory socket.
15	20 A	Electric blind.
16	10 A	Door mirrors, audio equipment.
18	7.5 A	Reversing lamps.
19	15 A	Accessory socket.
20*	30 A	Electric window controls.
21*	30 A	Heated rear screen.
22	7.5 A	Heated door mirrors.
24	25 A	Driver’s and passenger’s electric seat.
25	30 A	Heated seats.
		* The maxi-fuses provide additional protection for the electrical systems. All work on the maxi-fuses must be carried out by a CITROËN dealer or a qualified workshop

Engine compartment

Fuse box location

It is placed in the engine compartment (left-hand side).

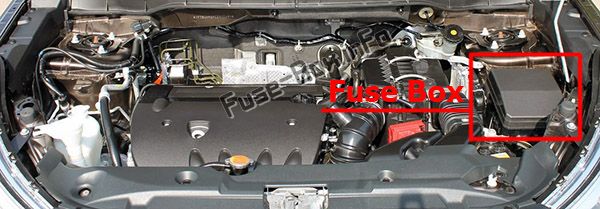

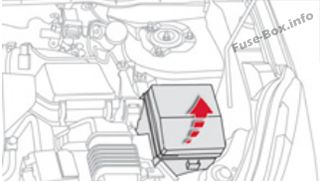

The location of the fuses in the engine compartment: Citroen C4 Aircross (2012-2017)

Fuse box diagram

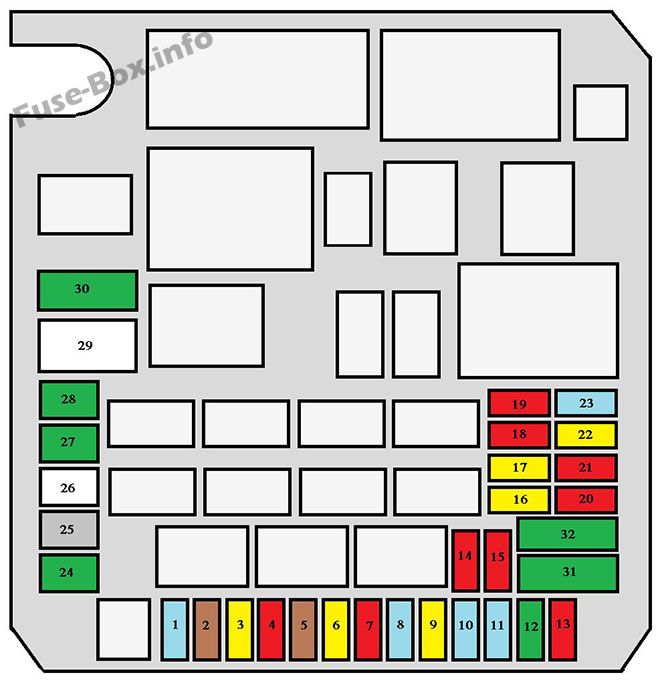

Assignment of the fuses in the Engine compartment Fuse box

Fuse Data

Full access is available to registered users — log in or register.

N°	Rating	Functions
1	15 A	Front foglamps.
4	10 A	Horn.
5	7.5 A	Alternator.
6	20 A	Headlamp wash.
7	10 A	Air conditioning.
9	20 A	Alarm.
10	15 A	Demisting, wipers.
11	–	Not used.
12	–	Not used.
13	10 A	Daytime running lamps.
14	10 A	Left-hand main beam headlamp.
15	10 A	Right-hand main beam headlamp.
16	20 A	Left-hand dipped beam headlamp (xenon).
17	20 A	Right-hand dipped beam headlamp (xenon).
18	10 A	Left-hand dipped beam headlamp (halogen), manual and automatic headlamp adjustment.
19	10 A	Right-hand dipped beam headlamp (halogen).
31	30 A	Audio amplifier.

FAQ

Which fuses control the cigar lighter and power outlets in the Citroën C4 Aircross?

In the Citroën C4 Aircross (2012–2017), the fuses responsible for the cigar lighter and accessory power sockets are located in the instrument panel fuse box:
Fuse #13 – 15A: Controls the cigarette lighter and front accessory socket.
Fuse #19 – 15A: Controls the rear accessory socket.
