Citroen C4 Picasso Fuse Box Locations and Diagrams (2006-2013)
The first-generation Citroën C4 Picasso, produced from 2006 to 2013, is a stylish and versatile compact MPV that combines French design flair with family-friendly functionality. Available in both 5-seater and 7-seater (Grand Picasso) variants, it offered innovative features such as a panoramic windscreen, modular seating, and efficient diesel and petrol engine options.
In this article, you will find fuse box diagrams for the Citroën C4 Picasso, covering model years 2006, 2007, 2008, 2009, 2010, 2011, 2012, and 2013. These diagrams are essential for understanding the electrical layout of the vehicle, assisting owners and technicians in locating and identifying the correct fuses and relays.
What’s Included:
Fuse Box Diagrams – Visual references showing the layout and numbering of fuses and relays.
Fuse Panel Locations – Clear directions for locating the fuse boxes within the vehicle’s cabin and engine compartment.
Fuse Assignments – Detailed descriptions of what each fuse and relay controls for easier troubleshooting and maintenance.
Whether you’re replacing a faulty fuse, resolving an electrical issue, or simply learning more about your vehicle’s systems, this guide offers a reliable reference for maintaining your Citroën C4 Picasso (2006–2013) in top condition.
Within the glove compartment, there are two fuse boxes; additionally, one fuse box can be found in the engine bay and another one located on the battery.

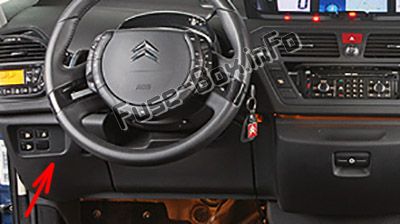

Dashboard

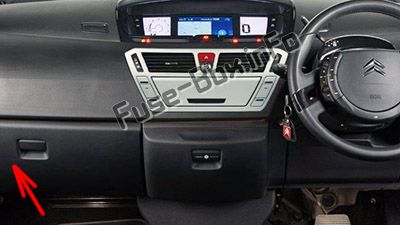

Left-hand drive vehicles:
Unclip the cover by pulling at the top right, then left; pull the cover down.

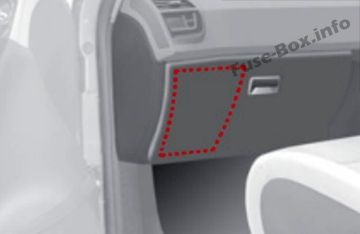

Right-hand drive vehicles:

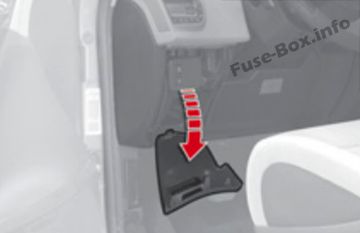

Open the lower glovebox, undo the screw by a quarter turn and pivot the housing.

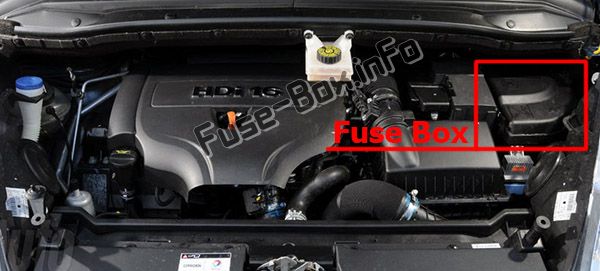

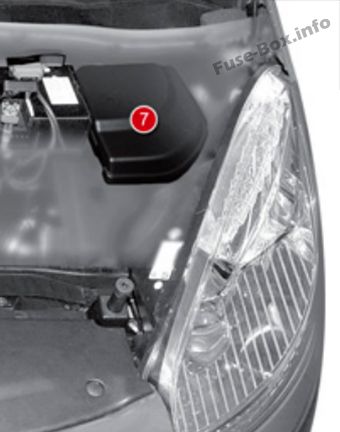

Engine compartment

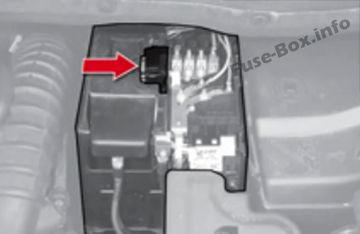

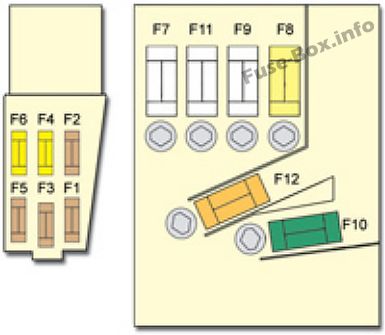

Fuses on the battery
Detach and remove the cover.
Fuse box diagrams
2007
Dashboard

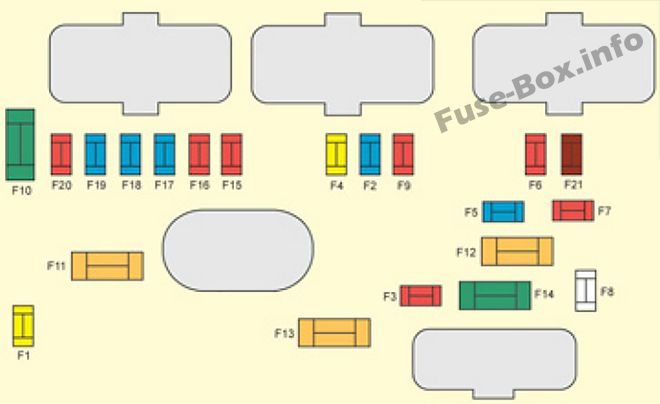

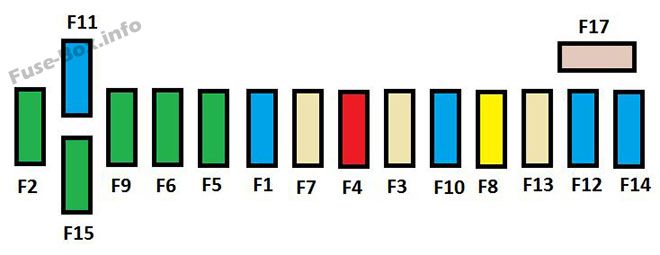

Dashboard Fuse box #1

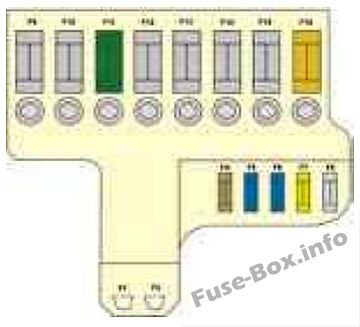

Assignment of the fuses in the Dashboard Fuse box 1 (2007)
Reference
Rating
Functions
F1
15A
Rear screen wipe
F2
30A
Locking and unlocking earth
F3
5A
Airbag
F4
10A
Multimedia, photochromic rear view mirror, particle flter, diagnostic socket, air conditioning, headlamp height correction control
F5
30A
Front windows, front door electronics, panoramic glass roof

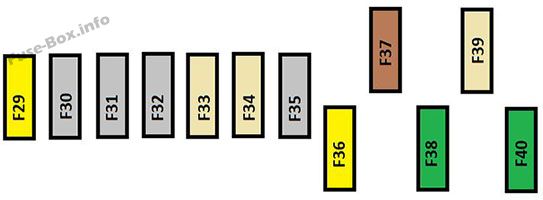

Assignment of the fuses in the Dashboard Fuse box 2 (2008-2013)
N°
Rating
Functions
F29
20 A
Heated seats
F30
–
Not used
F31
40 A
Trailer relay unit
F32
15 A
Rear 12 V socket
F33
5 A
Parking sensors, automatic rain sensitive wipers and automatic illumination of headlamps, passenger’s electric seat, lane departure warning system, Hi-Fi amplifier
Which fuses control the cigar lighter and power outlets in the Citroën C4 Picasso?
In the Citroën C4 Picasso I, the cigar lighter and power outlet fuses are: Fuse F9: Cigar Lighter, Front 12V Socket (located in the Instrument Panel Fuse Box) For 2006–2007: Fuse F8: Rear 12V Socket (located on the battery) Since 2008: Fuse F32: Rear 12V Socket (located in the Second Instrument Panel Fuse Box)
