The compact 5-door hatchback Citroën DS4, produced from 2010 to 2018, combined stylish design with practical features and a premium driving experience. With its elevated seating position, distinctive coupe-like silhouette, and a variety of petrol and diesel engine options, the DS4 carved a unique niche in the compact hatchback segment.
In this article, you will find fuse box diagrams for the Citroën DS4, covering model years 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, and 2018. These diagrams help you understand the fuse layout, making it easier to identify, locate, and replace specific fuses and relays when needed.
What’s Included:
- Fuse Box Diagrams – Visual representations to identify each fuse, relay, and circuit breaker quickly.
- Fuse Panel Locations – Details on where the main and auxiliary fuse panels are situated inside the Citroën DS4.
- Fuse Assignments – Clear descriptions of each fuse’s function to support diagnostics and repair.
Whether you’re dealing with a faulty headlight, a malfunctioning power window, or another electrical issue, this guide provides the essential fuse panel and layout information needed to resolve it efficiently.
Keep your Citroën DS4 (2010–2018) in top condition with this reliable fuse box and relay reference!
Dashboard fuse box
Fuse box location
Left-hand drive vehicles:

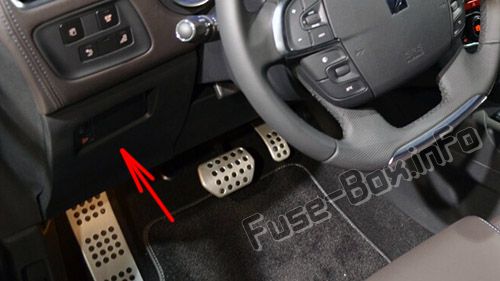

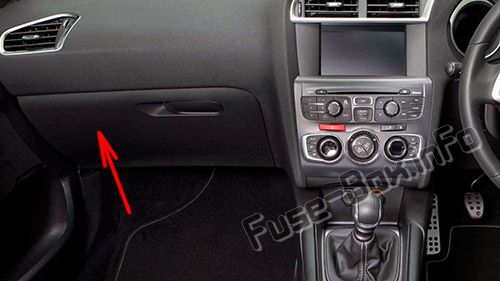

The fuse boxes are located in the lower dashboard (left-hand side).

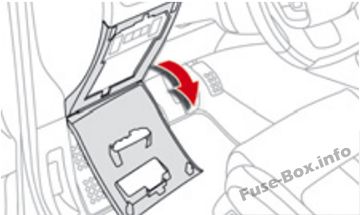

Unclip the cover by pulling at the top right, then left, disengage the cover completely and turn it over.
Right-hand drive vehicles:
The fuseboxes are located in the lower dashboard (left-hand side).

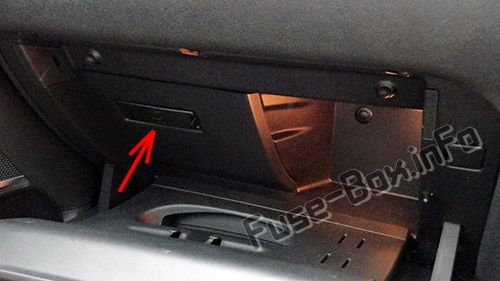

Open the glove box lid, unclip the carrier on the fusebox cover by pulling on the right, open the fusebox cover by pulling at top right, fold down completely the fusebox cover.
Fuse box diagram

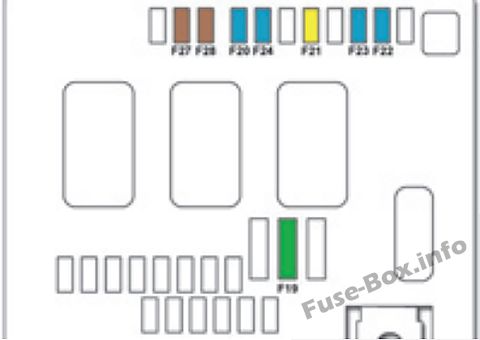

Assignment of the fuses in the Dashboard Fuse box
Engine compartment fuse box
Fuse box location

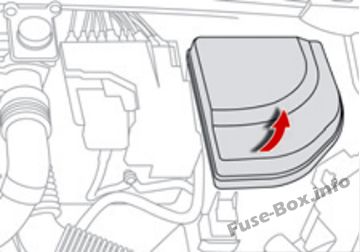

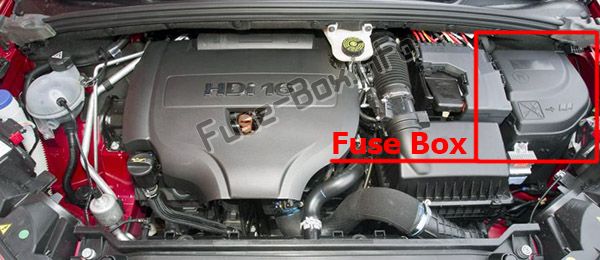

It is placed in the engine compartment near the battery (left-hand side).
Fuse box diagram

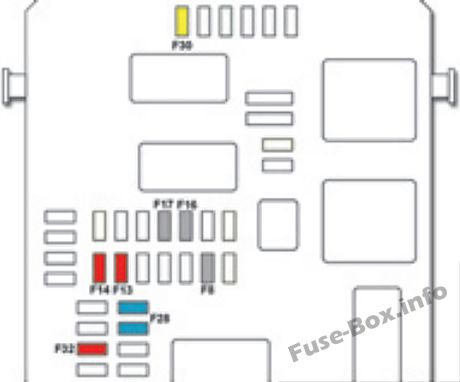

Assignment of the fuses in the Engine compartment
