Citroen Jumper | 2006-2021 | Fuse Box Diagrams and Locations

The second-generation Citroën Jumper, available from 2006 to 2021, is a robust and spacious light commercial vehicle designed for both utility and comfort. Widely used across Europe and beyond, this van is known for its strong payload capacity, economical engines, and practical features for business and transport applications.

In this article, you will find fuse box diagrams for the Citroën Jumper, covering model years 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020 and 2021. These diagrams are a valuable resource for understanding the vehicle’s electrical system, making it easier to locate specific fuses and relays for maintenance and troubleshooting.

What’s Included:

Fuse Box Diagrams – Clear illustrations showing the arrangement of fuses and relays in the vehicle.
Fuse Panel Locations – Guidance on where to find each fuse panel inside the Citroën Jumper, such as behind the dashboard or in the engine bay.
Fuse Assignments – Explanations of the function of each fuse, helping with diagnostics, repairs, and fuse replacements.

Whether you’re tracking down an electrical issue, replacing a blown fuse, or planning preventive maintenance, this guide to the fuse layout, relay positions, and fuse box configuration will help you keep your Citroën Jumper (2006–2021) operating efficiently and reliably.

The cigar lighter (power outlet) fuses are located in multiple fuse boxes and vary slightly for the UK version:
- Standard Version:
  - Dashboard Fuse Box:
    - Fuse №33: Rear 12V Socket
    - Fuse F44: Lighter – Front 12V Socket
  - Door Pillar Fuse Box:
    - Fuse №56: Rear Passenger 12V Socket
- UK Version:
  - Door Pillar Fuse Box:
    - Fuse №56: Rear Passenger 12V Socket
  - Engine Compartment Fuse Box:
    - Fuse №9: Rear 12V Socket
    - Fuse №14: Front 12V Socket
    - Fuse №15: Cigarette Lighter

Fuse box locations

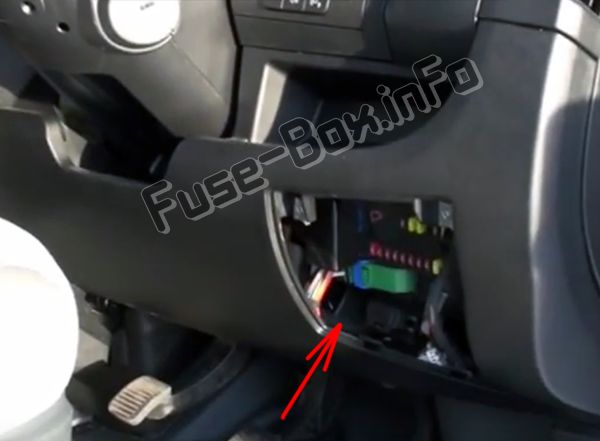

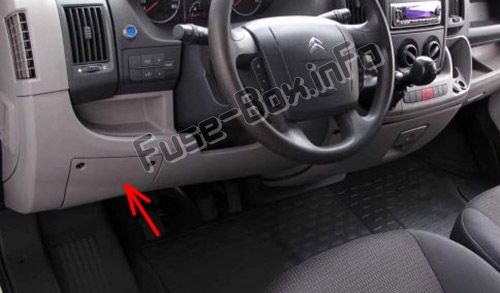

Dashboard fuse box

It is placed in the lower dashboard (left-hand side).

Left-hand drive vehicles:

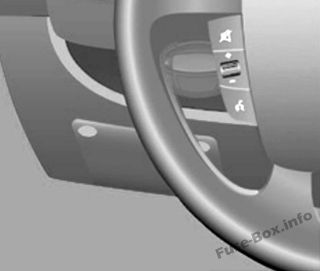

The location of the fuses in the passenger compartment (LHD): Citroen Jumper (2008-2017)

Right-hand drive vehicles:

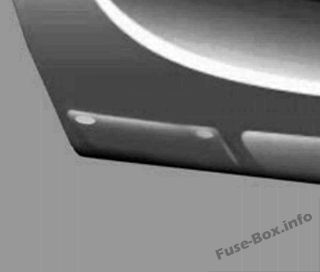

The location of the fuses in the passenger compartment (RHD): Citroen Jumper (2008-2017)

(!) Remove the bolts and tilt the box to access the fuses.

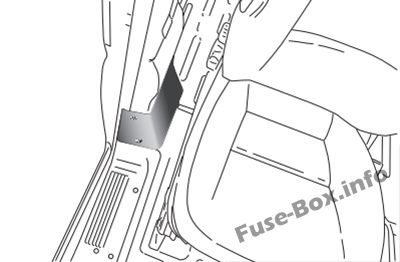

Passenger compartment

Left-hand drive vehicles: The fusebox is located in the passenger’s door pillar (right-hand side).
Right-hand drive vehicles: The fusebox is located in the driver’s door pillar (right-hand side).

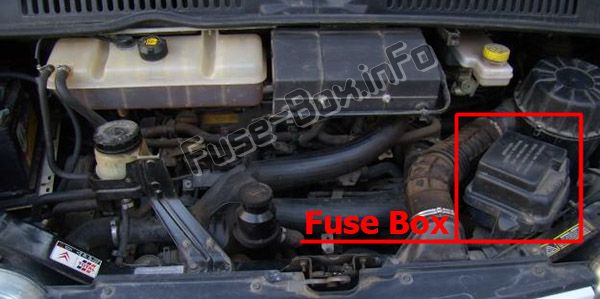

Engine compartment

Remove the nuts and tilt the box to access the fuses.

Fuse box diagrams

2008

Dashboard

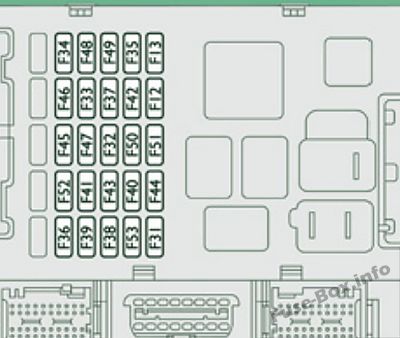

Assignment of the fuses in the Dashboard Fuse box (2008)

Fuse Data

Full access is available to registered users — log in or register.

№	A (amps)	Allocation
12	7.5	Right-hand dipped headlamp
13	7.5	Left-hand dipped headlamp – Headlamp height adjuster
31	7.5	Relay supply
32	10	Minibus interior lighting – Hazard warning lights
33	15	Rear 12 V socket
34	–	Not used
35	7.5	Reversing lights – Water in diesel sensor
36	20	Door locking/unlocking unit
37	10	Brake lights switch – Third brake light – Instrument panel
38	10	Interior relays
39	10	Audio equipment – Diagnostics socket – Alarm siren – Programmable additional heating controls
40	15	De-icing: rear screen (left-hand side), mirror (passenger side)
41	15	De-icing: rear screen (right-hand side), mirror (driver’s side)
42	7.5	ABS control unit and sensor – ESP sensor – Brake lights switch
43	30	Windscreen wiper motor
44	20	Lighter – Front 12 V socket
45	7.5	Electric window and mirror switches (driver’s side) – Passenger electric window
46	–	Not used
47	20	Driver’s electric window motor
48	20	Passenger electric window motor
49	7.5	Rain/brightness sensor – Audio equipment – Driver’s electric window motor – Alarm – Instrument panel controls
50	7.5	Air bags and pre-tensioners unit
51	7.5	Chronotachograph – Cruise control – Air conditioning controls
52	7.5	Passenger compartment relays
53	7.5	Instrument panel – Rear fog lamps

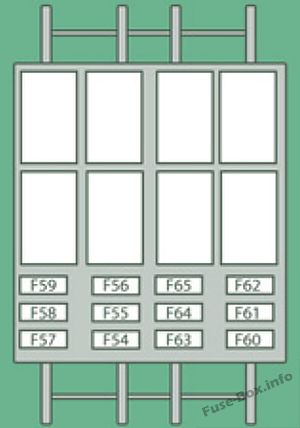

Door pillar fuse box

Assignment of the fuses in the door pillar fuse box (2008)

Fuse Data

Full access is available to registered users — log in or register.

№	A (amps)	Allocation
54	–	Not used
55	15	Heated seats
56	15	Rear 12 V socket – Lighter
57	10	Ventilation/heating motor under the driver’s seat
58	10	Direction indicators
59	–	Not used
60	–	Not used
61	–	Not used
62	–	Not used
63	10	Programmable additional heating switch
64	–	Not used
65	30	Rear blower

Engine compartment

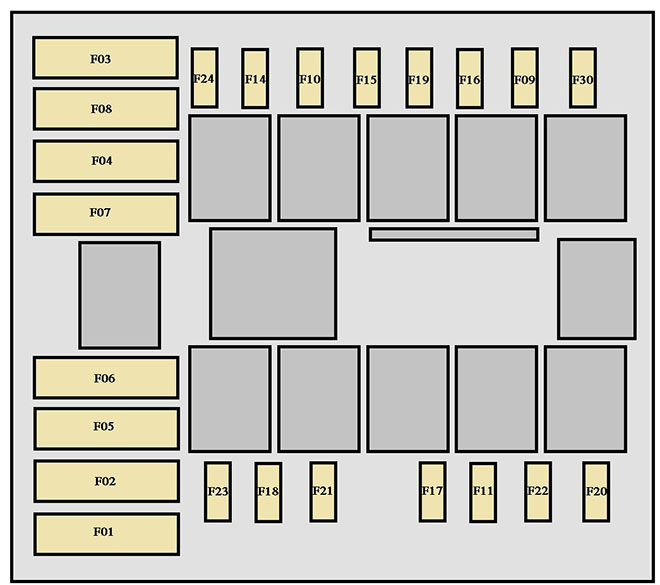

Under-hood fuse box diagram: Citroen Jumper (2008)

Assignment of the fuses in the Engine compartment (2008)

Fuse Data

Full access is available to registered users — log in or register.

№	A (amps)	Allocation
1	40	ABS/ESP pump supply
2	50	Diesel pre-heat unit
3	30	Ignition switch
4	20	Programmable additional heating burner
5	20	Programmable additional heating controls relay
6	40/60	Fan assembly (high speed)
7	40/50	Fan assembly (low speed)
8	40	Air conditioning
9	20	Windscreen wash pump
10	15	Horn
11	7.5	Diesel pre-heat unit and relay
14	7.5	Right-hand main beam headlamp
15	7.5	Left-hand main beam headlamp
16	7.5	Engine control unit
17	10	Engine control unit
18	7.5	Engine control unit
19	7.5	Air conditioning compressor
20	30	Headlamp wash pump
21	15	Fuel pump supply
22	20	Engine control unit
23	30	ABS/ESP solenoid valves supply
24	–	Not used
30	15	Front fog lamps

2011, 2012 (UK)

Dashboard

Instrument panel fuse box diagram: Citroen Jumper (2011, 2012)

Assignment of the fuses in the Dashboard Fuse box (2011-2012 (UK))

Fuse Data

Full access is available to registered users — log in or register.

№	A (amps)	Allocation
12	7.5	Right-hand dipped beam headlamp
13	7.5	Left-hand dipped beam headlamp
31	5	Relay supply
32	7.5	Interior lighting
33	20	Battery sensor
34	20	Minibus interior lighting – Hazard warning
36	10	Audio system – Diagnostic socket – Alarm siren – Programmable additional heating controls – Air conditioning controls – Tachograph – Battery
37	7.5	Brake lamps switch – Third brake lamp – Instrument panel
38	20	Central locking
42	5	ABS control unit and sensor – ASR sensor – ESP sensor – Brake lamps switch
43	20	Windscreen wiper motor
47	20	Driver’s electric window motor
48	20	Passenger electric window motor
49	5	Audio system – Instrument panel controls
50	7.5	Airbags and pre-tensioners unit
51	5	Tachograph – Cruise control – Air conditioning controls – Reversing lamps – water in Diesel sensor
53	7.5	Instrument panel
89	–	Not used
90	7.5	Left hand main beam headlamp
91	7.5	Right han main beam headlamp
92	7.5	Left hand foglamp
93	7.5	Right hand foglamp

Door pillar fuse box

Assignment of the fuses in the door pillar fuse box (2011, 2012)

Fuse Data

Full access is available to registered users — log in or register.

№	A (amps)	Allocation
54	–	Not used
55	15	Heated seats
56	15	12 V socket
57	10	Programmable additional heating
58	15	Demisting: left hand rear screen
59	15	Demisting: right hand rear screen
60	–	Not used
61	–	Not used
62	–	Not used
63	10	Programmable additional heating switch
64	–	Not used
65	30	Programmable additional heating fan

Engine compartment

Under-hood fuse box diagram: Citroen Jumper (2011, 2012)

Assignment of the fuses in the Engine compartment (2011, 2012)

Fuse Data

Full access is available to registered users — log in or register.

№	A (amps)	Allocation
1	40	ABS pump supply
2	50	Diesel pre-heater unit
3	30	Ignition switch
4	30	Headlamp washer pump
8	40	Cab fan unit
9	15	Rear 12 V socket
10	15	Horn
14	15	Front 12 V socket
15	10	Cigarette lighter
20	30	Screenwash pump
21	15	Fuel pump supply
24	15	Additional panel for ambulance – Mirrors
30	15	Demisting

2013

Dashboard

Assignment of the fuses in the Dashboard Fuse box (2013)

Fuse Data

Full access is available to registered users — log in or register.

№	A (amps)	Allocation
12	7.5	Right-hand dipped beam headlamp
13	7.5	Left-hand dipped beam headlamp
31	7.5	Relay supply
32	10	Cab lighting
33	15	Rear 12 V socket
34	–	Not used
35	7.5	Reversing lamps – Water in Diesel fuel sensor
36	15	Central locking control – Battery
37	7.5	Brake lamps switch – Third brake lamp – Instrument panel
38	10	Central locking
39	10	Audio system – Diagnostic socket – Alarm siren – Programmable additional heating controls – Air conditioning controls – Tachograph – Battery
40	15	Heated: rear screen (left hand), driver’s side mirror
41	15	Heated: rear screen (right hand), passenger’s side mirror
42	7.5	ABS control unit and sensor – ASR sensor – ESP sensor – Brake lamps switch
43	30	Windscreen wiper motor
44	20	Cigarette lighter -12 V socket
45	7.5	Door controls
46	–	Not used
47	20	Driver’s electric window motor
48	20	Passenger electric window motor
49	7.5	Audio system – Instrument panel controls – Driver’s electric window
50	7.5	Airbags and pre-tensioners unit
51	7.5	Tachograph – Cruise control – Air conditioning controls
52	7.5	Optional relay supply
53	7.5	Instrument panel – Rear foglamp

Door pillar fuse box

Assignment of the fuses in the door pillar fuse box (2013)

Fuse Data

Full access is available to registered users — log in or register.

№	A (amps)	Allocation
54	–	Not used
55	15	Heated seats
56	15	Rear passenger 12 V socket
57	10	Programmable additional heating
58	10	Lateral sidelamps
59	7.5	Pneumatic suspension
60	–	Not used
61	–	Not used
62	–	Not used
63	10	Programmable additional heating switch
64	–	Not used
65	30	Programmable additional heating fan

Engine compartment

Under-hood fuse box diagram: Citroen Jumper (2013)

Assignment of the fuses in the Engine compartment (2013)

Fuse Data

Full access is available to registered users — log in or register.

№	A (amps)	Allocation
1	40	ABS pump supply
2	50	Diesel pre-heater unit
3	30	Ignition switch
4	20	Programmable additional heating
5	20	Cab ventilation with programmable additional heating
6	40/60	Cab fan max speed
7	40/50	Cab fan min speed
8	40	Cab fan unit
9	20	Screenwash pump
10	15	Horn
14	7.5	Right hand main beam
15	7.5	Left hand main beam
20	30	Headlamp wash pump
21	15	Fuel pump supply
23	30	ABS electrovalves
30	15	Front foglamps

2014

Dashboard

Assignment of the fuses in the Dashboard Fuse box (2014)

Fuse Data

Full access is available to registered users — log in or register.

№	A (amps)	Allocation
12	7.5	Right-hand dipped headlamp
13	7.5	Left-hand dipped headlamp
31	7.5	Relay supply
32	10	Cabin lighting
33	15	Rear 12 V socket
34	–	Not used
35	7.5	Reversing lamp – Water in Diesel fuel sensor
36	15	Central locking control – Battery
37	7.5	Brake lamp – Third brake lamp – Instrument panel
38	10	Relay supply
39	10	Radio – Diagnostic socket – Alarm siren – Programmable additional heating – Air conditioning controls – Tachograph – Battery
40	15	Demisting: rear screen (left), driver’s side door mirror
41	15	Demisting: rear screen (right), passenger’s side door mirror
42	7.5	ABS control unit and sensor – ASR sensor – DSC sensor – Brake lamp switch
43	30	Windscreen wiper motor
44	20	Cigarette lighter – Front 12 V socket
45	7.5	Door controls
46	–	Not used
47	20	Driver’s electric window motor
48	20	Passenger’s electric window motor
49	7.5	Audio equipment – Instrument panel controls – Driver’s side electric window
50	7.5	Airbags and pre-tensioners unit
51	7.5	Tachograph – Cruise control – Air conditioning controls
52	7.5	Optional relay supply
53	7.5	Instrument panel – Rear foglamp

Door pillar fuse box

Assignment of the fuses in the door pillar fuse box (2014)

Fuse Data

Full access is available to registered users — log in or register.

№	A (amps)	Allocation
54	–	Not used
55	15	Heated seats
56	15	Rear passenger 12 V socket
57	10	Programmable additional heating
58	10	Lateral sidelamps
59	7.5	Pneumatic suspension
60	–	Not used
61	–	Not used
62	–	Not used
63	10	Programmable additional heating switch
64	–	Not used
65	30	Programmable additional heating fan

Engine compartment

Under-hood fuse box diagram: Citroen Jumper (2014)

Assignment of the fuses in the Engine compartment (2014)

Fuse Data

Full access is available to registered users — log in or register.

№	A (amps)	Allocation
1	40	ABS pump supply
2	50	Diesel pre-heat unit
3	30	Ignition switch
4	20	Additional programmable heating
5	20	Cabin ventilation with additional programmable heating
6	40/60	Cabin fan maximum speed
7	40/50	Cabin fan minimum speed
8	40	Cabin fan assembly
9	20	Screenwash pump
10	15	Horn
14	7.5	RH main beam
15	7.5	LH main beam
18	7.5	Engine management
19	7.5	Air conditioning compressor
20	30	Headlamp wash pump
21	15	Fuel pump supply
23	30	ABS electrovalves
30	15	Front foglamps

2016, 2017, 2018, 2019, 2020, 2021

Dashboard

Instrument panel fuse box diagram: Citroen Jumper (2016)

Assignment of the fuses in the Dashboard Fuse box (2016, 2017, 2018, 2019, 2020, 2021)

Fuse Data

Full access is available to registered users — log in or register.

№	A (amps)	Allocation
12	7.5	Right-hand dipped headlamp
13	7.5	Left-hand dipped headlamp
31	5	Engine compartment control unit relay – Dashboard control unit relay (ignition switch +)
32	7.5	Cabin lighting (battery +)
33	7.5	Battery check sensor on Stop & Start version (battery +)
34	7.5	Minibus interior lighting – Hazard warning lamps
36	10	Audio system – Air conditioning controls – Alarm – Tachograph – Battery cut-off control unit – Additional heating programmer (battery +)
37	7.5	Brake lamp switch – Third brake lamp – Instrument panel (ignition +)
38	20	Central door locking (battery +)
42	5	ABS control unit and sensor – ASR sensor – DSC sensor – Brake lamp switch
43	20	Windscreen wiper motor (ignition switch +)
47	20	Driver’s electric window motor
48	20	Passenger’s electric window motor
49	5	Parking sensors control unit – Audio system – Steering mounted controls – Centre and side switch panels – Auxiliary switch panel – Battery cut-off control unit (ignition switch +)
50	7.5	Airbags and pre-tensioners control unit
51	5	Tachograph – Power steering control unit – Air conditioning – Reversing lamps – Water in Diesel sensor – Air flow sensor (ignition switch +)
53	7.5	Instrument panel (battery +)
89	–	Not used
90	7.5	Left-hand main beam
91	7.5	Right-hand main beam
92	7.5	Left-hand front foglamp
93	7.5	Right-hand front foglamp

Door pillar fuse box

Assignment of the fuses in the door pillar fuse box (2016, 2017, 2018, 2019, 2020, 2021)

Fuse Data

Full access is available to registered users — log in or register.

№	A (amps)	Allocation
54	–	Not used
55	15	Heated seats
56	15	Rear passenger 12 V socket
57	10	Under seat additional heating
58	15	Heated rear screen, left-hand
59	15	Heated rear screen, right-hand
60	–	Not used
61	–	Not used
62	–	Not used
63	10	Rear passenger additional control
64	–	Not used
65	30	Rear passenger additional heating fan

Engine compartment

Under-hood fuse box diagram: Citroen Jumper (2016)

Assignment of the fuses in the Engine compartment (2016, 2017, 2018, 2019, 2020, 2021)

Fuse Data

Full access is available to registered users — log in or register.

№	A (amps)	Allocation
1	40	ABS pump supply
2	50	Diesel pre-heat unit
3	30	Ignition switch – Starter motor
4	40	Fuel heater
5	20/50	Cabin ventilation with additional programmable heating (battery +)
6	40/60	Cabin fan maximum speed (battery +)
7	40/50/60	Cabin fan minimum speed (battery +)
8	40	Cabin fan assembly (ignition switch +)
9	15	Rear 12 V socket (battery +)
10	15	Horn
11	–	Not used
14	15	Front 12 V socket (battery +)
15	15	Cigarette lighter (battery +)
16	–	Not used
17	–	Not used
18	7.5	Engine management control unit (battery +)
19	7.5	Air conditioning compressor
20	30	Screenwash/headlamp wash pump
21	15	Fuel pump supply
22	–	Not used
23	30	ABS electrovalves
24	7.5	Auxiliary switch panel – Door mirror controls and folding (ignition switch +)
30	15	Door mirror heating
