Explore Dodge Durango fuse box diagrams in this practical guide that breaks down the electrical layout of the original SUV. Here we focus on the first-generation Dodge Durango (1997–2003) and provide fuse diagrams for 1998, 1999, 2000, 2001, 2002 and 2003 , along with the location of the fuse panels and the assignment of each fuse and relay , giving you a clear reference for diagnosing and maintaining the vehicle’s electrical system.

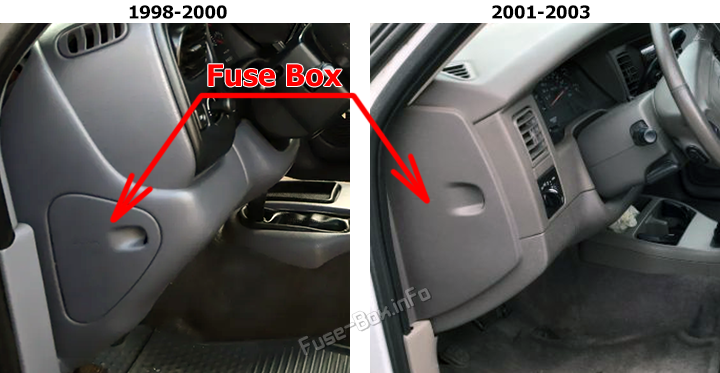

The fuse panel is located behind the cover on the driver’s side of dash panel.

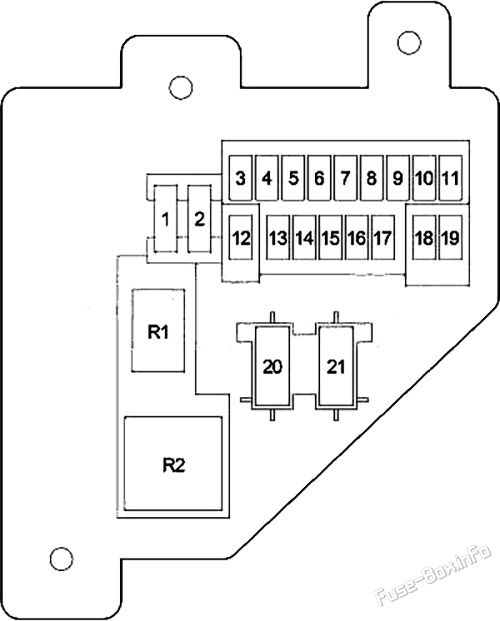

Assignment of the fuses in the instrument panel (1998-2000)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amps Description 1 20A Brake Lamp Switch 2 15A/20A Daytime Running Lamp, Passenger Door Lock Switch, Park/Neutral Position Switch 3 10A Controller Anti-Lock Brake 4 15A Power Amplifier 5 5A Headlamp Switch, Overhead A/C Control, Instrument Cluster, Radio, Rear Wiper/Defogger Switch, Ash Receiver Lamp & A/C-Heater Control 6 20A Central Timer Module, Multifunction Switch, Wiper Motor, Wiper Relay & Junction Block 7 15A A/C Low Temperature Cut-Out Switch, Blower Motor Relay, A/C Compressor Clutch Relay & Rear Wiper/Defogger Switch 8 10A Radio 9 10A Automatic Shut Down Relay, Fuel Pump Relay & Powertrain Control Module 10 15A – 11 10A Diagnostic Connector, Overhead Console, Automatic Day/Night Mirror, Central Timer Module & Duty Cycle Evap/Purge Solenoid 12 15A Left/Right Courtesy Lamp, Data Link Connector, Instrument Cluster, Glove Box Lamp, Radio, Left/Right Visor/Vanity Mirror, Front/Rear Dome Light, Overhead Console, Power Mirror Switch, Liftgate Lamp, Underhood Lamp & Rear Wiper Motor 13 15A/20A Central Timer Module, Relay/Fuse Block, Driver/Passenger Power Door Lock Switch & Driver Power Door Lock 14 15A Headlamp Switch 15 15A Cigar Lighter 16 15A Combination Flasher 17 10A Instrument Cluster 18 10A Airbag Control Module 19 10A Airbag Control Module 20 25A Power Window / Door Lock Switch 21 – –
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the instrument panel (1998-2000)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description R1 Horn Relay R2 Combination Flasher Relay
This content requires JavaScript and a valid membership to view.

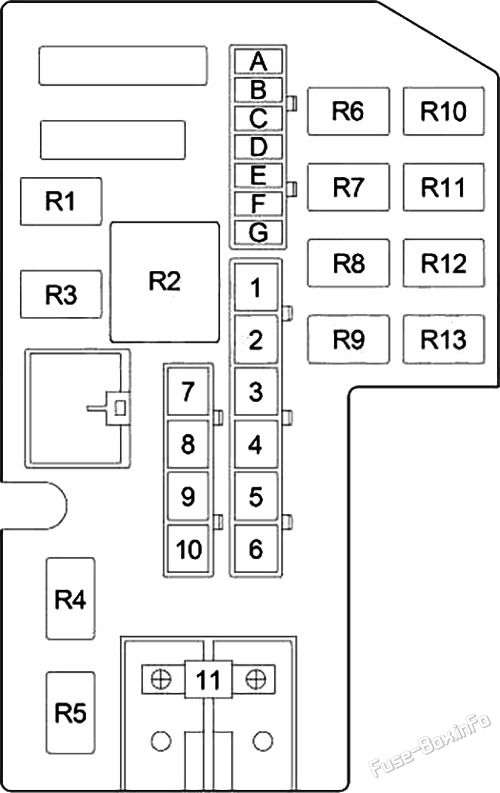

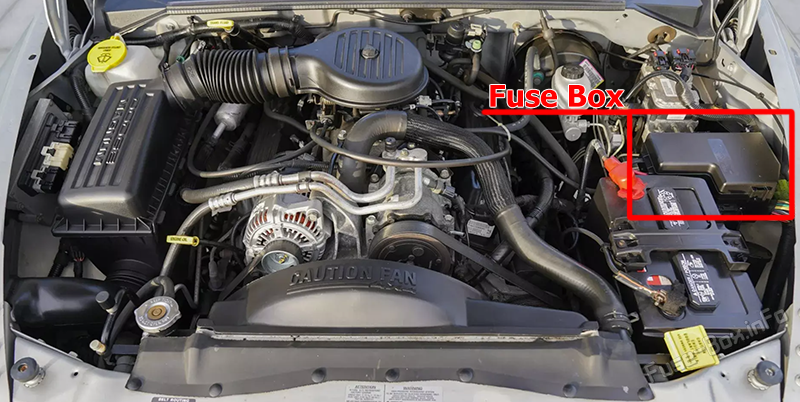

Assignment of the fuses in the engine compartment (1998-2000)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amps Description A 15A Powertrain Control Module, Fuel Injector/Coil On Plug 1, 2, 3, 4, 5, 6, 7, 8, Ignition Coil, Oxygen Sensors & Capacitors 1 & 2 B 20A Transmission Control Relay & Transmission Control Module C 20A Fog Lamp Relay, Left/Right Fog Lamp & Daytime Running Lamp D 20A Brake Lamp Switch E 15A Left Headlamp F 25A Combination Flasher G 15A Right Headlamp 1 20A Powertrain Control Module, Fuel Pump Relay & Fuel Pump Module 2 30A Radiator Fan Relay 3 30A Automatic Shut Down Relay 4 50A Power Seat Switch & Rear Wiper/Defogger Switch 5 40A Blower Motor Relay 6 50A Relay/Fuse Block, Electric Brake & Trailer Tow Connector 7 40A Junction Block 8 40A Controller Anti-Lock Brake 9 50A Ignition Switch & Engine Starter Motor Relay 10 40A Ignition Switch 11 140A Generator
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the engine compartment (1998-2000)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description R1 Wiper Relay R2 Blower Motor Relay R3 Starter Relay R4 Oxygen Upstream Relay R5 Fog Lamp Relay R6 Radiator Fan Relay R7 Transmission Control Relay / Trailer Relay R8 Air Conditioner Compressor Clutch Relay R9 Automatic Shut Down (ASD) Relay R10 Oxygen Upstream Relay R11 Radiator Fan Relay / Transmission Control Relay R12 Headlamp Flasher Relay / HD LPS R13 Fuel Pump Relay
This content requires JavaScript and a valid membership to view.

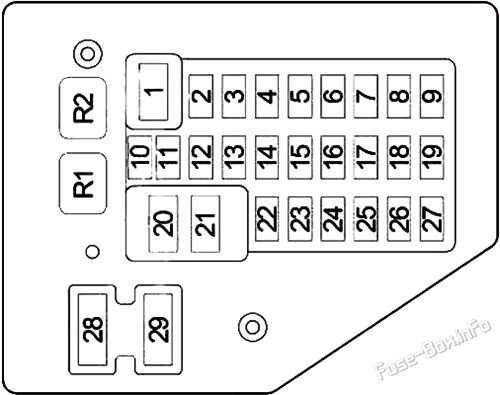

Assignment of the fuses in the instrument panel (2001-2003)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amps Description 1 15A Sentry Key Immobilizer, Instrument Cluster, Radio, Center Console Lamp, Overhead Console, Front/Rear Dome Lamp, Glove Box Lamp/Switch, Data Link Connector, Driver Door Module, Right/Left Visor/Vanity Mirror & Liftgate Lamp 2 20A Horn Relay & Clockspring 3 – – 4 20A Central Timer Module, Headlamp Switch, Left/Right Tail Lamp Assembly, Left/Right Front Park/Turn Signal Lamps, Left/Right Front Side Marker Lamp & License Plate Lamp 5 20A Front Wiper Relay, Front Wiper Motor & Central Timer Module 6 – – 7 – – 8 10A Transmission Control Module & Instrument Cluster 9 5A Rear A/C Heater Control, Overhead Console, Transfer Case Selector Switch, Shift Bezel Lamp, Radio, Cigar Lighter, A/C Heater Control & Instrument Cluster 10 10A Powertrain Control Module, Fuel Pump Relay, Radiator Fan Relay & Sentry Key Immobilizer 11 10A A/C Compressor, Proportional Purge Solenoid, Automatic Day/Night Mirror, Overhead Console, Central Timer Module & Transfer Case Selector Switch 12 10A Engine Starter Motor Relay & Transmission Control Module 13 15A Amplifier 14 10A Instrument Cluster 15 10A Driver/Passenger Power Mirror 16 – – 17 15A Cigar Lighter 18 10A Radio 19 10A Combination Flasher 20 10A Airbag Control Module 21 10A Airbag Control Module 22 20A Heated Seat Module & Passenger/Driver Heated Seat Module 23 – – 24 15A Rear Window Defogger Relay & Rear Blower Motor Relay 25 10A A/C Heater Control 26 15A Transmission Solenoid, Transmission Range Sensor & Passenger Door Power Lock Switch 27 10A Controller Anti-Lock Brake 28 25A CB Driver Door Module (Power Window) 29 – – R1 Horn Relay R2 Park Lamp Relay
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the instrument panel (2001-2003)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description R1 Horn Relay R2 Park Lamp Relay
This content requires JavaScript and a valid membership to view.

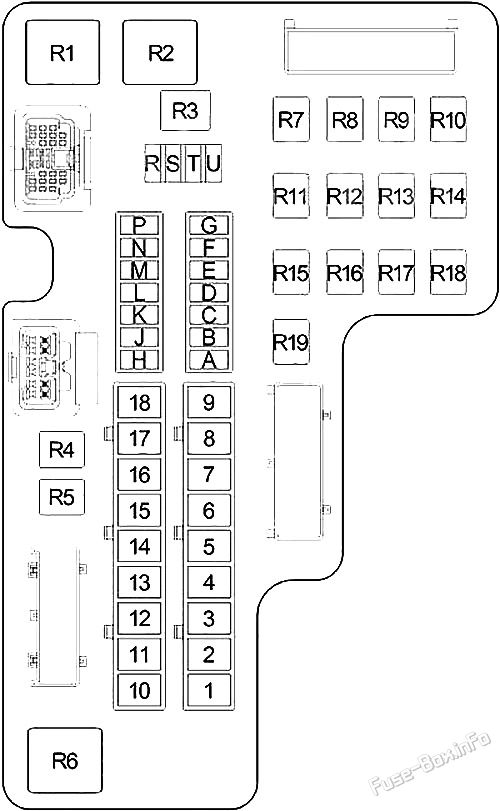

Assignment of the fuses in the engine compartment (2001-2003)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amps Description A 20A Transfer Case Control Module B 10A A/C Compressor Clutch Relay C 20A Trailer Tow Connector D 20A Junction Block & Front/Center/Rear Power Outlet E 20A Ignition Switch F 20A Transmission Control Relay G – – H 20A Fog Lamp Relay J 20A Rear Wiper Relay K 25A Rear Blower Motor Relay L – – M – – N – – P – – R – – S – – T 10A Left/Right Front Park/Turn Signal Lamps, Left/Right Side Marker Lamp & License Lamp U 20A Oxygen Sensors, Fuel Injectors Coil On Plugs, Powertrain Control Module & Ignition Coil 1 20A/30A Combination Flasher 2 20A Powertrain Control Module, Automatic Shut Down Relay & Fuel Pump Module/Relay 3 20A Central Timer Module 4 40A Rear Window Defogger Relay 5 20A Brake Lamp Switch 6 30A Electric Brake 7 40A Junction Block 8 40A Controller Anti-Lock Brake 9 50A Ignition Switch 10 40A Ignition Switch 11 30A Automatic Shut Down Relay 12 20A Central Timer Module 13 40A Ignition Switch 14 50A Driver/Passenger Power Seat Switch 15 50A Radiator Fan Relay & Driver/Passenger Power Relay 16 50A Engine Starter Motor Relay 17 50A Ignition Switch
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the engine compartment (2001-2003)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description R1 Radiator Fan Relay R2 Automatic Shut Down (ASD) Relay R3 – R4 Rear Blower Motor Relay R5 – R6 EBL Relay R7 Fuel Pump Relay R8 – R9 Air Conditioner Compressor Clutch Relay R10 Fog Lamp Relay R11 – R12 Oxygen Sensor Relay R13 – R14 Transmission Control Relay R15 – R16 – R17 Starter Relay R18 Front Wiper Relay R19 Rear Wiper Relay
This content requires JavaScript and a valid membership to view.
