Explore Dodge Durango fuse box diagrams in this clear guide designed to help you navigate the electrical layout of the second-generation SUV. Here we take a look at the second-generation Dodge Durango (2003–2009) and provide fuse diagrams for 2004, 2005, 2006, 2007, 2008 and 2009 , along with the location of the fuse panels and the assignment of each fuse and relay , giving you a practical reference for maintenance and troubleshooting.

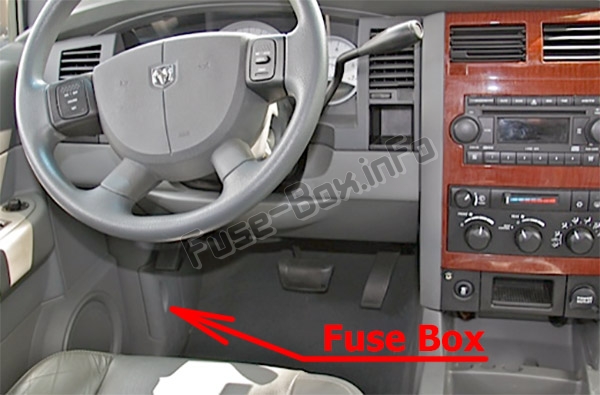

It is located in the left kick panel behind the cover.

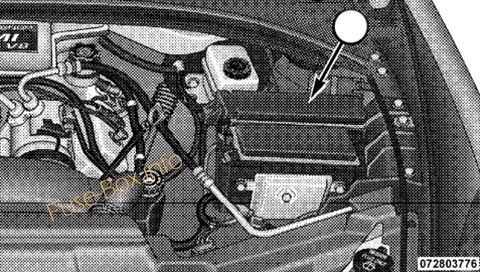

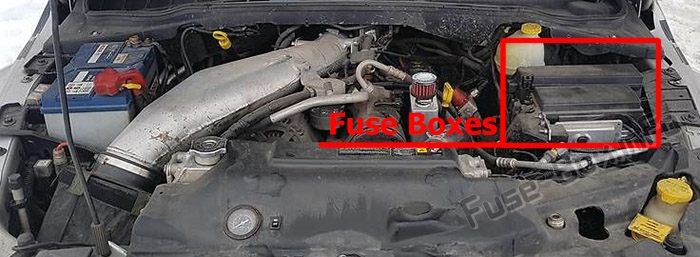

The Power Distribution Center (PDC) is located on the left side of the engine compartment.

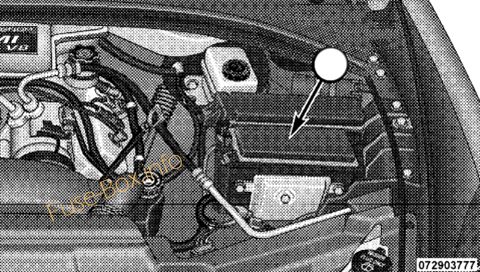

An integrated power module (IPM) is located on the left side of the engine compartment.

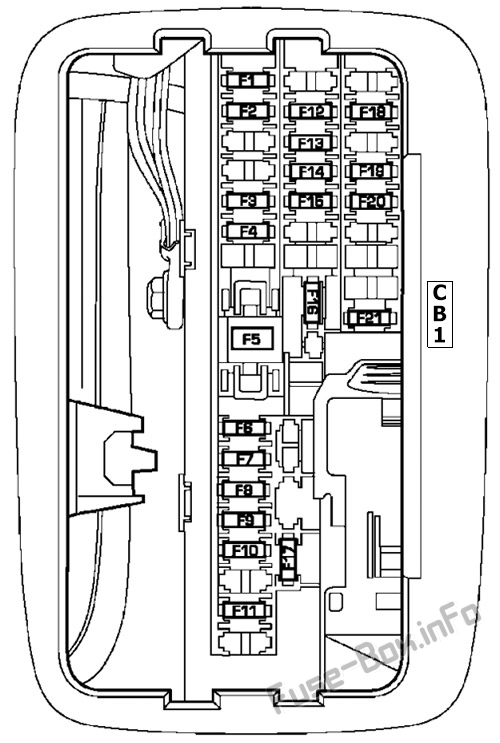

Assignment of fuses in the interior fuse box (2005)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Cavity Mini Fuse/Color Description F1 15 Amp Blue Instrument Cluster Battery Feed F2 10 Amp Red Occupant Classification Module (OCM) Battery Feed F3 10 Amp Red Ignition Run/Start for Controller (NGC), Integrated Power Module (IPM), AC Relay and Fuel Pump Relay F4 10 Amp Red Door Node and Non-Memory Power Mirror Switch Battery Feed F5 (2) 10 Amp Red Airbags (2 Fuses in Yellow Holder) F6 10 Amp Red Ignition Run/Start Unlock F7 25 Amp Natural Radio Battery Feed F8 10 Amp Red Ignition Run/Start for Cluster/Transfer Case/Seat Sw. Back lighting F9 10 Amp Red SDAR/DVD Battery Feed F10 10 Amp Red Spare F11 10 Amp Red Heated Mirrors F12 20 Amp Yellow Cluster Battery Feed F13 10 Amp Red Ignition Run HVAC Module/Heated Rear Glass (EBL) Relay F14 10 Amp Red ABS Module Ignition Run F15 15 Amp Blue Battery Feed Blue Tooth, Compass/Trip Computer (CMTC), Sentry Key Diagnostics F16 20 Amp Yellow Reconfigurable Power Outlets F17 20 Amp Yellow Cigar Lighter Ignition F18 10 Amp Red Spare Fuse F19 15 Amp Blue Heating & Air Conditioning w/AIC Only Battery Feed F20 25 Amp Natural Amplifier Battery Feed CB1 25 Amp Circuit Breaker Sunroof Motor, Power Window
This content requires JavaScript and a valid membership to view.

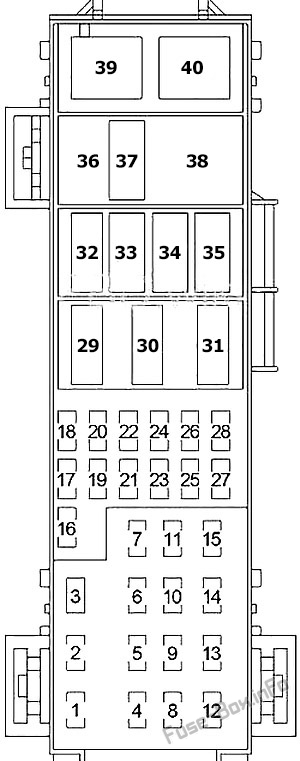

Assignment of fuses in the PDC (2005)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Cavity Amp/Color Description 1 40 Amp Green HVAC Blower 2 30 Amp Pink Power Outlets 3 30 Amp Pink Rr Wiper/Ign R/O 4 30 Amp Pink ABS Pump 5 50 Amp Red Cabin Htr 1 (Diesel Only) 6 50 Amp Red ASD 7 30 Amp Pink Rr HVAC (XK) 8 40 Amp Green Acc Delay/Seats 9 Spare 10 40 Amp Green Starter/JB Power 11 30 Amp Pink Cig Ltr/T-Tow 12 40 Amp Green EBL/Htd Mirror 13 40 Amp Green JB Power 14 50 Amp Red Cabin Htr 2 (Diesel Only) 15 50 Amp Red Cabin Htr 3 (Diesel Only) 16 25 Amp Natural IPM/Coils 17 Spare 18 20 Amp Yellow TCM/AC Clutch 19 20 Amp Yellow Ign Svv 20 20 Amp Yellow PCM Batt (Gasoline Only) 21 30 Amp Pink ABS Valves 22 Spare 23 20 Amp Yellow FDCM 24 20 Amp Yellow Fuel Pump 25 20 Amp Yellow FDCM/E-Diff. 26 15 Amp Lt. Blue Hyd/PCM (Diesel Only) 27 15 Amp Lt. Blue Brake/Stop Lamps 28 25 Amp Natural NGC/Injectors 29 Spare 30 Spare 31 Mini Relay Cabin Htr 1 Rly (Diesel Only) 32 Micro Relay TCM Rly (Gasoline Only) 33 Micro Relay Starter Rly 34 Micro Relay AC Clutch Rly 35 Micro Relay Fuel Pump Rly 36 Mini Relay Cabin Htr 3 Rly (Diesel Only) 38 Mini Relay Cabin Htr 2 Rly (Diesel Only) 39 Mini Relay HVAC Blower Rly 40 Mini Relay ASD Rly
This content requires JavaScript and a valid membership to view.

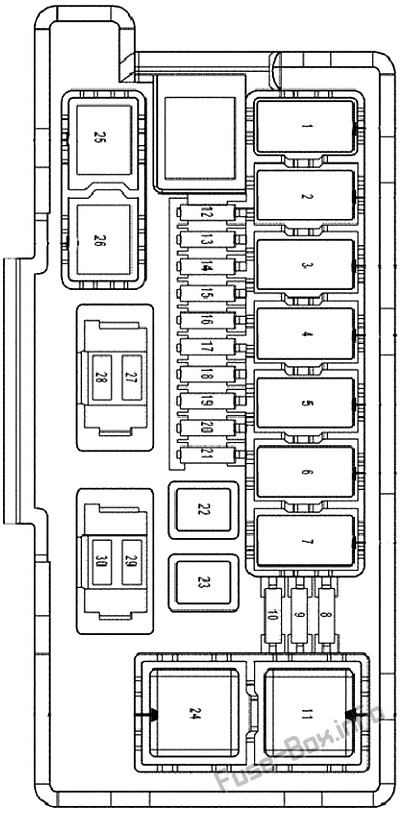

Assignment of fuses in the IPM (2005)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Cavity Amp/Color Description 1 Micro Relay Wiper On/Off Rly 2 Micro Relay Wiper Hi/Lo Rly 3 Micro Relay Horn Rly 4 Micro Relay Rear Fog Rly (BUX Only) 5 Micro Relay Lt T-Tow Stop/Turn Rly 6 Micro Relay Rt T-Tow Stop/Turn Rly 7 Micro Relay Park Lamps Rly 8 10 Amp Red Lt Park Lamps 9 10 Amp Red T-Tow Park Lamps 10 10 Amp Red Rt Park Lamps 11 Mini Relay Rad Fan Hi Rly 12 20 Amp Yellow FCM Batt #4 13 20 Amp Yellow FCM Batt #2 14 20 Amp Yellow Adjustable Pedal 15 20 Amp Yellow Ft Fog Lamps 16 20 Amp Yellow Horn 17 20 Amp Yellow Rear Fogs 18 20 Amp Yellow FCM Batt #1 19 20 Amp Yellow Lt T-Tow Stop/Turn 20 20 Amp Yellow FCM Batt #3 21 20 Amp Yellow Rt T-Tow Stop/Turn 22 30 Amp Pink FDCM Mod 23 50 Amp Red Rad Fan 24 Mini Relay Rad Fan Lo Rly 25 Micro Relay Ft Fog Lamps Rly 26 Micro Relay Adjustable Pedal Rly 27 15 Amp Lt. Blue IOD #1 28 20 Amp Yellow IOD #2 (Audio) 29 10 Amp Red ORC (Ign R/.S) 30 10 Amp Red ORC (Ign R/O)
This content requires JavaScript and a valid membership to view.
Assignment of fuses in the interior fuse box (2006)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Cavity Amp/Color Description F1 15 Amp Blue Instrument Cluster Battery Feed F2 10 Amp Red Occupant Classification Module (OCM) Battery Feed F3 10 Amp Red Ignition Run/Start for Controller (NGC), Integrated Power Module (IPM), AC Relay and Fuel Pump Relay F4 10 Amp Red Door Node and Non-Memory Power Mirror Switch Battery Feed F5 (2) 10 Amp Red Airbags (2 Fuses in Yellow Holder) F6 10 Amp Red Ignition Run/Start Unlock F7 25 Amp Natural Radio Battery Feed F8 10 Amp Red Ignition Run/Start for Cluster/Transfer Case/Seat Sw. Back lighting F9 10 Amp Red SDAR/DVD Battery Feed F10 10 Amp Red Spare F11 10 Amp Red Heated Mirrors F12 20 Amp Yellow Cluster Battery Feed F13 10 Amp Red Ignition Run HVAC Module/Heated Rear Glass (EBL) Relay F14 10 Amp Red ABS Module Ignition Run F15 15 Amp Blue Battery Feed Blue Tooth, Compass/Trip Computer (CMTC), Sentry Key Diagnostics F16 20 Amp Yellow Reconfigurable Power Outlets F17 20 Amp Yellow Cigar Lighter Ignition F18 10 Amp Red Spare Fuse F19 15 Amp Blue Heating & Air Conditioning w/AIC Only Battery Feed F20 25 Amp Natural Amplifier Battery Feed CB1 25 Amp Circuit Breaker Sunroof Motor, Power Window
This content requires JavaScript and a valid membership to view.
Assignment of fuses in the PDC (2006)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Cavity Cartridge Fuse / Relay Mini Fuse Description 1 30 Amp Pink Starter 2 30 Amp Pink Front Wiper 3 40 Amp Green Brake Batt 4 30 Amp Pink JB Feed Acc # 2 5 40 Amp Green Power Seats 6 20 Amp Blue JB Feed Ign # 1 7 40 Amp Green JB Feed Ign # 2 8 40 Amp Green JB Feed Acc Delay 9 Spare 10 30 Amp Pink ASD 11 40 Amp Green Power Liftgate ( If Equipped) 12 40 Amp Green JB Feed / EBL / T Case Brake 13 30 Amp Pink JB Feed RR 14 40 Amp Green ABS Pump 15 50 Amp Red JB Feed 16 10 Amp Red Crank 17 Spare 18 20 Amp Yellow Fuel Rump 19 20 Amp Yellow NGC 20 Spare 21 20 Amp Yellow ABS Batt 22 20 Amp Yellow NGC Batt 23 20 Amp Yellow Trailer Tow 24 15 Amp Blue A/C Clutch 25 15 Amp Blue JB Feed Stop 26 Spare 27 10 Amp Red JB Feed Acc # 1 28 Spare 29 Relay Run Start 30 Relay Run Remote 31 Spare 32 Relay Starter 33 Relay ETAX 34 Relay AC Clutch 35 Relay Fuel Rump 36 Spare 37 Spare Brake Supression 38 Spare 39 Relay Blower Motor 40 Relay ASD
This content requires JavaScript and a valid membership to view.
Assignment of fuses in the IPM (2006)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Cavity Cartridge Fuse / Relay Mini Fuse Description 1 Relay Wiper On/Off 2 Relay Wiper Hi/Lo 3 Relay Horn 4 Relay Rear Wiper 5 Relay Lt T-Tow Stop/Turn 6 Relay Rt T-Tow Stop/Turn 7 Relay Park Lamps 8 10 Amp Red Lt Park Lamps 9 10 Amp Red T-Tow Park Lamps 10 10 Amp Red Rt Park Lamps 11 Relay Rad Fan Hi 12 20 Amp Yellow FCM Batt #4 13 20 Amp Yellow FCM Batt #2 14 20 Amp Yellow Adjustable Pedal 15 20 Amp Yellow Ft Fog Lamps 16 20 Amp Yellow Horn 17 20 Amp Yellow Rear Wiper 18 20 Amp Yellow FCM Batt #1 19 20 Amp Yellow Lt T-Tow Stop/Turn 20 20 Amp Yellow FCM Batt #3 21 20 Amp Yellow Rt T-Tow Stop/Turn 22 30 Amp Pink FCM BATT # 5 23 40 Amp Green Rad Fan 24 Relay Rad Fan Lo 25 Relay Ft Fog Lamps 26 Relay Adjustable Peaal 27 30 Amp Green IOD #1 28 30 Amp Green IOD #2 29 Spare 30 Spare
This content requires JavaScript and a valid membership to view.
Assignment of fuses in the interior fuse box (2007, 2008, 2009)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Cavity Amp/Color Description F1 15 Amp Blue Instrument Cluster Battery Feed F2 10 Amp Red Spare F3 10 Amp Red Ignition Run/ Start for Next Generation Controller (NGC), Integrated Power Module (IPM), AC Relay and Fuel Pump Relay F4 10 Amp Red Door Node and Non-Memory Power Mirror Switch Battery Feed F5 (2) 10 Amp Red Airbags (2 Fuses in Yellow Holder) F6 2 Amp Clear Ignition Run/ Start Unlock F7 25 Amp Natural Radio Battery Feed F8 10 Amp Red Ignition Run/ Start for Cluster/Transfer Case/Seat Sw. Back lighting F9 10 Amp Red Satellite Digital Audio Receiver (SDAR)/Digital Video Disc (DVD) Battery Feed F10 10 Amp Red Spare F11 10 Amp Red Heated Mirrors F12 20 Amp Yellow Cluster Battery Feed F13 10 Amp Red Ignition Run HVAC Module/ Heated Rear Glass (EBL) Relay F14 10 Amp Red ABS Module Ignition Run F15 15 Amp Blue Battery Feed Blue tooth, Compass/Trip Computer (CMTC), Sentry Key Diagnostics F16 20 Amp Yellow Reconfigurable Power Outlets F17 20 Amp Yellow Ignition Run / Rear Park Assist / Second Row Heated Seats F18 20 Amp Yellow Cigar Lighter Ignition F19 10 Amp Red Spare Fuse F20 15 Amp Blue Heating & Air Conditioning w/ATC Only Battery Feed F21 25 Amp Natural Amplifier Battery Feed CB1 25 Amp Circuit Breaker Sunroof Motor, Power Window
This content requires JavaScript and a valid membership to view.
Assignment of fuses in the PDC (2007, 2008, 2009)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Cavity Cartridge Fuse / Relay Mini Fuse Description 1 30 Amp Pink Starter 2 30 Amp Pink Front Wiper 3 40 Amp Green Brake Batt 4 30 Amp Pink JB Feed Acc # 2 5 40 Amp Green Power Seats 6 30 Amp Pink Run Remote Relay Feed 7 40 Amp Green Blower Motor Relay Feed 8 40 Amp Green JB Feed Acc Delay 9 Spare 10 30 Amp Pink ASD 11 40 Amp Green Power Liftgate ( If Equipped) 12 40 Amp Green JB Feed / Heated Rear Glass (EBL)/ T Case Brake 13 30 Amp Pink JB Feed RR 14 40 Amp Green ESP Pump 15 50 Amp Red JB Feed 16 10 Amp Red Spare 17 Spare 18 20 Amp Yellow Fuel Pump 19 20 Amp Yellow Next Generation Controller (NGC) 20 25 Amp Clear 115v Power Inverter 21 20 Amp Yellow ABS Batt 22 20 Amp Yellow Next Generation Controller (NGC) Batt 23 20 Amp Yellow Trailer Tow 24 15 Amp Blue A/C Clutch 25 15 Amp Blue Stop Lamp Switch 26 Spare 27 20 Amp Yellow Run/Start Relay Feed 28 Spare 29 Relay Run Start 30 Relay Run Remote 31 Spare 32 Relay Starter 33 Relay Electronic Automatic Transaxle (EATX) 34 Relay AC Clutch 35 Relay Fuel Pump 36 Spare 37 Relay Stop Lamp Switch 38 Spare 39 Relay Blower Motor 40 Relay Auto Shut Down (ASD)
This content requires JavaScript and a valid membership to view.
Assignment of fuses in the IPM (2007, 2008, 2009)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Cavity Cartridge Fuse / Relay Mini Fuse Description 1 Relay Wiper On/Off 2 Relay Wiper Hi/Lo 3 Relay Horn 4 Relay Rear Wiper 5 Relay Lt Trailer-Tow Stop/ Turn 6 Relay Rt Trailer-Tow Stop/ Turn 7 Relay Park Lamps 8 10 Amp Red Lt Park Lamps 9 10 Amp Red Trailer-Tow Park Lamps 10 10 Amp Red Rt Park Lamps 11 Relay Radiator Fan Hi 12 20 Amp Yellow Front Control Module (FCM) Batt #4 13 20 Amp Yellow Front Control Module (FCM) Batt #2 14 20 Amp Yellow Adjustable Pedal 15 20 Amp Yellow Ft Fog Lamps 16 20 Amp Yellow Horn 17 20 Amp Yellow Rear Wiper 18 20 Amp Yellow Front Control Module (FCM) Batt #1 19 20 Amp Yellow Lt Trailer-Tow Stop/ Turn 20 20 Amp Yellow Front Control Module (FCM) Batt #3 21 20 Amp Yellow Rt Trailer-Tow Stop/ Turn 22 30 Amp Pink Front Control Module (FCM) BATT # 5 23 40 Amp Green Radiator Fan 24 Relay Radiator Fan Lo 25 Relay Ft Fog Lamps 26 Relay Adjustable Pedal 27 30 Amp Green Ignition Off Draw (IOD) #1 28 30 Amp Green Ignition Off Draw (IOD) #2 29 Spare 30 Spare
This content requires JavaScript and a valid membership to view.
