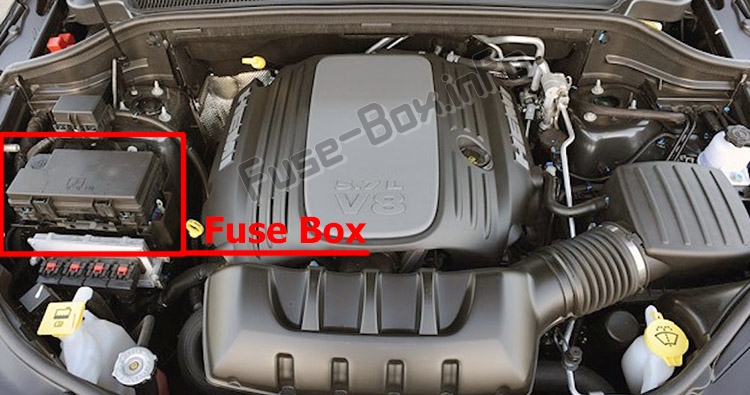

Explore Dodge Durango fuse box diagrams in this focused guide that highlights the electrical layout of the early third-generation models. Here we cover the pre-facelift Dodge Durango (2010–2019) and provide fuse diagrams for 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018 and 2019 , along with the location of the fuse panels and the assignment of each fuse , giving you a clear and organized reference for maintenance and troubleshooting.

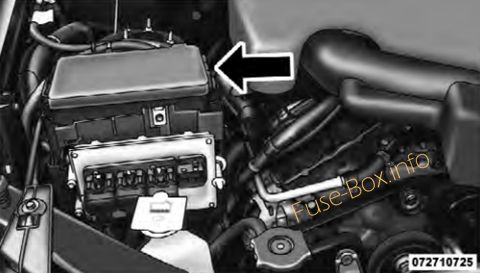

Integrated Power Module (2011-2013) A description of each fuse and component may be stamped on the inside cover, otherwise the cavity number of each fuse is stamped on the inside cover.

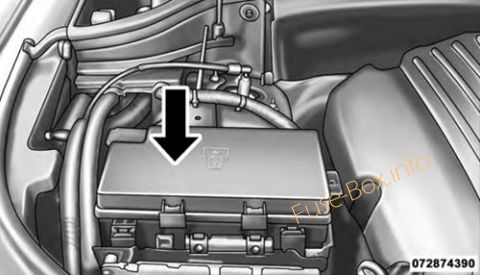

Power Distribution Center (2014-2019) A description of each fuse and component may be stamped on the inside cover, otherwise the cavity number of each fuse is stamped on the inside cover.

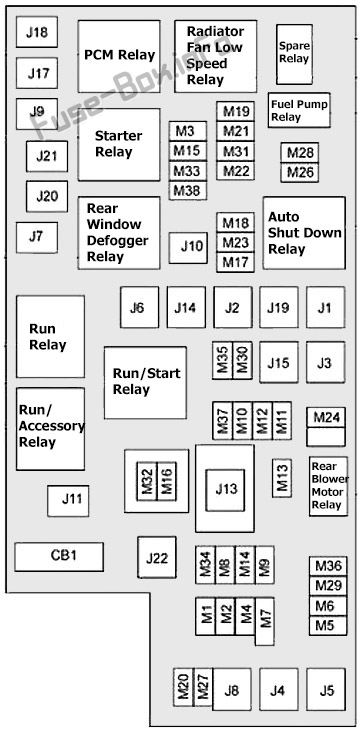

Assignment of cartridge fuses in the IPM (2011, 2012, 2013)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
Cavity Cartridge Fuse Description J01 40 Amp Green Air Suspension J02 30 Amp Pink Power Liftgate Module J03 30 Amp Pink Trailer Tow J04 25 Amp Natural Driver Door Node J05 25 Amp Natural Passenger Door Node J06 40 Amp Green Antilock Brakes Pump/Stability Control System J07 30 Amp Pink Antilock Brakes Valve/Stability Control System J08 40 Amp Green Power Seat J09 30 Amp Pink E-Brake J10 30 Amp Pink Headlamp Wash Relay Contact J11 30 Amp Pink Drive Train Control Module J12 30 Amp Pink Rear Defroster J13 60 Amp Yellow Main Ignition Off Draw (IOD) J14 20 Amp Blue Trailer Tow Lamps/ Park Lamps J15 40 Amp Green Front Cabin Fan/ Blower J17 40 Amp Green Starter Motor Solenoid J18 20 Amp Blue Powertrain Control Module/ Powertrain Control Module Transmission Range J19 60 Amp Yellow Radiator Fan Motor HI/Radiator Fan Motor Low J20 30 Amp Pink Front Wiper J21 20 Amp Blue Front/Rear Washer Control J22 25 Amp Natural Sunroof Module
This content requires JavaScript and a valid membership to view.
Assignment of mini fuses in the PDC (2011, 2012, 2013)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amps Description M1 15 Amp Blue Stop Lamp M2 20 Amp Yellow Electronic Limit Slip Differential/Air Suspension M3 20 Amp Yellow Liftgate Unlock/DRL Relay M5 25 Amp Natural 115V AC Power Inverter M6 20 Amp Yellow Rain Sensor/Cigar Lighter M7 20 Amp Yellow Power Outlet #2 (Switchable) M8 20 Amp Yellow Front Heated Seat & Steering Wheel M9 20 Amp Yellow Rear Heated Seats M10 15 Amp Blue Video/Universal Garage Door Opener M11 10 Amp Red Heating, Ventilation & Air Conditioning (Climate Control System) M12 30 Amp Green Radio/Amplifier M13 20 Amp Yellow Instrument Cluster M14 20 Amp Yellow Back Up Camera M15 20 Amp Yellow Power Seat Mod ule(s)/Adaptive Cruise Control/Audio Telematics/Daytime Running Lights Relay/Air Suspension Module/Instrument Cluster M16 10 Amp Red Occupant Restraint Controller M18 15 Amp Blue Stop Lamp (2012, 2013) M19 25 Amp Natural Automatic Shutdown 1 and 2 M20 15 Amp Blue Instrument Cluster M21 20 Amp Yellow Automatic Shutdown 3 M22 10 Amp Red Horns (Low/High) -Right M23 10 Amp Red Horns (Low/High) -Left M24 25 Amp Natural Rear Wiper M25 20 Amp Yellow Fuel Pump Motor Output/Diesel Lift Pump (Export Only) M26 10 Amp Red Driver Door Switch Bank M27 10 Amp Red Ignition Switch/ Wireless Control Module/Keyless Entry Module M28 15 Amp Blue Powertrain Controller/ Transmission Controller M29 10 Amp Red Tire Pressure Monitor M30 15 Amp Blue J1962 Diag Connector M31 20 Amp Yellow Backup Lamps M32 10 Amp Red Occupant Restraint Controller M33 10 Amp Red Powertrain Controller/ Transmission Controller M34 10 Amp Red Park Assist Module/ Climate Control System Module/IR Sensor/Compass Module M35 15 Amp Blue LH Rear Parklamps M36 20 Amp Yellow Power Outlet M37 10 Amp Red Antilock Brakes/ Stability Control System Module/ Stop lamp Switch Sensor M38 25 Amp Natural All Door Lock &Unlock
This content requires JavaScript and a valid membership to view.

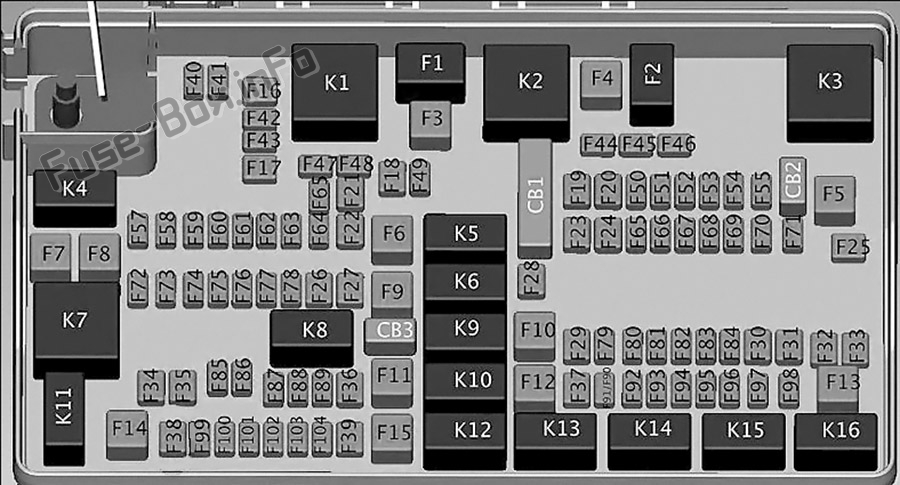

Assignment of cartridge fuses in the PDC (2014, 2015, 2016, 2017, 2018, 2019)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amps Description F03 60A Radiator Fan F05 40A Compressor for Air Suspension F06 40A Anti-lock Brakes / Electronic Stability Control Pump F07 40A / 30A 2014-2015: Starter Solenoid (40A), 2016-2019: Starter Solenoid (30A) F08 40A / 20A 2014: Emission Sensors (40A), 2015-2019: Emission Sensors (20A) F09 40A / 30A 2014: Diesel Fuel Heater (40A), 2015-2019: Diesel Fuel Heater (30A) F10 40A Body Controller / Exterior Lighting #2 F11 30A Trailer Tow Electric Brake F12 40A Body Controller #3 / Power Locks F13 40A Blower Motor Front F14 40A 2014: Body Controller #4 / Power Locks, 2015-2019: Exterior/Interior Lights F17 30A 2014: Headrest Release, 2015-2019: Headlamp Washer F19 20A 2015-2019: Headrest Solenoid F20 30A Passenger Door Module F22 20A Engine Control Module F23 30A 2014: Body Controller #1, 2015-2019: Interior Lights #1 F24 30A Driver Door Module F25 30A Front Wipers F26 30A ABS / Stability Control Module / Valves F28 20A Trailer Tow Backup Lights F29 20A Trailer Tow Parking Lights F30 30A 2014-2015: Trailer Tow Receptacle, 2016-2019: Expanded Trailer Tow Support F32 30A Drive Train Control Module F34 30A Slip Differential Control F35 30A Sunroof F36 30A Rear Defroster F37 30A / 25A 2014: Rear Blower (30A), 2015-2019: Rear Blower (25A) F38 30A Power Inverter 115V AC F39 30A Power Liftgate F15 40A 2019: LTR Cooling Pump (only appears 2019)
This content requires JavaScript and a valid membership to view.
Assignment of mini fuses in the PDC (2014, 2015, 2016, 2017, 2018, 2019)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amps Description F40 10A Daytime Running Lights / Headlamp Leveling F42 20A Horn F44 10A Diagnostic Port F46 10A Tire Pressure Monitor F49 10A Integrated Central Stack / Climate Control F50 20A Air Suspension Control Module F51 10A / 15A 2014-2015: 10A, 2016-2019: 15A Ignition Node / RF Hub / Steering Lock F52 5A Battery Sensor F53 20A Trailer Tow – Left Turn / Stop Lights F55 10A 2015-2019: DTV / DSRC F56 15A Additional Content (Diesel) F57 15A / 20A 2014-2015: HID LH (15A), 2016-2019: NOx Sensor (20A) F58 15A HID Headlamps LH F59 10A Purging Pump (Diesel) F60 15A Transmission Control Module F61 10A Transmission Control Module / PM Sensor F62 10A Air Conditioning Clutch F63 20A Ignition Coils / Urea Heater F64 25A Fuel Injectors / Powertrain F66 10A Sunroof / Passenger Window / Rain Sensor / USB / DSRC / DTV (expanded 2019) F67 15A CD / DVD / Bluetooth / USB Charging F68 20A Rear Wiper Motor F69 15A Spotlight Feed F70 20A Fuel Pump Motor F71 30A Audio Amplifier / ANCM F72 10A PCM (2016-2019 only) F73 15A HID Headlamps RH F75 10A Dual Battery Control (2016-2019) F76 10A ABS / ESC F77 10A Drivetrain Control / Front Axle Disconnect F78 10A Engine Control Module / Electric Power Steering F80 10A Garage Door Opener / Compass / Anti-intrusion / Siren (2019 expanded) F81 20A Trailer Tow Right Turn / Stop F82 10A Steering Module / Cruise Control / DTV F83 10A Fuel Door F84 15A Switch Bank / Instrument Cluster F85 10A Airbag Module F86 10A Airbag Module F87 10A Air Suspension / Trailer Tow / Steering Module F88 15A Instrument Cluster / SGW / ITBM (2019 expanded) F90/F91 20A Rear Power Outlet (Selectable) F92 10A Rear Console Lamp F93 20A Cigar Lighter F94 10A Shifter / Transfer Case Module F95 10A 2014-2016: Park Assist, 2017-2019: Rear Camera / Blind Spot F96 10A Rear Seat Heater Switch / Flashlamp Charger F97 25A / 20A 2014: 25A, 2015-2019: 20A (Rear Heated Seats & Heated Wheel) F98 25A / 20A 2014: 25A, 2015-2019: 20A (Front Heated Seats / Vent Seats 2019) F99 10A Climate Control / Driver Assistance / HALF / Park Assist F100 10A Active Damping F101 15A Electrochromatic Mirror / Smart High Beams / Temp Sensor (2019 expanded) F102 15A Spare (2019 only) F103 10A Cabin Heater / Rear HVAC F104 20A Power Outlets (IP/Console/Cargo)
This content requires JavaScript and a valid membership to view.
