Explore Dodge Durango fuse box diagrams in this streamlined guide built to help you understand the electrical system of the latest updated model. Here we cover the facelifted third-generation Dodge Durango (2020–2026) and provide fuse diagrams for 2020, 2021, 2022, 2023, 2024, 2025 and 2026 , along with the location of the fuse panels and the assignment of each fuse , giving you an organized reference for electrical maintenance and troubleshooting.

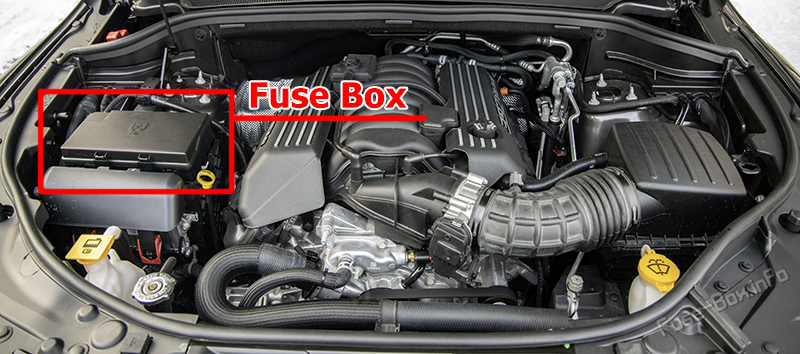

The Power Distribution Center is located in the engine compartment near the battery jump start posts.
This center contains cartridge fuses, micro fuses, relays, and circuit breakers. A description of each fuse and component may be stamped on the inside cover, otherwise the cavity number of each fuse is stamped on the inside cover

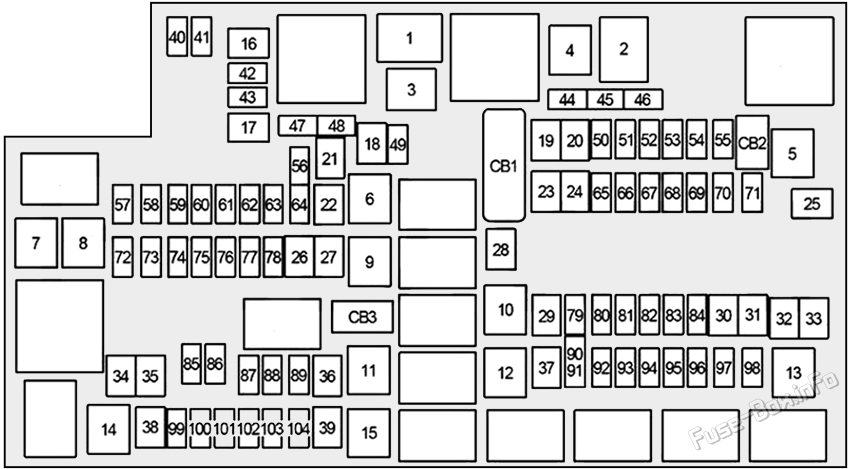

Assignment of the fuses in the Power Distribution Center
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amps Description F01 – Spare F02 – Spare F03 60A Yellow Radiator Fan F04 60A Yellow 2021-2026: ESC Pump (NON-SRT) F05 40A Green Air Suspension Compressor F06 40A Green ABS Pump (SRT) F07 30A Pink Starter Solenoid F08 – Spare F09 30A Pink Diesel Fuel Heater (Diesel Engine Only) / Brake Vacuum Pump F10 40A Green Body Controller (CBC) #2 / Exterior Lighting F11 30A Pink Trailer Tow Electric Brake F12 40A Green Body Controller (CBC) #3 / Power Locks F13 40A Green Blower Motor Front F14 40A Green Body Controller (CBC) #4 / Exterior Light F15 40A Green Low Temperature Radiator (LTR) Engine Cooling Pump* F16 – Spare F17 30A Pink Headlamp Washers F18 – Spare F19 20A Blue Headrest Solenoid F20 30A Pink Passenger Door Module F21 – Spare F22 20A Blue 2020: Engine Control Module F23 30A Pink Body Controller (CBC) #1 / lnterior Light F24 30A Pink Driver Door Module F25 30A Pink Front Wipers F26 30A Pink ESP/ECU Valves F27 – Spare F28 20A Blue Trailer Tow Backup Lights F29 20A Blue Trailer Tow Parking Lights F30 30A Pink Trailer Tow (Receptacle) / Trailer Tow (Separate E-Brake) / Trailer Tow (BUX) F31 – Spare F32 30A Pink Drive Train Control Module F33 – Spare F34 30A Pink Slip Differential Control (ELSD) F35 30A Pink Sunroof F36 30A Pink 2020: Rear Defroster/ Electronic BackLight (EBL) F37 25A Clear HVAC Rear Blower Motor F38 30A Pink Power Inverter 115 Volt AC F39 30A Pink Power Liftgate
This content requires JavaScript and a valid membership to view.
Assignment of the mini-blade fuses in the Power Distribution Center
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amps Description F40 10A Red Daytime Running Lights / Headlamp Leveling F41 – Spare F42 20A Yellow Horn F43 – Spare F44 10A Red Diagnostic Port F45 5A Tan Cyber Security MOD F46 – Spare F47 – Spare F48 – Spare F49 10A Red Integrated Central Stack / Climate Control F50 20A Yellow Air Suspension Control Module / Slip Differential (ELSD) F51 15A Blue KIN / RF HUB / Steering Column Lock (ESCL) F52 – Spare F53 20A Yellow Trailer Tow – Left Turn / Stop Lights F54 – Spare F55 – Spare F56 15A Blue PCM F57 20A Yellow NOX Sensor / PM Sensor / Fuel HTR F58 15A Blue HID Headlamps LH F59 10A Red SCR Pumps Relay F60 15A Blue Transmission Control Module (TCM) F61 10A Red 2020: Transmission Control Module/PM Sensor (Diesel Engine Only) F62 10A Red Air Conditioning Clutch F63 20A Yellow 2020-2021: Ignition Coils / Ignition Coil Capacitors / Short Runner Valve Actuator – If Equipped (Gas); Urea Heater (Diesel) F64 25A Clear Fuel Injectors / Powertrain (PCM/ECM) F65 – Spare F66 10A Red Sunroof / Rain Sensor (LRSM) / Inside Rear View Mirror (RVM) / USB Port / DSCR / DTV / WCP F67 15A Blue CDM / UCI Port / USB Port F68 20A Yellow Rear Wiper Motor F69 15A Blue Spotlight Feed F70 20A Yellow Fuel Pump Motor F71 30A Green Amplifier / ANCM F72 10A Red ECM/PCM F73 15A Blue HID Headlamp RH F74 – Spare F75 10A Red Dual Battery Control F76 10A Red 2020: Anti-lock Brakes / Electronic Stability Control F77 10A Red 2020: Drivetrain Control Module / Front Axle Disconnect Module F78 10A Red Engine Control Module (ECM) / Electric Power Steering (EPS) / PCM F79 – Spare F80 10A Red 2020-2022: Universal Garage Door Opener (UGDO) / Anti-Intrusion Module / Siren F81 20A Yellow Trailer Tow Right Turn/Stop Lights F82 10A Red Steering Column Control Module (SCCM) / Cruise Control / DTV F83 10A Red Fuel Door F84 15A Blue Instrument Cluster F85 10A Red Airbag Module (ORC) F86 10A Red Airbag Module (ORC) F87 10A Red Air Suspension MOD F88 15A Blue Instrument Panel Cluster / SGW / ITBM F89 – Spare F90 – Spare F91 20A Yellow 2020: Power Outlet (Rear Seats) Selectable F92 10A Red 2020: Rear Console Lamp F93 20A Yellow Cigar Lighter F94 10A Red Shifter / Transfer Case Module F95 10A Red Rear Camera / Blind Spot Sensor F96 10A Red 2020: Rear Seat Heater Switch / Flashlamp Charger F97 20A Yellow Rear Heated Seats / Heated Steering Wheel F98 20A Yellow Ventilated Seats / Front Heated Seats F99 10A Red Climate Control / Driver Assistance Systems Module / HALF / Parktronx F100 10A Red Active Damping F101 15A Blue 2020-2022: ECCM / SMRT Hl-Beams F102 15A Blue Spare F103 10A Red 2020: Cabin Heater (Diesel Engine Only) / Rear HVAC F104 20A Yellow Power Outlets (Instrument Panel/Center Console/Rear Cargo)
